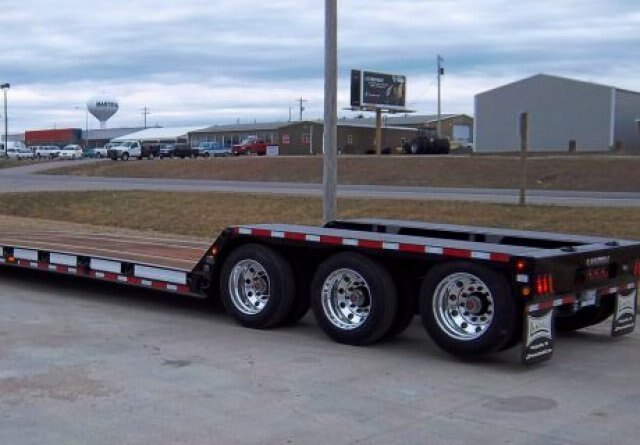

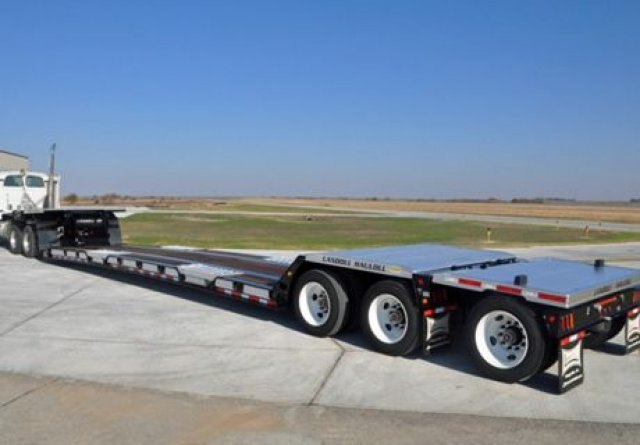

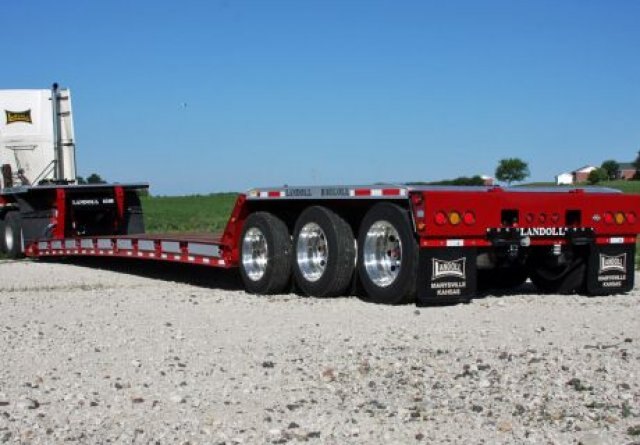

The 835 Series Ag Detachables are designed with an innovative four-beamframe and gooseneck which give the operator versatility required to safely load and legally transport today’s heavy, wide and tall equipment. The 835 can be a rigid 3-axle or be equipped with an optional flip third axle.
Versatility

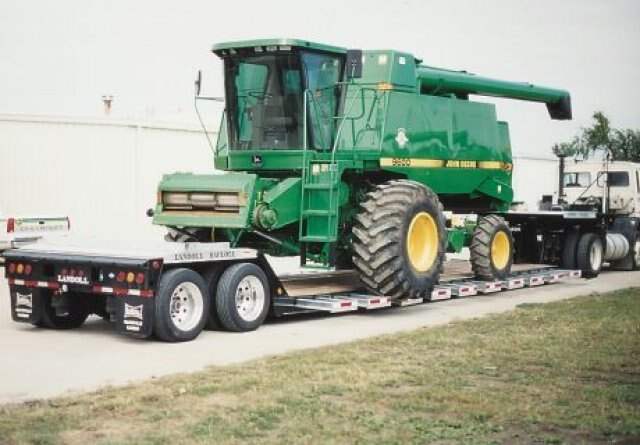

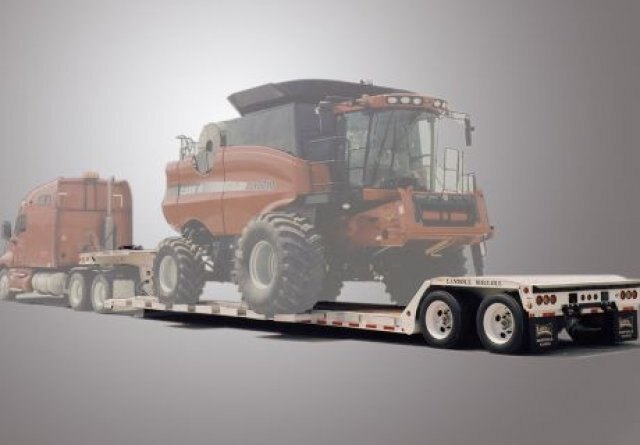

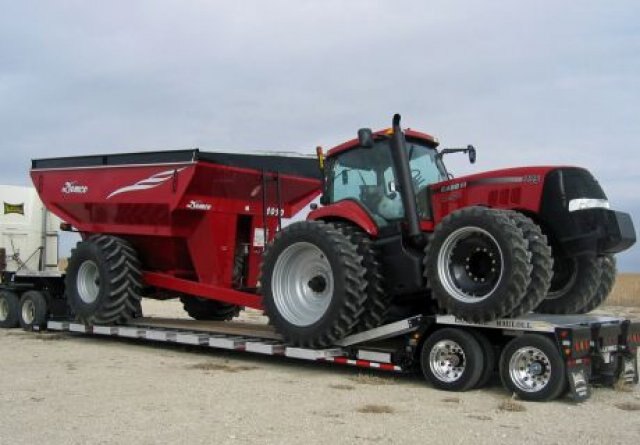

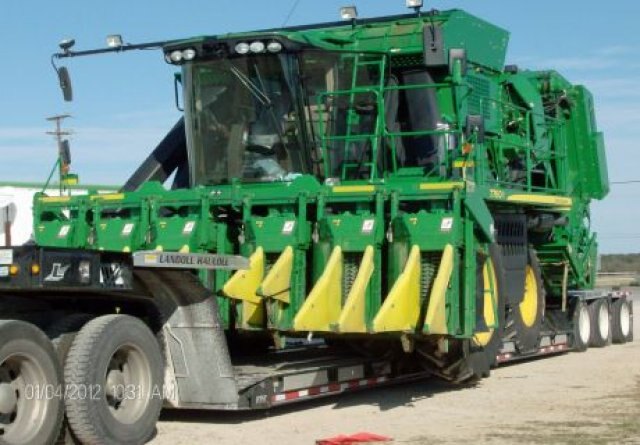

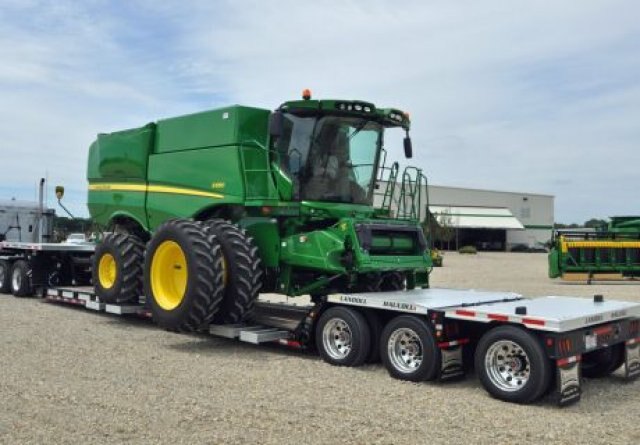

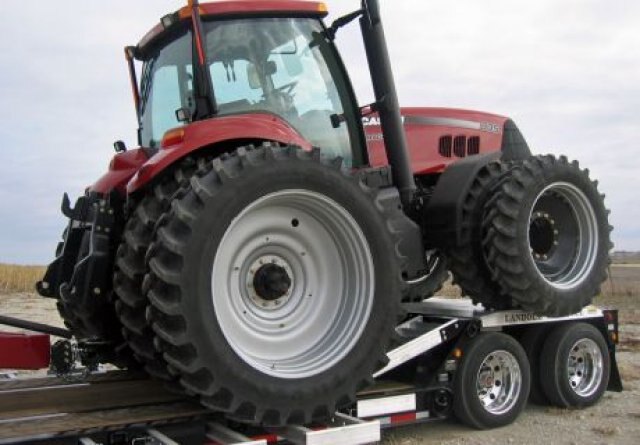

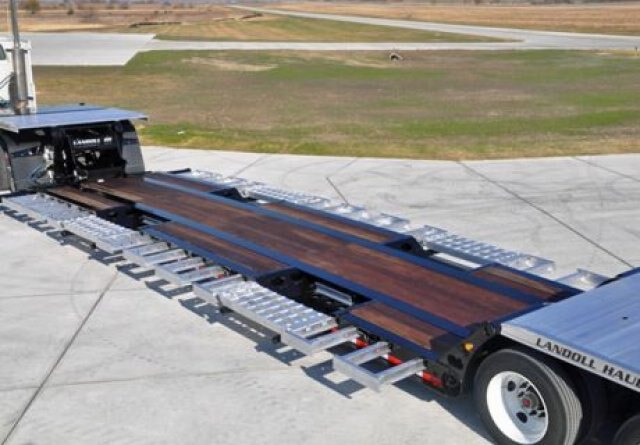

The 835Ag frame design features a flat deck with a loaded height of 18-1/4” off the ground. Coupled with a low tare weight, The 835 can haul the latest combines, tillage, haying equipment and planters with up to 32' of useable deck space.
Safety and Patented Gooseneck Design

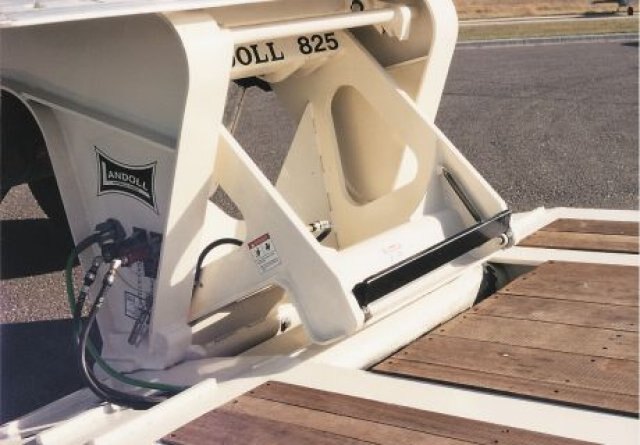

A single hydraulic control lever lowers, detaches and activates the patented gooseneck carrier arms, which allows the ease and simplicity of detaching and loading directly onto the lower deck which is only 11¼” off the ground. You will never have to drive up and over the trunnion again.
Features
*Capacity: 35 Tons
Deck Rating: 60,000 lbs. in 12'
Estimated Base Weight: 18,900 lbs., (835AG) +/- 3%
Main Frame: Fabricated 11-1/4" Beam, 100,000 PSI Yield Flanges
Crossmembers: 5" x 3" Rec. Tube on 18" Centers
Tires: 255/70R 22.5 LRH Double Coin
Rims: 22.5x8.25 Steel
Wheels: Hub Pilot / Steel Outboard Brake Drums
Axles: 25,000 lb. Capacity
Suspension: Neway Air Ride 25,000 lb. Capacity
Brakes: 16.5x7 Full Air / Spring Brakes on Both Axles, ABS 4S2M
Oil Seal Hubs: Internal Mated Assembly
Pin Setting: 15"
Swing Clearance: 84"
Loaded Ground Clearance: Inches
Loaded Deck Height: 18-1/4"
Width: 102"

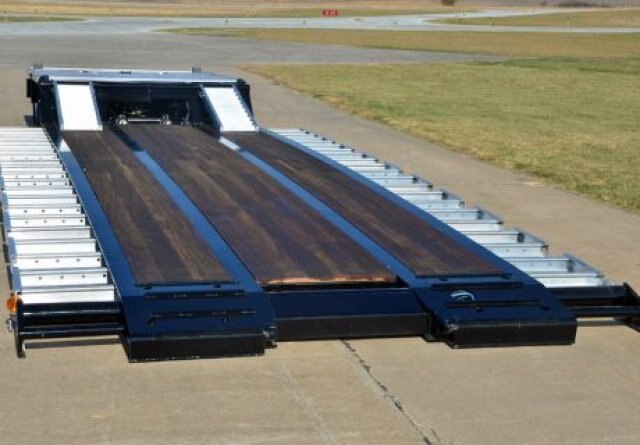

Decking: 1-1/2" Apitong, Full Width

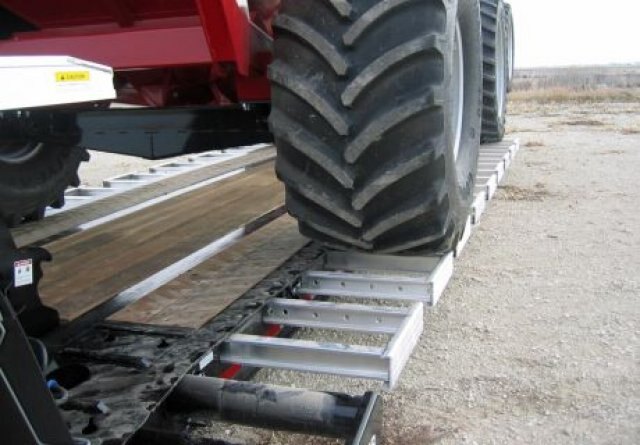

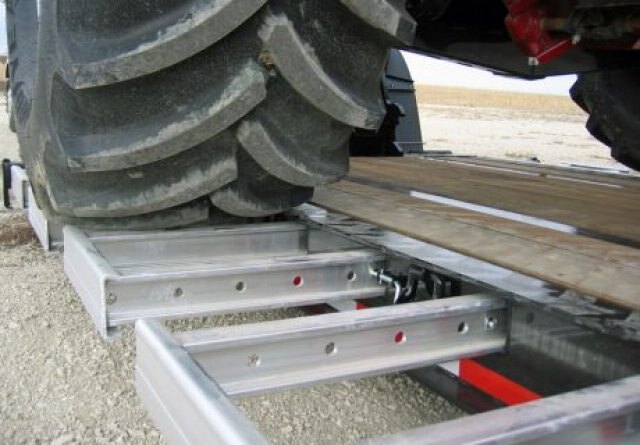

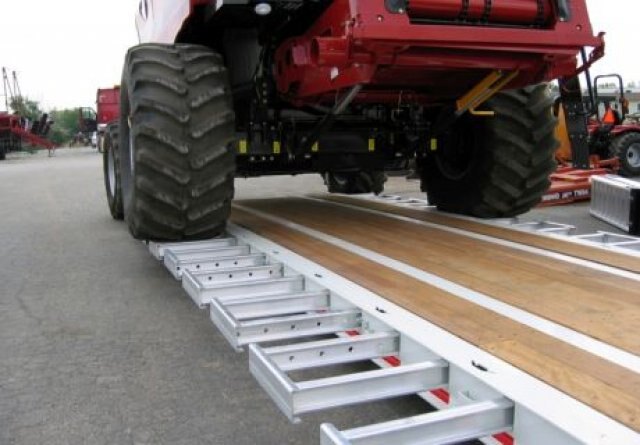

Side Extension: 27" Aluminum Pullouts (Lower Deck)

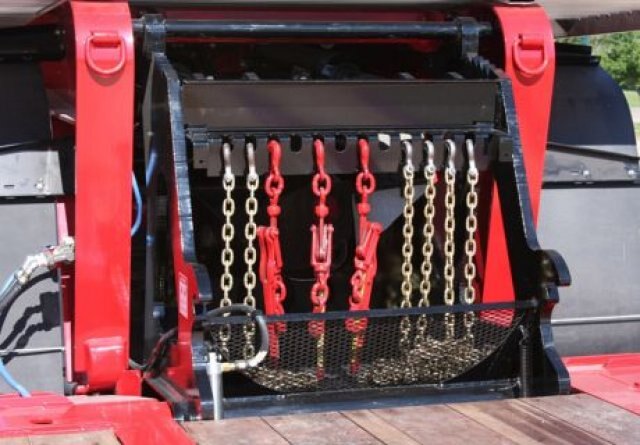

Gooseneck Tie Downs: D-Rings: 2 Each at Front Corner; 2 Each at Back
Lower Deck Tie Downs: Side Mounted Nylon Strap / Chain Tie Downs; Side Mounted D-Rings on 36" Centers
Rear Trunnion Tie Downs: D-Rings: 2 Each at Base Flush Mounted on Top of Inner Beams; 2 Each Web Mounted on Top; 2 Each Rear Flush Mounted on Top of Inner Beams; 2 Each Top of Slope (Outer Web)
Wiring Harness: Grote "Ultra-Blue Seal" - 7-Year Warranty
Lights: Grote "SuperNova" LED - 10-Year Warranty
Finish: Steel Grit Shot Blast to Bright Metal
Powder Coat Color: White / Black / Yellow / Blue / Red / Green
Decals: Hi-Visibility Reflective Package
Tool Box: None Standard
Cylinders: 2 - 6" x 30" Horizontal Mount 70,000 lb. Capacity Each, Centralized Grease System, Powder Coat Black
