ID # 13239956

Landoll Detachable Model 825D-AG

  • Landoll Detachable Model 825D AG
  • Landoll Detachable Model 825D AG
  • Landoll Detachable Model 825D AG
  • Landoll Detachable Model 825D AG
  • Landoll Detachable Model 825D AG
  • Landoll Detachable Model 825D AG
  • Landoll Detachable Model 825D AG
  • Landoll Detachable Model 825D AG
  • Landoll Detachable Model 825D AG
  • Landoll Detachable Model 825D AG
  • Landoll Detachable Model 825D AG
  • Landoll Detachable Model 825D AG
  • Landoll Detachable Model 825D AG
  • Landoll Detachable Model 825D AG
  • Landoll Detachable Model 825D AG
  • Landoll Detachable Model 825D AG
  • Landoll Detachable Model 825D AG
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Landoll_Trailer_Detachable_825D-AG_KinzePlanter_270x160.jpg Proven Solutions



800 Series Ag Detachable Trailers are designed with an innovative four-beamframe and gooseneck give the operator versatility required to safely load and legally transport today’s heavy, wide and tall equipment.

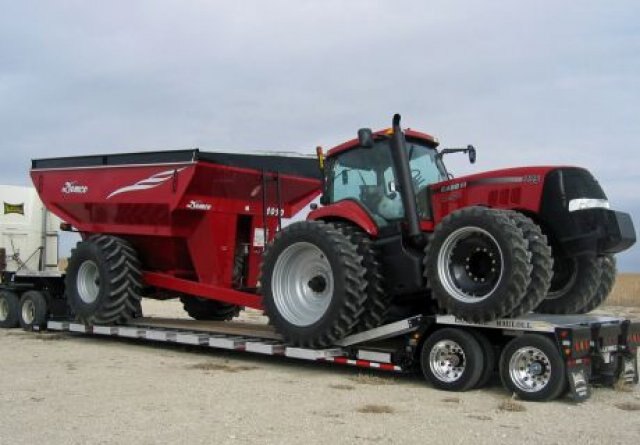

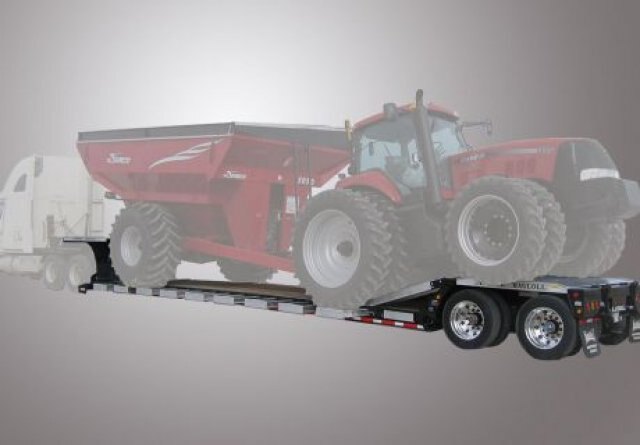

Versatility Landoll_Trailer_Detachable_825D-AG_GrainCart_270x160.jpg

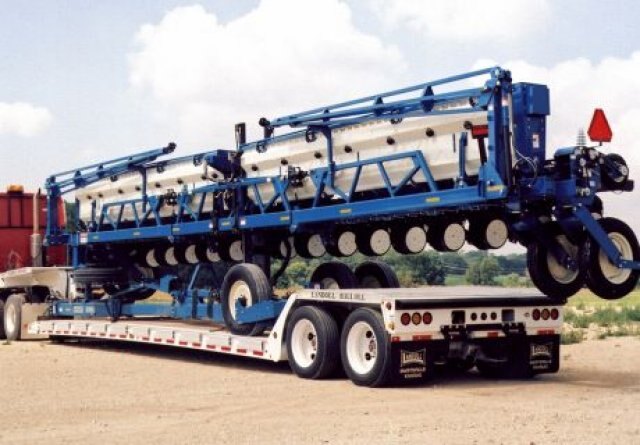

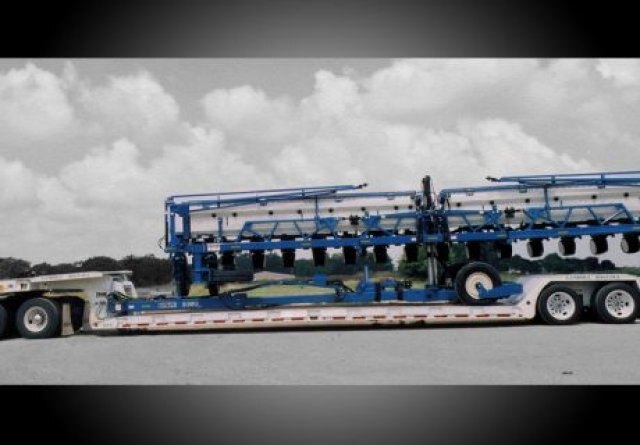

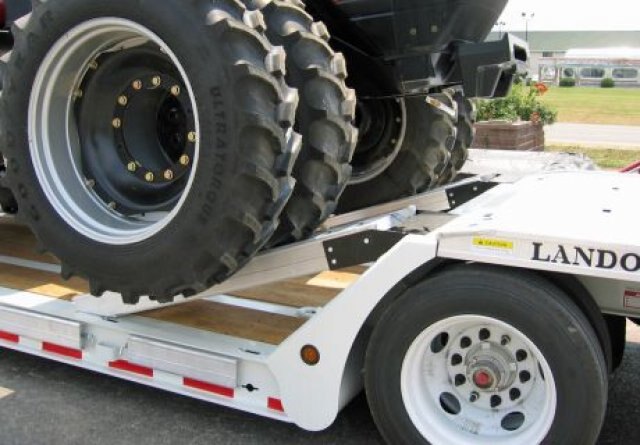

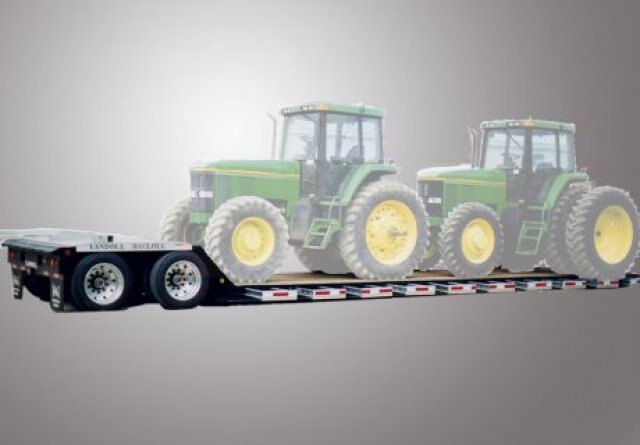

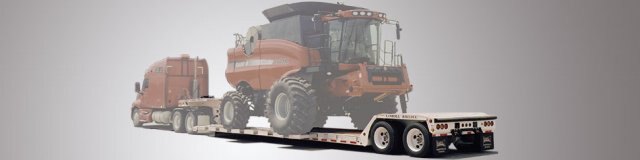

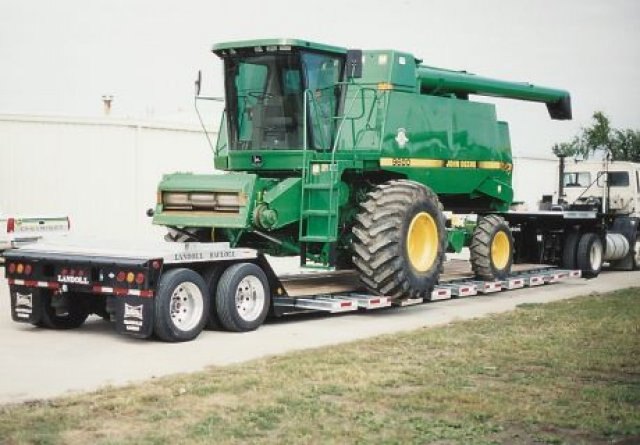

 The 800 frame design features a flat deck with a loaded height of 17” off the ground. Coupled with a low tare weight, The 825 can haul the latest combines, tillage, haying equipment and planters with up to 32' of useable deck space.

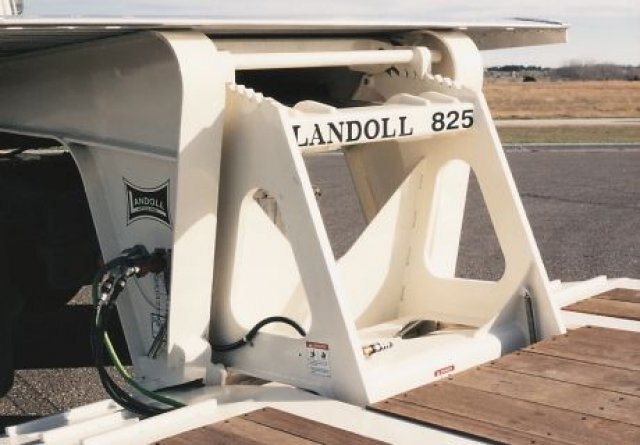

Safety and Patented Gooseneck Design

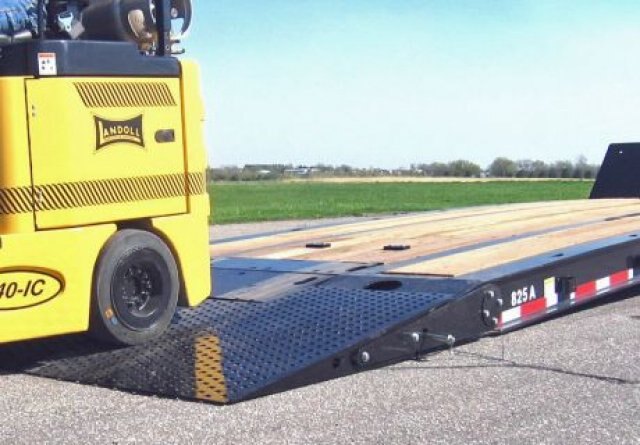

A single hydraulic control lever lowers, detaches and activates the patented gooseneck carrier arms, which allows the ease and simplicity of detaching and loading directly onto the lower deck which is only 11¼” off the ground. You will never have to drive up and over the trunnion again.
  Features
  • *Capacity: 55,000 lbs.
  • Deck Rating: 50,000 lbs. in 16'
  • Estimated Base Weight: 16,400 lbs. (49') 16,950 lbs. (51')
  • Main Frame: Fabricated 10", 100,000 PSI Flange
  • Crossmembers: 5" x 3" High Tensile Tubing on 18" Centers
  • Tires: 255/70R 22.5 LRH Double Coin
  • Rims: 22.5x8.25
  • Wheels: Hub Pilot / Steel Outboard Hubs
  • Axles: 2 - 25,000 lb. Tandem Dual Tire, Oil Bath Bearings

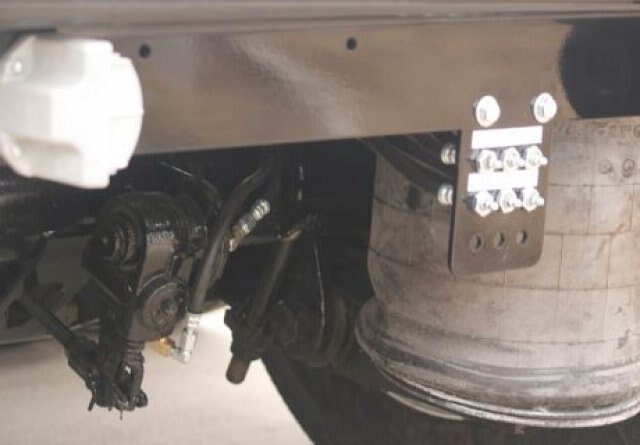

  • Suspension: Neway Air Ride 25,000 lb. Capacity
  • Brakes: 16.5x7 Full Air / Spring Brakes Both Axles, ABS 4S2M, Automatic Slack Adjusters
  • Oil Seal Hubs: Internal Mated Assembly
  • Pin Setting: 15"
  • Swing Clearance: 84"
  • Loaded Ground Clearance: 7"
  • Loaded Deck Height: 17"
  • Width: 102"
  • Decking: 1-1/2" Apitong, Full Width

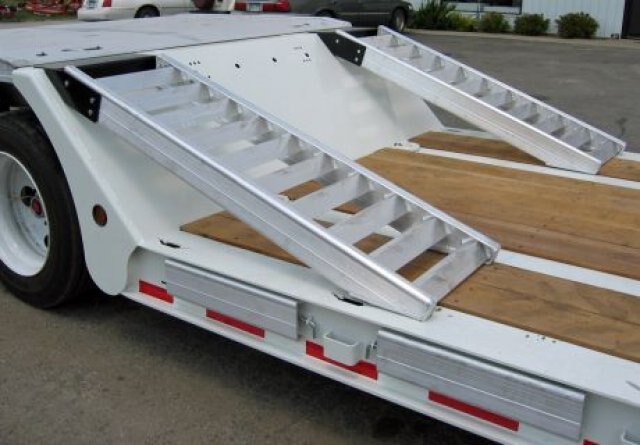

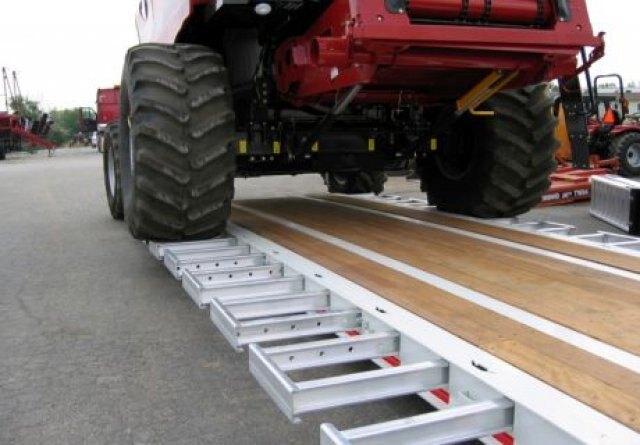

  • Side Extension: 27" Aluminum Telescoping Extensions (Lower Deck) (Capacity-7000 lb. EACH Extension)
  • Gooseneck: 12'
  • Electrical: 7-Way Receptacle
  • Air: Glad Hand
  • Wiring Harness: Grote "Ultra-Blue Seal" - 7-Year Warranty

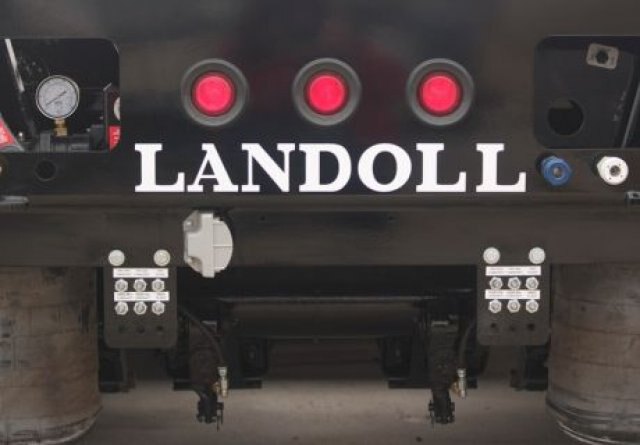

  • Lights: Grote "SuperNova" LED - 10-Year Warranty
  • Hydraulic Hook Up: Quick Couplers 2500 PSI / 17 GPM
  • Gooseneck Tie Downs: D-Rings: 2 Each Front Corner; 2 Each Back
  • Lower Deck Tie Downs: Double Keyhole Chain Slots Located on 36" Centers; Side Mounted Nylon Strap / Chain Tie Downs
  • Rear Trunnion Tie Downs: D-Rings: 2 Each at Base Flush Mounted on Top of Inner Beams; 2 Each at Rear Flush Mounted on Top of Inner Beams; 2 Each at Top of Slope on Outer Web
  • Finish: Steel Grit Shot Blast to Bright Metal
  • Powder Coat Color: White / Black / Yellow / Blue / Red / Green
  • Decals: Hi-Visibility Reflective Package
  • Tool Box: No Standard Tool Box
  • Cylinders: 2 - 6" x 30" Horizontal Mount 70,000 lb. Capacity Each, Centralized Grease System
  • Hitch: Automatic Gooseneck Lock Engagement

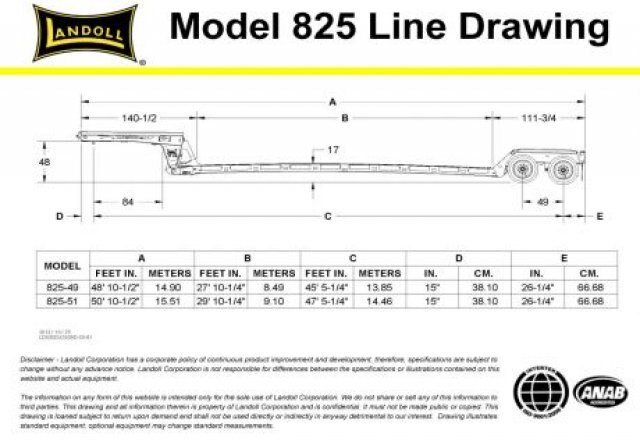

   Technical Specifications:



MODEL
CAPACITY
BASE WEIGHT
  DECK AXLES
TIRES & PLY RATING
825D-49'
27.5 Ton
18,485 Lbs. +/- 3%
 28' Lower 2 (8) 255/70R 22.5 LRH
825D-51' 27.5 Ton 20,415 Lbs. +/- 3% 30' Lower 2 (8) 255/70R 22.5 LRH



Specifications
Model
Detachable Model 825D-AG
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
