ID # 13239953

Landoll Detachable Model 327C

  • Landoll Detachable Model 327C
  • Landoll Detachable Model 327C
  • Landoll Detachable Model 327C
  • Landoll Detachable Model 327C
  • Landoll Detachable Model 327C
  • Landoll Detachable Model 327C
  • Landoll Detachable Model 327C
  • Landoll Detachable Model 327C
  • Landoll Detachable Model 327C
  • Landoll Detachable Model 327C
  • Landoll Detachable Model 327C
  • Landoll Detachable Model 327C
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

50 Ton Non-Ground Bearing Detachable



The Model 327 detachable trailer has triple axles with a 50-ton capacity and can haul loads safely and effectively.  Manufactured with only high tensile strength steel and high quality components, the Model 327 will last the long haul and retain its' resale value.

Design

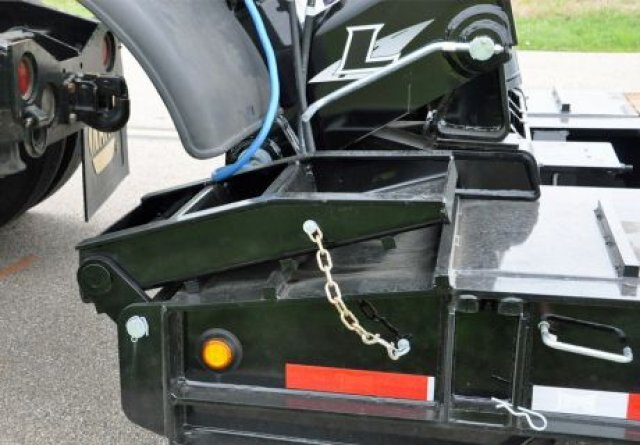

Landoll's detachable gooseneck is second to none in the problem solving category.  The rugged scraper style gooseneck with vertical lift cylinders and Landoll's unique fifth wheels lock assembly has the ability to get you hooked up at the roughest job site and on the road.

Gooseneck Design

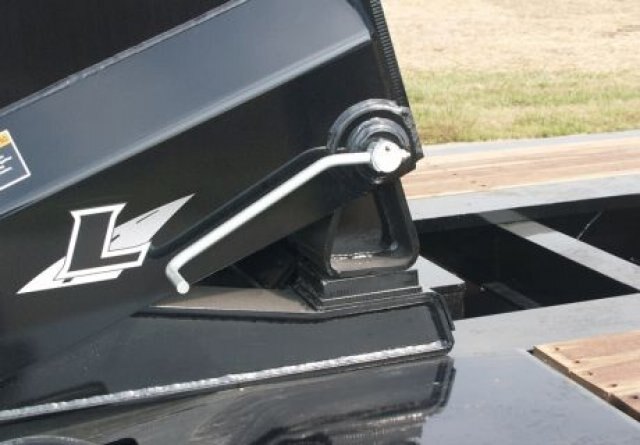

The Model 327 is equipped with a fifth Wheel Type Automatic Gooseneck Lock Engagement with Lock/Unlock Visual from Tractor Cab.
  Features
  • *Capacity 50 Tons
  • Deck Rating: 100,000 lbs. in 16'
  • Estimated Base Weight: 18,900 lbs. (48')
  • Main Frame: Fabricated 16", 100,000 PSI Flange
  • Crossmembers: 8" High Tensile I-Beams on 24" Centers
  • Tires: 255/70R 22.5 LRH Double Coin
  • Rims: 22.5x8.25
  • Wheels: Hub Pilot / Steel Outboard Brake Drums
  • Axles: 3 - 25,000 lb. Tandem Dual Tire, Oil Bath Bearings
  • Suspension: Neway Air Ride (AR80) Yoke Mount 25,000 lb. Capacity
  • Brakes: 16.5x7 Full Air / Spring Brakes (Rear Axles Only) ABS, 4S2M / Center Axle Indirect
  • Oil Seal Hubs: Internal Mated Assembly
  • Pin Setting: 15"
  • Swing Clearance: 84"
  • Loaded Ground Clearance: 8"
  • Loaded Deck Height: 24"
  • Width: 102"
  • Decking: 2" Nominal, Apitong Track Area
  • Gooseneck: 10' 7"
  • Air / Electrical: 7-Way Receptacle
  • Hydraulic Hook Up: Quick Coupler 2500 PSI / 17 GPM
  • Lights: Grote "SuperNova" LED - 10-Year Warranty
  • Wiring Harness: Grote "Ultra-Blue Seal" - 7-Year Warranty
  • Finish: Steel Grit Shot Blast to Bright Metal
  • Powder Coat Color: White / Black / Yellow / Blue / Red / Green

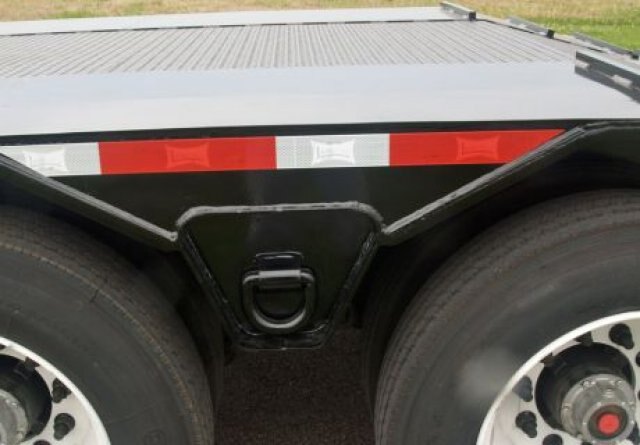

  • Tie Downs: 10 "D" Rings
  • Decals: Hi-Visibility Reflective Package

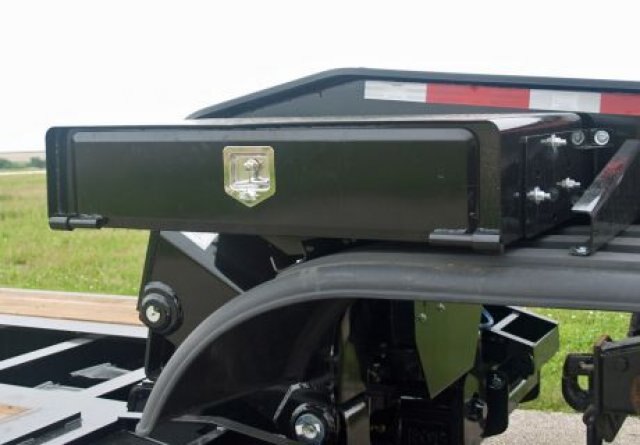

  • Tool Box: 41"W x 24"L x 10"D Between Main Frame

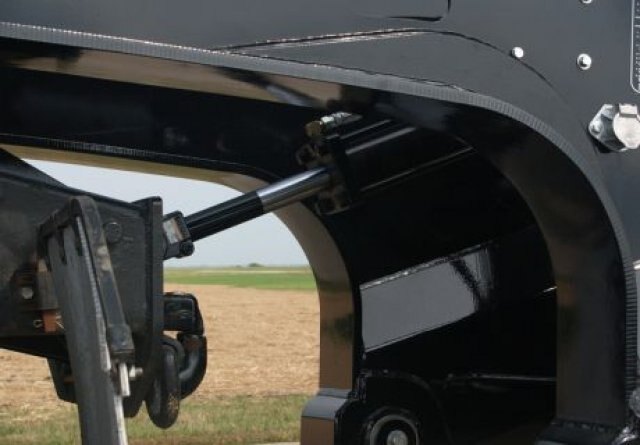

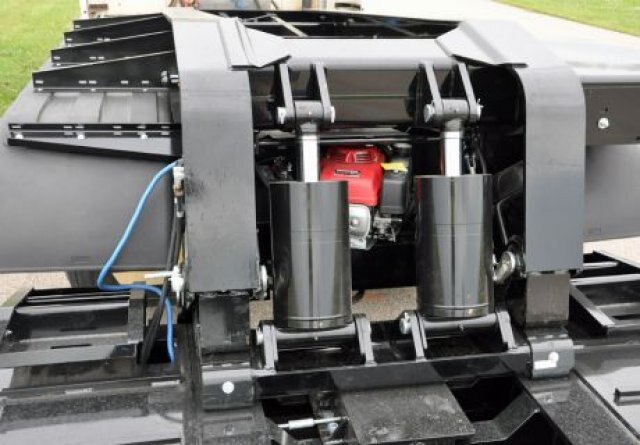

  • Cylinders: 2 - 8" x 8" Vertical Mount, Centralized Grease System; Powder Coat Black
  • Hitch: Fifth Wheel Kingpin

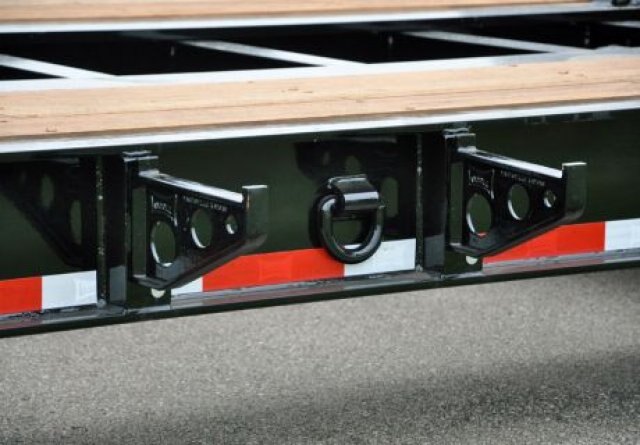

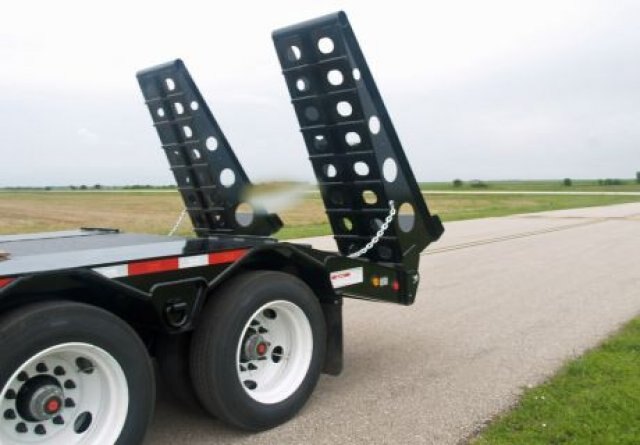

  • Accessories: Fifth Wheel Type Automatic Gooseneck Lock Engagement with Lock / Unlock Visual from Tractor Cab, Ramp Brackets and Outrigger Brackets, Front Bolsters, Boom Trough, Automatic Slack Adjusters, Rail Stiffeners



   Technical Specifications:



MODEL
CAPACITY
BASE WEIGHT
  DECK AXLES
TIRES & PLY RATING
327C-48
50 Ton
18,900 Lbs. (48')
 24'  3 (12) 255/70R 22.5 LRH



Specifications
Model
Detachable Model 327C
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
