Overview

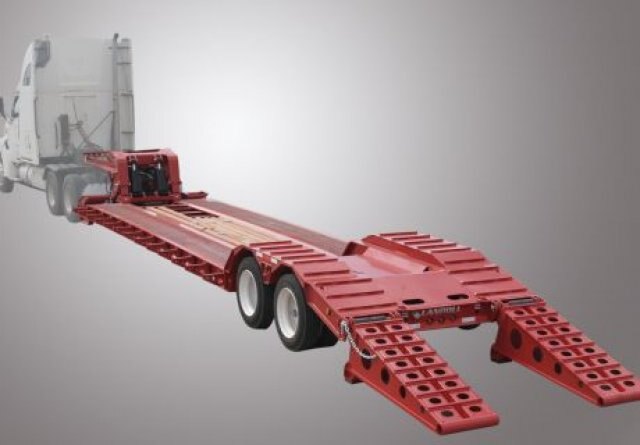

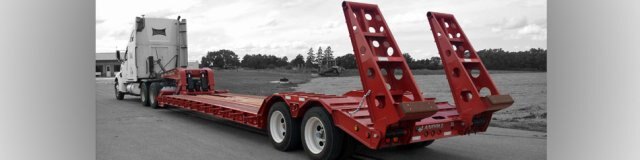

35 Ton Non-Ground Bearing Detachable



The 326 tandem axle 35 ton detachable can haul your loads safely and effectively.  Manufactured with high tensile strength steel and high quality components, the light weight Model 326 will last the long haul with retaining its resale value.  The 326 can be dressed up with options or just keep is simple, clean and just go to work.

Design

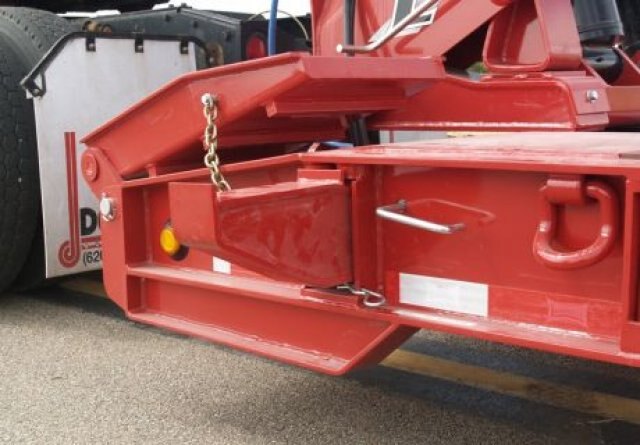

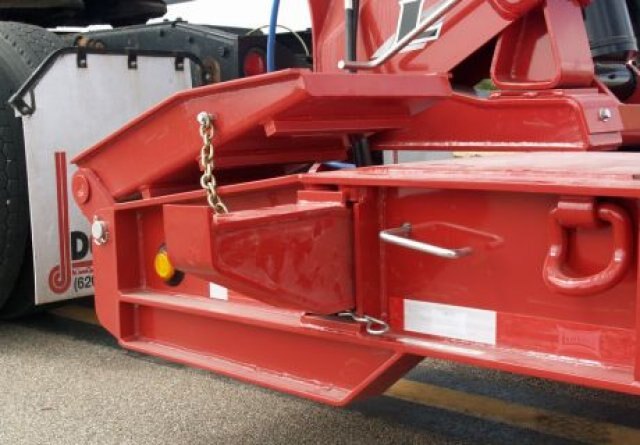

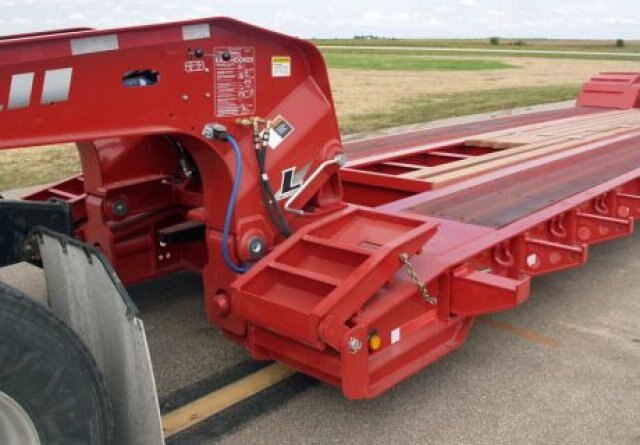

Landoll's detachable gooseneck is second to none in the problem solving category.  The rugged scraper style gooseneck with vertical lift cylinders and Landoll's unique fifth wheels lock assembly has the ability to get you hooked up at the roughest job site and on the road.
  Features
  • *Capacity: 35 Tons
  • Deck Rating: 70,000 lbs. in 16'
  • Estimated Base Weight: 13,250 lbs. (44')
  • Main Frame: Fabricated 16", 100,000 PSI Flange
  • Crossmembers: 8" High Tensile I-Beams on 24" Centers
  • Tires: 255/70R 22.5 LRH Double Coin
  • Rims: 22.5x7.50
  • Wheels: Hub Pilot / Steel Outboard Brake Drums
  • Axles: 2 - 25,000 lb. Tandem Dual Tire, Oil Bath Bearings
  • Suspension: Neway Air / Ride (AR80) Yoke lb. Capacity
  • Brakes: 16.5x7 Full Air / Spring Brakes (Rear Axle Only) ABS, 4S2M
  • Oil Seal Hubs: Internal Mated Assembly
  • Pin Setting: 15"
  • Swing Clearance: 84"
  • Loaded Ground Clearance: 8"
  • Loaded Deck Height: 24"
  • Width: 102"

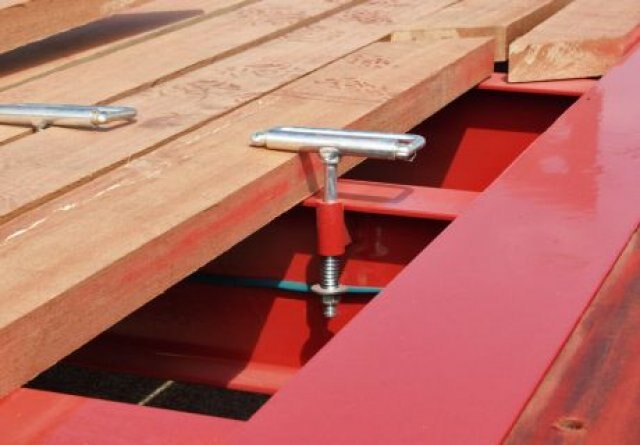

  • Decking: 2" Nominal, Apitong Track Area
  • Gooseneck: 10' 7"
  • Air / Electrical: 7-Way Receptacle
  • Hydraulic Hook Up: Quick Couplers 2500 PSI / 17 GPM
  • Lights: Grote "SuperNova" LED - 10-Year Warranty
  • Wiring Harness: Grote "Ultra-Blue Seal" - 7-Year Warranty
  • Finish: Steel Grit Shot Blast to Bright Metal
  • Powder Coat Color: White / Black / Yellow / Blue / Red / Green
  • Tie Downs: 8 "D" Rings
  • Decals: Hi-Visibility Reflective Package
  • Tool Box: 41"W x 24"L x 10"D Between Main Frame

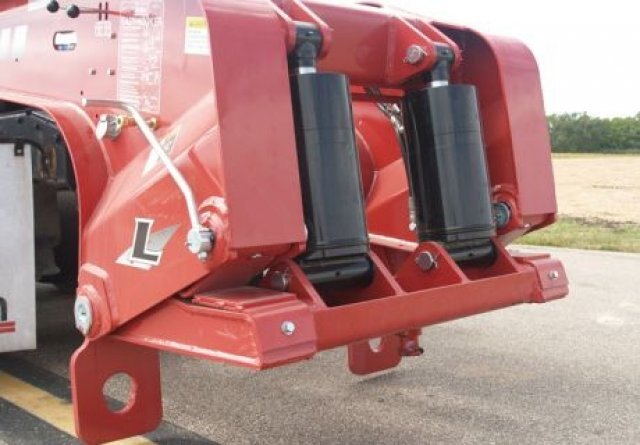

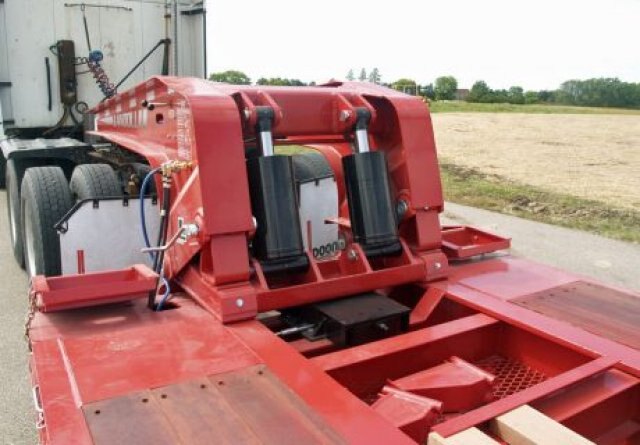

  • Cylinders: 2 - 8" x 8" Vertical Mount, Centralized Grease System, Powder Coated Black
  • Hitch: Fifth Wheel Kingpin

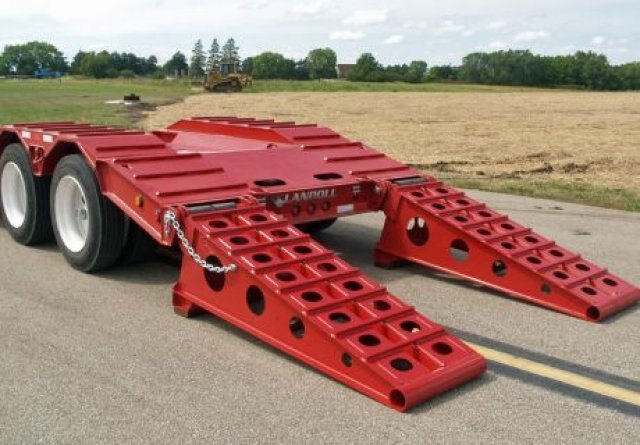

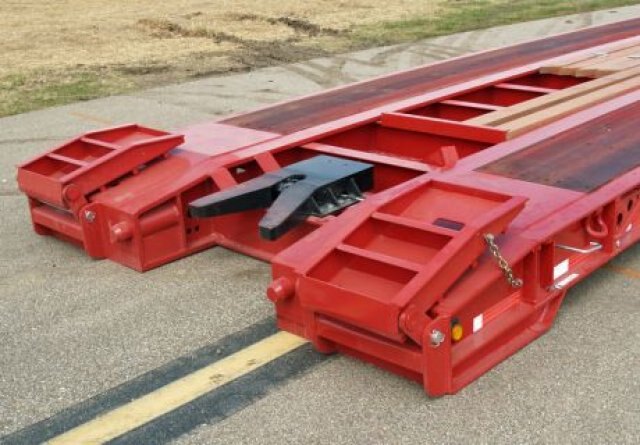

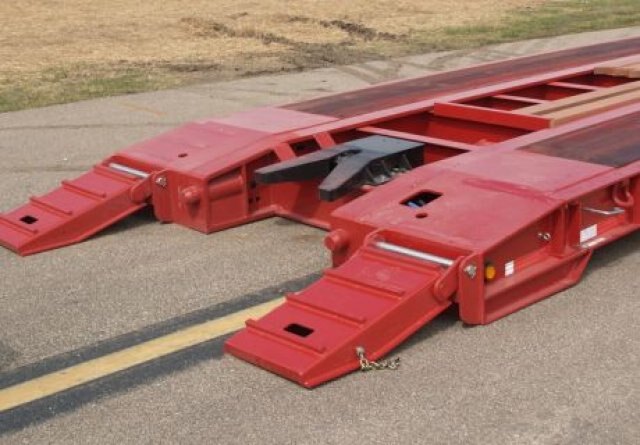

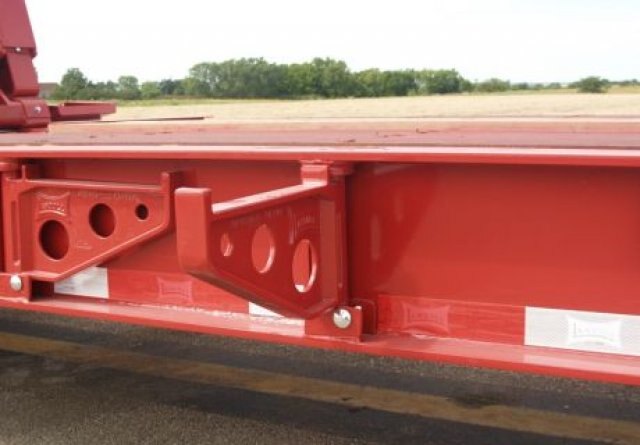

  • Accessories: Fifth Wheel Type Automatic Gooseneck Lock Engagement with Lock / Unlock Visual from Tractor Cab Ramp Brackets and Outrigger Brackets Front Bolsters Broom Trough Automatic Slack Adjusters Rail Stiffeners

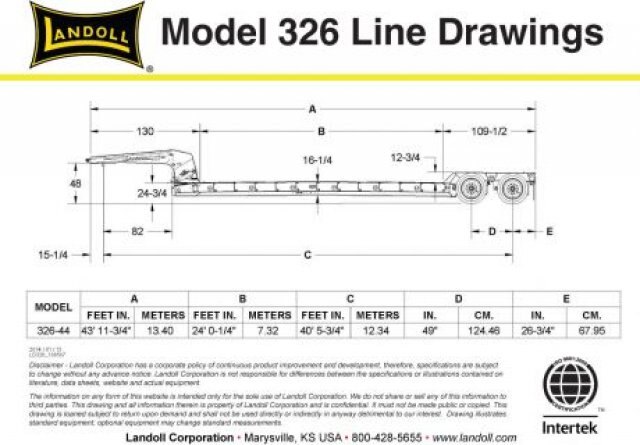

   Technical Specifications:



MODEL
CAPACITY
BASE WEIGHT
  DECK AXLES
TIRES & PLY RATING
326
35 Ton
13,250 lbs. +/- 3% (44')
 24' Lower 2 (8) 255/70R 22.5 LRH



Specifications
Model
Detachable Model 326C
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
