ID # 13239949

Landoll Traveling Axle Model 340

  • Landoll Traveling Axle Model 340
  • Landoll Traveling Axle Model 340
  • Landoll Traveling Axle Model 340
  • Landoll Traveling Axle Model 340
  • Landoll Traveling Axle Model 340
  • Landoll Traveling Axle Model 340
  • Landoll Traveling Axle Model 340
  • Landoll Traveling Axle Model 340
  • Landoll Traveling Axle Model 340
  • Landoll Traveling Axle Model 340
  • Landoll Traveling Axle Model 340
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

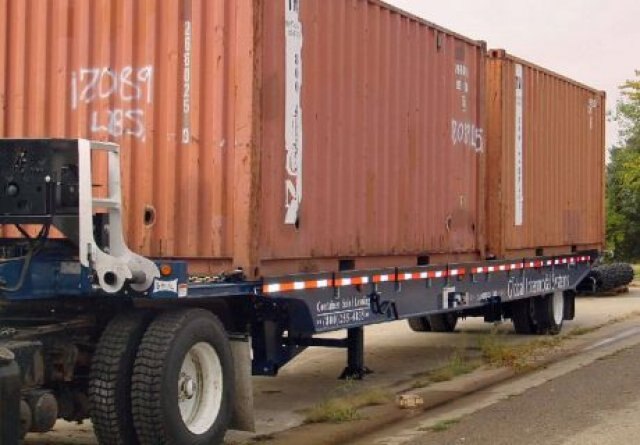

96" or 102" High Cube Container Trailer

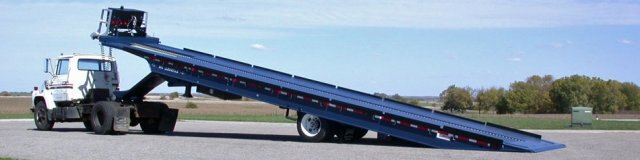

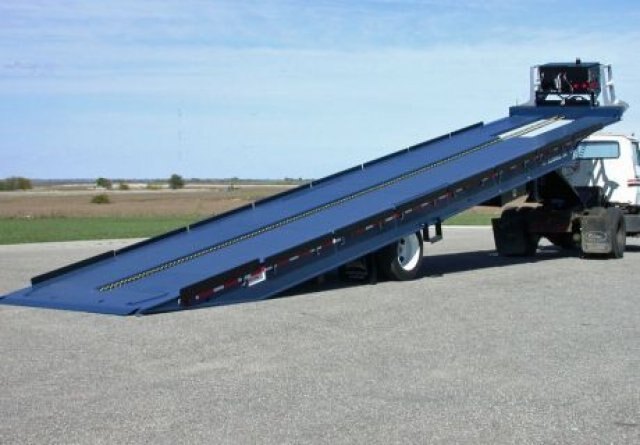

The Model 340 is  a hydraulic traveling axle trailer designed to haul standard, 96”, 102” or high cube storage containers.  The versatility of the 340 shows in its’ ability to haul 1- 40’; 2-20’; 1-45’; 1-48’ or 1-53’ (50’ trailer only).

Adjustable Outer Rails and Power On/Power Off

The 340 is equipped with standard adjustable outer rails for 96" or 102" containers and a power on/power off chain drive system as standard equipment.   Also standard is the container securement package for tie down of containers.




  Features
  • Capacity:  11,800 lbs.
  • Deck Rating:  10,000 lbs. in 10'
  • Estimated Base Weight:  See Specs Above
  • Main Frame:  Fabricated 80,000 / 100,000 PSI Yield Beams
  • Crossmembers:  4" Jr. I-Beam on 12" Centers

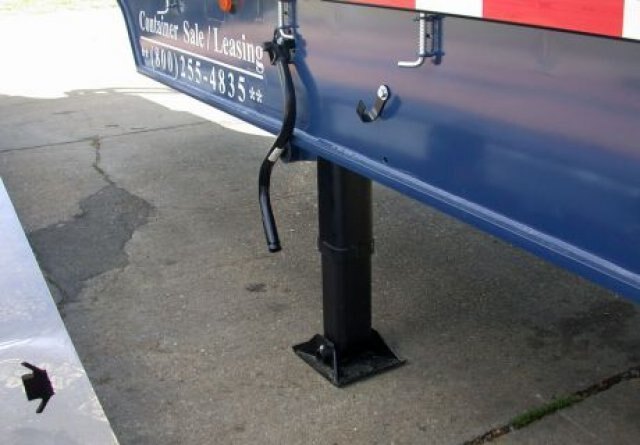

  • Parking Stands:  Jost Two-Speed
  • Tires:  255/70R 22.5 LRH Double Coin
  • Rims:  22.5x8.25 Tubeless
  • Wheels:  Hub Pilot Wheel / Steel Outboard Brake Drum
  • Axles:  1 - 25,000 lbs. Dual Tire, Oil Bath Bearings
  • Suspension:  Transpro Mono Leaf 22,000 lb. Capacity
  • Brakes:  16.5x7 Full Air / Spring Brakes, ABS 2S1M
  • Oil Seal Hubs:  Internal Mated Assembly
  • Pin Setting:  43" Set-Back, 75"CA Tractor Minimum; for 340-50, 18" Setting
  • Swing Clearance:  74" Rear and Forward Swing Clearance
  • Loaded Deck Height:  45" at Wheel Area
  • Width:  96" Base Width with 2-Position Side Extensions, Set for 96" or 102" Wide Containers

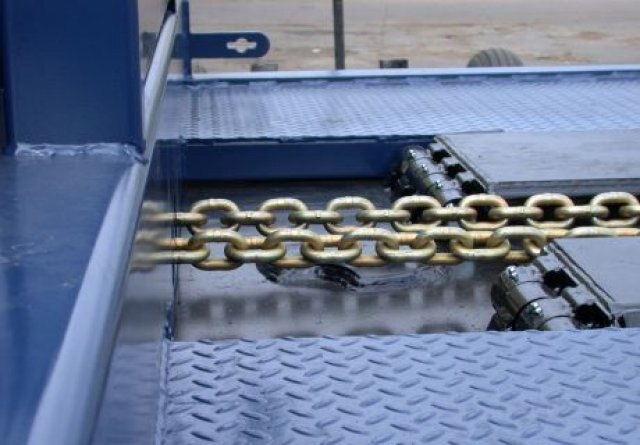

  • Decking:  1/8" Steel Tread Plate, 12" Wide Chain Trough - Full Length, 3/8" x 8" Wide Skid Plate
  • Air / Electrical:  7-Way Receptacle
  • Hydraulic Hook Up:  Quick Couplers 2500 PSI / 14 GPM
  • Hydraulic Operation:  Full Manual Controls and Full Function Remote by Hand Held Wireless Remote
  • Controls Lights:  Grote "SuperNova" LED - 10-Year Warranty
  • Finish:  Steel Grit Shot Blast to Bright Metal
  • Wiring Harness:  Grote "Ultra-Blue Seal" - 7-Year Warranty
  • Powder Coat Color:  White / Black / Yellow / Blue / Red / Green

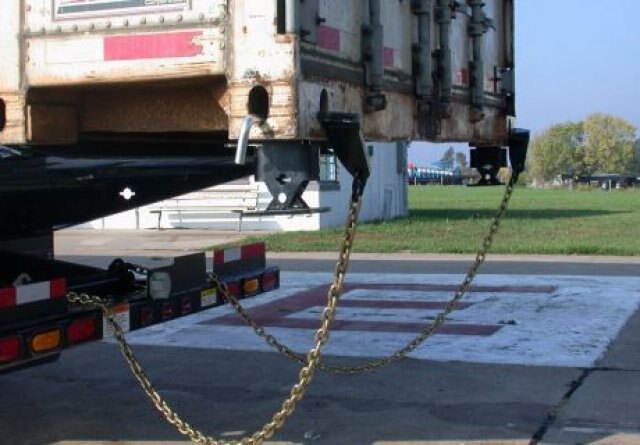

  • Tie Downs Front:  2 (Part # 128496) Chain Assembly Container Load Includes, 2 - Front Bridles, 2 - Front Container Lock Downs with Pins
  • Decals:  Hi-Visibility Reflective Package

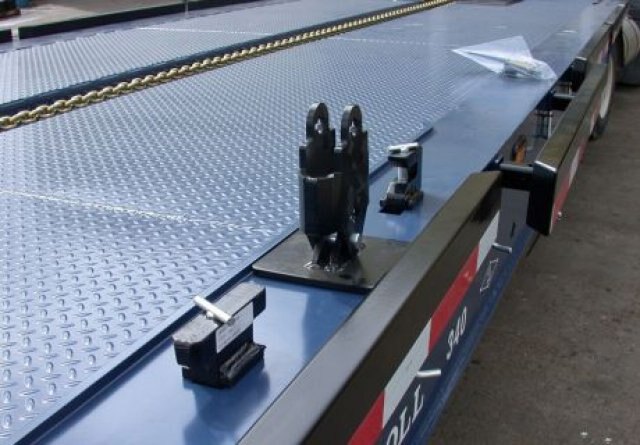

  • Tie Downs Middle:  2 (Part # 127320) Double Container Stops with Pins (Hold Back of First 20' Container)

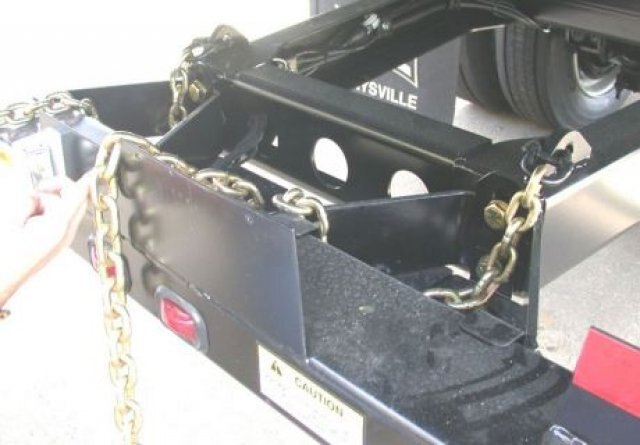

  • Tie Downs Rear:  1 (Part # 128469) Shoe Lock Tie Downs, (Locks Rear Container into the Approach Plate Tie Slots)

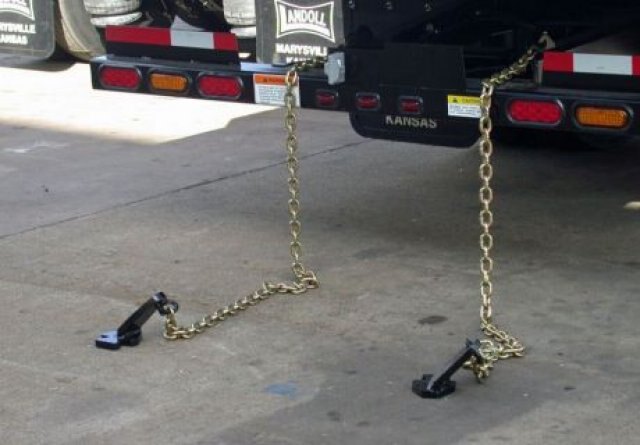

  • Tie Downs Rear:  2 - 7' Chain Anchored to Undercarriage with Load Binders
  • Container Handling:  1 (Part # 129210) Pusher Container Assembly (Much like a Dozer Blade, Push a Container On or Off the Trailer)
  • Tool Box:  Street Side (42"W x 28"D x 9"H) with Lockable door
  • Hydraulic Gear Box:  12,000 lb. Capacity Gear Box, Continuous Power Chain Drive Load System
  • Undercarriage:  Centralized Grease System

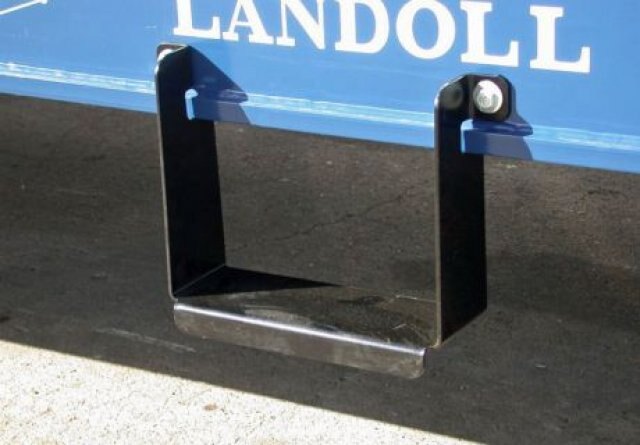

  • Accessories:  Front Mounted Aluminum Ladder with Grab Handle, Mid-Ship Mounted Step
  • Hydraulic Valve Body:  Prince Electronic

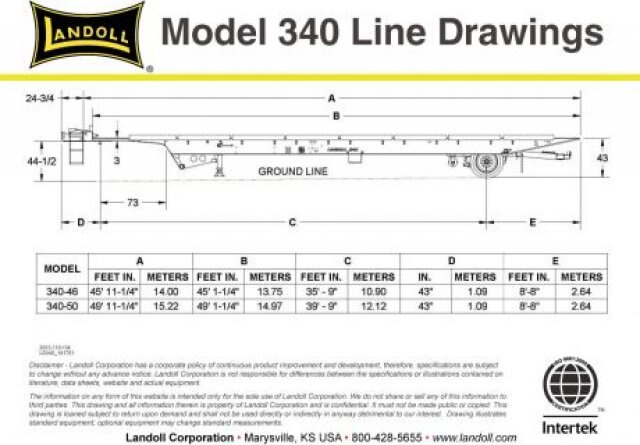

   Technical Specifications:



MODEL
CAPACITY
BASE WEIGHT
  DECK AXLES
TIRES & PLY RATING
340-46
11,800 lbs.
14,200 lbs. (+/- 3%)
 96 1 (4) 255/70R 22.5 LRH
340-50
11,800 lbs.
15,100 lbs. +/- 3%
 96 1 (4) 255/70R 22.5 LRH



Specifications
Model
Traveling Axle Model 340
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
