Overview

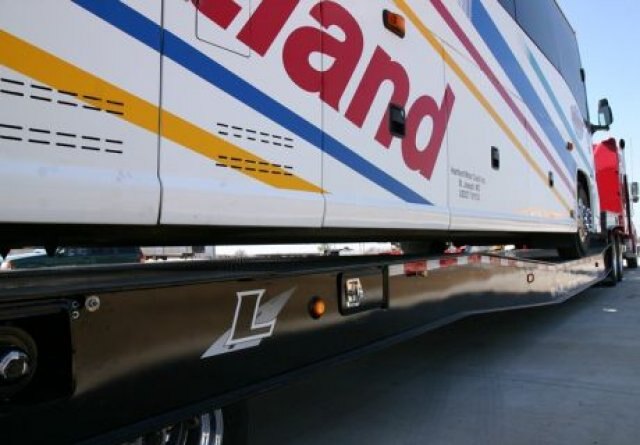

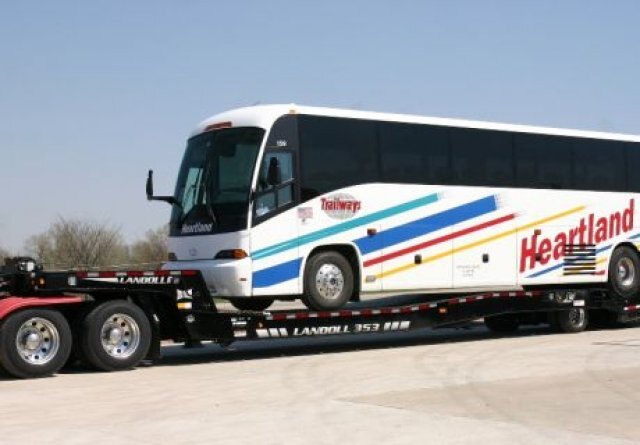

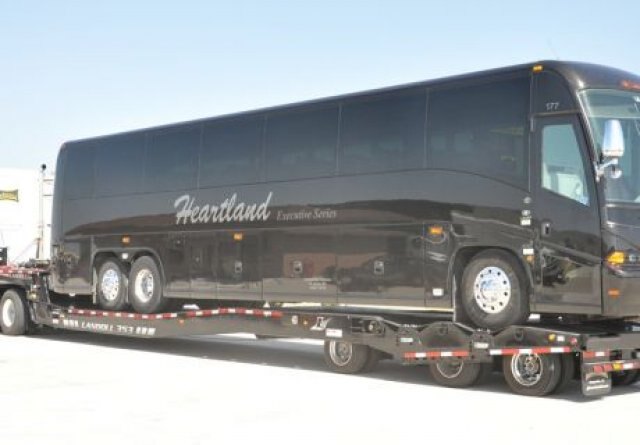

Haul Buses and Motor Homes Landoll_Trailer_TravelingAxle_353_270x160.jpg

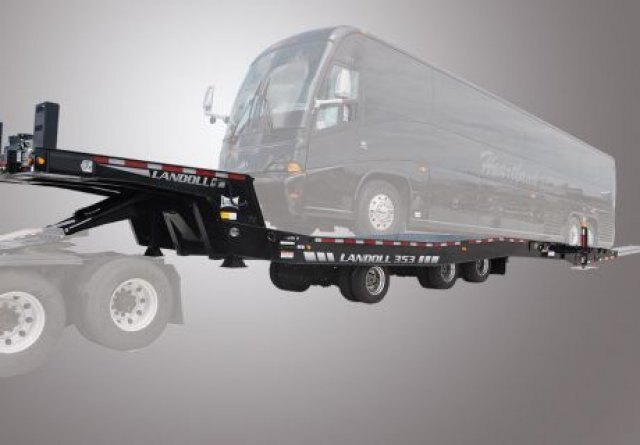

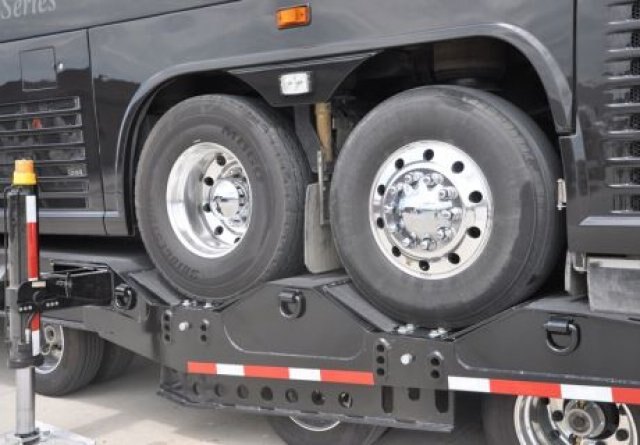

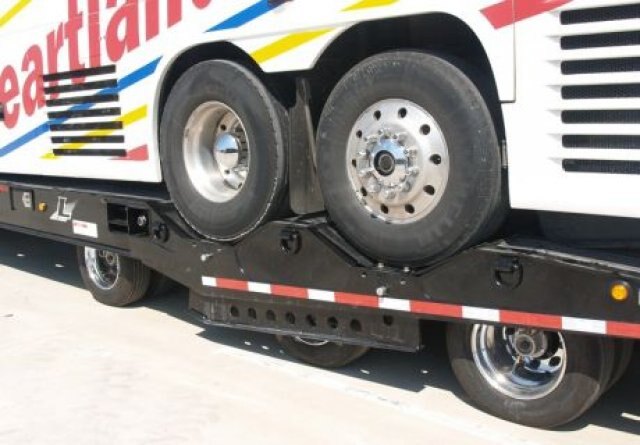

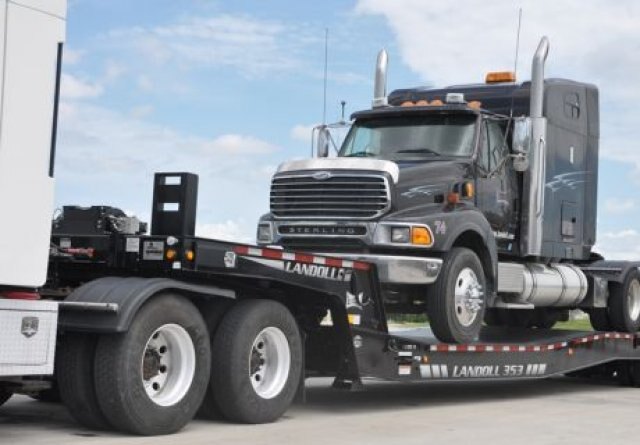

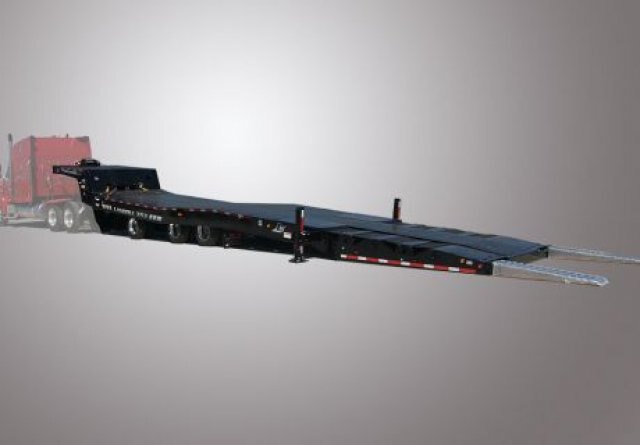

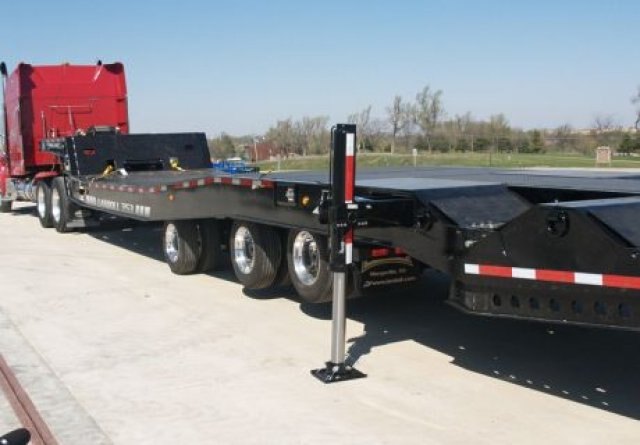

The Model 353 double drop trailer was designed to transport a wide variety of oversize, over-height equipment such as motor coaches, metro buses, shuttle buses or Class B and C motor homes.  The 353 has a full width front well that allows for a deck height of just 26”. The rear tandem wheel well pockets are equipped with Landoll’s  “Mechanical Wheel Well Lifter”. You have all trailer hydraulic functions at your fingertips with the standard wireless remote controls.

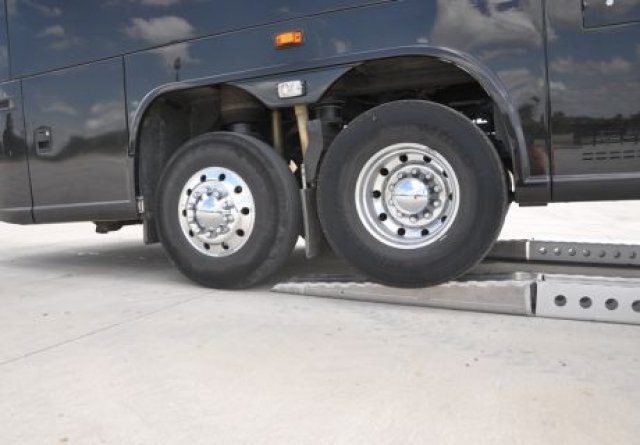

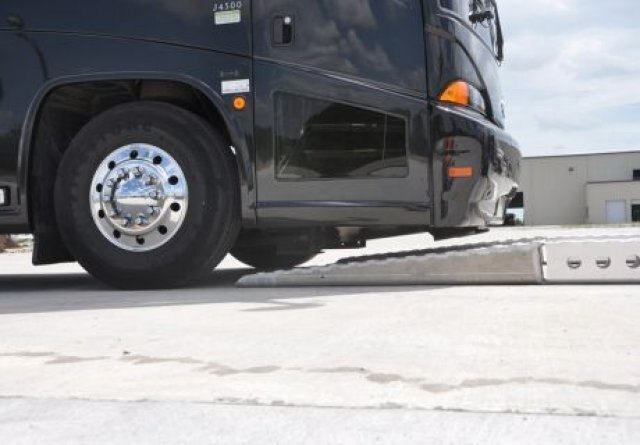

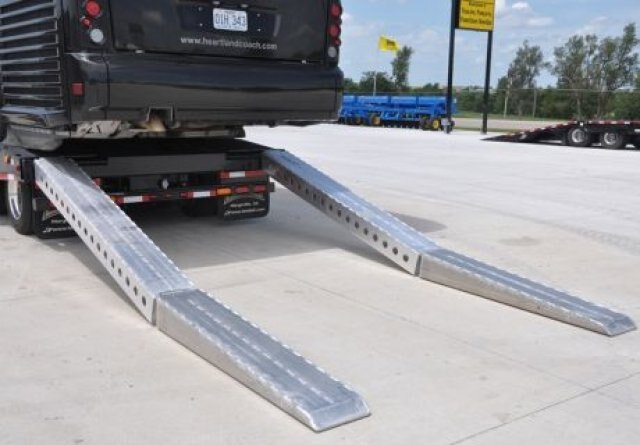

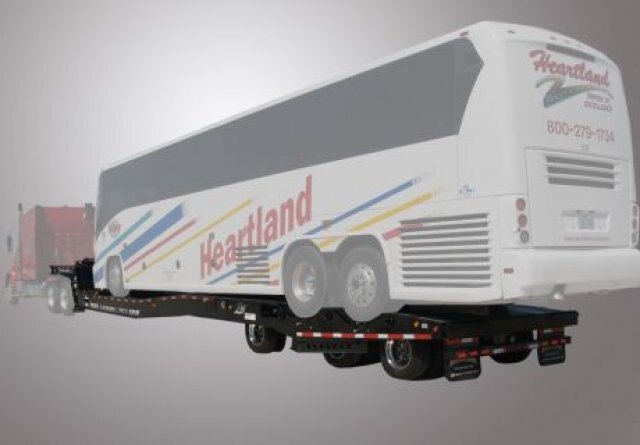

Very Low 5° Load Angle Landoll_Trailer_TravelingAxle_353_LoadingBus_270x160.jpg

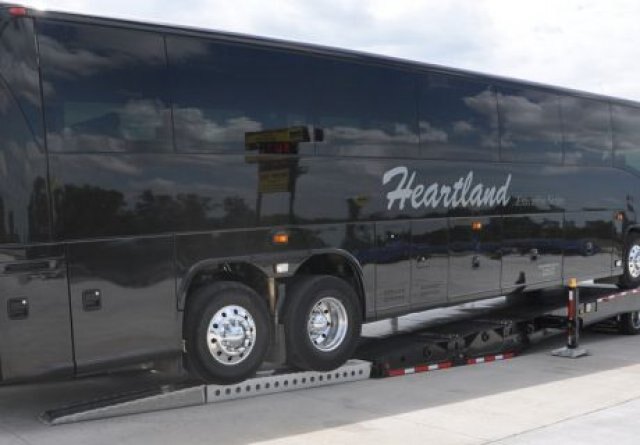

Landoll brings this new design down to 5° load angle. Buses and RVs require the lowest possible load angle and the 353 gets you there. The Model 353, a 35 ton three axle trailer, is designed to handle even the heaviest of motor coaches. The three axle undercarriage has air ride suspension, 25,000 lb. axles and most importantly a 132” axle spread. Every bus is different and you can operate under legal weight limits or maximize the axle group when needed under permit.

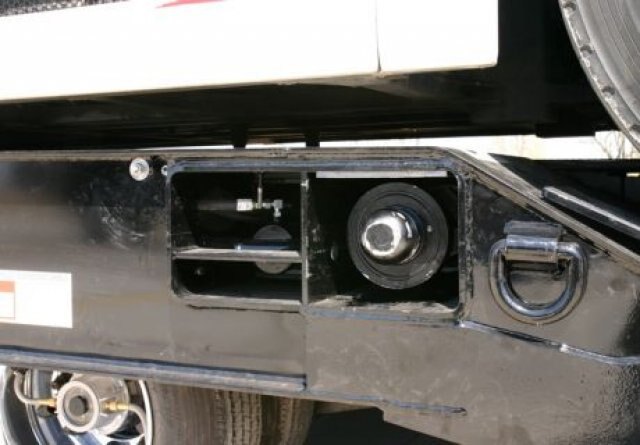

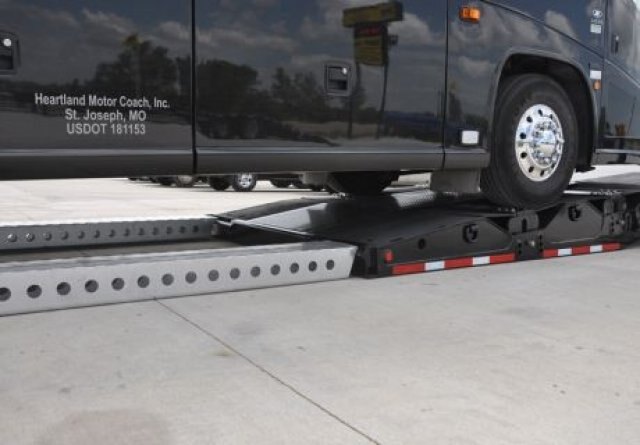

Outrigger Lift System Landoll_Trailer_TravelingAxle_353_BusTrigger_270x160.jpg

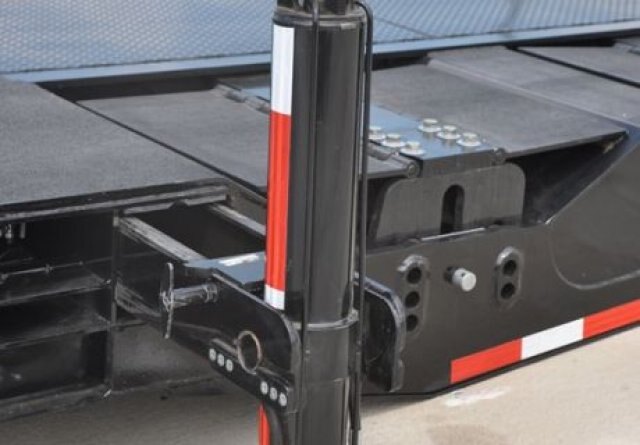

To obtain the lowest deck height possible, the Outrigger Lift System was developed. From a stored position under the deck, cylinders extend the Outriggers. When rotated to a vertical position the Outriggers become the lift system that raises the rear of the trailer. Next the undercarriage is moved to the most forward position. All that remains is to lower the rear trailer approach to the ground. The Outrigger’s Extension Cylinders can also side-shift the entire trailer approach to achieve proper alignment with the bus.



  Features
  • *Capacity: 75,000 lbs.
  • Deck Rating: 50,000 lbs. in 10'
  • Estimated Base Weight: See Specs Above
  • Main Frame: Fabricated 80,000 PSI Yield Four-Beam Design
  • Crossmembers:  4" Junior I-Beam on 16" Centers
  • Parking Stands: Jost Two-Speed
  • Slope Drop: 45°
  • Tires: 215/75R 17.5 LRH Double Coin
  • Rims: 17.5x6.75 Tubeless
  • Wheels: Hub Pilot / Steel Outboard Brake Drums
  • Axles: 3 - 25,000 lb. Dual Tire, Oil Bath Bearings
  • Suspension: Neway Air Ride RLU228 22,500 lb. Capacity
  • Brakes: 12.25x7.5 Full Air / Spring Brakes (Two Rear Axles) ABS 4S2M Center Axle Indirect
  • Oil Seal Hubs: Internal Mated Assembly
  • Hitch: Fifth Wheel Kingpin
  • Pin Setting: 17.5"
  • Swing Clearance: 75.5"
  • Loaded Ground Clearance: 20"
  • Loaded Deck Height: 26"
  • Width: 102"
  • Decking: Steel Tread Plate

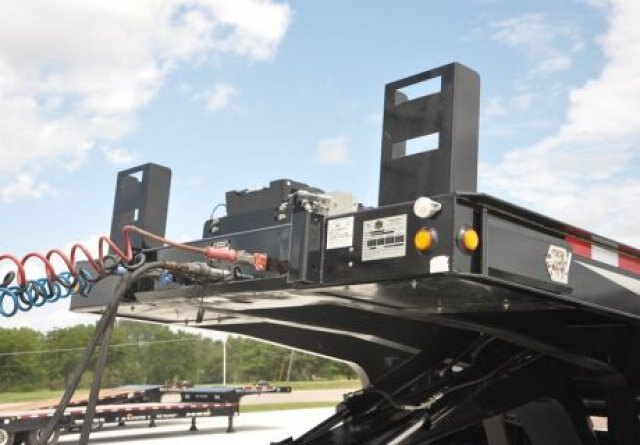

  • Air / Electrical: 7-Way Receptacle
  • Hydraulic Hook Up: Quick Couplers 2500 PSI / 14 GPM

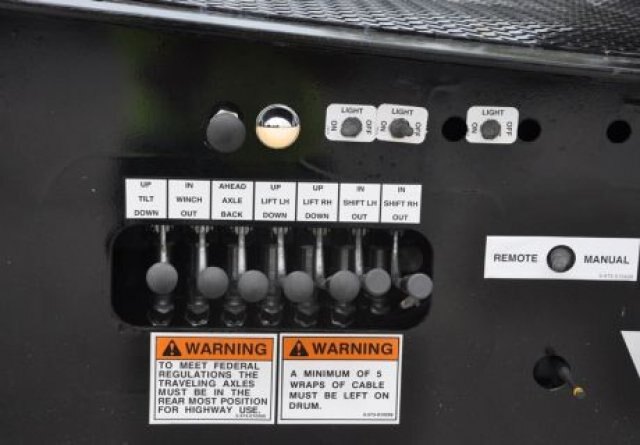

  • Hydraulic Remote Controls: Full Manual Controls and Full Function Remote by Hand Held Wireless Remote Controls
  • Lights: Grote "SuperNova" LED - 10-Year Warranty
  • WiringHarness: Grote "Ultra-Blue Seal" - 7-Year Warranty
  • Decals: Hi-Visibility Reflective Package
  • Finish: Steel Grit Shot Blast to Bright Metal
  • Tie Downs: Double Key Hole Chain Slots and Stake Pockets on 32" Centers
  • Powder Coat Color: White / Black / Yellow / Blue / Red / Green
  • Tool Box: Twin Upper Deck Tool Boxes with Lockable Door (6-3/4"H x 27-3/4"W x 31"D) and Twin Lower Deck Tool Boxes (8-3/4" x 24" x 31")
  • Hydraulic Winch: Worm Gear 12,000 lb. with 85' of 1/2" Cable - Upper Deck Only
  • Tilt Cylinders: 2 - 4" x 42"
  • Undercarriage: Centralized Grease System
  • Load Angle: 5°
  • Accessories: Double Key Hole Tie Downs, Automatic Slack Adjusters, Pressure Guard Air Inflation System
  • Hydraulic Valve Body: Prince Electronic



   Technical Specifications:



MODEL
CAPACITY
BASE WEIGHT
  DECK AXLES
TIRES & PLY RATING
353 75,000 lbs. 26,140 lbs. +/- 3% 102 3 215 75R 17.5 LRH



Specifications
Model
Traveling Axle Model 353
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
