ID # 13239943

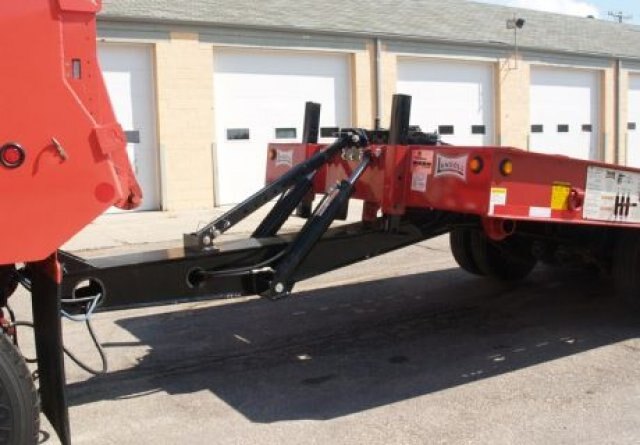

Landoll Traveling Axle Model 345E

  • Landoll Traveling Axle Model 345E
  • Landoll Traveling Axle Model 345E
  • Landoll Traveling Axle Model 345E
  • Landoll Traveling Axle Model 345E
  • Landoll Traveling Axle Model 345E
  • Landoll Traveling Axle Model 345E
  • Landoll Traveling Axle Model 345E
  • Landoll Traveling Axle Model 345E
  • Landoll Traveling Axle Model 345E
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Landoll_Trailer_TravelingAxle_345E_270x160.jpg Rugged and Reliable Pintle Hitch Traveling Axle

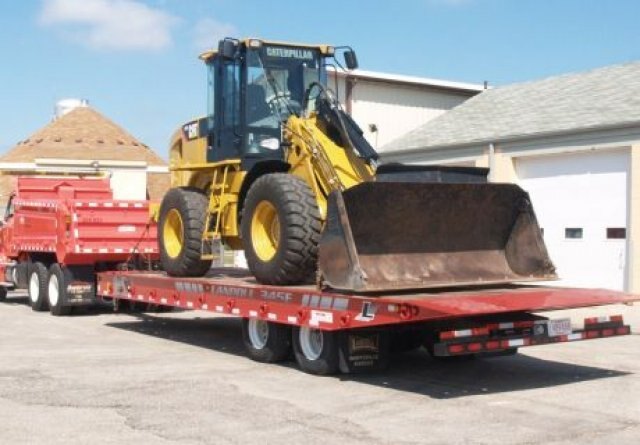

The Model 345 is a tandem axle, pintle hook traveling axle four-beam trailer for hauling and ground loading pavers, graders, loaders and other related equipment.

25 Ton Capacity Pintle Hitch

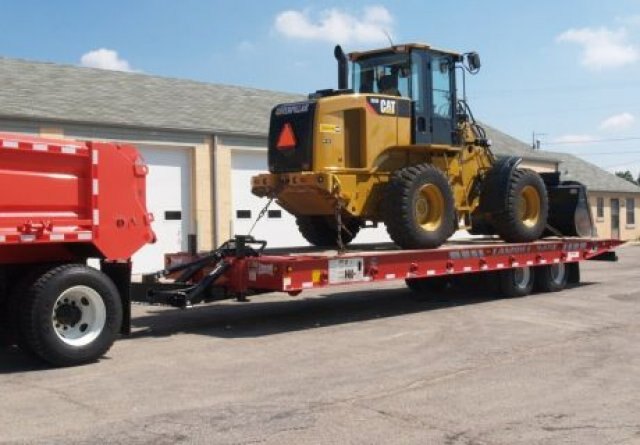

The 345 is designed to be pulled by a tandem axle dump truck or other heavy duty truck with pintle hookup. The GVWR of the trailer is 25 ton; 40,000 lbs. distributed and 30,000 lbs. concentrated within 10 feet at highway speeds.

Popular with Dept of Transportation

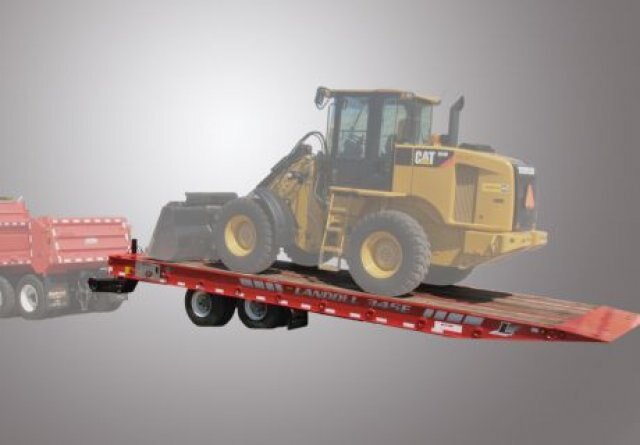

The 345 is commonly used by state DOT departments and other municipalities.  The 345's flat approach and deck allow the operator to easily and safely load track and crawler equipment without the aid of ramps or beavertail.



  Features
  • *Capacity: 40,000 lbs.
  • Deck Rating: 30,000 lbs. in 10'
  • Estimated Base Weight: See Specs Above
  • Main Frame: Fabricated 80,000 PSI Yield Perimeter Beams - Fabricated Inner Beams 80,000 PSI Web and Top Flange, 100,000 PSI Bottom Flange
  • Crossmembers: 3" and 4" Jr. I-Beams Alternating on 8" Centers
  • Parking Stands: Pin Drop
  • Tires: 235/75R 17.5 LRH Double Coin
  • Rims: 17.5x6.75 Tubeless
  • Wheels: Hub Pilot / Steel Outboard Brake Drums
  • Axles: 2 - 25,000 lb. Tandem Dual Tire, Oil Bath Bearings
  • Suspension: Neway RLU228 Air Ride 22,500 lb. Capacity
  • Brakes: 12.25x7.5 Full Air / Spring Brakes ABS, 4S2M
  • Oil Seal Hubs: Internal Mated Assembly

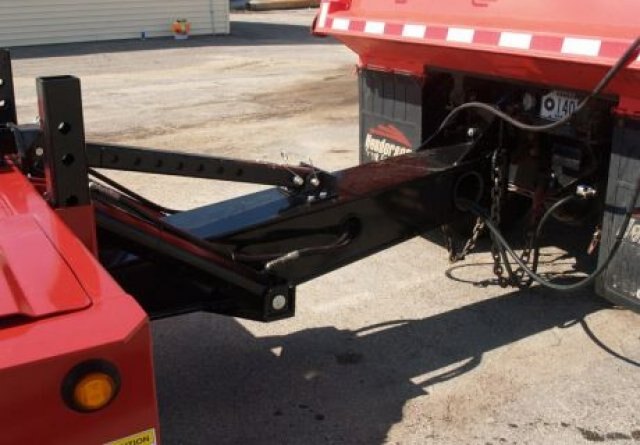

  • Hitch: 4' Pintle Hook 15,000 lb. Vertical Load Eye with Adjustment of 23" - 32" from Ground Level
  • Loaded Ground Clearance: 20"
  • Loaded Deck Height: 38"
  • Width: 102"
  • Decking: 1-3/8" Apitong Hardwood
  • Air / Electrical: 7-Way Receptacle
  • Hydraulic Hook Up: Quick Couplers 2500 PSI / 14 GPM
  • Lights: Grote "SuperNova" LED - 10-Year Warranty
  • Finish: Steel Grit Shot Blast to Bright Metal
  • Powder Coat Color: White / Black / Yellow / Blue / Red / Green
  • Decals: Hi-Visibility Reflective Package
  • Tie Downs: Double Key Hole Chain Slots and Stake Pockets on 24" Centers
  • Wiring Harness: Grote "Ultra-Blue Seal" - 7-Year Warranty
  • Tool Box: Both Curbside and Streetside Mounted with Lockable Door (14"H x 24"W x 24"D)

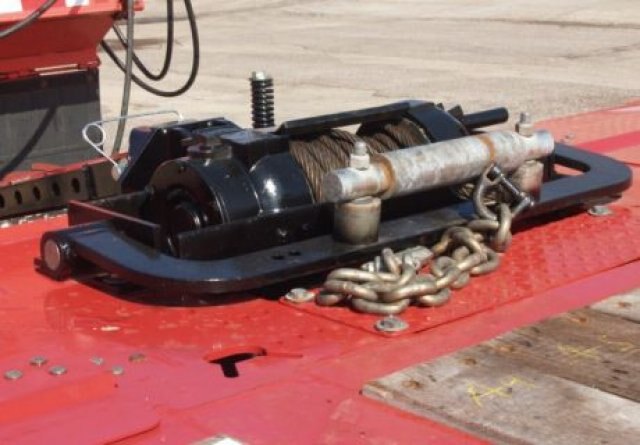

  • Hydraulic Winch: No Winch Standard
  • Tilt Cylinders: 2 - 4" Bore
  • Undercarriage: 1 - 4" x 126"; Centralized Grease System
  • Load Angle: 9°

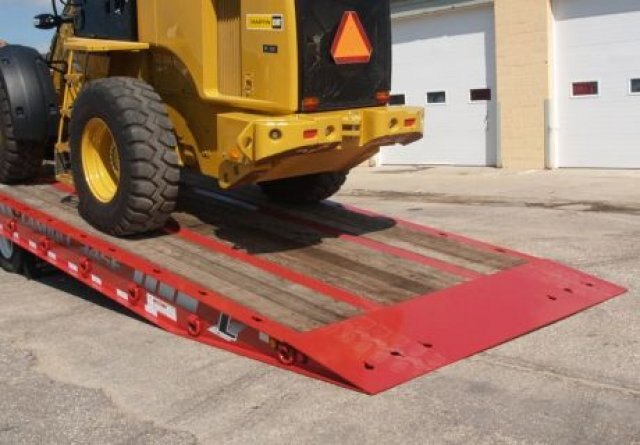

  • Accessories: Approach Plate with Six Key Hole Tie Downs, Automatic Slack Adjusters
  • Hydraulic Valve Body: Prince Electronic

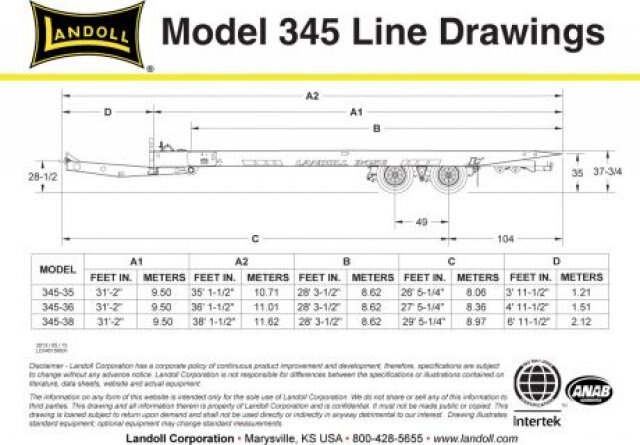

   Technical Specifications:



MODEL
CAPACITY
BASE WEIGHT
 DECK AXLES
TIRES & PLY RATING
345E-31 20 Ton 13,260 lbs. (+/- 3%) 102" 2 (8) 235/75R 17.5 LRH



Specifications
Model
Traveling Axle Model 345E
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
