Landoll

ID # 13239942

Landoll Traveling Axle Model 343

Videos
Call for Price
Overview

The Complete Container Transporter

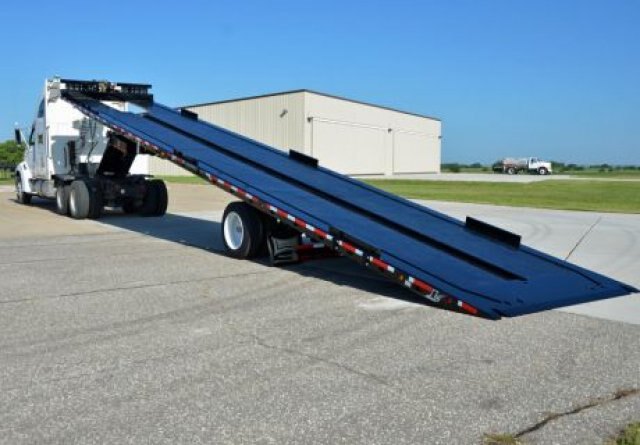

Landoll's all new Model 343 brings together decades of experience from working in the storage container industry.  Today's demands to move standard ISO 20' and 40' boxes are easy.  However, add the ISO and domestic high-cube along with the never-ending customized lengths of boxes to an application, and you need a trailer that can move them all.  The Model 343 will do just that.

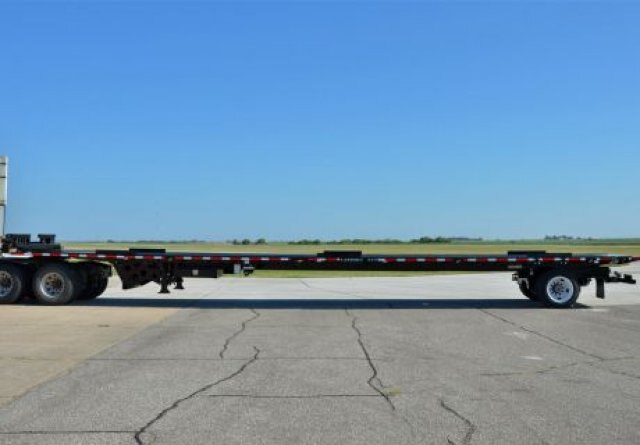

The 343 is available in 43', 46', or 50' models.  The 43' gives the operator the greatest maneuverability while handling up to a 45' high cube.  If you are needing to handle 48' boxes, choose the 46' model.  If you have domestic 53' high cube boxes in your fleet, then choose the 343-50.  Match the length with the containers you are moving.

Flexibility to Choose

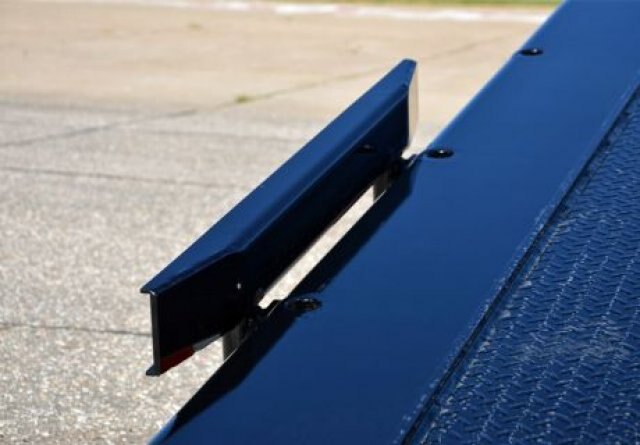

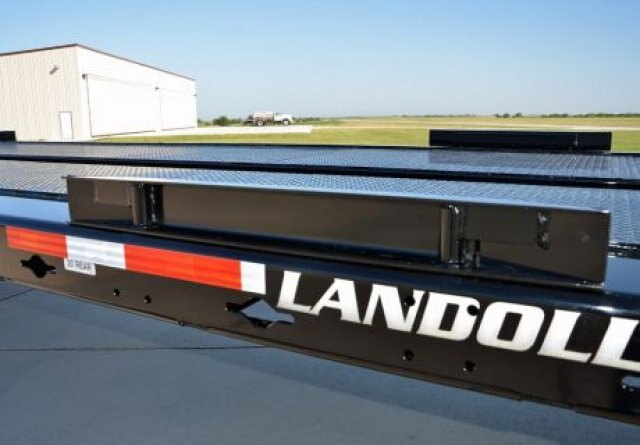

The 343 is standard with the Chain Drive Load System but if your drivers like a winch cable system, then choose from a 12,000 or 20,000 lb. Warn winch.  The trailer stays the same, you choose how you want to load boxes.  The standard handling package is also complete with a chain loading bridle, rear tie-downs/binders and push bar.  There is a standard inside corner casting guide, and you can choose to add two-position outside guide panels.  The optional side guide panels have an inside position for guiding 96" wide boxes.  With an optional bolt-on panel bushing, you can position the guide panels to the outside to guide 102" high cube boxes.



  Features
  • *Capacity: 10,000 lbs. Deck Rating: 10,000 lbs. in 10'
  • Estimated Base Weight: See Specs Above
  • Main Frame: Fabricated 80,000 PSI Yield Beams
  • Crossmembers: 3" Jr. I Beam on 12" and 24" Centers
  • Parking Stands: Jost Two-Speed
  • Tires: 255/70R 22.5 LRH Double Coin
  • Rims: 22.5x8.25 Tubeless
  • Wheels: Hub Pilot Wheel / Steel Outboard Brake Drum
  • Axles: 1 - 25,000 lbs. Dual Tire, Oil Bath Bearings (RTAC Legal Width)
  • Suspension: Neway RLU 228 Air Ride 22,500 lb. Capacity
  • Brakes: 16.5x7 Full Air / Spring Brakes, ABS 2S1M
  • Oil Seal Hubs: Internal Mated Assembly
  • Pin Setting: 43" Set-Back, 75"CA Tractor Minimum; 18.5" Setting
  • Swing Clearance: 78" Rear and Forward Swing Clearance
  • Loaded Deck Height: 45" at Rear Approach Plate
  • Width: 102"
  • Decking: 1/8" Steel Tread Plate, 10" Recessed Trough - Full Length, Skid Plate 10" Wide / Side Outer Frame 6.5" Tall, 4" Bottom Flange
  • Air / Electrical: 7-Way Receptacle
  • Hydraulic Hook Up: Quick Couplers 2500 PSI / 14 GPM
  • Lights: Grote "SuperNova" LED - 10-Year Warranty
  • Finish: Steel Grit Shot Blast to Bright Metal Wiring
  • Harness: Grote "Ultra-Blue Seal" - 7-Year Warranty
  • Powder Coat Color: Zinc Rich Powder Primer Base, Powder Paint Color Choices: Black / White / Blue / Red / Yellow / Green
  • Tie Downs: Double Keyhole Chain Slots 24" Centers on Outer Beam
  • Decals: Hi-Visibility Reflective Package

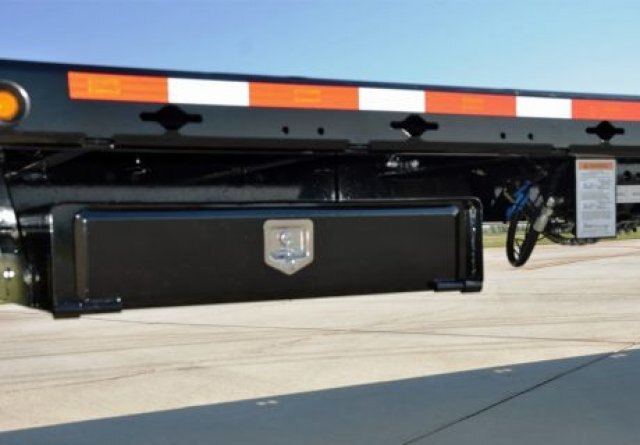

  • Tool Box: 1 Street, 1 Curb side; 42"W x 28"D x 9"H with Lockable Door

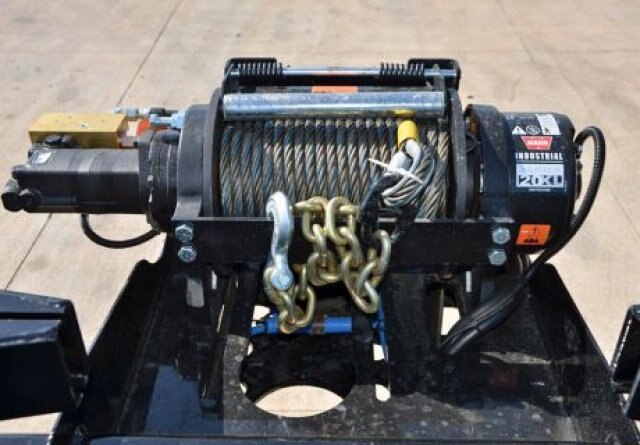

  • Hydraulic Winch: Gear Box, 12,000 lb., with Continuous Power Chain Drive Load System 1/2" Chain
  • Load Angle: 12°

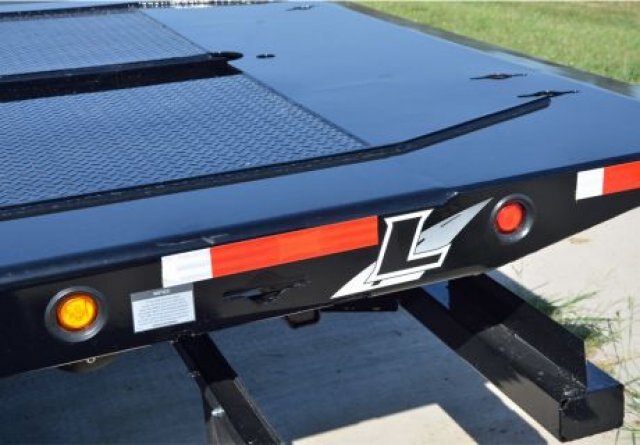

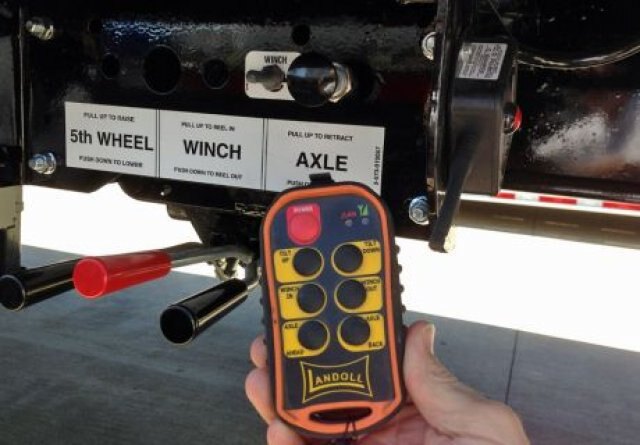

  • Accessories: Inner Receiver Bushing on 24" Centers for Side Guides, Hi-Cube Container Low-Profile, Centralized Grease System, Two Stage Powder Coat Paint, Automatic Slack Adjusters, 29" Approach Plate with 4 Keyhole Tie Downs and Shoe Lock Down Slots Wireless Remote Control Hydraulics

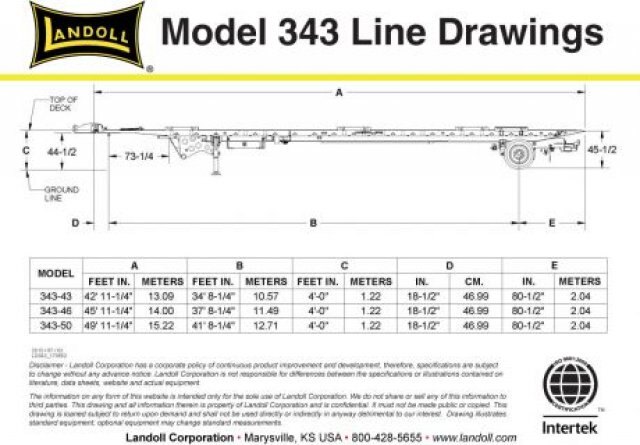

   Technical Specifications:



MODEL
CAPACITY
BASE WEIGHT
DECK AXLES
TIRES & PLY RATING
343-43 5 Ton xxxx +/- 3% (44') 43' 1 (4) 255/70R 22.5 LRH
343-46  Ton xxxx +/- 3% (44') 46' 1 (4) 255/70R 22.5 LRH
343-50 5 Ton 16,000 lbs.+/- 3% 50' 1 (4) 255/70R 22.5 LRH



Specifications
Model
Traveling Axle Model 343
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
