ID # 13239926

Landoll Traveling Axle Model 330C-1

  • Landoll Traveling Axle Model 330C 1
  • Landoll Traveling Axle Model 330C 1
  • Landoll Traveling Axle Model 330C 1
  • Landoll Traveling Axle Model 330C 1
  • Landoll Traveling Axle Model 330C 1
  • Landoll Traveling Axle Model 330C 1
  • Landoll Traveling Axle Model 330C 1
  • Landoll Traveling Axle Model 330C 1
  • Landoll Traveling Axle Model 330C 1
  • Landoll Traveling Axle Model 330C 1
  • Landoll Traveling Axle Model 330C 1
  • Landoll Traveling Axle Model 330C 1
  • Landoll Traveling Axle Model 330C 1
  • Landoll Traveling Axle Model 330C 1
  • Landoll Traveling Axle Model 330C 1
  • Landoll Traveling Axle Model 330C 1
  • Landoll Traveling Axle Model 330C 1
  • Landoll Traveling Axle Model 330C 1
  • Landoll Traveling Axle Model 330C 1
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

   Description

Haul Empty Containers

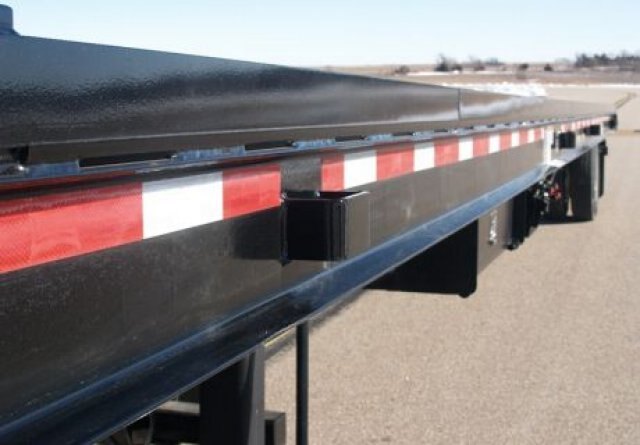

The Model 330 container trailer is designed with a solid, flat platform made with two main beams, and a rugged outer channel with a 3/8” skid plate and side rail built in. The full width solid approach plate has four keyhole tiedowns. The 330 is also available in an optional single drop frame to haul high cube containers.

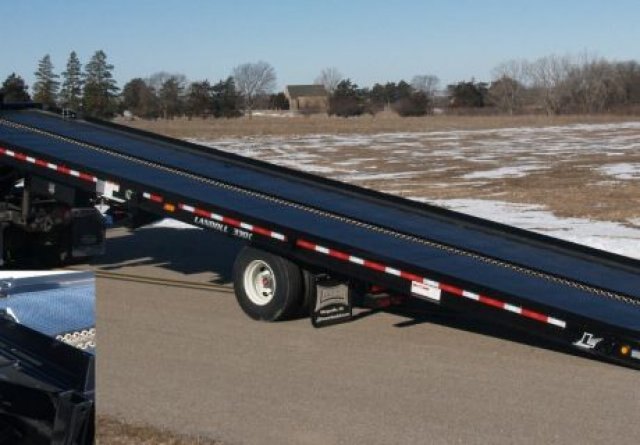

VERSATILITY WITH FULL TILT DESIGN Landoll_Trailer_TravelingAxle_330-1_ChainDrive_270x160.jpg

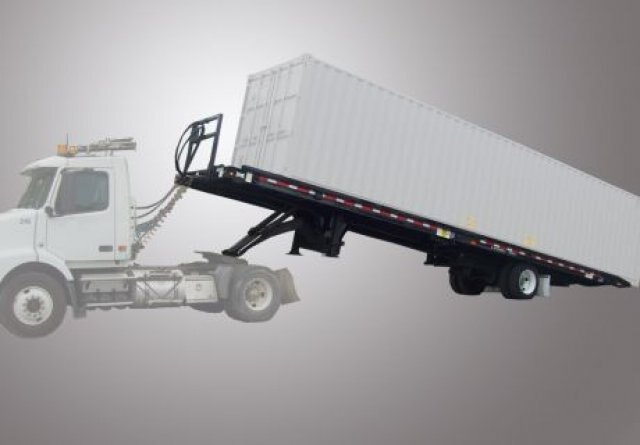

A tilt design provides load angle versatility that allows container placement with hydraulic control at all times. Adjust the load angle from 9° to 17° to accommodate different locations. Place containers right on target (next to buildings, alleyways, behind or even inside retail warehouses).



Load and transport storage containers

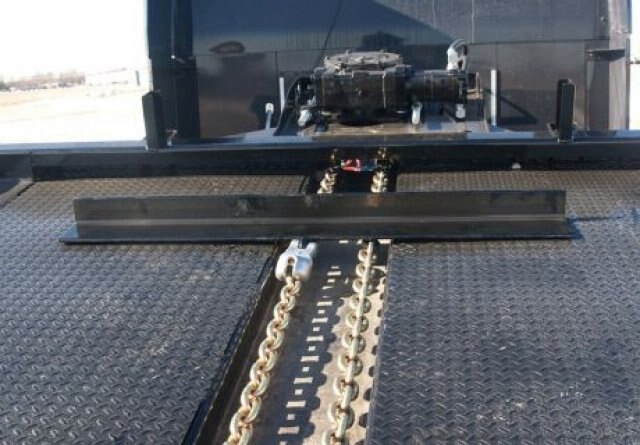

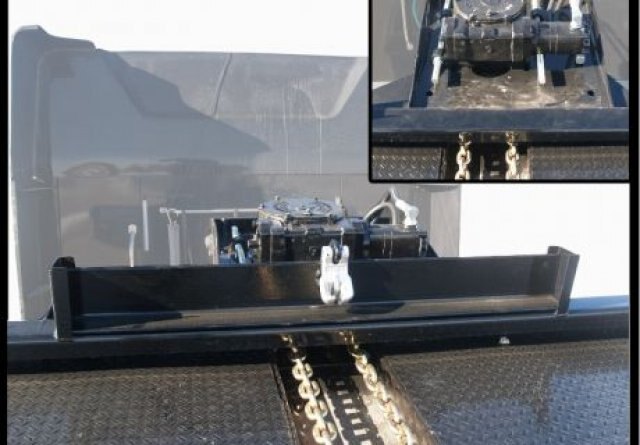

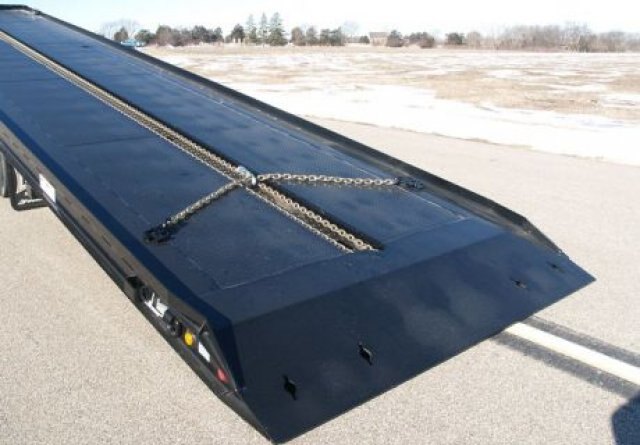

You may also choose the optional Chain Drive Load System which handles loading multiple boxes on the same load. The standard equipment list goes on with full 25,000 lb. air brake axle, spring brakes and 255/70R 22.5 tires.  Built with a rugged frame and heavy duty components, you have a trailer that will perform for many years.

  Features
  • *Capacity: 16,000 lbs.
  • Deck Rating: 10,000 lbs. in 10'
  • Estimated Base Weight: See Specs Above
  • Main Frame: Fabricated 80,000 PSI Yield Beams
  • Crossmembers: 3-1/2" x 3-1/2" Tube on 18" Centers

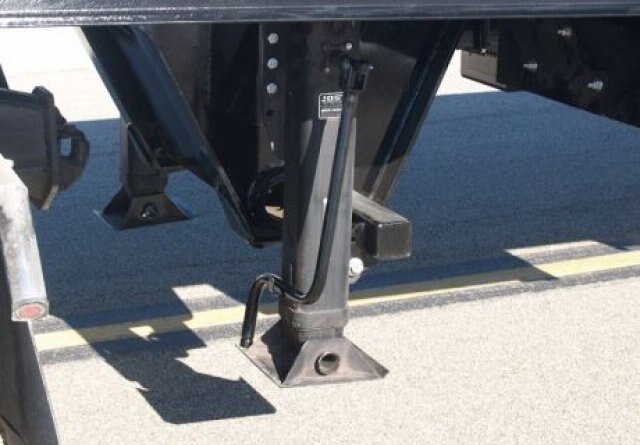

  • Parking Stands: Jost Two-Speed
  • Tires: 255/70R 22.5 LRH Double Coin
  • Rims: 22.5x7.50 Tubeless
  • Wheels: Hub Pilot Wheel / Steel Outboard Brake Drum
  • Axles: 1 - 25,000 lb. Dual Tire, Oil Bath Bearings
  • Suspension: Transpro Mono Leaf 25,000 lb. Capacity
  • Brakes: 16.5x7 Full Air / Spring Brakes ABS, 2S1M
  • Oil Seal Hubs: Internal Mated Assembly
  • Pin Setting: 30" (18" on 90° Drop)
  • Swing Clearance: 72"
  • Loaded Deck Height: 42"
  • Width: 102"
  • Decking: 1/8" Steel Tread Plate, 5" Cable Trough - Full Length, Formed Angle Skid Plate / Side 5/16" x 12"x 3-1/2"
  • Air / Electrical: 7-Way Receptacle
  • Hydraulic Hook Up: Quick Couplers 2500 PSI / 14 GPM

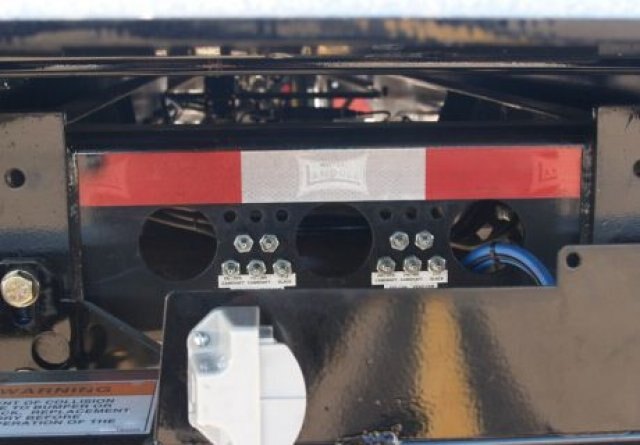

  • Lights: Grote "SuperNova" LED - 10-Year Warranty
  • Finish: Steel Grit Shot Blast to Bright Metal Wiring
  • Harness:  Grote "Ultra-Blue Seal" - 7-Year Warranty
  • Decals: Hi-Visibility Reflective Package
  • Powder Coat Color: White / Black / Yellow / Blue / Red / Green

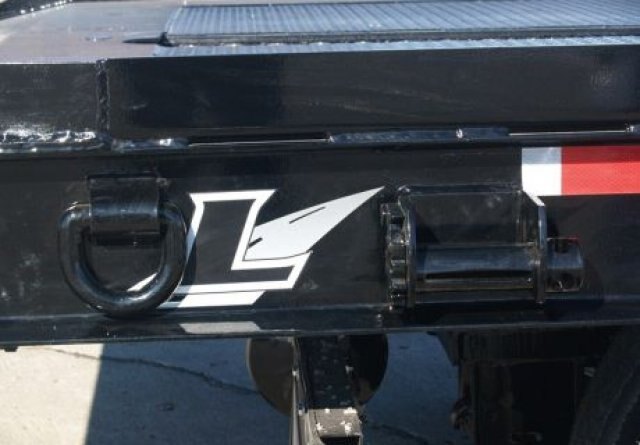

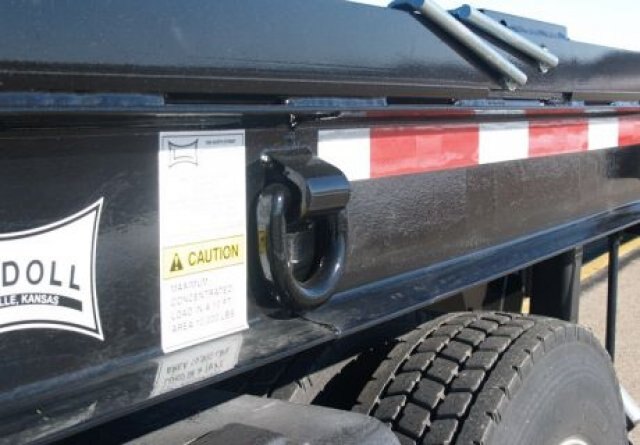

  • Tie Downs: 4 - "D" Rings - 2 per Side, 4 - 4" Strap Ratchets Curbside with Opposing Hooks Street Side

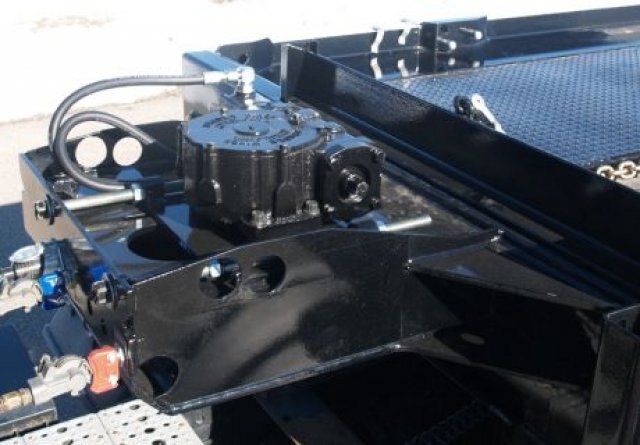

  • Hydraulic Winch: Worm Gear 12,000 lb. with 85' of 1/2" Cable
  • Tilt Cylinders: 2 - 4" x 42"
  • Undercarriage: 1 - 4" x 126", Centralized Grease System; Accepts After-Market Dock Level Hydraulics System; Powder Coated Black
  • Load Angle: 12°

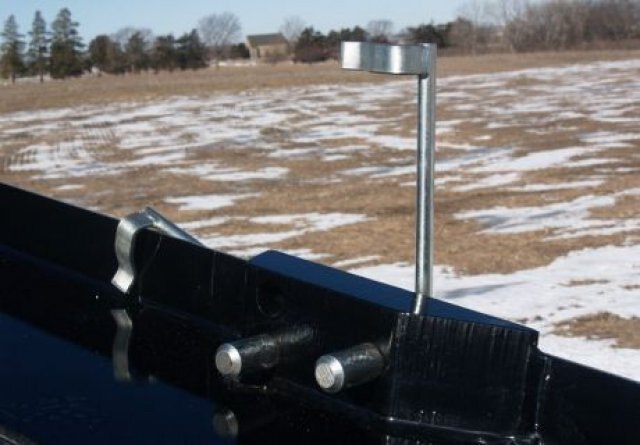

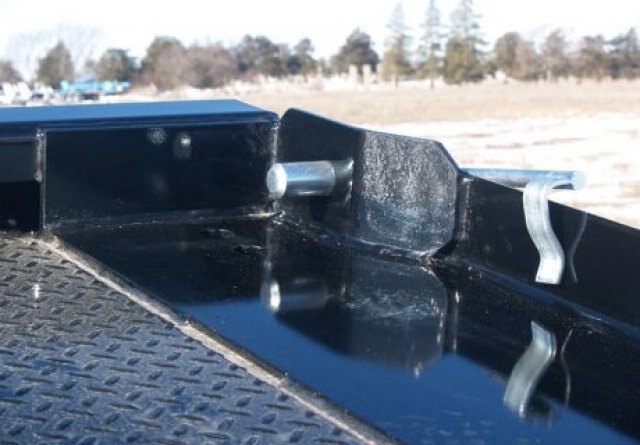

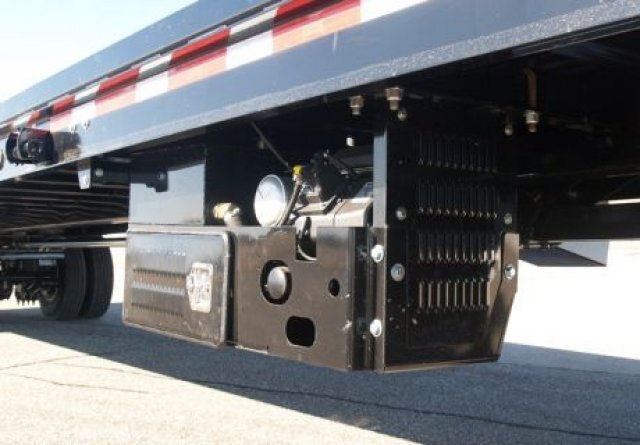

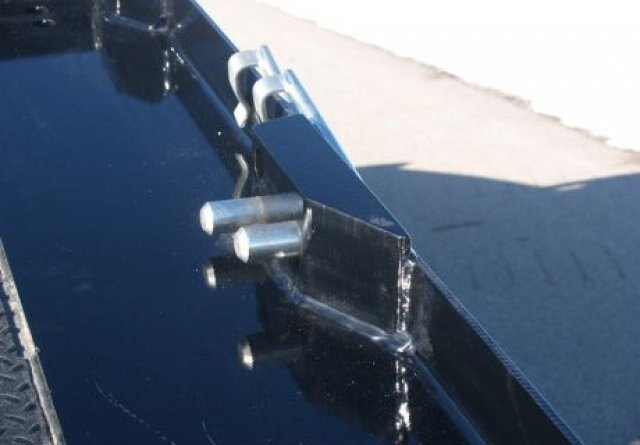

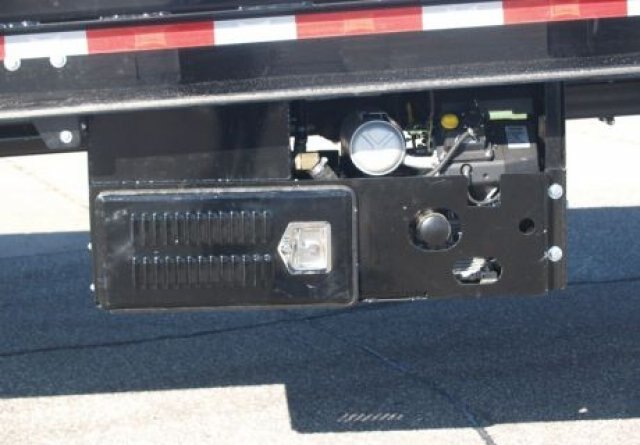

  • Accessories: Automatic Slack Adjusters, 29" Approach Plate with 4 Keyhole Tie Downs, 1 Pair Adjustable Container Stops, 1 Tool Box, (42"W x 28"D x 9"H)
  • Hydraulic Valve Body: Prince Electronic

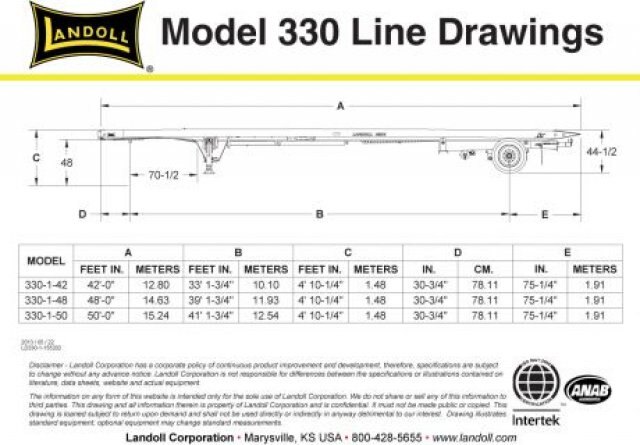

   Technical Specifications:
MODEL
CAPACITY
BASE WEIGHT
 DECK AXLES
TIRES & PLY RATING
330C-1-42
8 Ton
14,110 lbs. +/- 3%
 42' 1 (4) 255/70R 22.5 LRH
330C-1-48 8 Ton 15,200 lbs. +/- 3% 48' 1 (4) 255/70R 22.5 LRH
330C-1-50 8 Ton N/A 50' 1 (4) 255/70R 22.5 LRH



Specifications
Model
Traveling Axle Model 330C-1
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
