ID # 13239924

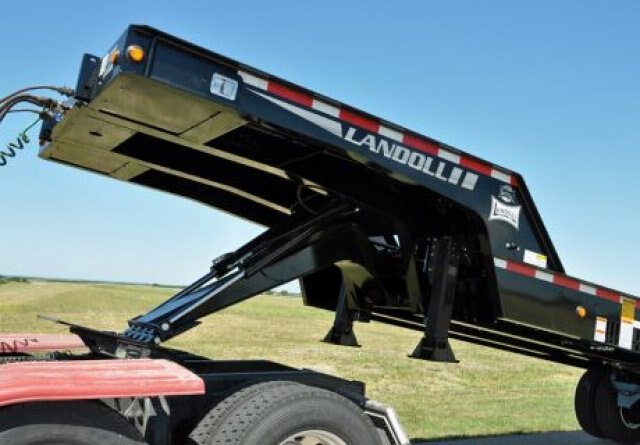

Landoll Traveling Axle Model 318D

  • Landoll Traveling Axle Model 318D
  • Landoll Traveling Axle Model 318D
  • Landoll Traveling Axle Model 318D
  • Landoll Traveling Axle Model 318D
  • Landoll Traveling Axle Model 318D
  • Landoll Traveling Axle Model 318D
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The 318 Workhorse



The 318C 50-ton capacity three-axle trailer features a one-piece, four-beam frame designed with low-load and a 29-inch full width, rigid flat approach plate.   Landoll's full tilt trailer gives the operator full control of the trailer and heavy loads.  The 318 features a six roller undercarriage with the entire frame lifting up from the fifth wheel.   Landoll’s approach plate can be used for additional load deck space and has four tie-down chain slots.  The 318 is nicknamed the OLD WORKHORSE because of it's decades of dependable performance and durability.

Superior Quality and Durability



Computer designed fabricated steel beams incorporated with high tensile strength Jr. I-Beam crossmembers provide unsurpassed strength while offering substantial weight savings.   The undercarriage roller bearings lower the deck into patented pockets fabricated from 100,000 PSI steel and align the axles. The trailer also features an e-chain flexible conduit to protect the hydraulic electrical lines while the undercarriage travels forward.

More Features



The 318C comes equipped with many standard features like centralized grease system, zinc-rich powder primer, Grote SuperNova LED lights, Ultra-Blue Seal wiring harness and durable powder coat paint.  Popular options include the addition of a second winch on the upper deck and wireless remote control.



  Features
  • *Capacity: 100,000 lbs.
  • Deck Rating: 70,000 lbs. in 10'
  • Estimated BaseWeight: See Specs Above
  • Main Frame: Fabricated 80,000 PSI Yield Four-Beam Design
  • Crossmembers: 4"x 4" Tube Alternating with 4" Junior I-Beam on 8"
  • Centers Slope Drop: 45°
  • Parking Stands: Jost Two-Speed
  • Tires: 235/75R 17.5 LRH Double Coin
  • Rims: 17.5x6.75 Tubeless
  • Wheels: Hub Pilot / Steel Outboard Brake Drums
  • Axles: 3 - 25,000 lb. Tandem Dual Tire, Oil Bath Bearings
  • Suspension: Neway RLU228 Air Ride 22,500 lb. Capacity
  • Brakes: 12.25x7.5 Full Air / Spring Brakes (Two Rear Axles) ABS 4S2M Center Axle Indirect
  • Loaded Deck Height: 38"
  • Width: 102"
  • Decking: 1-3/8"Apitong Hardwood
  • Air / Electrical: 7-Way Receptacle
  • Hydraulic Hook Up: Quick Couplers 2500 PSI / 14 GPM
  • Lights: Grote "SuperNova" LED - 10-Year Warranty
  • Finish: Steel Grit Shot Blast to Bright Metal Wiring
  • Harness: Grote "Ultra-Blue Seal"  -  7-Year Warranty
  • Decals: Hi-Visibility Reflective Package
  • Powder Coat Color: White / Black / Yellow / Blue / Red / Green
  • Tie Downs: Double Key Hole Chain Slots and Stake Pockets Alternating on 16" Centers
  • Tool Box: Twin Upper Deck Mounted with Lockable Door 6.5"H x 17"W x 29"D
  • Hydraulic Winch: Worm Gear 12,000 Lb. with 85' of 1/2" Cable
  • Tilt Cylinders: 2 - 4"x126"; 2 - 4"x126"

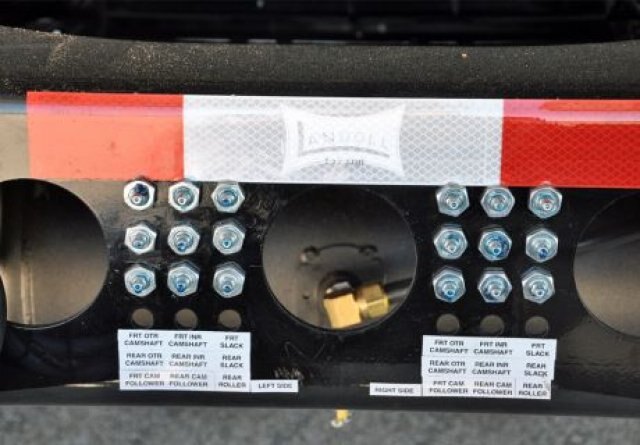

  • Undercarriage: Centralized Grease System; Accepts After-Market Dock Level Hydraulics System; Powder Coated Black
  • Load Angle: 8.5°
  • Accessories: Automatic Slack Adjusters; Flat Approach Plate with Four Key Hole Tie Downs Hydraulic Valve Body: Prince Electronic

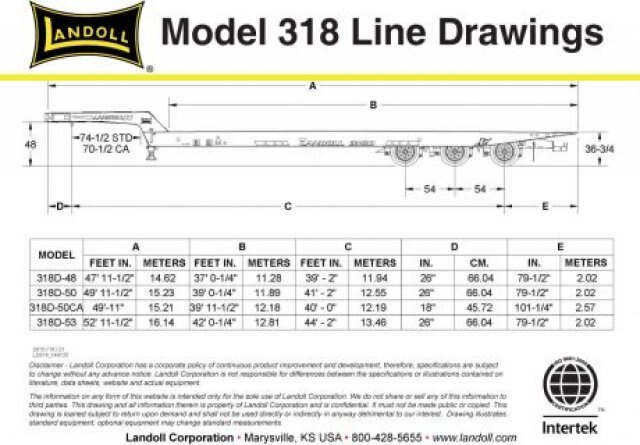

   Technical Specifications:



MODEL
CAPACITY
BASE WEIGHT
  DECK AXLES
TIRES & PLY RATING
318D-48
50 Ton
20,700 lbs. (+/- 3%)
 102"x37' 3 (12) 235/75R 17.5 LRH
318D-50
50 Ton
21,800 lbs (+/- 3%).
 102"x39' 3 (12) 235/75R 17.5 LRH
318D-50CA
 50 Ton 21,800 lbs. (+/- 3%) 102"x41' 3 (12) 235/75R 17.5 LRH
318D-53 50 Ton 22,610 lbs. (+/- 3%) 102"x42' 3 (12) 235/75R 17.5 LRH



Specifications
Model
Traveling Axle Model 318D
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
Documents
