Landoll

ID # 13239297

Landoll Traveling Axle Model 440

Videos
Call for Price
Overview

Haul Heavy, Large Loads Easily Landoll_Trailers_TravelingAxle_440_2Cat_270x160.jpg

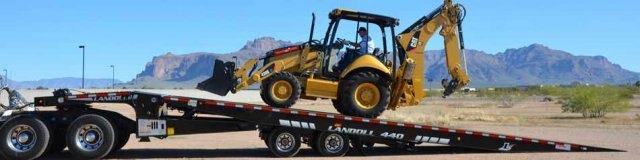

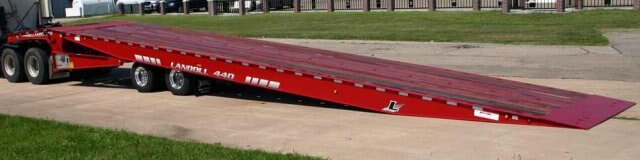

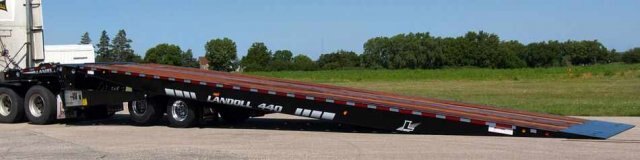

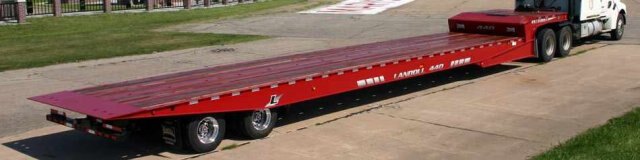

The Landoll 440 is a tandem axle trailer with a capacity of up to 40 tons. It is available in 48', 53', and California legal 50' lengths. Handle tough equipment including super low clearance pavers with an easy one-man operation

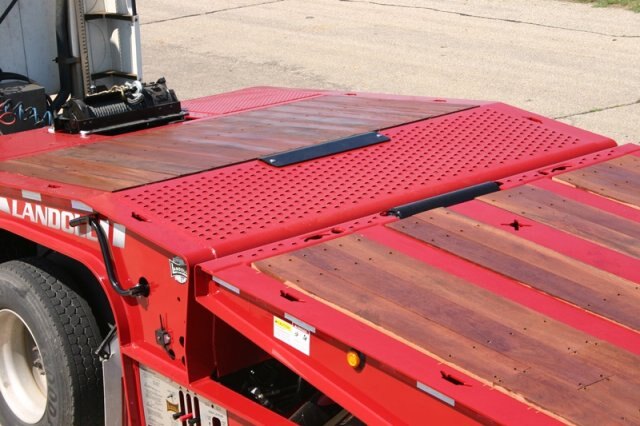

Low Clearance Upper Deck Transition Landoll_Trailers_TravelingAxle_440_300dpi_270x160.jpg

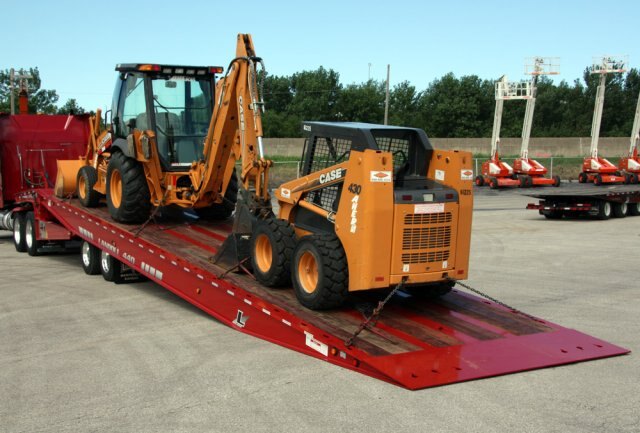

All 400 series trailers feature the super low clearance slope transition allowing manlifts, forklifts, and other difficult low clearance equipment to load easily on the upper deck.

Ultimate Stability

The four beam frame design is the backbone of a super versatile, solid piece of equipment. Wider main beams with a wider undercarriage, outboard tilt cylinder mounts, outer beam pivot points adds superior stability while loading heavy loads.

Landoll_Trailer_TravelinAxle_440_PaintBooth_270x160.jpg Powder Coat Paint

Landoll is the only trailer manufacturer to offer powder coat paint on an entire trailer frame. The very durable finish provides excellent chemical and salt resistance while giving Landoll trailers a high quality, attractive appearance. A zinc-rich powder primer is applied prior to painting the entire frame with one of eight standard powder coat colors.



  Features
  • *Capacity: 80,000 lbs.
  • Deck Rating: 50,000 lbs. in 10'
  • Estimated Base Weight: See Above
  • Main Frame: Fabricated 80,000 and 100,000 PSI Yield, 40" Center, Four-Beam Design
  • Crossmembers: Alternating 4" and 3" Junior I-Beam on 8" Centers
  • Slope Drop: 90°
  • Parking Stands: Jost Two-Speed
  • Tires: 235/75R 17.5 LRH Double Coin
  • Rims: 17.5x6.5 Tubleless
  • Wheels: Hub Pilot / Steel Outboard Brake Drums
  • Axles: 2 - 25,000 lb. Dual Tire, Oil Bath Bearings
  • Suspension: Neway RLU228 Air Ride 22,500 lb. Capacity
  • Brakes: 12.25x7.5 Full Air / Spring Brakes ABS, 4S2M
  • Oil Seal Hubs: Internal Mated Assembly
  • Hitch: 5th Wheel Kingpin
  • Pin Setting: 21"
  • Swing Clearance: 83.5"
  • Loaded Ground Clearance: 14" at Bottom of Gooseneck
  • Loaded Deck Height: 37"
  • Width: 102" Decking:  1-3/8" Apitong Hardwood

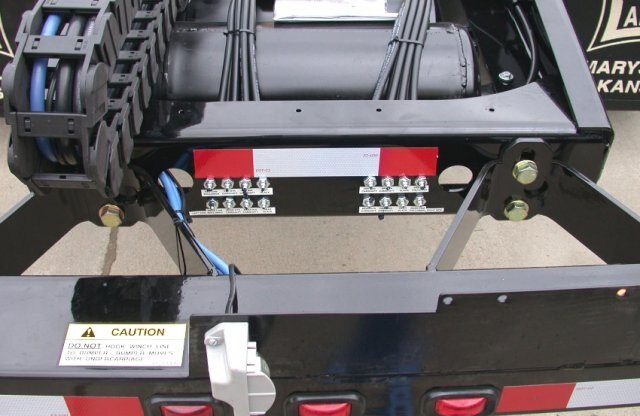

  • Air / Electrical: 7-Way Receptacle
  • Hydraulic Hook Up: Quick Couplers 2500 PSI / 14 GPM
  • Wiring Harness: "Grote Ultra-Blue Seal" - 7-Year Warranty
  • Lights: Grote "SuperNova" LED - 10-Year Warranty
  • Finish: Steel Grit Shot Blast to Bright Metal
  • Tie Downs: Double Key Hole Chain Slots with Square Stake Pockets on 24" Centers
  • Powder Coat Color: White / Black / Yellow / Blue / Red / Green
  • Decals: Hi-Visibility Reflective Package
  • Tool Box: Twin Upper Deck Mounted with Lockable Door (7"H x 34"W x 29"D)
  • Hydraulic Winch: Worm Gear 12,000 lb. with Spring Tension and 85' of 1/2" Cable
  • Tilt Cylinders: 2 - 6" x 30"

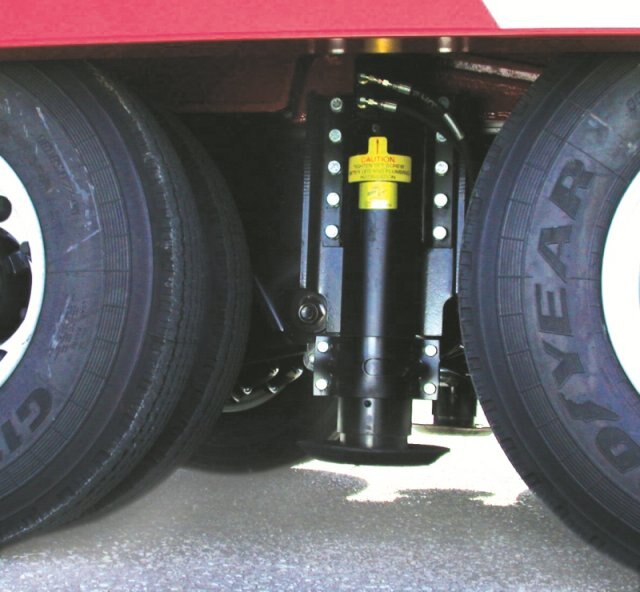

  • Undercarriage: 2 - 4" x 126" - 48'; 4" x 126" and 4" x 138" - 50'; 4" x 138" - 53', Centralized Grease System; Accepts After-Market Dock Level Hydraulics System; Powder Coated Black
  • Load Angle: 6.5°
  • Accessories: Flat Approach Plate with Six Key Hole Tie Downs, Automatic Slack Adjusters, Main Deck Center Slope Roller, Very Soft Transition from Lower to Upper Deck
  • Hydraulic Valve Body: Prince Electronic

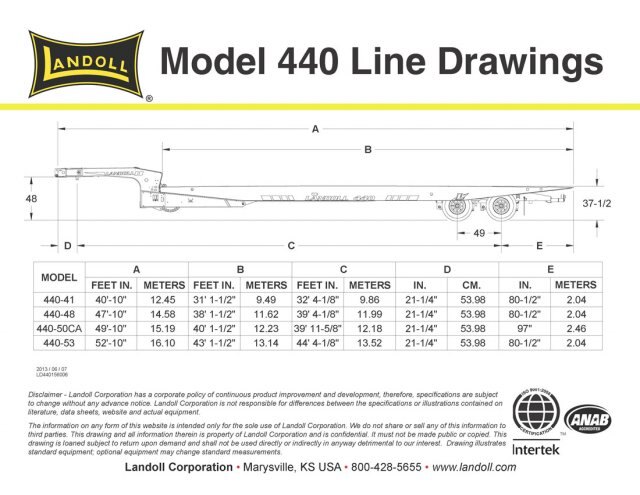

  Technical Specifications:



MODEL
CAPACITY
BASE WEIGHT
DECK AXLES
TIRES & PLY RATING
440-41
40 Ton
18,180 lbs. (+/- 3%)
102" 2 (8) 235/75R 17.5 LRH
440-48
40 Ton
18,575 lbs. (+/- 3%)
102" 2 (8) 235/75R 17.5 LRH
440-50CA
40 Ton 19,355 lbs. (+/- 3%) 102" 2 (8) 235/75R 17.5 LRH
440-53 40 Ton 19,610 lbs. (+/- 3%) 102" 2 (8) 235/75R 17.5 LRH



Specifications
Model
Traveling Axle Model 440
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
