Landoll

ID # 13239258

Landoll Traveling Axle Model 425B

Videos
Call for Price
Overview

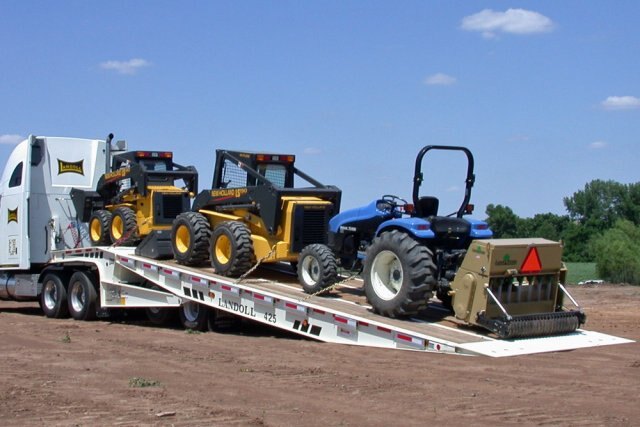

Medium-Duty with Full Features Landoll_Trailer_TravelingAxle_425_LoadedConst_270x160.jpg

The Model 425 is a medium-duty, tandem axle, 25 ton capacity trailer available in lengths of 41' and 45'. The 425 is ideal for narrow, tight, winding road and inner-city applications with a lighter hauling capacity.  The 425 may be a medium-duty trailer however, it still boasts all the features of the 400 series.

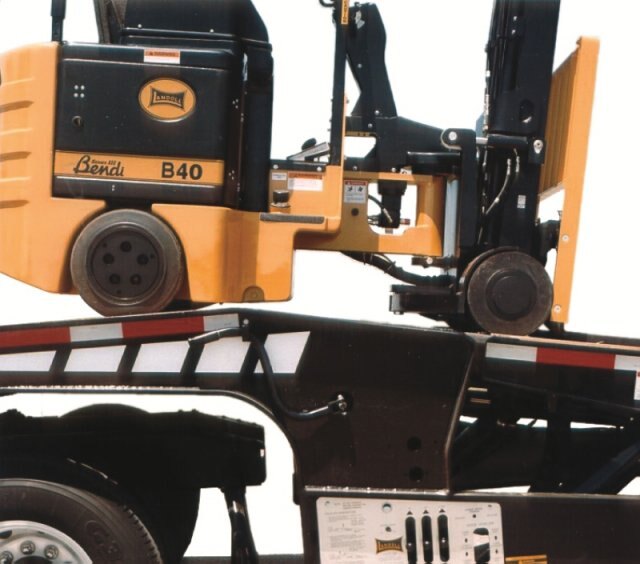

Low Clearance Upper Deck Transition Landoll_Trailers_TravelingAxle_440_300dpi_270x160.jpg

All 400 series trailers feature the super low clearance slope transition allowing manlifts, skid loaders, and other difficult low clearance equipment to load easily on the upper deck.

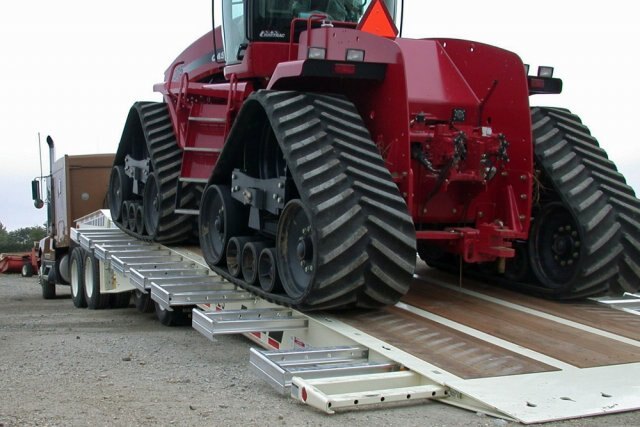

Ultimate Stability Landoll_Trailer_TravelingAxle_425_QuadTrac_270x160.jpg

The four beam frame design is the backbone of a super versatile, solid piece of equipment. Wider main beams with a wider undercarriage, outboard tilt cylinder mounts, and outer beam pivot points add superior stability while loading heavy loads.

Powder Coat Paint Landoll_Trailer_TravelingAxle_425_PowderCoat_270x160.jpg

Landoll is the only trailer manufacturer to offer powder coat paint on an entire trailer frame. The very durable finish provides excellent chemical and salt resistance while giving Landoll trailers a high quality, attractive appearance. A zinc-rich powder primer is applied prior to painting the entire frame with one of eight standard powder coat colors
  Features
  • *Capacity: 50,000 lbs.
  • Deck Rating: 40,000 lbs. in 16'
  • Estimated Base Weight: 16,800 lbs. + / - 3%
  • Main Frame: Fabricated 100,000 PSI Yield Four-Beam Design
  • Crossmembers: Alternating 4" and 3" Junior I-Beam on 8" Centers
  • Slope Drop: 90°
  • Parking Stands: Jost Two-Speed
  • Tires: 235/75R 17.5 LRH Double Coin
  • Rims: 17.5x6.75 Tubeless
  • Wheels: Hub Pilot / Steel Outboard Brake Drums
  • Axles: 2 - 25,000 lb. Tandem Dual Tire, Oil Bath Bearings
  • Suspension: Neway RLU228 Air Ride 22,500 lb. Capacity
  • Brakes: 12.25x7.5 Full Air / Spring Brakes ABS, 4S2M
  • Oil Seal Hubs: Internal Mated Assembly
  • Hitch: 5th Wheel Kingpin
  • Pin Setting: 21"
  • Swing Clearance: 81"
  • Loaded Ground Clearance: 8.5"
  • Loaded Deck Height: 37"
  • Width: 102"
  • Decking: 1-3/8" Apitong Hardwood
  • Air / Electrical: 7-Way Receptacle
  • Hydraulic Hook Up: Quick Couplers 2500 PSI / 14 GPM
  • Lights: Grote "SuperNova" LED - 10-Year Warranty
  • Tie Downs: Double Key Hole Chain Slots and Stake Pockets Alternating on 16" Centers
  • Finish: Steel Grit Shot Blast to Bright Metal Wiring
  • Harness: Grote "Ultra-Blue Seal" - 7-Year Warranty
  • Powder Coat Color: White / Black / Yellow / Blue / Red / Green
  • Decals: Hi-Visibility Reflective Package
  • Toolbox: Twin Upper Deck Mounted with Lockable Door 6.5" H x 11.5" W x 29" D
  • Hydraulic Winch: Worm Gear 12,000 lb. with Spring Tension and 85' of 1/2" Cable
  • Tilt Cylinder: 2 - 4-1/2" x 30"
  • Undercarriage: 2 - 4" x 100", Centralized Grease System; Accepts After-Market Dock Level Hydraulics System; Powder Coated Black
  • Load Angle: 7.5°
  • Accessories: Flat Approach Plate with Four Key Hole Tie Downs, Automatic Slack Adjusters, Dual Slope Rollers
  • Hydraulic Valve Body: Prince Electronic







Loading images...

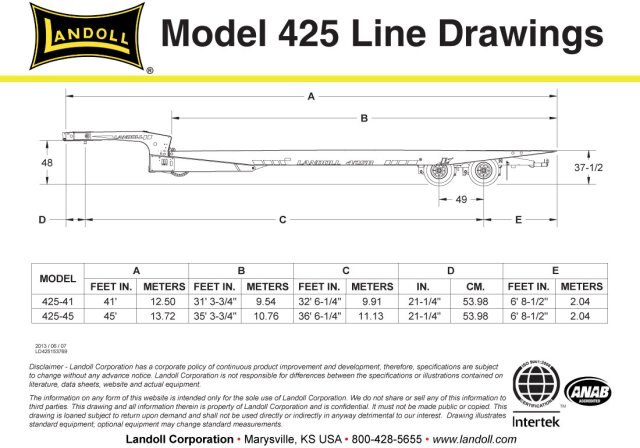

  • 425-TrailerLineDrawing613.jpg

Line Drawing

425B Line Drawing

Downloadable Literature

Traveling Axle 400 Series Product Brochure (Full Color)

Traveling Axle 400 Series Product Brochure (Printer Friendly)

REQUEST PRINTED LITERATURE

If you would like to receive our product literature, please fill out and submit the form below.

Note: To request literature for multiple products, visit our Literature Request page.


Specifications
Model
Traveling Axle Model 425B
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
