ID # 38977636

Landini POWERFARM 90 (TIER 3)

  • Landini POWERFARM 90 (TIER 3)
  • Landini POWERFARM 90 (TIER 3)
  • Landini POWERFARM 90 (TIER 3)
  • Landini POWERFARM 90 (TIER 3)
  • Landini POWERFARM 90 (TIER 3)
  • Landini POWERFARM 90 (TIER 3)
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Powerfarm, Modern and straightforward

Powerfarm has always been considered the Landini brand’s all-time favourite since it has maintained major shares of the market in non-European countries where it expresses its versatile qualities and running economy to the ful. The range is ideal for all-purpose use in the open fields and can be configured in many different ways.






Specifications
Model
POWERFARM 90 (TIER 3)
Category Name
Tractors
Year
2025
Sale Type
New
Manufacturer
Landini
ENGINE
(TIER 3)
REAR TYRES
18.4-30
FRONT TYRES
12.4-24
MAX. TORQUE NM
352
RATED SPEED RPM
2200
DISPLACEMENT CM3
4400
HEIGHT TO ROPS MM
2510
HEIGHT OVER CAB MM
2500
WHEELBASE 2WD/4WD MM
2341/2316
FUEL TANK CAPACITY LT
102
MAX. TORQUE SPEED RPM
1400
MAX. POWER (ISO) HP/KW
83/61
LENGTH (WITH BALLAST) MM
4136
MAX. STEERING ANGLE DEGREE
55
MAX. OPERATING PRESSURE BAR
180
FRONT TRACK ADJUSTMENT 4WD MM
1553-1954
INDEPENDENT DRY DUAL CLUTCH IN.
11
PERKINS DIRECT-INJECTION ENGINE
1104D-44T
OIL-IMMERSED GRAPHITE-COATED REAR BRAKES
10 DISCS
WEIGHT (WITHOUT BALLAST) 4WD + (150 KG CAB) KG
3330
resources
Name Link
Brochure                                                                            Download



key features

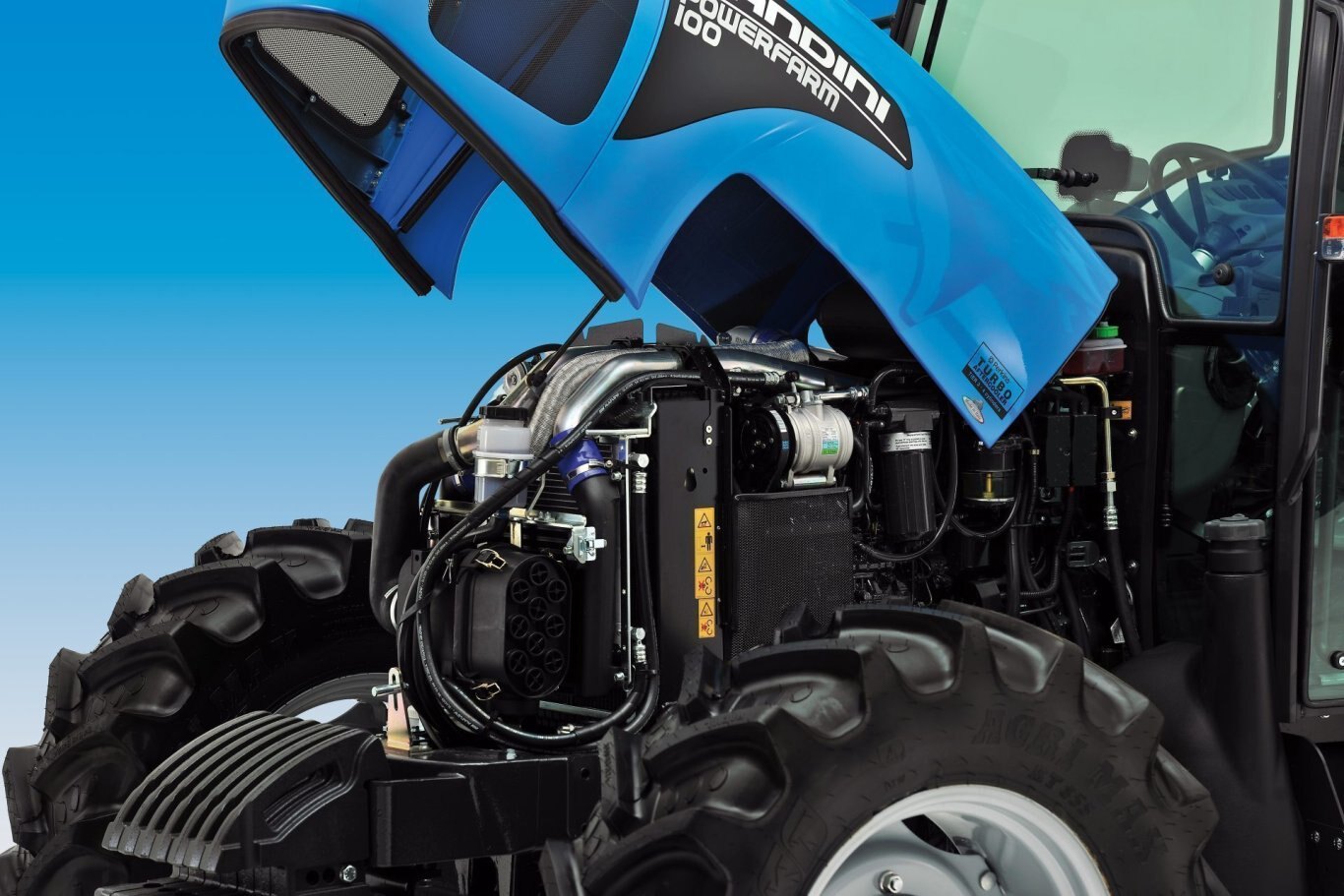

Landini POWERFARM 90 (TIER 3) Perkins direct-injection engine

With a range of 3 models featuring Tier 3 engines and a further model with a “blu” engine that does not conform to Tier standards, Powerfarm covers a powerband ranging from 83 to 102 HP and over 106 HP in the Powerfarm 110 Tier 0 model.

Landini POWERFARM 90 (TIER 3) The modular basic transmission

The modular basic transmission (Speed Four) with 4 speed gears and 3 ranges (12FWD+12REV) can be sup- plied in 4 different versions. The basic transmission can supplied with an optional underdrive (only for 2WD) or creeper (24FWD+12REV) for a speed of 30 km/h. There is also an optional overdrive allowing the operator to always select 24FWD + 12REV for a speed of 40 km/h. These functions can be engaged by means of the reverse shuttle lever located in a user-friendly position.

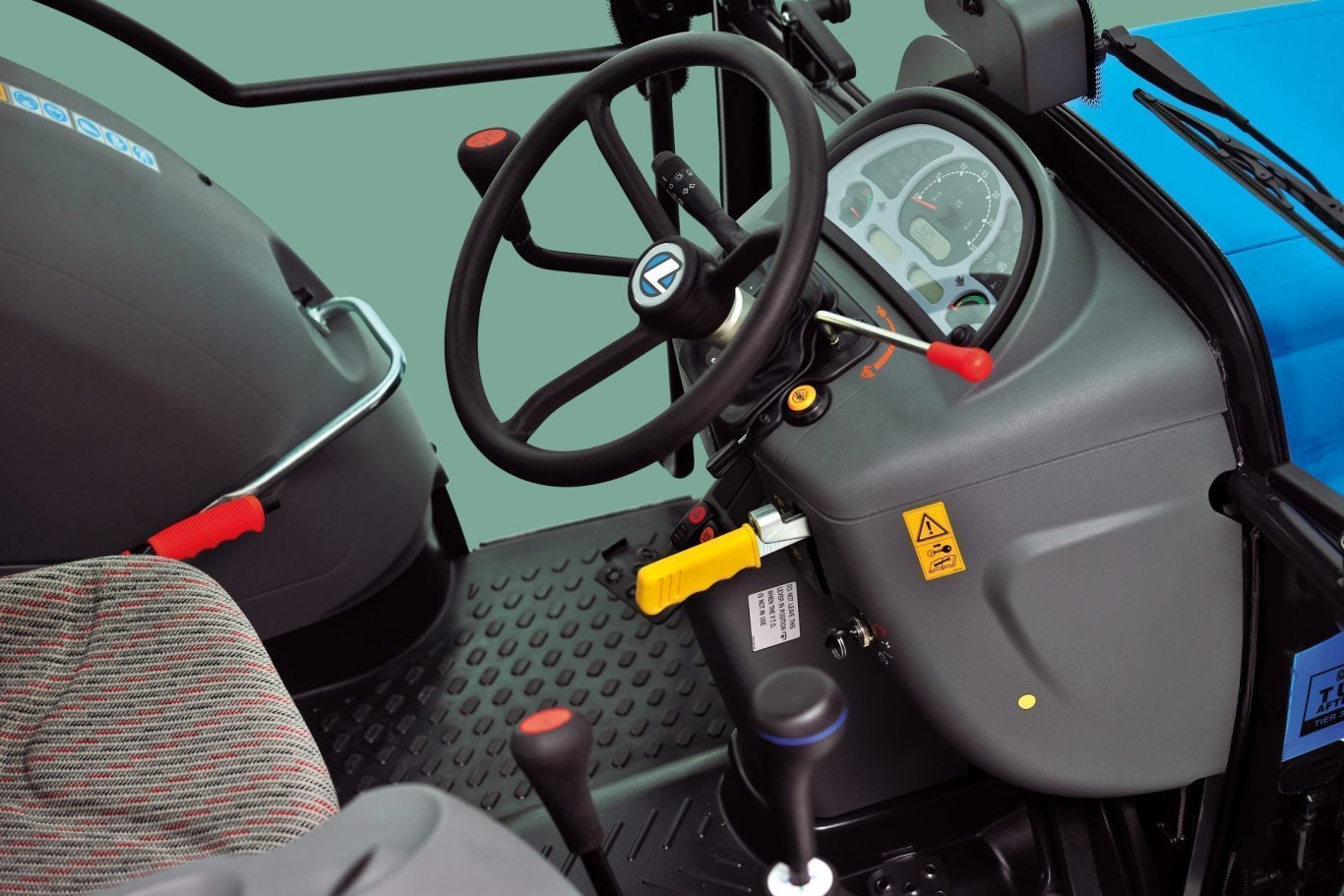

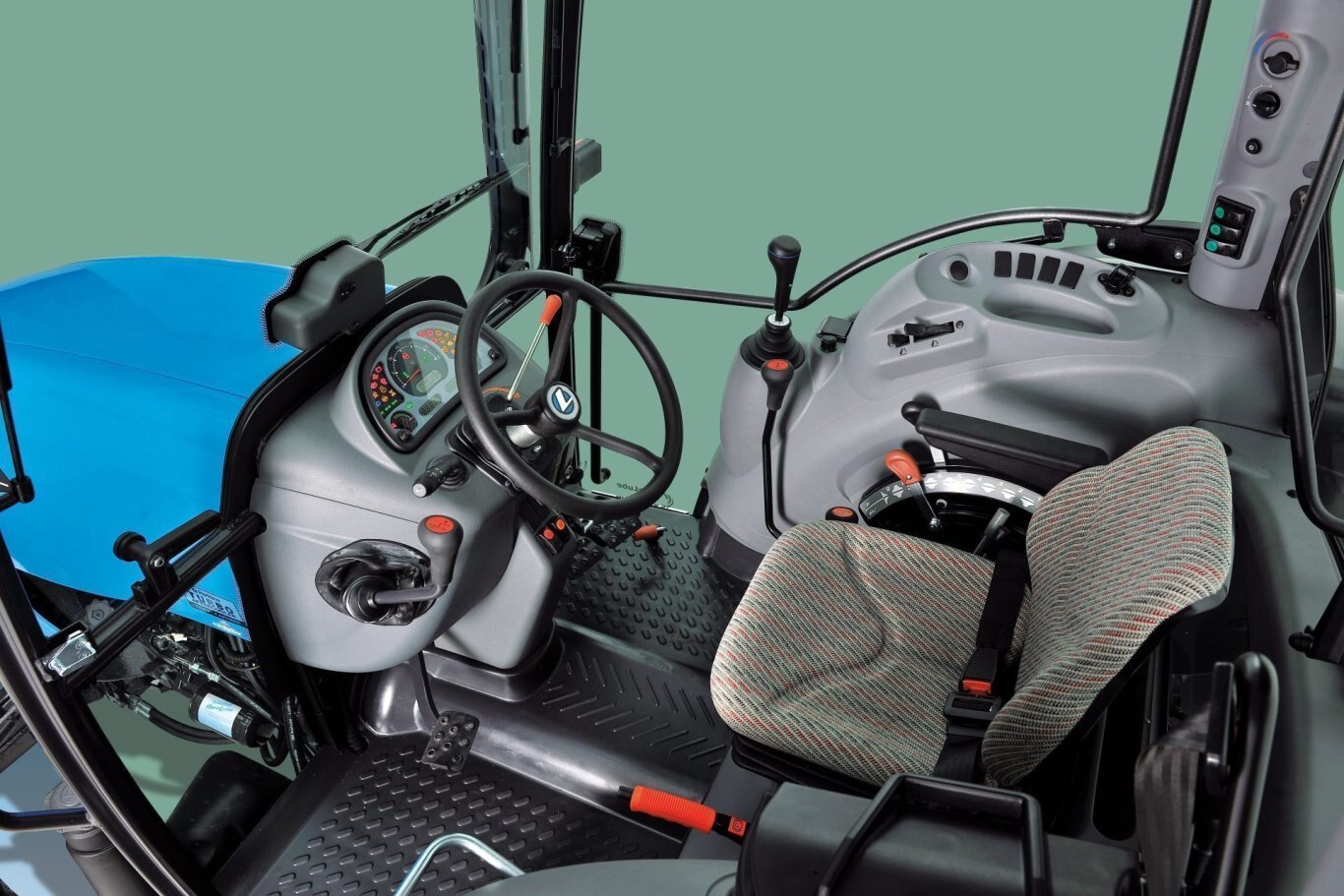

Landini POWERFARM 90 (TIER 3) Driving position

Powerfarm is available in both the footstep version with two-pillar safety frame and with the “Total View” cab for all-round visibility with all-glass side doors hinged to the rear pillar, air conditioning and air filtering systems. When it comes to the cab interior, extensive use has been made of modern, composite materials like those used in the car industry, while the controls are arranged in accordance with the current standards governing ergonomics. The driver’s area in the footstep version also complies with ergonomic principles and features an adjustable suspension seat and adjustable steering wheel.

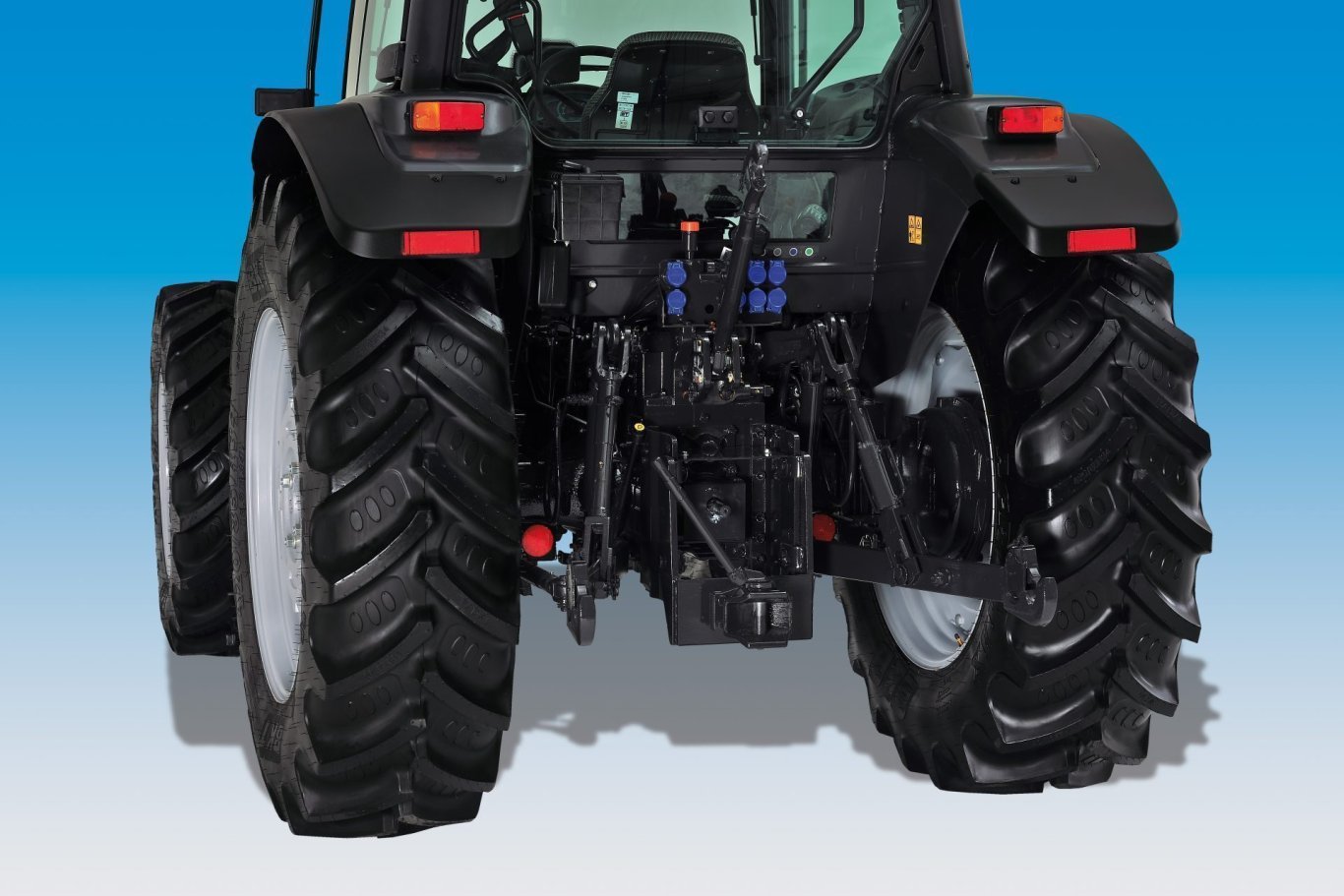

Landini POWERFARM 90 (TIER 3) Hydraulic circuit

The Powerfarm Series includes a hydraulic circuit with 82 l/min total maximum flow rate, a hitch with class 2 three-point linkage and 4350 kg lift capacity as well as position, draft, intermix and floating functions, plus up to 4 supplementary control valves, two of which controlled by a joystick (also useful for work with a front loader).
