ID # 38977515

Landini SUPER Plat 90

  • Landini SUPER Plat 90
  • Landini SUPER Plat 90
  • Landini SUPER Plat 90
  • Landini SUPER Plat 90
  • Landini SUPER Plat 90
  • Landini SUPER Plat 90
  • Landini SUPER Plat 90
  • Landini SUPER Plat 90
  • Landini SUPER Plat 90
  • Landini SUPER Plat 90
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

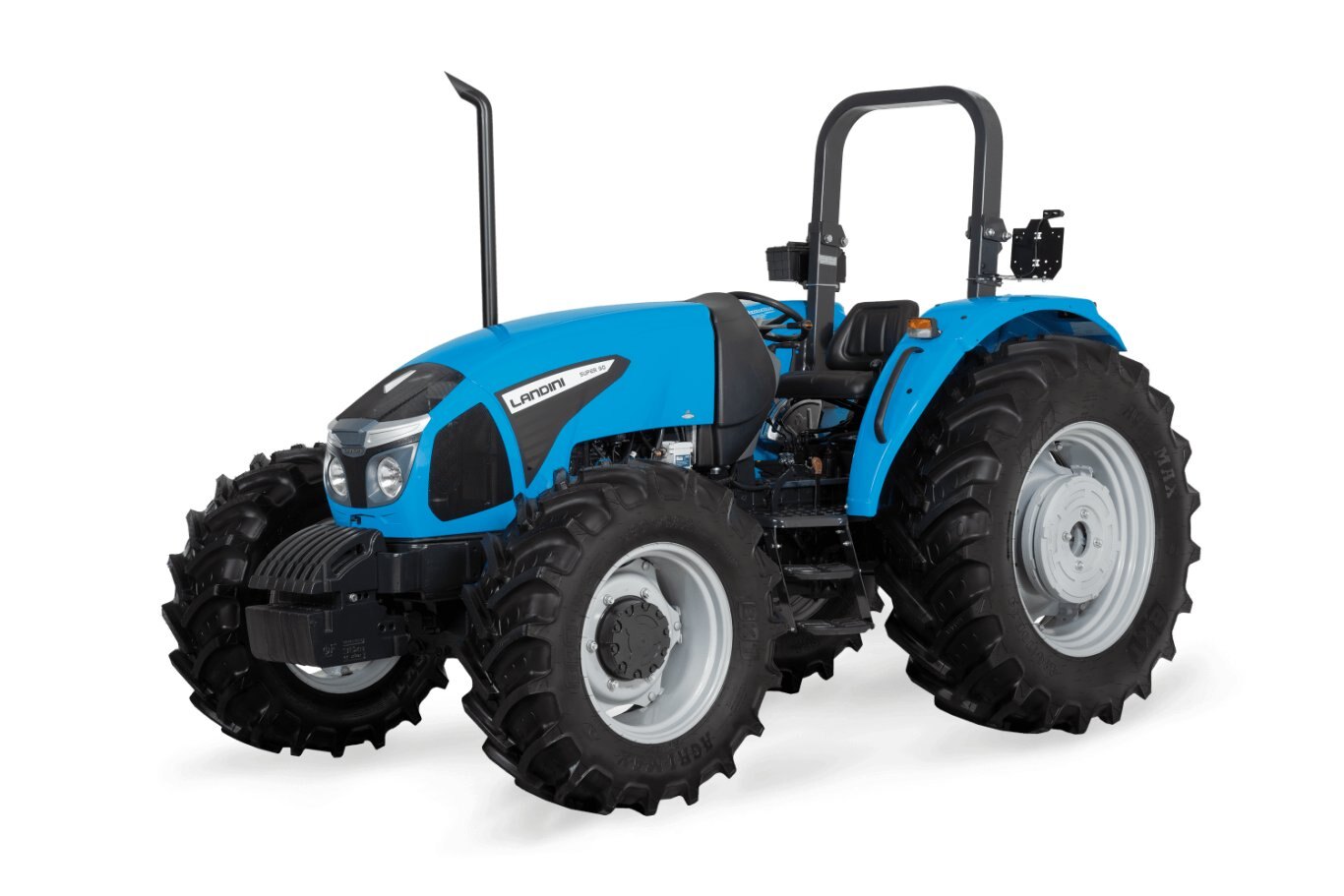

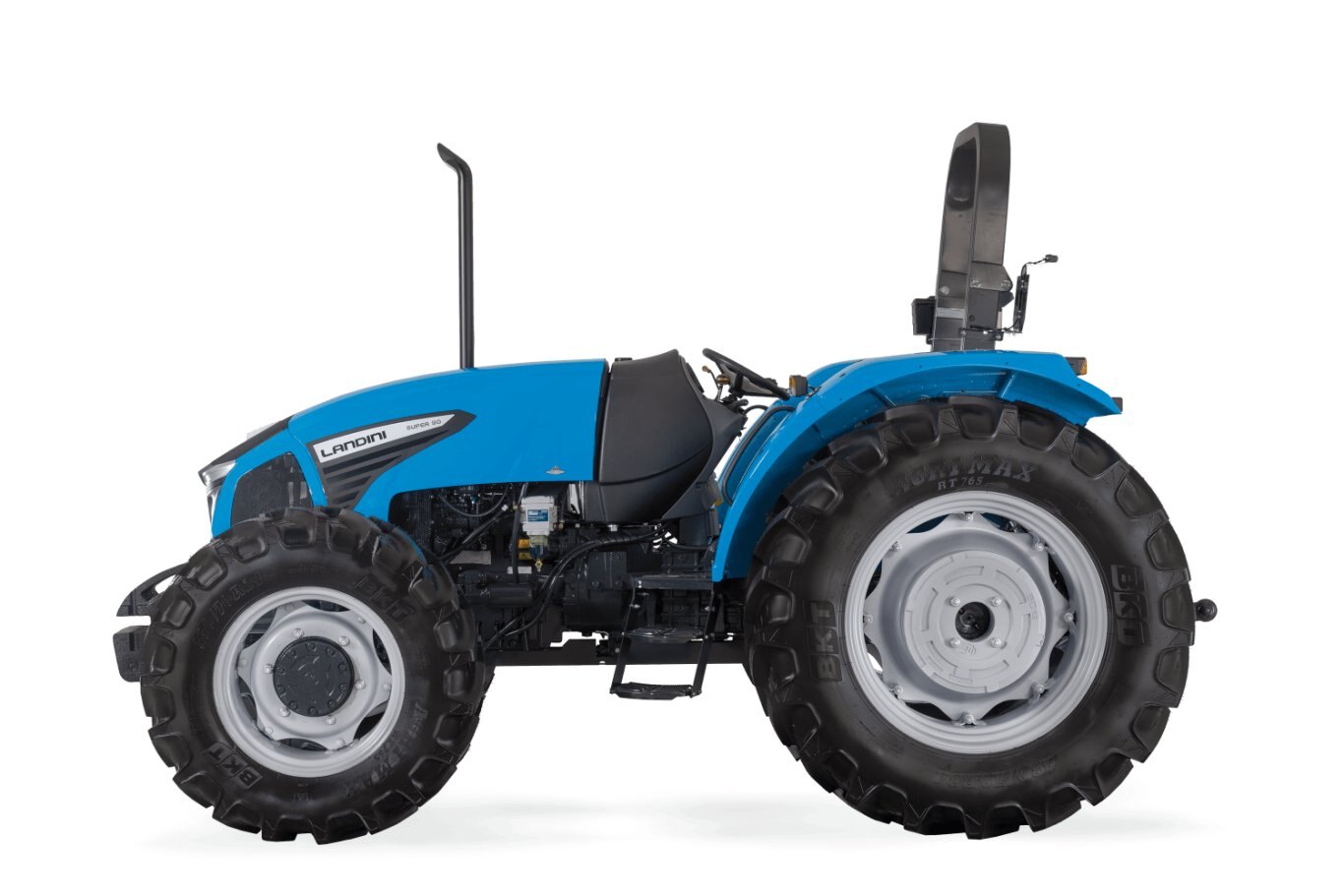

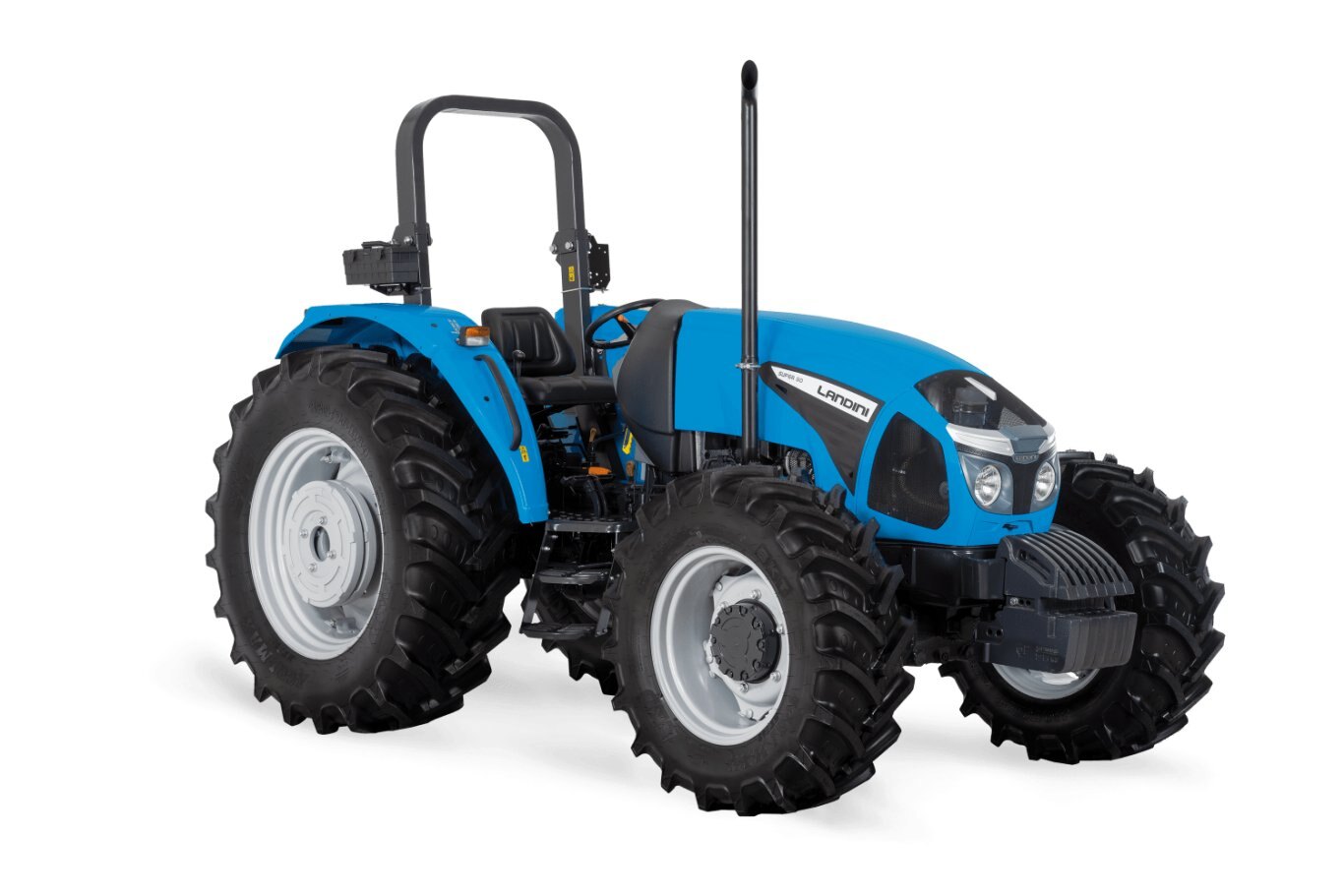

Super Plat, tractor in ROPS version

The Super tractor range from Landini is designed to meet the needs of a wide variety of applications, from open field activities to haymaking through to vegetable growing, vineyards and orchards. Completely restyled with a more contemporary look, the new Super tractor offers improved performance and new functions.






Specifications
Model
SUPER Plat 90
Category Name
Tractors
Year
2025
Sale Type
New
Manufacturer
Landini
TYPE
mechanical
Speeds
540/1000 - o 540/540E
Fuel Tank L
95
Manufacturer
Perkins
Wheelbase Mm
2224 - 2316 (2WD - 4WD)
Traction Type
4WD - 2WD
No. Of Gears - Std
12 FWD + 12 REV with synchro shuttle
Rear Hitch Control
mechanical
Rated Engine Speed Rpm
2200
Gross Vehicle Weight Kg
5350
Max Torque At 1400 Rpm Nm
352
Minimum Speed With Creeper M/h
340 (IR 700)
Cylinders / Displacement / Valves
4 / 4.4 l / 8
Rear Remote Valves - Type, Number
1 up to 2 mechanical
Max Lifting Capacity At Hitch Points Kg
3100 - 4520 with twin assistor rams
Max Power (97/68/EC - ISO TR 14396) Hp/kW
82 / 60.5
Max Rear Tyre Size - (Index Radius -IR) Mm
480/70 R34 (2WD - IR 750) 13.6 R38 (4WD - IR 750)
Shipping Weight - Measured With Average Specs Kg
3500
Max Height Over FOPS/cab Without Beacon Lights Mm
2580 - measured with tyres IR 725
Emission Stage - Without After-treatment System Nm
TIER 3
resources
Name Link
Brochure                                                                            Download



key features

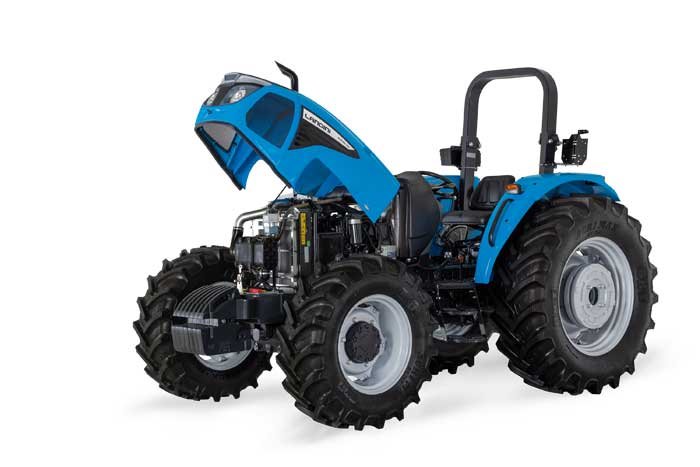

Landini SUPER Plat 90 Efficient and durable engines

The Perkins 1104D 4.4-litre, 8-valve, 4-cylinder engines deliver from 82 to 111 hp with peak torques from 289 to 416 Nm. Available in naturally-aspirated, turbo charged and turbo aftercooled versions, these engines meet Tier 0 and Tier 3 emissions regulations and feature up to 100-litre fuel tank capacity for long running times.

Landini SUPER Plat 90 Argo Tractors transmissions

The Super tractors feature a 12F/12R synchro shuttle transmission and can be equipped with a 16F/16R creeper unit offering a minimum speed of 0.35 km/h. A 12F/12R power shuttle transmission with de-clutch function is also available for easy forward/reverse shifting and clutchless gear changes.

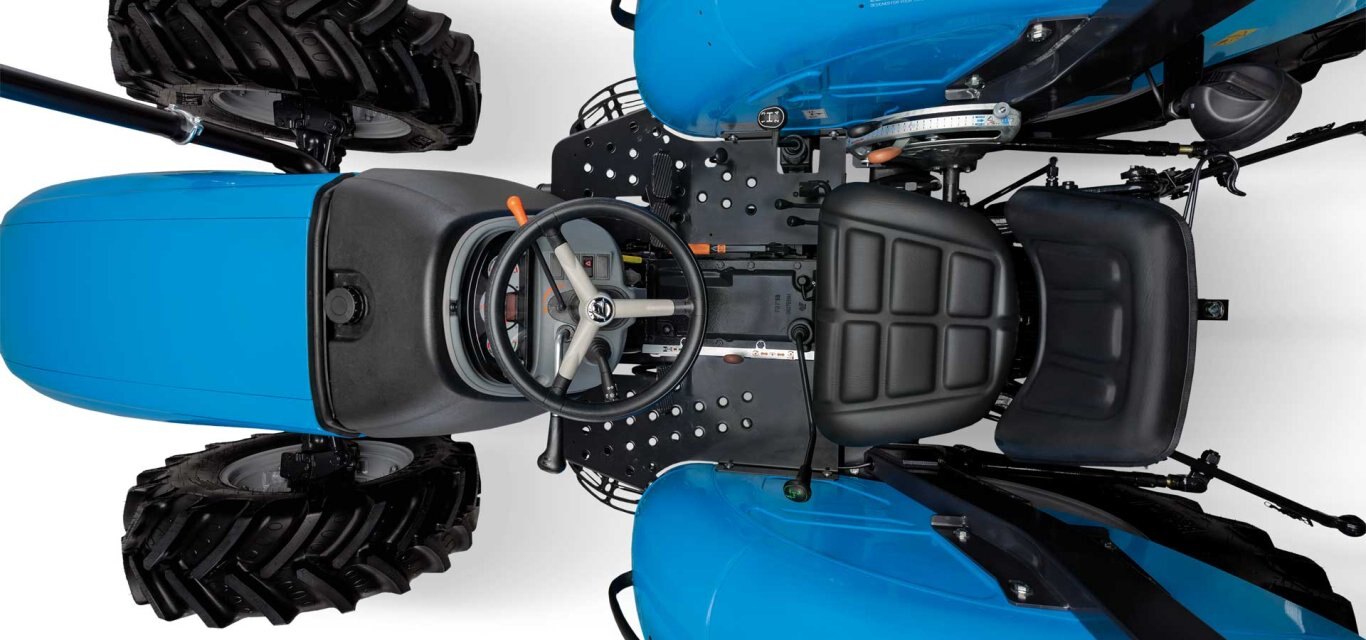

Landini SUPER Plat 90 ROPS

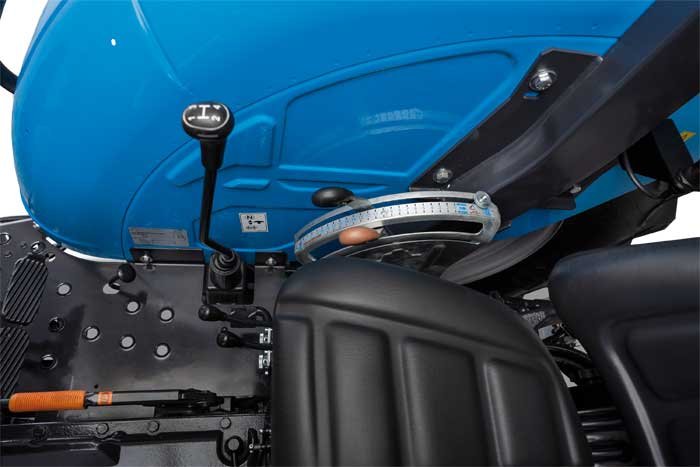

The driving position features an air suspension seat, an adjustable steering column, a new dashboard, and ergonomically arranged controls.

Landini SUPER Plat 90 Open-centre hydraulic system

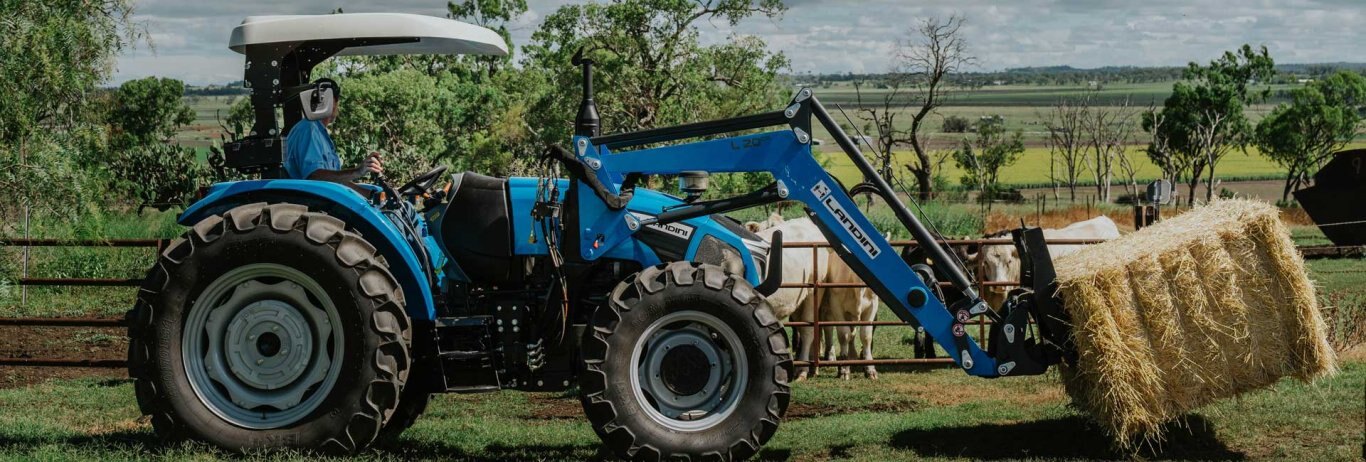

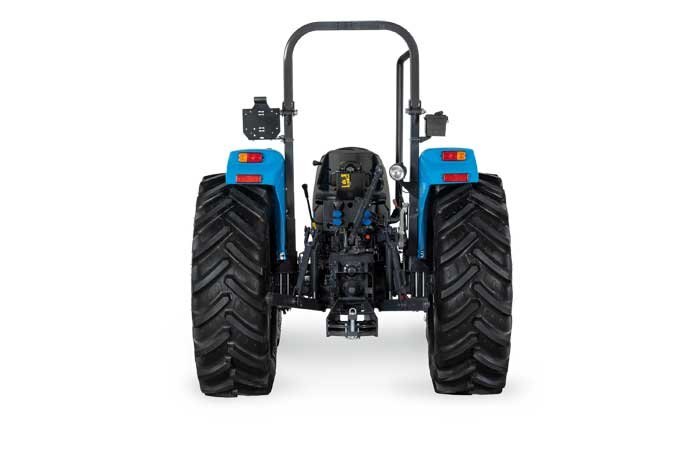

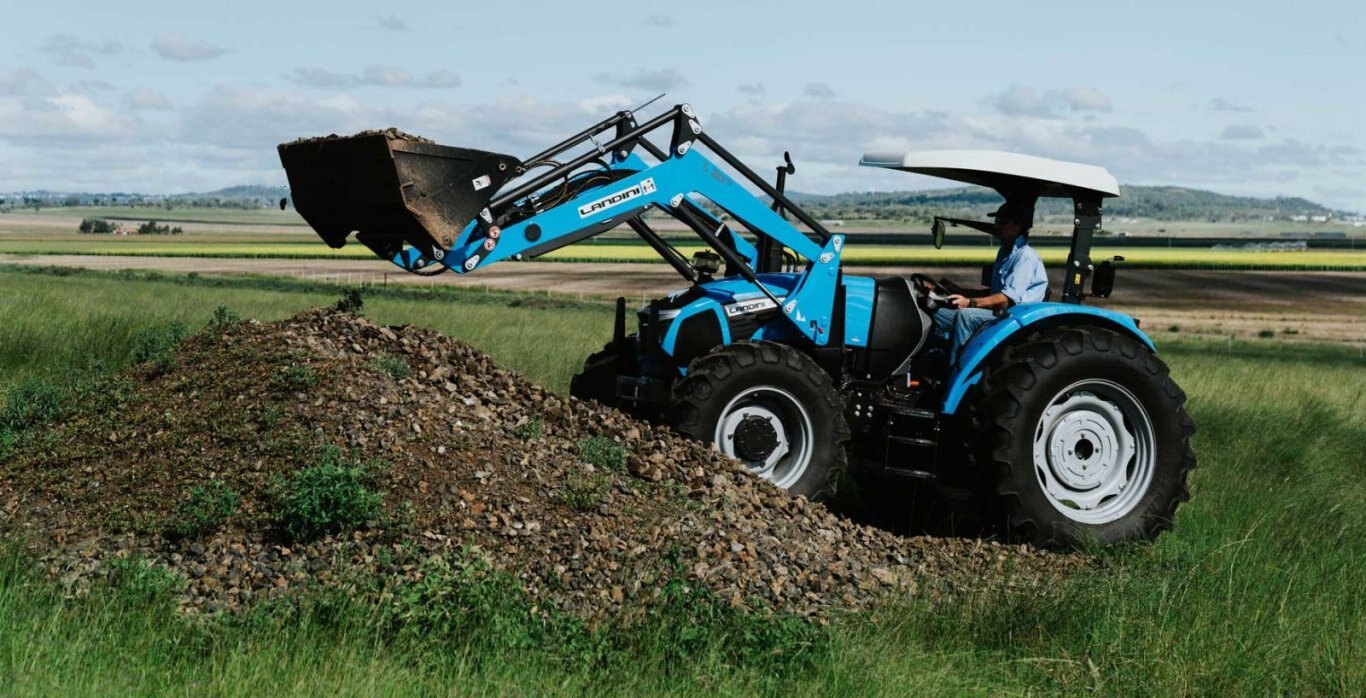

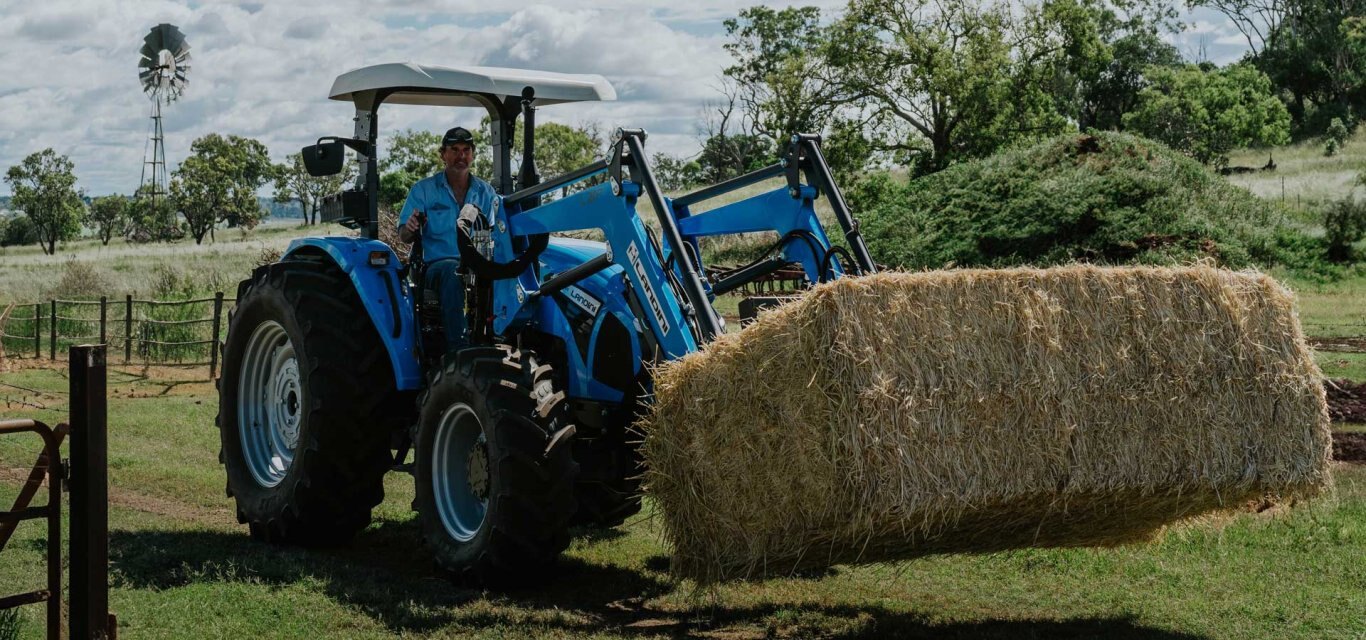

The hydraulic system supplies 54 l/min to the hitch and remotes and 30 l/min to the steering system for enhanced driving comfort. The Super tractor offers up to four rear remote valves and a two-speed PTO with 540/1000 or 540/540E rpm, plus a ground speed PTO. The tractor is equipped with a rear hitch capable of lifting 5080 kg and is factory-prepared for fitting a Landini L20 front loader.
