ID # 38923850

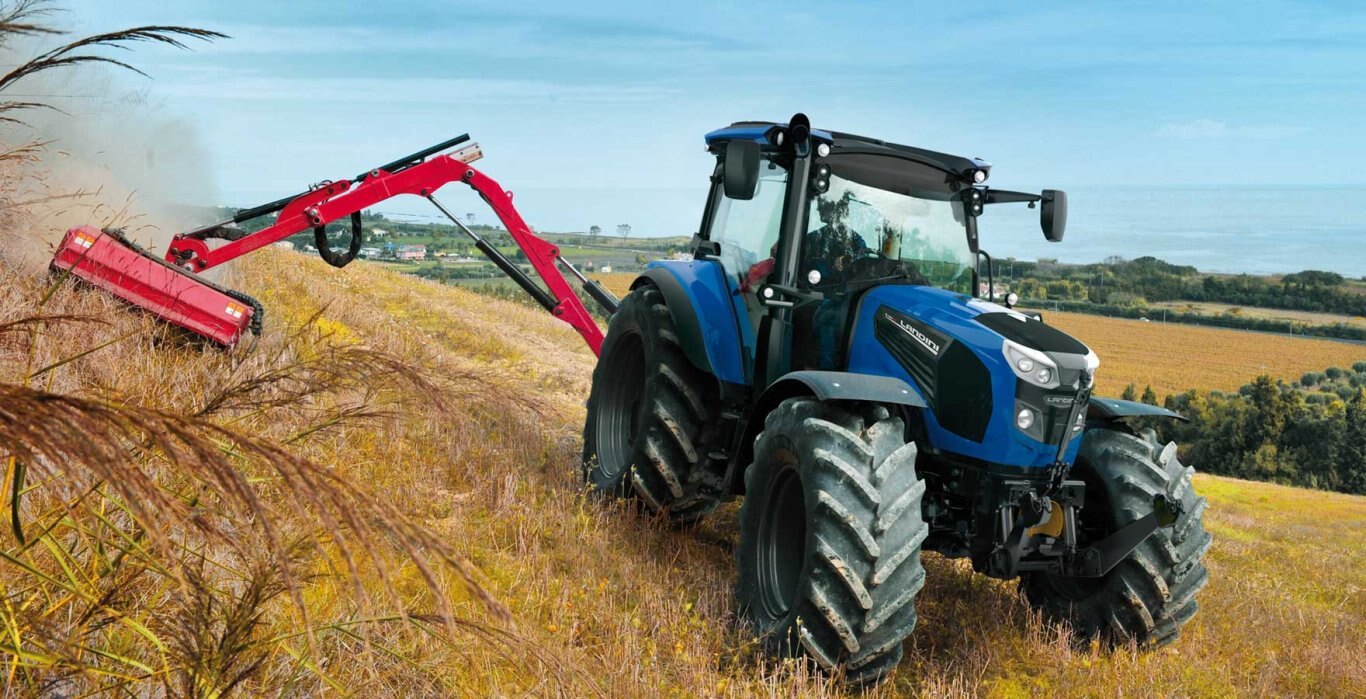

Landini 6-135 RS ROBO-SIX

  • Landini 6 135 RS ROBO SIX
  • Landini 6 135 RS ROBO SIX
  • Landini 6 135 RS ROBO SIX
  • Landini 6 135 RS ROBO SIX
  • Landini 6 135 RS ROBO SIX
  • Landini 6 135 RS ROBO SIX
  • Landini 6 135 RS ROBO SIX
  • Landini 6 135 RS ROBO SIX
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The new 6RS Robo-Six Stage V Series, versatility, performance and comfort

One of the main innovations is the new 6RS Robo-Six Stage V Series, designed for customers looking for versatility, performance and comfort. This tractor is ideal for open field work, forage applications, road transport and farm handling.






Specifications
Model
6-135 RS ROBO-SIX
Category Name
Tractors
Year
2025
Sale Type
New
Manufacturer
Landini
Type
electrohydraulic multidisc clutch with modulated engagement
Fuel Tank L
220
Manufacturer
FPT
Traction Type
electrohydraulic 4WD
Cooling System
matrix radiator pack - coolers open out from single latch - viscous fan
Cooling System L
27
Minimum Speed Km/h
2.4 without creeper - 0.38 with creeper
AdBlue / DEF Tank L
23
Rear Braking System
4 oil-cooled discs
Front Braking System
wet multi-disc brakes and 4WD engagement while braking
Rated Engine Speed Rpm
2200
Rear Differential Lock
fully electrohydraulic wet clutch
Trailer Braking System
pneumatic brake system with 2 or 2+1 lines as per MR, with or without single-line hydraulic brake - 2-line hydraulic brake system as per MR (40 km/h on
Front Differential Lock
fully electrohydraulic wet clutch
Transmission & Other Controls
electrohydraulic with modulation control
Cylinders/ Displacement / Valves
4 / 4.5 l / 16
Torque Backup Without EPM (with EPM)
44% (40%)
Max Power (97/68/EC - ISO TR 14396) Hp/kW
125 / 92
Max Torque Without EPM (with EPM) At 1400 Rpm Nm
520 (551)
Max Power With EPM (97/68/EC - ISO TR 14396) Hp/kW
135 / 100
resources
Name Link
Brochure                                                                            Download



key features

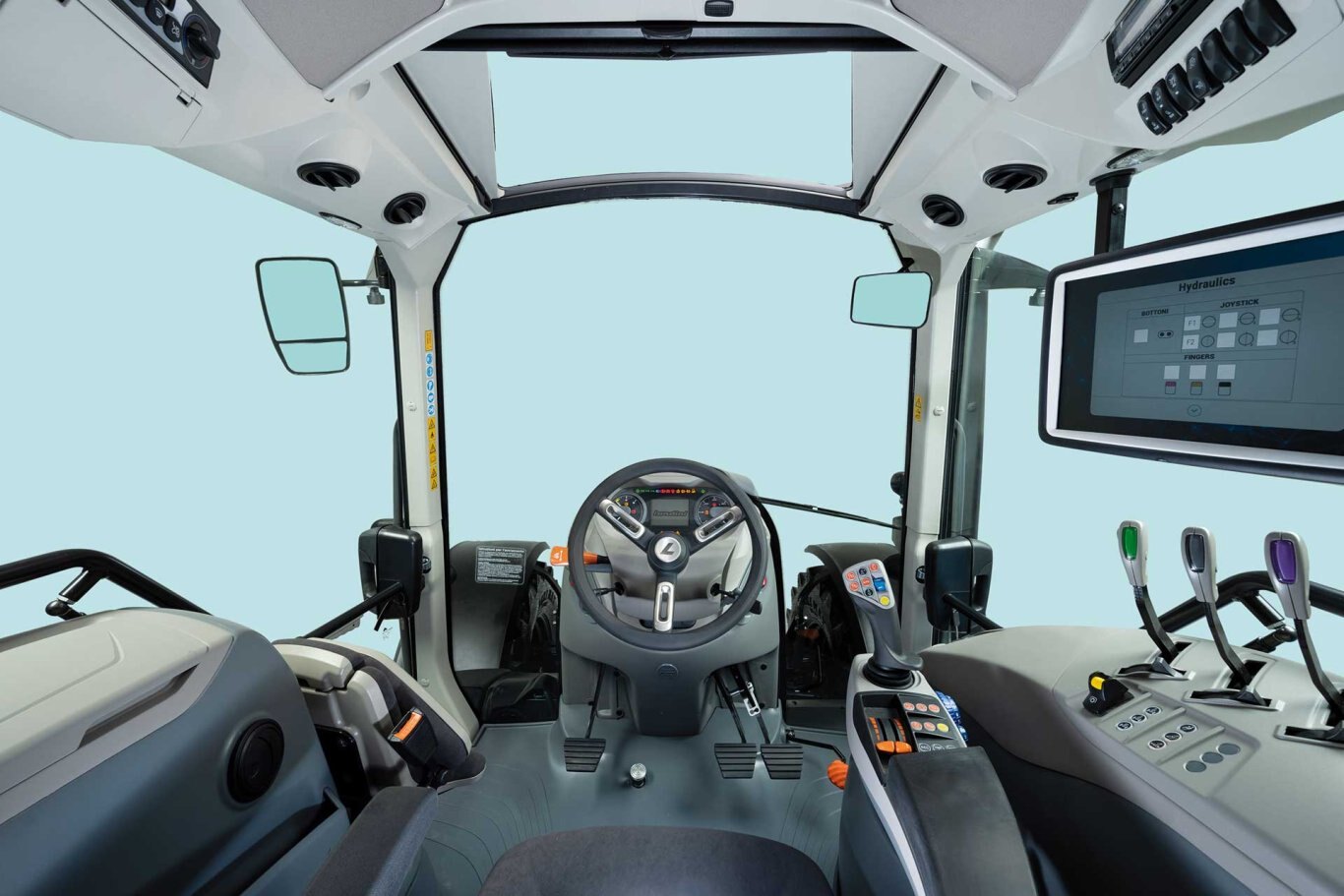

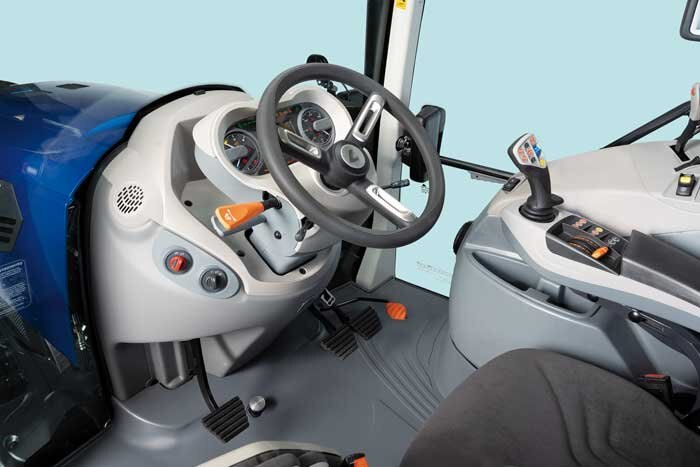

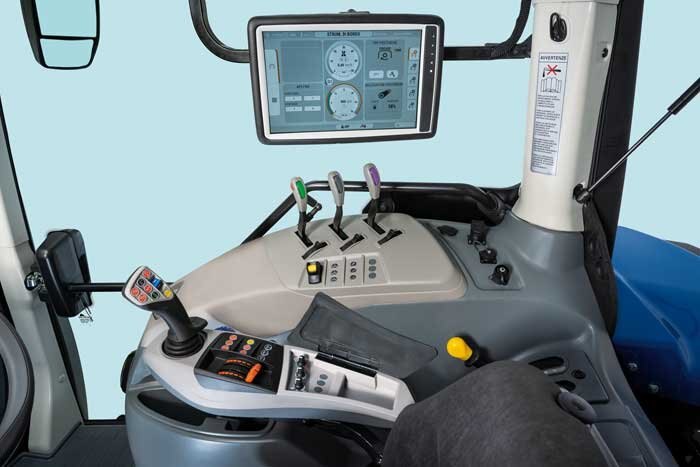

Landini 6 135 RS ROBO SIX “Landini High Vision” cab

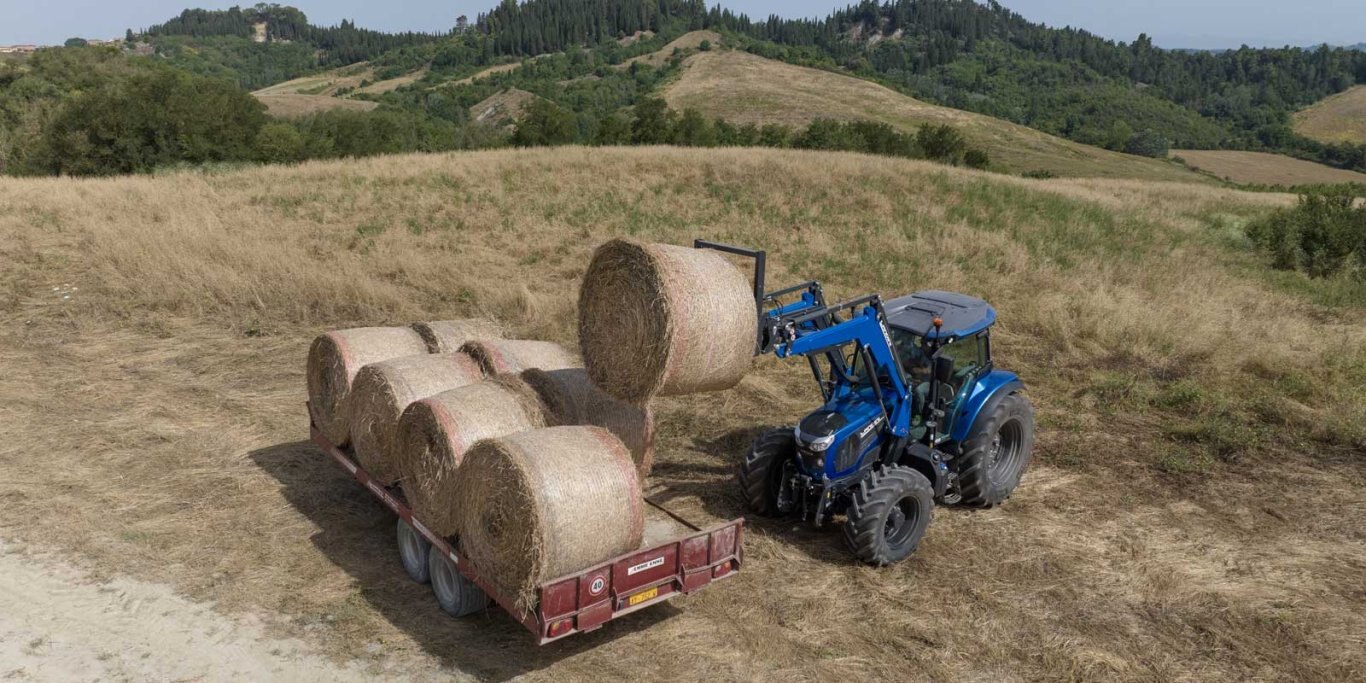

A distinctive feature of the new “Landini High Vision” cab is the FOPS-homologated panoramic roof and the hatch for natural ventilation which enhance the tractor’s performance when using the L40 front loader for bales handling. Also worth mentioning are the LED headlights. Up to 14 headlights are available, 8 of which are incorporated in the roof to provide excellent night vision. The cab sports a mechanical suspension that, combined with the suspended front axle with independent arms further improves driving comfort. The cab is designed with high quality automotive-derived materials. The same attention to design and functionality is found in the control instrumentation with its fully ergonomic design, a 12-inch touch screen monitor and all-in-one multifunction joystick.

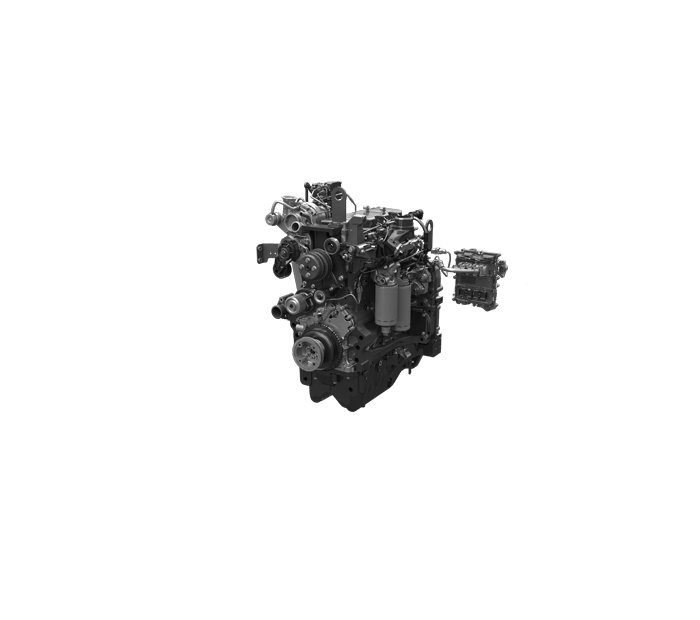

Landini 6 135 RS ROBO SIX FPT NEF 45 engines

Stage V emission compliant thanks to the exhaust gas post-treatment system, the range features the 6-135 RS, 6-145 RS and 6-155 RS models, powered by 4.5 litre, 16-valve, 4-cylinder FPT NEF 45 engines, with power outputs of 135hp, 145hp and 155hp.

Landini 6 135 RS ROBO SIX The Robo-Six transmission

The Robo-Six transmission with 6 Power Shift gears and 4 ranges offers 24 + 24 speeds, which rise to 40 + 40 when the Creeper is fitted. Two pre-programmed working modes optimise engine efficiency: these are Eco and Power, with the first geared towards keeping consumption down and the second focusing on ensuring maximum performance to speed up the completion of the current task. Power output is enhanced by the 4-speed PTO.

Landini 6 135 RS ROBO SIX The closed-centre hydraulic system

The closed-centre hydraulic system features a 114 l/min pump capable of handling up to 7 spool valves (electronic and mid-mounted ones) and an electronically controlled rear hitch with a maximum capacity of 7,200 kg. The front hitch lifts up to 2,500 kg.
