ID # 38923834

Landini 5-100 HC

  • Landini 5 100 HC
  • Landini 5 100 HC
  • Landini 5 100 HC
  • Landini 5 100 HC
  • Landini 5 100 HC
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Serie 5 HC tractor, the true horticultural specialist

The Serie 5 HC is Landini’s untiring specialty tractor for vegetable crops. Designed for superior comfort and productivity, the Serie 5 HC tractor is ideally suited for planting, fertilizing, irrigating and harvesting vegetables, fruits, corn, rice and other crops.











Specifications
Model
5-100 HC
Category Name
Tractors
Year
2025
Sale Type
New
Manufacturer
Landini
Fuel Tank
135
Rear Brakes
ring piston hydraulic brakes
Manufacturer
FPT
Front Differential Lock
Hydralock full locking differential
Rated Engine Speed Rpm
2200
In-cab Noise Level DB(A)
78
Max Torque At 1400 Rpm Nm
395
Engine Speed At Max Power Rpm
1900
Cylinders / Displacement / Valves
4 / 3.6 l / 16V
Max Power (97/68/EC - ISO TR 14396) Hp/kW
95/70
Rear Remote Valves - Type, Min - Max L/min
mechanical, 2 - 3
Rated Power (97/68/EC - ISO TR 14396) Hp/kW
95/70
Shipping Weight - Measured With Average Specs Mm
4300
Max Length With Front Weights - Width (min - Max) Mm
4400 - (1782-2542) - measured with tyres 9.5R48 4WD
Stage V / Tier 4 Final Exhaust After-treatment System
DOC + SCRoF
resources
Brochure                                                                            Download



key features

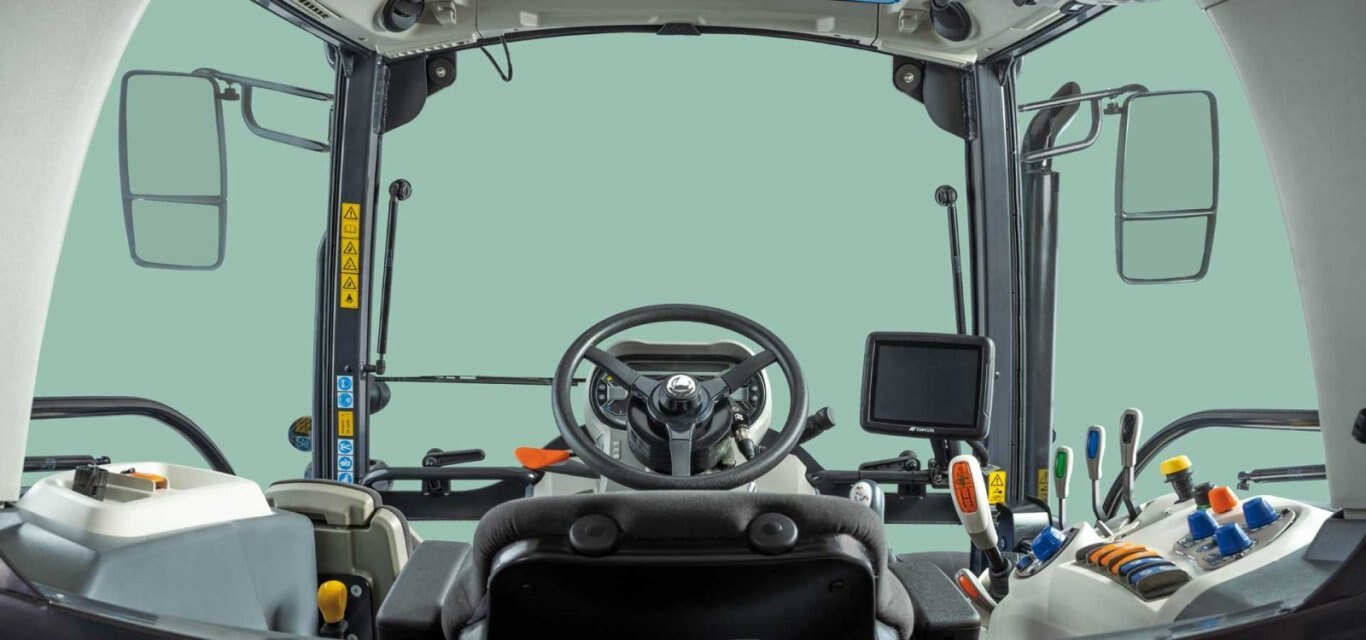

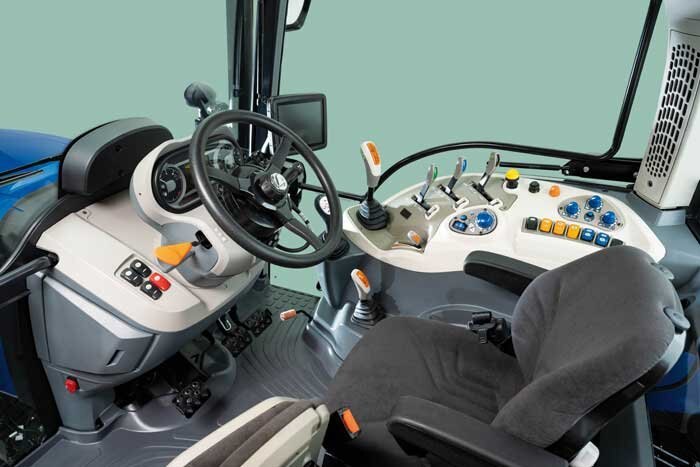

Landini 5 100 HC The Total View Slim cab

With the Total View Slim suspended cab and the front suspended axle, which isolate the operator from shocks and vibrations generated by uneven terrain, the new Serie 5 achieves the goal of increasing productivity while reducing operator fatigue during long working days in the field. In addition, a new highly-efficient sound insulation system further reduces the noise level inside the cab. Everything inside the Total View Slim cab is designed to enhance operator comfort and convenience. The flat floor and the roomy interior create a spacious feel. The driver’s seat is available with air suspension system and the telescopic tilt-adjustable steering column tilts with the instrument cluster. All controls are ergonomically placed and intuitive to operate. The interior with automotive-grade fit and finish and the roof-integrated air-conditioning system maintain a comfortable working environment all year round. The four-post cab design with its all-round glazing provides unobstructed view in every direction, making manoeuvring in tight spaces and at headlands easier and safer, while a transparent roof hatch provides extra visibility for loader operation. Up to 10 LED work lights ensure optimum illumination of the working area at night.

FPT F36 Engine: built for ultimate efficiency

To meet the requirements of the new Stage V/Tier4 Final emissions regulations, Landini redesigned the engine/transmission combination of the Serie 5 tractor in order to keep performance and efficiency at peak levels. The exhaust gas after-treatment system is no longer mounted onto the cab right post, but has been moved under the hood to provide full visibility during work. The new Serie 5 tractors are powered by FPT F36 3.6L four-cylinder turbo engines with multivalve technology, intercooler and common rail injection system. The two models in the range deliver 95 and 102 hp and meet the Stage V/Tier 4 Final emissions regulations using DOC, DPF and SCR after-treatment technologies.

Landini 5 100 HC A configurable transmission to suit every need

A variety of transmission configurations allow the 5 Series to better meet the specific needs of each farm, further enhancing the tractor versatility. Options available range from a basic 12/12 Speed Four transmission with synchro shuttle up to an electrohydraulic 48/16 T-Tronic transmission with HML powershift and creeper.

Landini 5 100 HC New hydraulic system for enhanced productivity

The open-centre hydraulic system of the Serie 5 tractor can be equipped with up to 3 pumps with a total flow rate of 82 l/min. This increased hydraulic capacity allows the operator to:

  1. speed up work;
  2. carry out multiple tasks simultaneously;
  3. perform heavier-duty tasks;
  4. reduce consumption thanks to lower rpm engine operation;
  5. increase comfort and reduce fatigue thanks to lower engine noise and vibration;
  6. turn smoothly, including when performing heavy-duty tasks, thanks to a 32 l/min dedicated steering pump

The Serie 5 can be equipped with up to six remote valves. Three valves are mechanically operated and one is electronically controlled. Two additional mid-mount remotes allow the use of front-mounted implements such as the front loader. One valve can be optionally equipped with a flow divider that splits and directs the flow to two separated outlets. The Serie 5 can be equipped with four types of remote valves that can be used in combination to suit different application needs: - Standard: double-acting; - Kick-out: with automatic detent release; - Float: for implements following the ground contour; - Hydraulic/Floating: for the use of implements requiring a hydraulic motor
Documents
