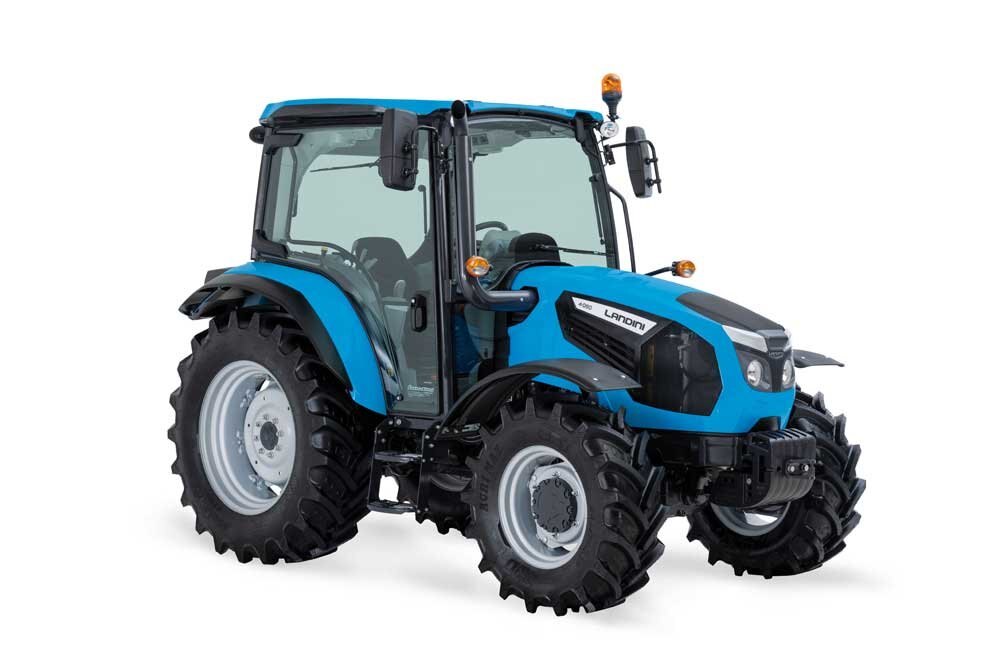

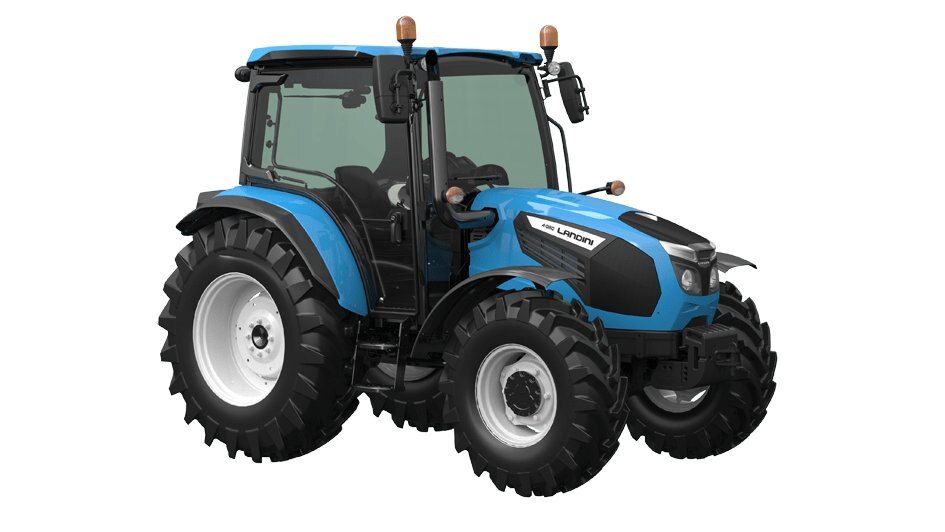

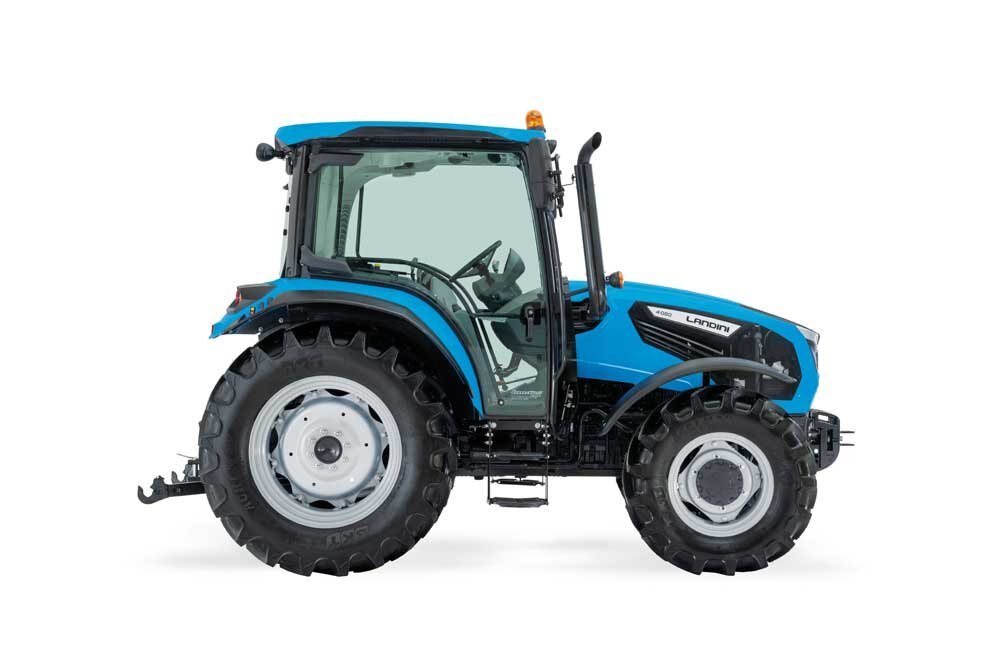

The new Series 4 Stage V range makes agricultural work more productive and less tiring The new Series 4 Stage V range, part of the light utility sector, follows the Landini tradition of making agricultural work more productive and less tiring. It is composed of tractors capable of offering comfort, lightness and efficiency. Available in both cab and platform versions, these vehicles are ideal for small to medium-sized farms that need a tractor which is comfortable, affordable and at the same time capable of carrying out all types of work. |
|
Comfort, lightness and efficiency
Series 4 consists of 3 models: 4-060, 4-070 and 4-080 with 61, 68 and 75 horsepower respectively. |
|
Total View Slim cab, visibility and comfort
|
| 4-060 | 4-070 | 4-080 | |
|---|---|---|---|
| Manufacturer - Series | KOHLER KDI2504 TCR | KOHLER KDI2504 TCR | KOHLER KDI2504 TCR |
| Max power ISO hp/kW | 61.2 / 45,0 | 68,0/ 50,0 | 75,3 / 55,4 |
| Max torque Nm | 285 | 310 | 310 |
| Displacement (cm3)/ Cylinders | 2482 / 4 | 2482 / 4 | 2482 / 4 |
| Fuel tank capacity Litres | 85 | 85 | 85 |
|
|
|
The hydraulic circuit up to 52 l/m.
The excellent traction capacity and great manoeuvrability guarantee exceptional stability in all working conditions and a perfect road-holding performance when driving. These results are possible thanks to the sturdy front axle equipped with a limited slip differential lock and an electro-hydraulic 4WD engagement. This set-up ensures great efficiency even when using the front loader. The exceptional handling is guaranteed by the broad swing of its axle, the high ground clearance, and its 55° steering angle. Furthermore, the hydrostatic drive provides for smooth steering, even at low speeds. As per Landini tradition, the basic configuration includes a high precision mechanically-controlled rear hydraulic hitch. The hitch is equipped with descent speed adjustment and position lock when travelling on the road. The following are available on request: hitch remote control to attach implements independently from the rear fender, and the ELS (Ergonomic Lift System) system. By raising and lowering the implement in one click, the latter speeds up headland operations, reduces working times and increases productivity. The mechanical hitch has Category 2 3-point linkage. |
| 4-060 | 4-070 | 4-080 | |
|---|---|---|---|
| Wheelbase mm | 2115 | 2115 | 2115 |
| Min Widht (Rops / cab) mm | 1615 - 1882 | 1615 - 1882 | 1615 - 1882 |
| Shipping weight without weights (Rops/ Cab) Kg | 2730 / 2930 | 2730 / 2930 | 2730 / 2930 |
|
|
