ID # 17300940

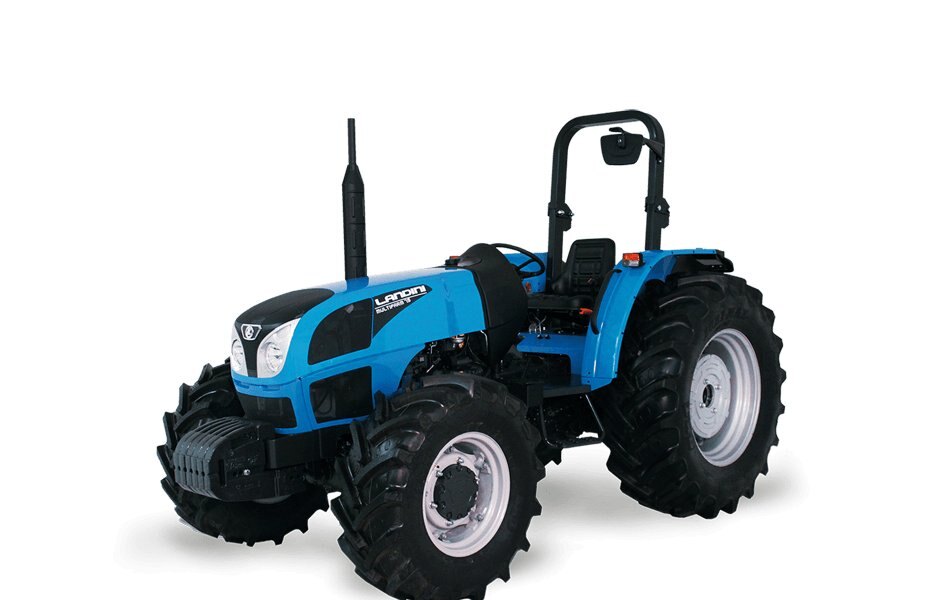

Landini Multifarm

  • Landini Multifarm
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The New incoming

Landini Multifarm is the NEW incoming in the medium-low power range product. 4 cyl 4,4L Perkins engine equips all the models,with two different inlet systems,Naturally Aspired and Turbo. The power range starts from 68 to 82 HP with a very good choice of specifications.

Strength, reliability and versatility

Strength, reliability and versatility are the key points in order to realize high performance in several farming operations like: soilpreparation, grassmowing, baling, orchard, loading and transport.

Platform Img 7159 Wpcf 1920x900

Tiltablesteering adjuster

Ergonomic levers position

Safety frame locked
Good rear mirror visibility
Rear mirror support out of operator area

Levers close to seat for friendly use











Specifications
Model
Multifarm
Category Name
Tractors
Year
2021
Sale Type
New
Manufacturer
Landini
Power
68.2, 74.1, 82
Engine
4,4 / 4
Transmission
Mechanical Reverse Shuttle and Speed Four
models
  Multifarm 75 Multifarm 80 Multifarm 90
Perkins Engine 1104C-44 (Tier2) 1104D-44 (Tier3) 1104D-44T (Tier3)
Max Power (ISO) HP/kW 68,2 / 50,2 74,1 / 54,5 82 / 62,3
Rated speed  Rpm 2200 2200 2200
Max. Torque    Nm 273 292 352
Max. Torque speed  Rpm 1400 1400 1400
Bore/Stroke     mm 105/127 105/127 105/127
Displacement cm3 4400 4400 4400
Nr. of cylinders / turbo 4 / NO 4 / NO 4 / YES
Compression ratio 18,2:1 18,2:1 18,2:1
Fuel tank capacity STD+OPT  Lt 65 65 65
hydraulic system

 Tandem pumps
42 for service [litres/min]
20 for steering [litres/min]
1 spool valve in base
Max 2 spool valves (1 option)













dimensions and weights
  Multifarm 75 Multifarm 80 Multifarm 90
Total lenght whitout / whit front weights  mm 3742 / 4145 3742 / 4145 3742 / 4145
Wheelbase (4WD)        mm 2130 2130 2130
Height to safety frame  mm 2391 / 2441 2391 / 2441 2391 / 2441
Ground clearance  mm 318 / 368 318 / 368 318 / 368
Minimum width (Tyres 14.9 R28) mm 1645 1645 1645
Weight 4WD (Whithout Ballast)    Kg 2860 2860 2860
mechanical transmission made in italy

Synchro shuttle  4 gears / 3 ranges 12 + 12 in base, 16 + 16 with creeper (Option)

Available working speeds:

5 speeds between 4 and 12 [km/h]

Creeper min speed 360 [m/h] (Option)











perkins 4 cyl 4-4 litres tier2 and tier3

Img 7153 Wpcf 960x960Perkins 4 CYL 4,4 litres Tier2 and Tier3

4 cyl 4,4L Perkins engine equips all the models,with two different inlet systems,Naturally Aspired and Turbo. The power range starts from 68 to 82 HP
