Overview

 New REX3 F Series

The new REX3 F range comprises three models, all powered by 2.5-liter, 4-cylinder, 16-valve Kohler engines that deliver power ratings from 55 to 75 hp. Featuring a diesel oxidation catalyst (DOC) which eliminates the need for an exhaust gas regeneration system, these engines meet Stage 3B/Tier 4 Interim emissions regulations without the use of a diesel particulate filter (DPF).

Compact size and reduced ground clearance

- Engine

2,5 / 4

- Power

55, 68, 75

- Transmission

Synchro Shuttle and creeper

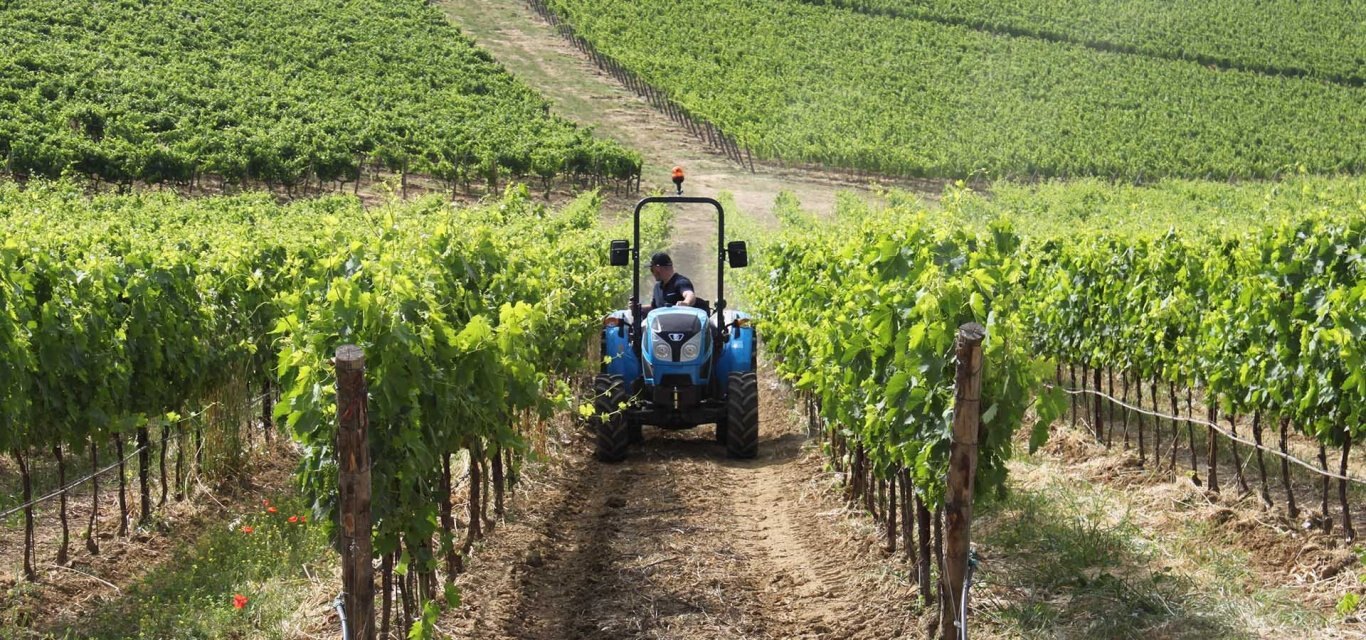

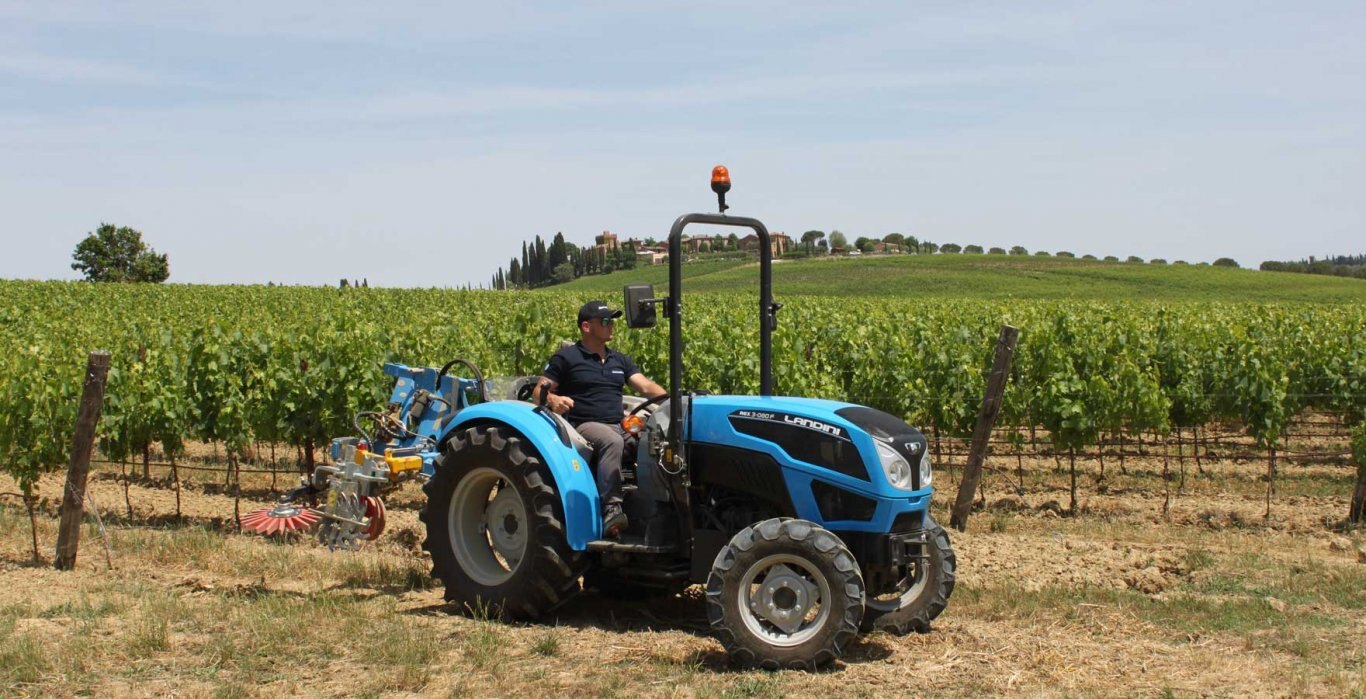

With a wheelbase of 1950 mm, a weight of 2100 kg and maximum lift capacity of 2700 kg at the rear, this tractor range is ideally suited for vineyards, vegetable growing, pruning and greenhouse operations. Thanks to its compact size, its reduced ground clearance and a height to steering wheel of just 1256 mm, the REX3 F moves easily between tight rows and under low-hanging crops. Developed by Argo Tractors, the transmission of the REX3 F offers 16 forward and 16 reverse speeds and come standard with a steering-column synchro shuttle and a creeper. The hydraulic system features a double pump that supplies 28 l/min to the steering system and 50 l/min to the hitch and up to three mechanically-operated remote valves. The REX3 F is available either in ROPS configuration or with low-profile cab.
Driving position

The REX3 F is available either in ROPS configuration with suspended platform or with low-profile cab.


Rex3 Motore 10 2019 Kohler engine

The new REX3 F range comprises three models, all powered by 2.5-liter, 4-cylinder, 16-valve Kohler engines that deliver power ratings from 55 to 75 hp. Featuring a diesel oxidation catalyst (DOC) which eliminates the need for an exhaust gas regeneration system, these engines meet Stage 3B/Tier 4 Interim emissions regulations without the use of a diesel particulate filter (DPF).

  REX3-060 F REX3-070 F REX3-080 F
STAGE 3B/ TIER 4 INTERIM KOHLER KOHLER KOHLER
MAX POWER ISO CV/kW 55/40 68/48 75/55
MAX TORQUE   NM 244 271 300
DISPLACEMENT/N°OF CYLINDERS   cm³ 2500/ 4 TA 2500/ 4 TA 2500/ 4 TA


REX3F Transmission Transmission made in Argo Tractors

Developed by Argo Tractors, the transmission of the REX3 F offers 16 forward and 16 reverse speeds and come standard with a steering-column synchro shuttle and a creeper.

REX3F Hydraulic Circuit Hydraulic System

The hydraulic system features a double pump that supplies 28 l/min to the steering system and 50 l/min to the hitch and up to three mechanically-operated remote valves.

DIMENSIONS AND WEIGHTS




  REX3-060 F REX3-070 F REX3-080 F
MIN WIDTH mm 1360 1360 1360
WHEELBASE 4RM  mm 1950 1950 1950
TOTAL WEIGHT 4WD  Kg 2000 2000 2000

Specifications
Model
REX3 F
Category Name
Tractors
Year
2019
Sale Type
New
Manufacturer
Landini
