ID # 13705685

Landini SUPER T0-T2

  • Landini SUPER T0 T2
  • Landini SUPER T0 T2
  • Landini SUPER T0 T2
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview



Super Tier 0 Tier 2

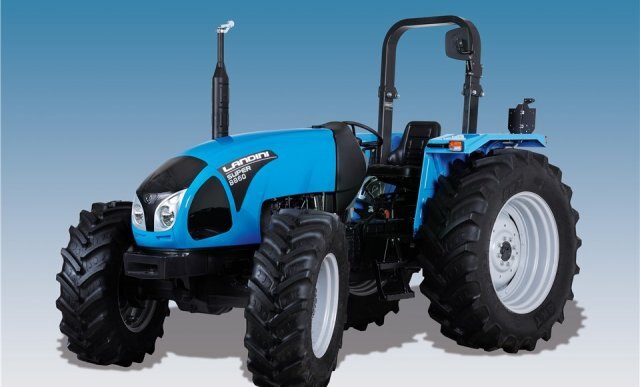

 Super T0-T2

Super T0-T2 Series –  A whole new level of reliability and functionality

Introduced as a restyled version of the highly successful 60 Series, the Super T0-T2 tractor range from Landini features a fresh new look along with enhanced ergonomics. The new tractor family comes in both two- and four-wheel drive versions and is offered at a very attractive entry level price. Entirely manufactured in Italy by Argo Tractors, the new Super T0-T2 range delivers excellent performance combined with high reliability and functionality. Four models in the range are all powered by Perkins 1104 series four-cylinder engines that deliver high torque backup and quiet, eco-friendly performance while ensuring excellent fuel economy. The Super 7860 and 8860 models feature Tier 0 engines, while the Super 7865 and 8865 models are powered by engines meeting Tier 2 emissions regulations.




Dsc 5659 1024x683

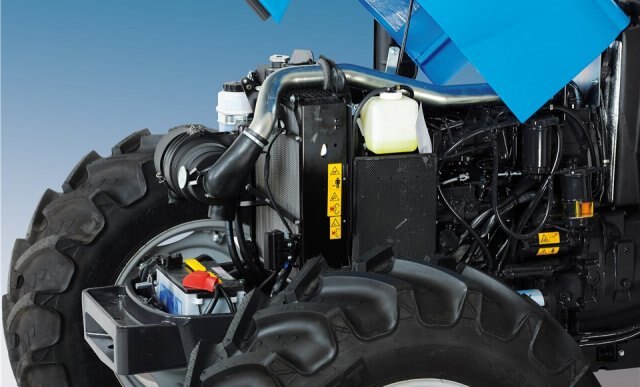

PERKINS ENGINES

Four models in the range are all powered by Perkins 1104 series four-cylinder engines that deliver high torque backup and quiet, eco-friendly performance while ensuring excellent fuel economy. The Super 7860 and 8860 models feature Tier 0 engines, while the Super 7865 and 8865 models are powered by engines meeting Tier 2 emissions regulations.

Super 7860 TIER0 Super 8860 TIER0 Super 7865 TIER2 Super 8865 TIER2
DIRECT-INJECTION PERKINS ENGINE    1104A44  1104A44  1104C-44  1104C-44
MAX POWER ISO   HP/KW 73.4/54 83.6 / 61.5 73.4/54 81.6/60
RATED SPEED       RPM 2200 2200 2200 2200
MAX TORQUE        LB (NM) 203 (275)  214 (289)  218 (294)  218 (294)
MAX TORQUE SPEED  RPM 1400 1400 1400 1400
BORE/STROKE   IN.(NM) 4 / 5  (105/127) 4 / 5  (105/127) 4 / 5    (105/127) 4 / 5    (105/127)
DISPLACEMENT/Nr. OF CYLINDERS  CU.IN.(CM)3 268,5  (4400) / 4 268,5  (4400) / 4 268,5  (4400) / 4 268,5  (4400) / 4
COMPRESSION RATIO   19,3:1 19,3:1 19,3:1 19,3:1
WATER COOLING • • • •
AIR FILTER • • • •
FUEL TANK CAPACITY        GAL(LT) 24 (90) 24 (90) 24 (90) 24 (90)

Standard modular transmission

The Super T0-T2 tractor range features as standard a modular transmission with four gears in three ranges offering 12 forward and 4 reverse speeds. The standard gearbox can be optionally equipped with a steering-column synchro shuttle to provide 12 forward and 12 reverse speeds. An optional creeper with four creep speeds provides a total of 16 forward and 16 reverse gears and enables ground speeds as low as 320 m/h.



dimensions and weights

  Super 7860 TIER0 Super 8860 TIER0 Super 7865 TIER2 Super 8865 TIER2
FRONT TYRES 2WD 9.00-16 9.00-16 9.00-16 9.00-16
FRONT TYRES 4WD 12.4-24 12.4-24 12.4-24 12.4-24
REAR TYRES 4WD 18.4-30 18.4-30 18.4-30 18.4-30
TOTAL LENGHT WITHOUT BALLAST  IN. mm 150 (3810) 150 (3810) 150 (3810) 150 (3810)
WHEELBASE 2WD/4WD  IN. mm 87.5/91.2 (2224/2317) 87.5/91.2 (2224/2317) 87.5/91.2 (2224/2317) 87.5/91.2 (2224/2317)
HEIGHT AT STEERING WHEEL IN. mm 67.7 (1720) 67.7 (1720) 67.7 (1720) 67.7 (1720)
MAX GROUND CLEARANCE 4WD IN. mm 19.9 (430) 19.9 (430) 19.9 (430) 19.9 (430)
HEIGHT TO SAFETY FRAME   IN. mm 101.5 (2580) 101.5 (2580) 101.5 (2580) 101.5 (2580)
MINIMUM WIDTH  IN. mm 73.6 (1870) 73.6 (1870) 73.6 (1870) 73.6 (1870)
MIN.TURN.RADIUS (WITHOUT BRAKES) 2WD/4WD  IN. mm 157.4 (4000) / 181 (4600) 157.4 (4000) / 181 (4600) 157.4 (4000) / 181 (4600) 157.4 (4000) / 181 (4600)
WEIGHT (WITHOUT BALLAST) 4WD  LB.(Kg) 6923 (3147) 6923 (3147) 6923 (3147) 6923 (3147)


Specifications
Model
SUPER T0-T2
Category Name
Tractors
Year
2019
Sale Type
New
Manufacturer
Landini
