Landini SUPER T0-T3

  • Landini SUPER T0 T3
  • Landini SUPER T0 T3
  • Landini SUPER T0 T3
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Super Tier 0 Tier 3 1

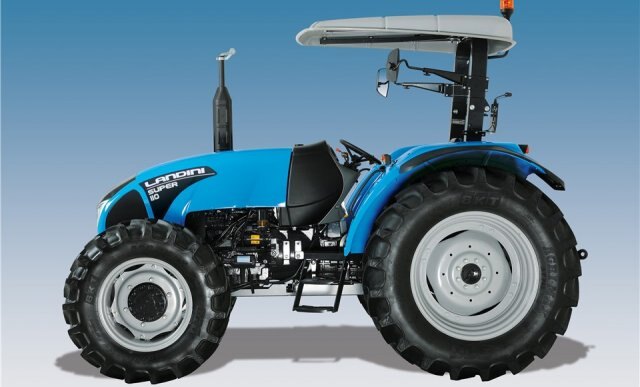

Super T0-T3 Series

Simple, functional, economic

"text-align: The new Super T0-T3 tractor family from Landini has been designed to replace the popular Globalfarm series. Supplied in both two- and four-wheel drive versions, this low-cost tractor combines a simple design with excellent performance and functionality.Six models in the range are all powered by Perkins 1104 series four-cylinder engines that deliver high torque backup and quiet, eco-friendly performance while ensuring excellent fuel economy. The Super 90B, 100B and 110B models feature Tier 0 engines, while the Super 90, 100 and 110 models are powered by engines meeting Tier 3 emissions regulations.

Dsc 5783 1024x683

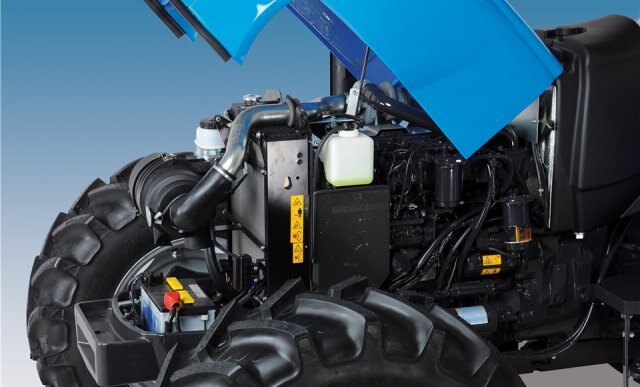

 PERKINS ENGINES

Six models in the range are all powered by Perkins 1104 series four-cylinder engines that deliver high torque backup and quiet, eco-friendly performance while ensuring excellent fuel economy. The Super 90B, 100B and 110B models feature Tier 0 engines, while the Super 90, 100 and 110 models are powered by engines meeting Tier 3 emissions regulations.


   Super 90B TIER0  Super 100B TIER0  Super 110B TIER0  Super 90 TIER3  Super 100 TIER3  Super 110 TIER3
DIRECT-INJECTION PERKINS ENGINE   1104A-44 1104A-44T 1104A-44T 1104D-44T 1104D-44T 1104D-44T
MAX POWER ISO   HP/KW 87.7 / 64.5 97.3 / 71.5 106,8 / 78,5 81.2/ 60.5 92,5 / 68 100.5 / 74.9
RATED SPEED       RPM 2200 2200 2200 2200 2200 2200
MAX TORQUE        LB (NM) 225 (305) 270 (366) 295 (400) 255 (345) 283 (384) 307 (416)
MAX TORQUE SPEED  RPM 1400 1400 1400 1400 1400 1400
BORE/STROKE   IN.(NM) 4/5(105/127) 4/5(105/127) 4/5(105/127)  4/5(105/127) 4/5(105/127) 4/5(105/127)
DISPLACEMENT/Nr. OF CYLINDERS  CU.IN.CM3 268,5(4400)/4TURBO  268,5(4400)/4TURBO  268,5(4400)/4TURBO  268,5(4400)/4TURBO  268,5(4400)/4TURBO AFT.   268,5(4400)/4TURBO AFT.
COMPRESSION RATIO   19,3:1 19,3:1 19,3:1 19,3:1 19,3:1 19,3:1
WATER COOLING

•

 • • • • •
AIR FILTER • • • • • •
FUEL TANK CAPACITY        GAL(LT) 24 (90) 24 (90) 24 (90) 24 (90) 24 (90) 24 (90)

• STANDARD



Standard modular transmission

The Super T0-T3 tractor range features as standard a modular transmission with four gears in three ranges offering 12 forward and 4 reverse speeds. The standard gearbox can be optionally equipped with a steering-column synchro shuttle to provide 12 forward and 12 reverse speeds. An optional creeper with four creep speeds provides a total of 16 forward and 16 reverse gears and enables ground speeds as low as 320 m/h.

dimensions and weights

  Super 90B TIER0 Super 100B TIER0 Super 110B TIER0 Super 90 TIER3 Super 100 TIER3 Super 110 TIER3
FRONT TYRES 2WD 9.00-16 9.00-16 9.00-16 9.00-16 9.00-16 9.00-16
FRONT TYRES 4WD

12.4-24

 12.4-24 12.4-24 12.4-24 12.4-24 12.4-24
TOTAL LENGHT WITHOUT BALLAST  IN. mm 150 (3810) 150 (3810) 150 (3810) 150 (3810) 150 (3810) 150 (3810)
WHEELBASE 2WD/4WD  IN. mm 87.5/91.2 (2224/2317)  88.5/92.1 (2247/2340  88.5/92.1 (2247/2340  87.5/91.2 (2224/2317)  87.5/91.2 (2224/2317) 88.5/92.1 (2247/2340
HEIGHT AT STEERING WHEEL IN. mm 67.7 (1720) 67.7 (1720) 67.7 (1720) 67.7 (1720) 67.7 (1720) 67.7 (1720)
MAX GROUND CLEARANCE 4WD IN. mm 19.9 (430) 19.9 (430) 19.9 (430) 19.9 (430) 19.9 (430) 19.9 (430)
HEIGHT TO SAFETY FRAME   IN. mm 101.5 (2580) 101.5 (2580) 101.5 (2580) 101.5 (2580) 101.5 (2580) 101.5 (2580)
MINIMUM WIDTH  IN. mm 81.2(2063) 81.2(2063) 81.2(2063) 81.2(2063) 81.2(2063) 81.2(2063)
MIN.TURN.RADIUS (WITHOUT BRAKES) 2WD/4WD  IN. mm
157.4 (4000) /
181 (4600)
157.4 (4000) /
181 (4600)
157.4 (4000) /
181 (4600)
157.4 (4000) /
181 (4600)
157.4 (4000) /
181 (4600)
157.4 (4000) /
181 (4600)
WEIGHT (WITHOUT BALLAST) 4WD  LB.(Kg) 7414 (3370) 7590 (3450) 7590 (3450) 7414 (3370) 7590 (3450) 7590 (3450)

Specifications
Model
SUPER T0-T3
Category Name
Tractors
Year
2019
Sale Type
New
Manufacturer
Landini
Documents
