Overview
Img0630clod

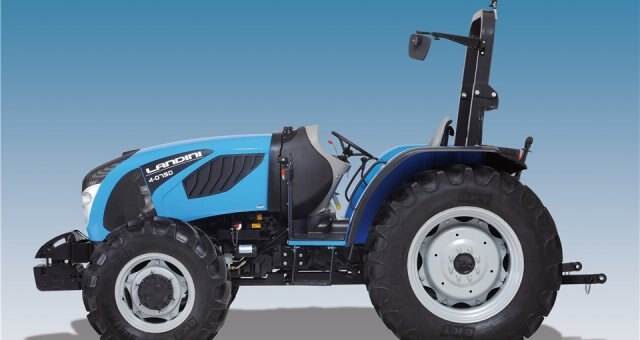

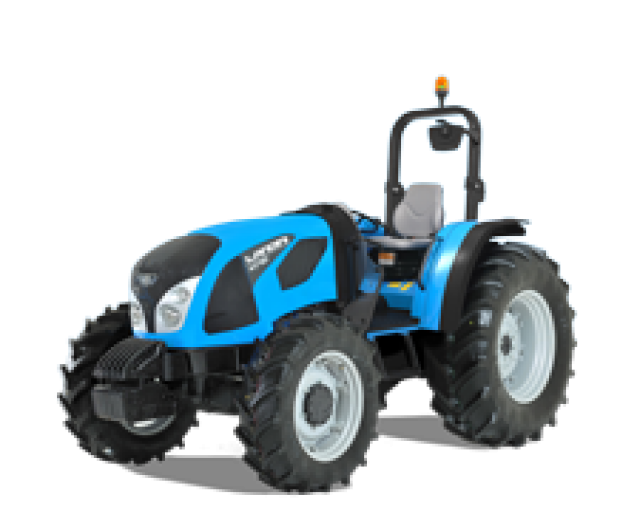

New Landini 4D Series

The Landini 4D Series, an efficient, sturdy range that'll improve the performance already appreciated by Technofarm users. This 2WD and 4WD tractor range initially comprises footstep versions only, whilst cab versions are planned for the future. One model is available right now with Perkins Tier 3 engine, 4-075D, whilst other models, 4-060D, 4-070D, 4-080D are available with Deutz Tier 4 Final engines. Made in Italy by Argo Tractors, the mechanical transmission is equipped with 3 range and 4 speed gears whilst an optional 300 m/h creeper is also available. The 4WD versions of the 4D Series feature electrohydraulically controlled 4WD engagement, single or 2-speed synchronized PTO, open-centre hydraulic circuit with 45 l/min. flow rate to supply the power lift and control valves, rear lift capacity up to 3400 kg (with assistor ram), one remote control valve as standard with one additional valve available as an option. The power lift can also be equipped with the Ergonomic Lift System for improved comfort when using implements.

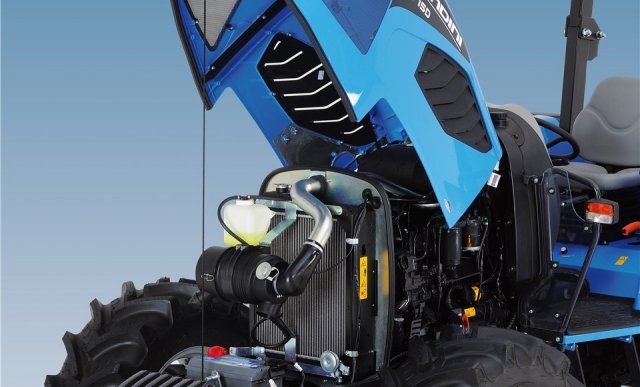

Deutz Tier4 Final

One model is available right now with Perkins Tier 3 engine, 4-075D, whilst other models, 4-060D, 4-070D, 4-080D are available with Deutz Tier 4 Final engines

4-060D 4-070D 4-075D 4-080D

DEUTZ ENGINE TIER 4 INTERIM

 DEUTZ C4DT45
TIER4 FINAL		 DEUTZ C4DT50
TIER4 FINAL		 PERKINS 1104D-44
TIER3		 DEUTZ C4DT55
TIER4 FINAL
MAX POWER ISO  HP/KW 64 / 47 69.5 / 51 74 / 54,5 76 / 56
RATED ENGINE POWER (ISO RATING)  HP/KW 61 / 45 68 / 50 74 / 54,5 75 / 55
RATED SPEED   RPM 2200 2200 2200 2200
MAX TORQUE   LB (NM) 244 271 261 300
MAX TORQUE SPEED  RPM 1600 1600 1400 1600
BORE/STROKE  IN.(MM) 92/110 92/110 105/127 92/110
DISPLACEMENT / NO. OF CYLINDERS 2900 / 4 TA 2900 / 4 TA 4400 / 4 2900 / 4 TA
COMPRESSIONA RATIO 17.2:1 17.2:1 18.2:1 17.2:1
WATER COOLING








AIR FILTER DRY DRY DRY DRY
FUEL TANK CAPACITY   (LT) 75 75 75 75
Standard
Mechanical transmission made in Italy

The mechanical transmission is equipped with 3 range and 4 speed gears whilst an optional 300 m/h creeper is also available.

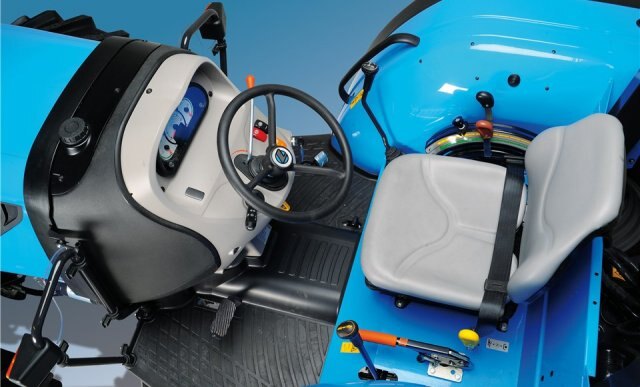

driver's seat

This 2WD and 4WD tractor range initially comprises footstep versions only, whilst cab versions are planned for the future

HIGH-PERFORMANCE HYDRAULICS AND VERSATILE REMOTE VALVES

Featuring two independent pumps, one feeding the steering system and the other operating all hydraulic functions, the 4 Series is available with either a standard hydraulic system that delivers a flow rate of 32+44 l/min or a highcapacity hydraulic system with a flow rate of 32+57 l/m. The models with 2.9L engine are only available with a double pump providing 28+49 l/min. The system comes standard with two remote valves which can be optionally increased to five, of which three are rear- and two are mid-mounted. Midmount remote valves are controlled by a joystick to operate either a front hitch or a front loader. Available as an option is a flow divider which can be operated via the green button integrated into the lever of the remote valve that controls the hydraulic lift rod or the top link. The high-quality quickrelease couplings, mounted on both the front and rear of the tractor, are easily accessible for convenient and fast operation.


DIMENSIONS AND WEIGHTS

   4 - 060D  4 - 070D 4 - 075D  4 - 080D

WHEELBASE mm

 2164 2164 2164 2164
MIN.WIDTH  mm 1650 WITH TYRES 12.4R36 1650 WITH TYRES 12.4R36 1650 WITH TYRES 12.4R36 1650 WITH TYRES 12.4R36
MAX.LENGHT (WITHOUT BALLAST WEIGHTS) mm 3930 3930 3930 3930
HEIGHT TO ROPS  mm 2500 2500 2500 2500
HEIGHT TO STEERING WHEEL  mm 1620 1620 1620 1620
GROUND CLEARANCE 4WD  mm 450 450 450 450
TOTAL WEIGHT 4WD (WITHOUT BALLAST) Kg 2800 2800 2800 2800



Specifications
Model
4D SERIES T3 AND T4
Category Name
Tractors
Year
2016
Sale Type
New
Manufacturer
Landini
