Landini

ID # 13506617

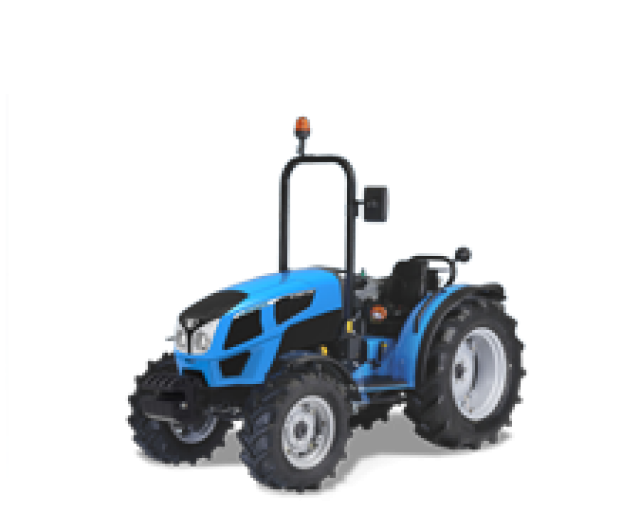

Landini 2 SERIES T3A STD/GE

Call for Price
Overview


The 2 Series replaces the Mistral range

The 2 Series replaces the Mistral range with a modern, agile and compact solution. On show will be a foot step version whilst a cabbed version will also be available. This new tractor series shares some of the common design and styling elements of the hood and roof designs from others in the range, which continues on with the modern family look of Landini. The 2 Series comes in standard configuration and a new “GE” configuration (footstep only) where the rear final drives and platform have been carefully re-designed to achieve a platform height which is 95 mm lower than the current Mistral. The result ensures improved performance where height and width constraints exist, such as awning vineyards or greenhouses. Dimensions become extremely compact with 24” rear tyres: 1,420 mm minimum width and just 1,230 mm height to steering wheel. 20” rear tyres will also be available as an option. The range features 44 HP to 55 HP Yanmar engines and comes in three models: 2-045, 2-050, 2-060 STD or GE.

Yanmar engines

The range features 44 HP to 55 HP Yanmar engines and comes in three models: 2-045, 2-050, 2-060 STD or GE.


2-045

2-050

2-060
Yanmar direct-injection engine 4TNV84-KLAN  4TNV88-KLAN 4TNV84T-2XLAN
Max. power (ISO), hp/kW 44/32 47.5/35 54.2/39.9
Rated speed  Rpm 2800 2800 2800
Max. torque    Nm 129 141 159.5
Max torque speed  Rpm 1400 1200 2000
Bore/stroke in. mm 84x90 88x90 84x90
Displacement / nr. of cylinders / valves  CM3 1995 / 4 / 8 2189 / 4 / 8 1995 / 4 TURBO / 16
Compression ratio 19:1 19:1 18.9:1
Water cooling
  •
  •
  •
Air filter Dry Dry Dry
Fuel tank capacity   Lt 40 40 40
  • standard

transmission with synchronised reverse power shuttle (30 km/h)

The basic transmission (12 FWD+12 REV) is integrated with a creeper offering a choice of up to 32 gears. The fully synchronised reverse power shuttle enables all gears of the basic transmission to be reversed offering a total of 16FWD+16REV. The controls are located in forward position on the driving wheel’s side in line with the latest design standards


driver's seat

The driving seat, mounted on a suspended platform (GE version), features rationally and ergonomically arranged controls. The cab in the Standard version features full glazing for all-round visibility and an excellent air-conditioning system offering the driver a comfortable working environment.


Mechanical power lift and auxiliary valves, ideal for this power range

The hydraulic system provides a maximum flow rate of 12,5 GPM (47,7 litres/min). The mechanical power lift with Cat. 1 three-point linkage can lift up to 2640 lb. (1200 kg), The system features three simple- and double-acting auxiliary valves. The controls are located in a comfortable and ergonomic position at the driver’s right for fingertip operation.



dimensions and weights

   2-045 STD  2-045 GE  2-050 STD  2-050 GE  2-060 STD  2-060 GE
Front tyres 260/70R16 260/70R16 260/70R16 260/70R16 260/70R16 260/70R16
Rear tyres 320/70R24 320/70R24 320/70R24 320/70R24 360/70R24 320/70R24
Height to safety frame (mm) 2097 2003 2097 2003 2097 2003
Height over cab (mm) 2307 - 2307 - 2307 -
Height to steering wheel (mm) 1312 1218 1312 1218 1312 1218
Total length with ballast, (mm) 3225 3225 3225 3225  3225 3225
Min. width (mm) 1383 1383 1383 1383 1383 1383
Wheelbase 4WD  (mm) 1760 1760 1760 1760 1760 1760
Ground clearance (mm) 385 295 385 295 385 295
Total weight whithout ballast (120Kg) (+Cab only STD model 150Kg) 1460 1460 1460 1460 1460 1460






Specifications
Model
2 SERIES T3A STD/GE
Category Name
Tractors
Year
2016
Sale Type
New
Manufacturer
Landini
