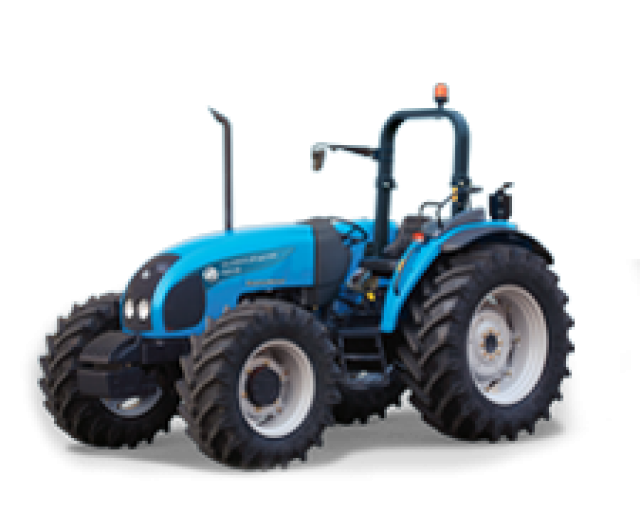

SIMPLICITY AND RELIABILITY FOR EVERYONE The Globalfarm Series (90, 100 and 105), available in 2 and 4WD version, was conceived as a restyling of the famous Landini 60 Series. Thanks to its essential and rugged construction it is ideal for a global utilization thus providing first class operation and the highest levels of performance for utmost reliability and long life. All models are powered by the quiet, fuel efficient and environment-friendly 4-cylinder Turbo 1104D-44 (TIER 3) Perkins engines. Besides meeting the Tier 3 emission regulations these engines deliver up to 83, 92,5 and 98,5 HP/ISO, providing exceptional torque back-up and power levels. The modular transmission provides, as standard, 3 ranges and 4 speeds in each range, resulting in a total 12 forward and 4 reverse speeds and comes in three versions for a maximum speed of 30 km per hour. The second option provides 12 forward and 12 reverse speeds with mechanical reverse shuttle. A creep speed option is available on request to achieve 24 forward and 12 reverse speeds. A generously sized platform, an adjustable sprung seat and ergonomically arranged controls provide utmost driving comfort. The sloping bonnet guarantees utmost visibility at the front and tilts open for easy access to the engine when maintenance is required. The 2-post safety frame can be supplied with relevant sun roof on request. The series comes in three models, diversified by three different engine power ratings, and with different types of transmission that make these tractors highly versatile and high performing to meet and even exceed the most demanding customers’ expectations. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

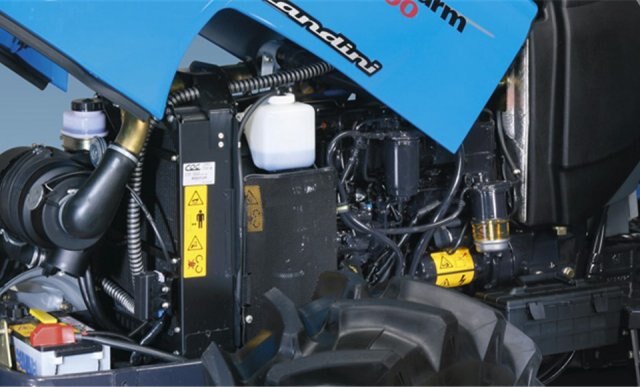

Perkins 1104D series engines
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Three modular transmission options The modular transmission is available in three versions. The base version offers 12FWD+4REV speeds without reverse shuttle. The second version offers 12FWD+12REV speeds with mechanical reverse shuttle and the last version be integrated with a creep speed option to provide a total of 24FWD+12REV gears. The centrally-located reverse power shuttle lever allows reversing all gears and engaging the creep speed option. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

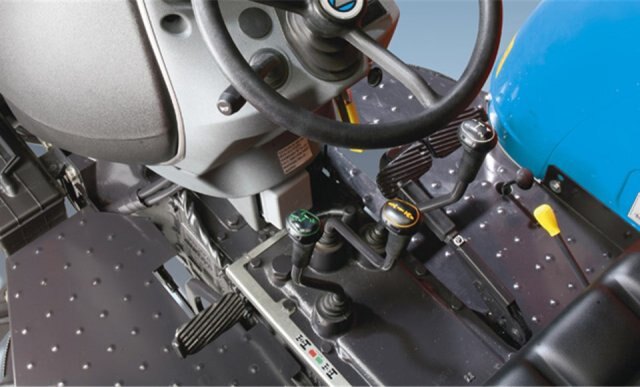

Ample and comfortable driver’s seat With fully adjustable sprung seat, hydraulic steering and ergonomically-arranged controls, comfort, the driver’s seat allows the operator to work with maximum comfort. The two-post ROPS can be optionally equipped with a sun canopy. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

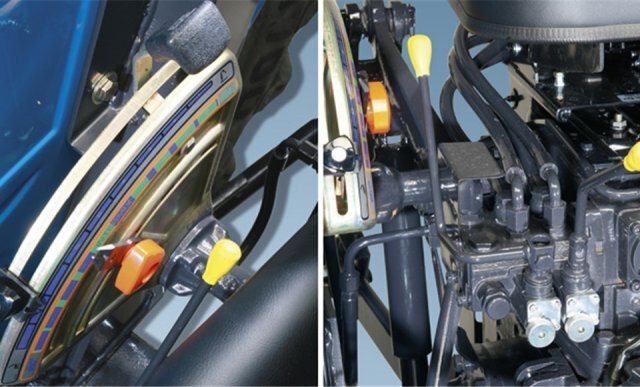

Powerful hydraulics for power lift and auxiliary valves The hydraulic system provides a maximum total flow of GPM 20,2 (76.5 l/min). Equipped with Cat. 2 three-point linkage, the mechanical power lift provides position, draft, intermix and float control functions while ensuring a maximum lifting capacity of lb. 9570 (4350 kg). The Globalfarm tractors features one standard and two optional simple- and double-acting auxiliary valves. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
