Overview

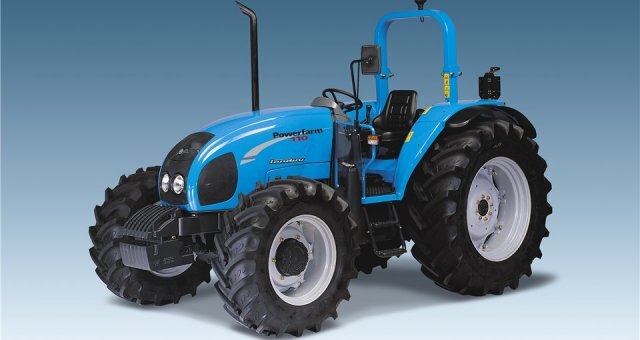

Powerfarm110 T0 Foto Studio 2012
POWERFARM modern, simple, efficient

Powerfarm 110 Cab and Plat is a tractor featuring a clean and modern design. The Perkins 1104 series , 4-cylinder turbo engines offer high fuel efficiency low noise and reduced emissions and ensure a high torque backup. The modular transmission is available in versions mechanical (Speed Four 12FWD+12REV), on request with creeper or  overdrive for (24FWD+12REV) and equipped with mechanical Reverse Shuttle. The tractor excellent performance and functionality are enhanced by  the comfort of the “Total View” cab. The “Total View” cab features a mechanical suspension seat (on request a pneumatic suspension seat) and an under hood muffler  with vertical exhaust. The height adjustable sprung seat and the rounded, plunging line of the hood provide total visibility when manoeuvring.

New Perkins 1104D series “TIER 3” engines with forward tilting hood

The Perkins 1104 series (TIER 0), 4-cylinder turbo engines offer high fuel efficiency low noise and reduced emissions and ensure a high torque backup.

 POWERFARM 110
Speed Four
Perkins "Tier 3" direct-injection engine 1104D-44T
max. power (ISO) hp/kW 106,8 / 78,5
Rated speed  rpm 2200
max. torque lb. (Nm) 400
max. torque speed 1400
displacement  (cm3) 4400
rcompression ratio 18,2:1
fuel tank capacity  (lt) 102

Transmission

The modular transmission is available in versions mechanical (Speed Four 12FWD+12REV), on request with creeper or overdrive for (24FWD+12REV) and equipped with mechanical Reverse Shuttle.

Mech. rev. shuttle + Speed Four: 12FWD + 12REV
Mech. rev. shuttle + Speed Four + creeper: 24FWD + 12REV
Mech. rev. shuttle + Speed Four + overdrive: 24FWD + 12REV (40Km/h)


“Total View” cab

The tractor excellent performance and functionality are enhanced by the comfort of the “Total View” cab. The “Total View” cab features a mechanical suspension seat (on request a pneumatic suspension seat) and an under hood muffler with vertical exhaust. The height adjustable sprung seat and the rounded, plunging line of the hood provide total visibility when manoeuvering

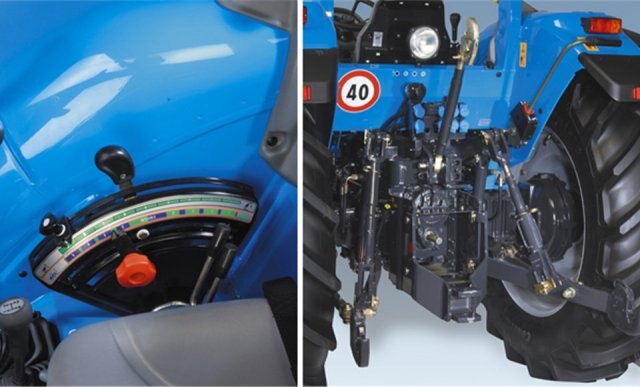

High-performance hydraulics for power lift and auxiliary valves

The hydraulic system provides a maximum total flow rate of 21.6 GPM (82.2 litres/min). The mechanical power lift, equipped with a cat. 2 three-point linkage provides position, draft, intermix and floating control functions while ensuring a maximum lifting capacity of 9570 lb. (4350 kg) OPT. The tractor can be optionally equipped with a rear lever allowing the operator to control raising and lowering of the lift from the ground. The system features up to 4 auxiliary valves, two controlled by a joystick for front loader use and two operated by a lever located beside the driver's seat.

Landini Powerfarm Plat Circuito Idraulico

POWERFARM
110
Speed Four

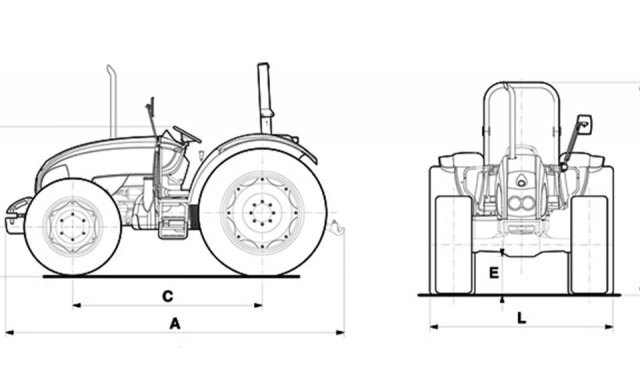

with tyres 18.4-30
A length (with ballast), in. (mm) 162.8 (4136)
B min. width, in. (mm) 81.2 (2063)
C wheelbase 2WD / 4WD, in. (mm) 92/91 (2341/2316)
D height to steering wheel, in. (mm) 69.7 (1772)
E ground clearance 4WD, in. (mm) 16 (453)
F height to ROPS, in. (mm) 100 (2542)
weight (without ballast) 4WD, lb. (kg) 7326 (3330)

  Landini Powerfarm Plat Dimensioni Pesi
