ID # 13332826

Mccormick 5D HC SERIES

  • Mccormick 5D HC SERIES
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

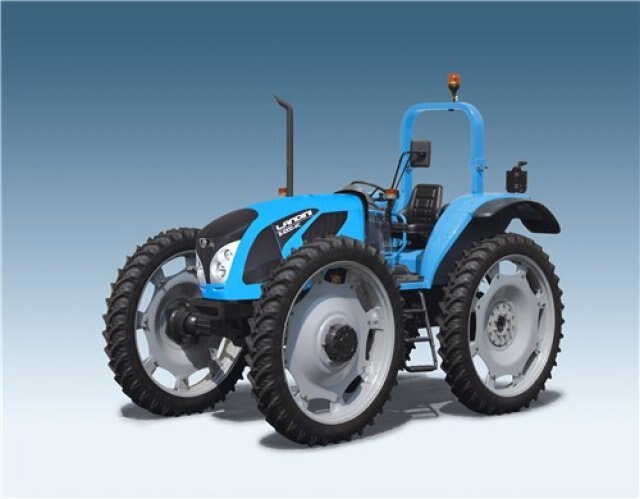

5D Series High Clearance Tractors

Landini adds a new twist, namely the 5D HC Series, to its current tractor lineup. Conceived on the framework of the prior Powerfarm Series, the 5D HC models offer an extremely high ground clearance for specialty applications.  The 5D HC uses a standard 5H chassis with bull gear final drives, but the final drives are "turned" downwards to give the tractor a higher stance.  Coupled with tall, narrow tires of equal size from front to back, the tractor excels in vegetable production, cane crops, and other applications needing lots of room under the tractor. Three models are available (5-90D, 5-100D, 5-110D) ranging from 85 to 102 HP.  All models feature a 12x12 mechanical synchro shuttle transmission, and can option for a 16x16 transmission with creeper.  Tractors are available in open station or cab configurations, and with a 2wd or 4wd front axle.
Specifications
Model
5-090D-HC
Category Name
Tractors
Year
2015
Sale Type
New
Manufacturer
McCormick
Engine Size
3400 CC
MAX POWER (ISO)
85 / 62,5
RATED SPEED RPM
2200
MAX TORQUE LB (NM)
260 (354)
MAX TORQUE SPEED RPM
1400
BORE / STROKE IN MM
3,9 / 4,3 (99/110)
NR OF CYLINDERS
4 TA
COMPRESSION RATIO
17:1
FUEL TANK CAPACITY GAL (LT)
27.2 (102)
NET PTO POWER (ISO) HP/KW
71,5 / 52,5
MAX STEERING ANGLE
55°
LENGTH (WITH BALLAST) IN (MM)
162.8 (4127)
GROUND CLEARANCE 4WD IN (MM)
16 (684)
