ID # 13332824

Mccormick 4 Series

  • Mccormick 4 Series
  • Mccormick 4 Series
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
4 Series Tractors
Dsc 6023

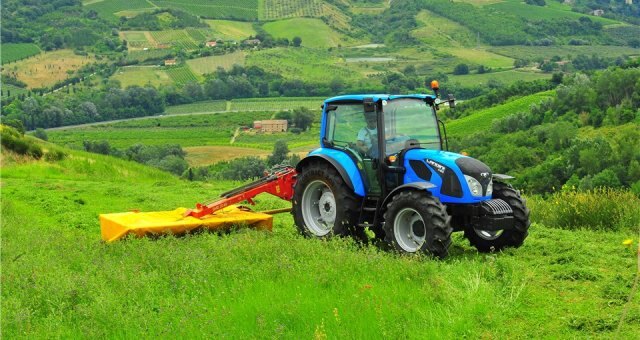

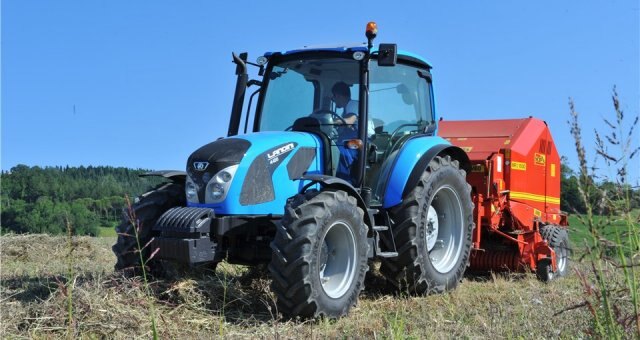

The 4 Series is the very latest addition to the Landini tractor family. Designed to replace several heritage series tractor lines with a single, more versatile range, the 4 Series fully revolutionizes Landini's low- and medium-power segment. The range currently comprises six models from 64 to 107 hp, and are powered by Deutz 4-cylinder engines that meet the EPA's strict Tier 4i emissions requirements. The 4 Series features the new family styling Landini has been using across its whole range of tractors. In addition to a sleek design and modern look, these tractors can be offered in a variety of configurations - from entry-level to high specification – to meet the customer’s specific needs. Main features include a new four-post cab loaded with amenities, a brand new Landini-designed 12x12 shuttle transmission with available creeper and hi/lo power shift, choice of synchro or power shuttle, and push-button PTO with both 540 and 1000 RPM speeds.  Additional equipment includes a hydraulic system with a flow rate of up to 15 gpm (57 lpm) dedicated to the implement system, a rear 3-point lift capacity of up to 8,598 lbs (3900 kg) at the ball ends, and choice of mechanical or electronic hitch control.
Specifications
Model
4-100
Category Name
Tractors
Year
2015
Sale Type
New
Manufacturer
McCormick
Engine Type
Deutz 3.6L 4-cylinder, liquid cooled diesel
Rated Engine Horsepower @ 2200 RPM HP(kW)
95 (70)
Rated PTO Horsepower* @ 2200 RPM HP(kW)
79 (58)
Max Engine Horsepower HP(kW)
99 (73)
Max PTO Horsepower* HP(kW)
85 (63)
Fuel Capacity Gal (liter)
31.7 (120)
Optional Transmission
Creeper; 2-speed power shift
Wheelbase In (mm)
87.8 (2230)
Height Over ROPS 420/85R30 Rear Tires In (mm)
111.0 (2794)
Height Over Cab 420/85R30 Rear Tires In (mm)
97.2 (2470)
Overall Length With Front Weights In (mm)
170.1 (4320)
Base Weight Without Ballast Lb (kg)
7,025 (3200) ROPS / 7,775 (3540) cab
