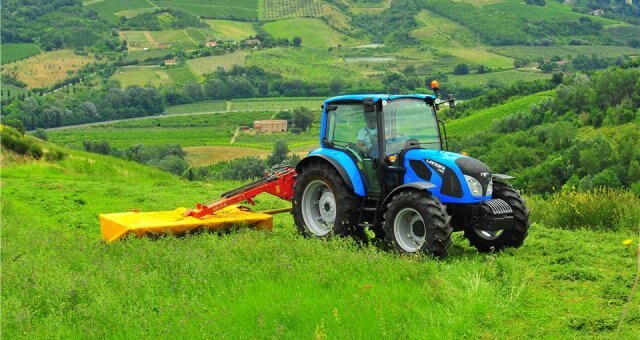

4 Series Tractors
Dsc 6023

The 4 Series is the very latest addition to the Landini tractor family. Designed to replace several heritage series tractor lines with a single, more versatile range, the 4 Series fully revolutionizes Landini's low- and medium-power segment. The range currently comprises six models from 64 to 107 hp, and are powered by Deutz 4-cylinder engines that meet the EPA's strict Tier 4i emissions requirements. The 4 Series features the new family styling Landini has been using across its whole range of tractors. In addition to a sleek design and modern look, these tractors can be offered in a variety of configurations - from entry-level to high specification – to meet the customer’s specific needs. Main features include a new four-post cab loaded with amenities, a brand new Landini-designed 12x12 shuttle transmission with available creeper and hi/lo power shift, choice of synchro or power shuttle, and push-button PTO with both 540 and 1000 RPM speeds.  Additional equipment includes a hydraulic system with a flow rate of up to 15 gpm (57 lpm) dedicated to the implement system, a rear 3-point lift capacity of up to 8,598 lbs (3900 kg) at the ball ends, and choice of mechanical or electronic hitch control.
Specifications
Model
4-070
Category Name
Tractors
Year
2015
Sale Type
New
Manufacturer
McCormick
Engine Type
Deutz 2.9L 4-cylinder, liquid cooled diesel
Rated Engine Horsepower @ 2200 RPM HP(kW)
68 (50)
Rated PTO Horsepower* @ 2200 RPM HP(kW)
57 (42)
Max Engine Horsepower HP(kW)
72 (53)
Max PTO Horsepower* HP(kW)
61 (45)
Fuel Capacity Gal (liter)
23.7 (90)
Optional Transmission
Creeper
Wheelbase In (mm)
82.7 (2100)
Height Over ROPS 420/85R30 Rear Tires In (mm)
111.0 (2794)
Height Over Cab 420/85R30 Rear Tires In (mm)
97.2 (2470)
Overall Length With Front Weights In (mm)
165.0 (4190)
Base Weight Without Ballast Lb (kg)
6,380 (2900) ROPS / 7,130 (3240) cab
