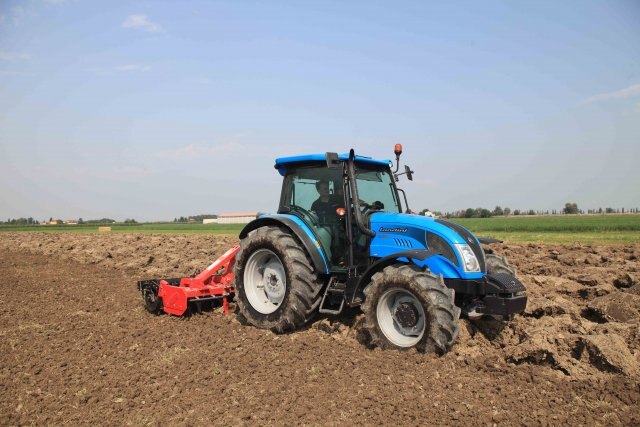

The 5H Series is midway between the Powerfarm of which it inherits the cab and the wheel base, and the more structured Powermondial Series featuring a 3 ranges Powershift, i transmission, epicyclic final drives and power lift. The engine hood has been restyled to reflect the Landini family feeling and the taillights are a new design.
The modular and versatile transmission is available with four synchronized gears and three mechanical speed ranges (SPEED FOUR) with hydraulically controlled oil-bath multi-plate PTO as a basic version.
The entry level 12 +12 is available on both 18.7 MPH (30 kPH) and 25 MPH (40 kPH) versions and is combined with an intermediate 24 +12 version equipped with mechanical reverse shuttle and overdrive (TECHNO VERSION). A substantial novelty is represented by the combination of the hydraulic reverse shuttle with the T Tronic three-shift option ( H-M-L high-medium-low) which triples the gears of the basic transmission to achieve 36 forward + 12 reverse speeds. (TOP VERSION).
A creep transmission is available as an option on both TECHNO and TOP versions. The Top version is equipped with a De-clutch system allowing the operator to change mechanical gears by simply depressing the button placed on the gear shift lever without using the clutch pedal.
The De-clutch system is engaged by an electronic control unit, the same one controlling the hydraulic reverse shuttle, the T Tronic H-M-L gearbox and the PTO. The PTO comes with a choice of 3 speeds – 540, 750 (540 Eco) and 1000 rpm according to the requested version.
The mechanical power lift (electronic power lift only on TOP version) is equipped with draft control function on the lower links. With the adoption of the new hood, the range of engines powering the 5H series has been enhanced with a new, more powerful model that delivers 110.2 hp. With this latest addition, the 5H tractor range is now composed of four models:  the 90 model powered by a turbocharged engine and three turbo aftercooled models, the 100, 110 and 115, all meeting the Tier 3 emission standards.
The new 5H Series is available both in cab and plat versions and represents the Landini technological innovation as well as a winning combination of two ergonomic, reliable and high performing ranges such as the Powerfarm and the Powermondial featuring the essence of modernity.
