ID # 38425684

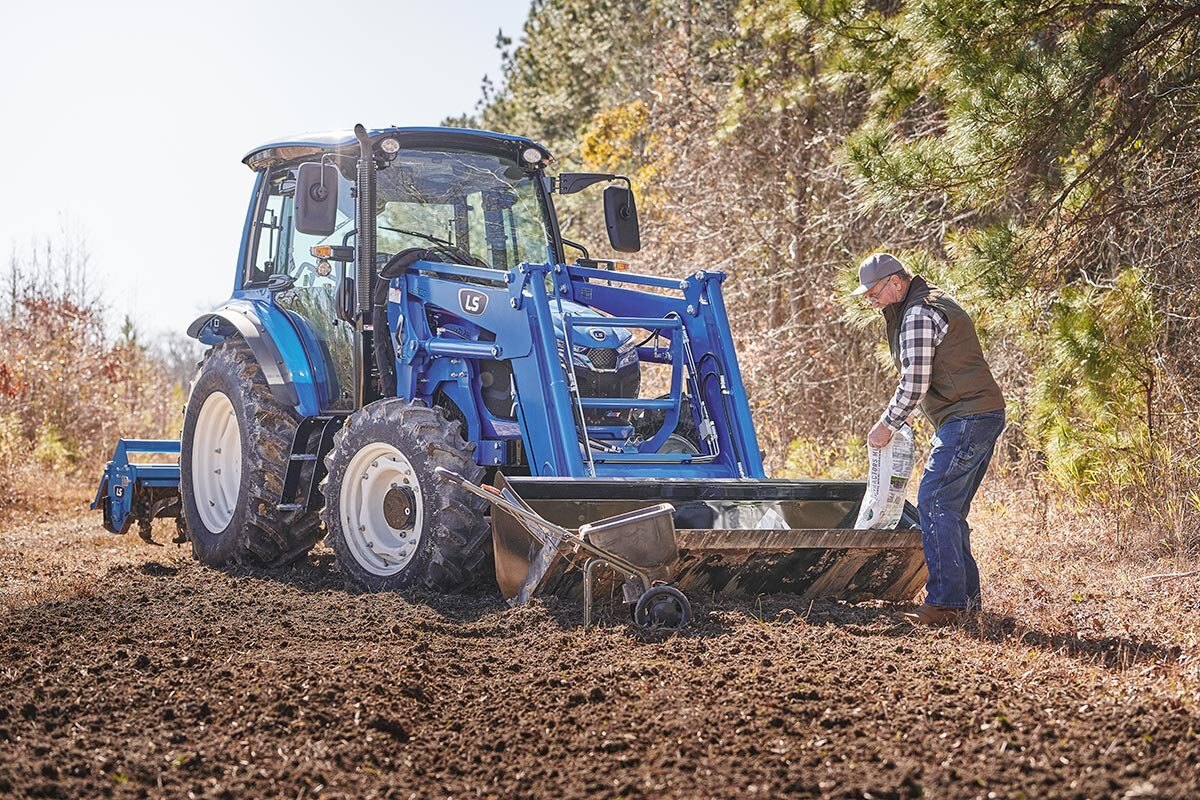

LS Tractor MT774CPS Utility Tractors

  • LS Tractor MT774CPS Utility Tractors
  • LS Tractor MT774CPS Utility Tractors
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  • 24F x 24R Power Shuttle​
  • Standard Air Suspension Seat ​
  • Standard Electric Engaged Independent PTO​
  • Standard Instructor Seat​
  • Standard Interior Power Source​
  • Optional Third Rear Remote​
Specifications
Model
MT774CPS Utility Tractors
Category Name
Tractors
Year
2025
Sale Type
New
Manufacturer
LS Tractor
Total Weight Without Ballast (lbs.)
7,827
engine
Type
4 Cylinder, CRDI, Water-cooled
PTO HP
65.6
Model (Tier 4 )
F34
Engine HP (Gross)
73.7
Rated Speed (RPM)
2,200
Displacement (cu In.)
206.7
Fuel Tank Capacity (gal)
30.4
drive train
Brakes
Wet, Multi – disc
No. Of Speeds
24 X 24
Transmission Type
Power Shuttle
Forward Speed (mph)
0.9 – 20.8
pto
Type
Independent
Rear, Rpm
540 / 750 / 1,000
hydraulic system
Remote Valves
3 pairs (Front), 2 pairs (Rear)
Control System
Position/Draft
Total Flow (gpm)
22.2
Steering Pump (gpm)
6.5
Category, 3 Pt Hitch
CAT II
Implement Pump (gpm)
15.7
Hitch Lift Capacity, Lbs (Hitch End)
7,275
dimension
Wheelbase (in.)
90
Height To Top (in.)
105
Min. Overall Width With Tires (in.)
78.7
Overall Length (Frame To Link, In.)
152.2
tire size
Front / Rear Ag
F: 13.6-24, R: 18.4-34
Front / Rear R14
FW: 340/70R28, RR: 460/75R38
options
Remote Valve- 1Pair (2 Outlets) Volume adjustable sectional Valve
Front Weight with bumper (88lb X 8)
Rear weight (99lb X 4)
Beacon Lamp
literature
Name Link
LS Model Comparison Download
