ID # 38425682

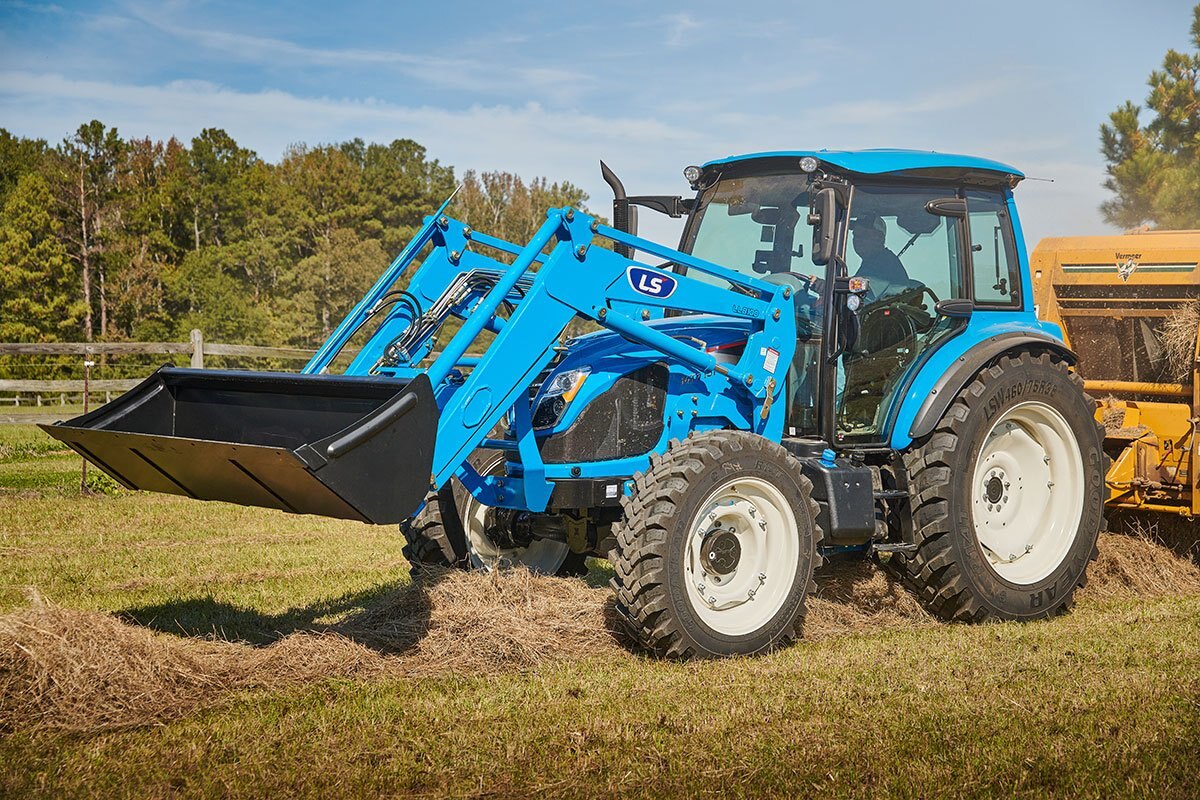

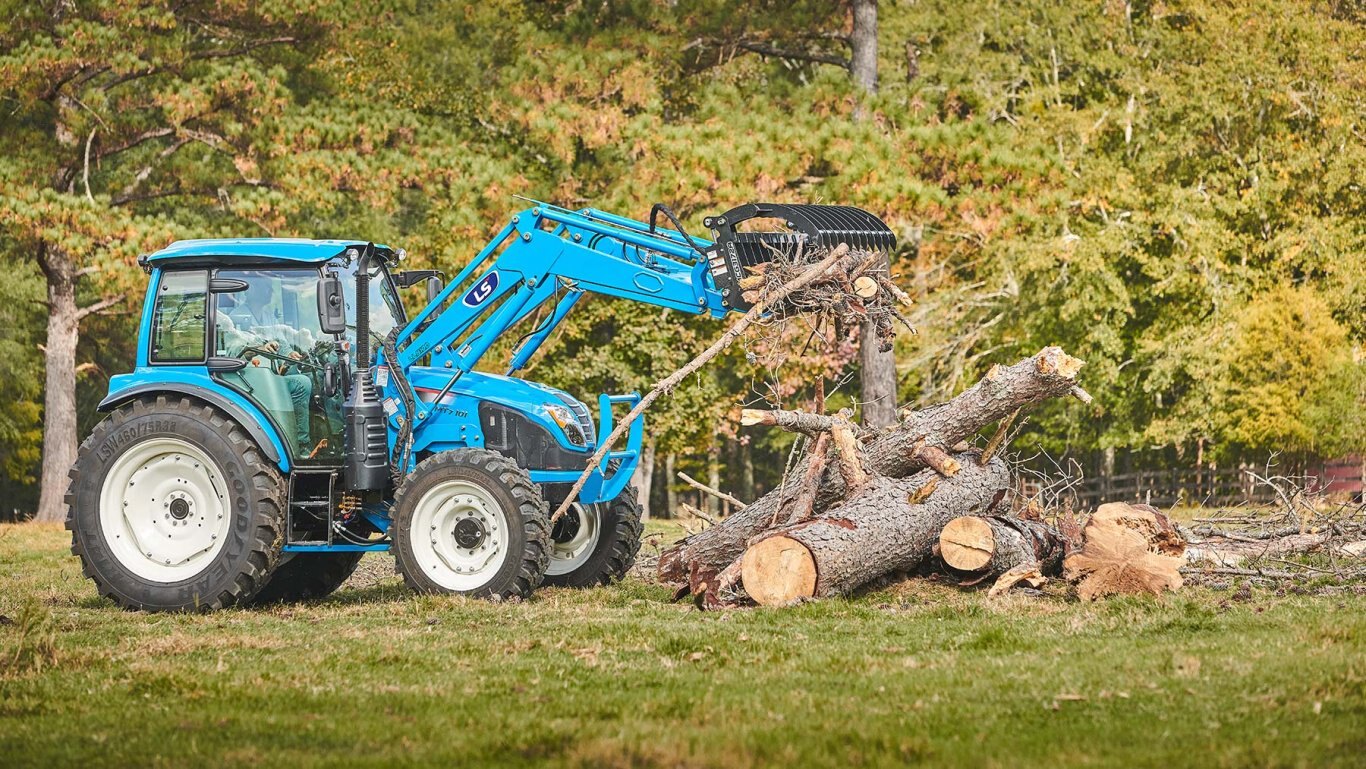

LS Tractor MT7101CSPS Utility Tractors

  • LS Tractor MT7101CSPS Utility Tractors
  • LS Tractor MT7101CSPS Utility Tractors
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  • High Capacity Loader – High Performing Lift Capacity, Among The Industry Leaders In Lift Height (139.9 in.)
  • Goodyear LSW Tires – Enable Better Traction, Less Field Compaction
  • Spacious Cab – Providing a Roomy Climate Controlled Working Environment
  • Standard Factory Grille Guard W/ Loader – Full Length Grille Guard Protects Body Panels And Radiator
  • Durability And Capacity – Heavy-Duty Frame And Lift Cylinders Enable Three-Point Lift Capacity Up To 5,139 lbs.
  • Semi-Powershift With Power Shuttle Transmission – Provides Efficiency And Comfort In Demanding Applications (Standard)
  • Right-Side Cab Access – Enables Operators To Access Both Sides Of The Cab (Door And Steps)
  • Four Standard Rear Work Lights – Provides Significant Illumination During Night Operation
  • Ergonomic Design – Provide Access To Controls For A Variety Of Applications
Specifications
Model
MT7101CSPS Utility Tractors
Category Name
Tractors
Year
2025
Sale Type
New
Manufacturer
LS Tractor
Total Weight Without Ballast (lbs.)
7,714
engine
Type
4 Cylinder, CRDI, Water-cooled
PTO HP
85.5
Model (Tier 4 )
F5G
Engine HP (Gross)
100.6
Rated Speed (RPM)
2,200
Displacement (cu In.)
206.7
Fuel Tank Capacity (gal)
30.4
drive train
No. Of Speeds
32 X 32
Transmission Type
Semi-Powershift with Power Shuttle
Forward Speed (mph)
0.1 – 22.6
pto
Type
Independent / Ground Speed PTO
Rear, Rpm
540 / 750 / 1,000
hydraulic system
Remote Valves
3 pairs (Front), 2 pairs (Rear)
Control System
Position/Draft
Total Flow (gpm)
22.2
Steering Pump (gpm)
6.5
Category, 3 Pt Hitch
CAT II
Implement Pump (gpm)
15.7
Hitch Lift Capacity, Lbs (Hitch End)
8,378
dimension
Wheelbase (in.)
90
Height To Top (in.)
105.4
Min. Overall Width With Tires (in.)
78.7
Overall Length (Frame To Link, In.)
152.2
tire size
Front / Rear Ag
F: 13.6-24, R: 18.4-34
Front / Rear R14
FW: 340/70R28, RR: 460/75R38
options
Remote Valve- 1 pair (2 outlets) or 2 pair (4 outlets)
Front Weight with bumper (88lb X 8)
Rear weight (99lb X 4)
Beacon Lamp
