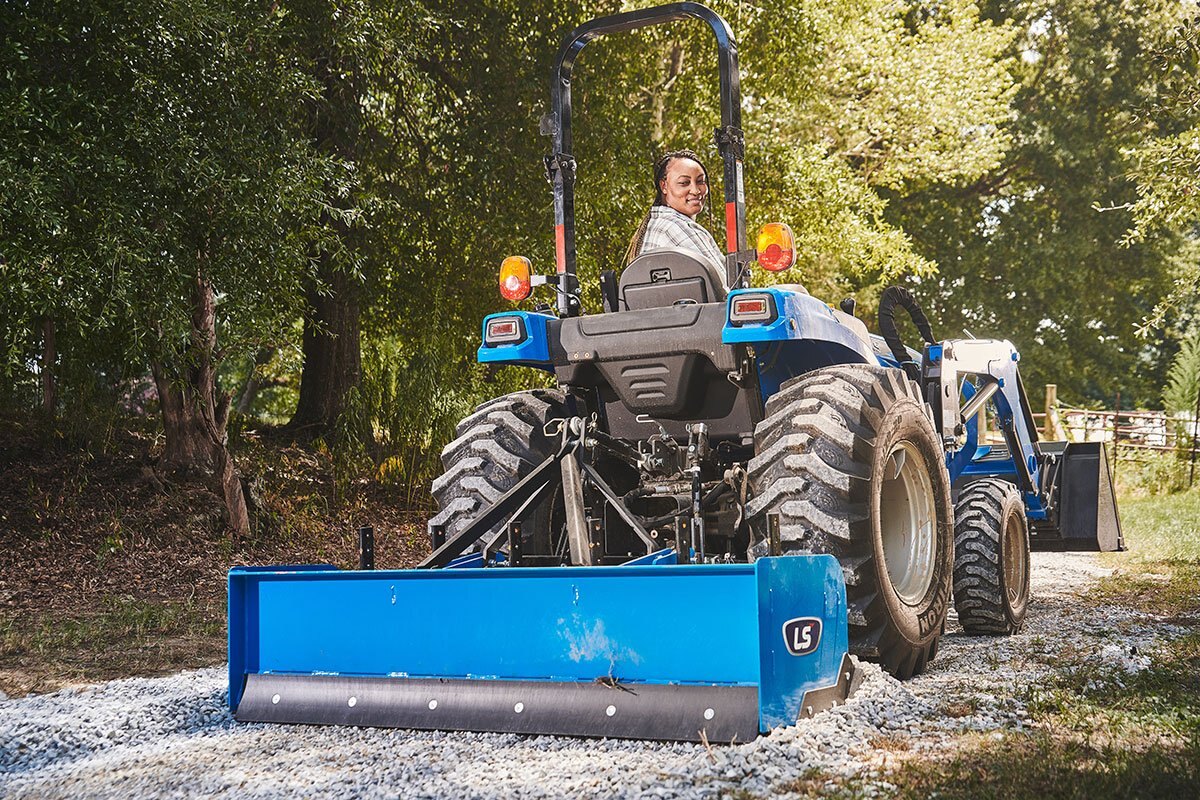

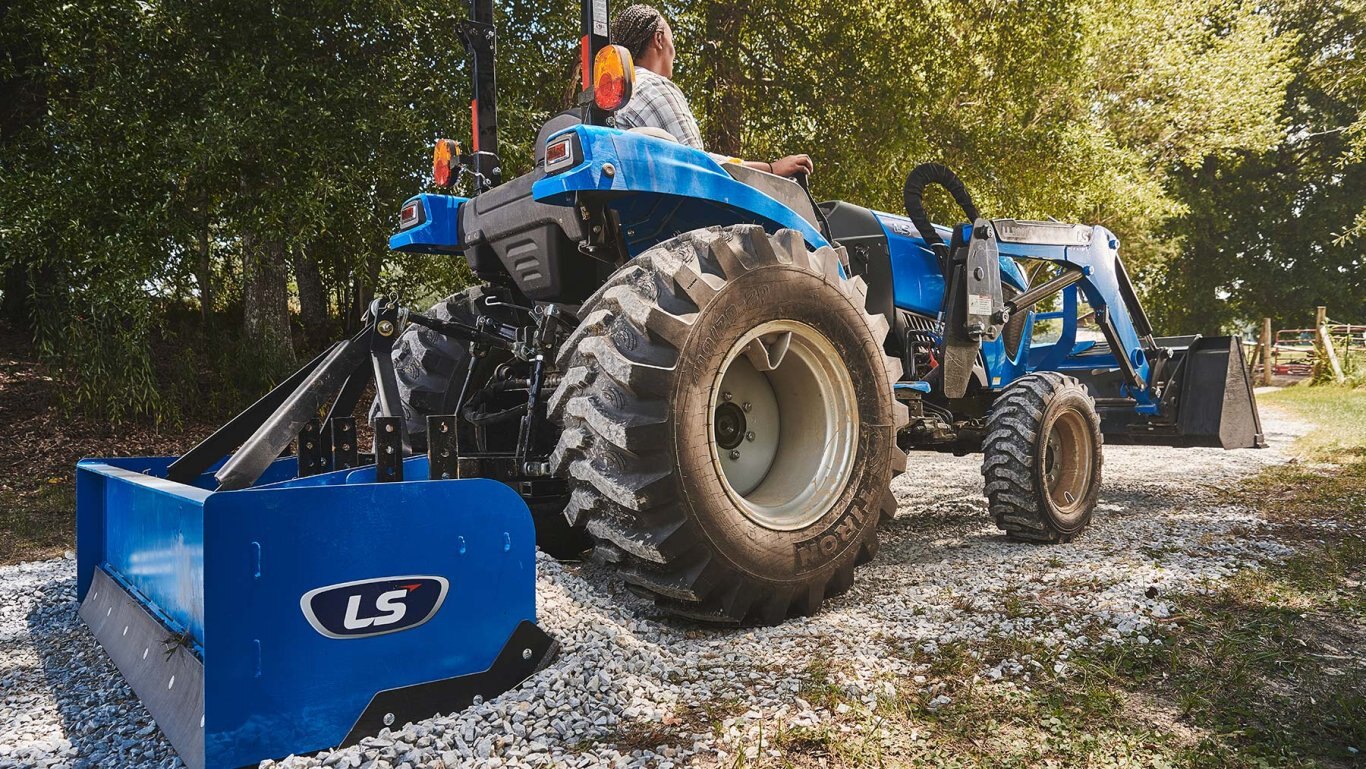

LS Tractor MT232HE Compact Tractors

  • LS Tractor MT232HE Compact Tractors
  • LS Tractor MT232HE Compact Tractors
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  • Redesigned air conditioning and roof configuration, providing additional head space and increased forward visibility
  • Much improved seat comfortability
  • Factory A/C cab available in a 25HP tractor
  • New hood design (LS Family look), Grill open space plus 20%
  • LED head Lamp
  • 1 Inch large tire size and four different tire options
  • Larger lifting capacity, loader lifting capacity -> New MT226E (LL3301/2) 1,965 lbs. New MT2E & MT2(LL3303) 2,506 lbs.
  • Workability, 4-point mount structure as well -> digging depth of 97.2” and bucket digging force of 3,663 lbs.
  • TF-LCD instrument panel providing various information like, regen time, oil change interval, etc.
  • E/G RPM interlocking switch (STD). When working at low RPM, instantaneous RPM can be increased by simply manipulating the toggle switch to momentarily increase loader speed/lift (option).
Specifications
Model
MT232HE Compact Tractors
Category Name
Tractors
Year
2025
Sale Type
New
Manufacturer
LS Tractor
Total Weight Without Ballast (lbs.)
3,210
engine
Type
3 Cylinder, Liquid-cooled, Diesel, NA, IDI
PTO HP
26.2
Model (Tier 4 )
YANMAR
Alternator (V-A)
12V – 55 Amps
Engine HP (Gross)
31.7
Rated Speed (RPM)
2,600
Displacement (cu In.)
100.2
Fuel Tank Capacity (gal)
10.6
drive train
Brakes
Wet, Multi-disc
Steering
Hydrostatic Power Steering
No. Of Speeds
3 Ranges
Transmission Type
HST
pto
Type
Independent
Rear, Rpm
540 (Standard)
hydraulic system
Remote Valves
Option
Control System
Position
Total Flow (gpm)
11.7
Steering Pump (gpm)
5
Category, 3 Pt Hitch
CAT I
Implement Pump (gpm)
6.7
Hitch Lift Capacity, Lbs (Hitch End)
1,808
dimension
Wheelbase (in.)
69
Height To Top (in.)
90
Overall Width With Tires (in.)
66
Overall Length (Frame To Link, In.)
125
tire size
Ag Front / Rear
7 – 14 / 11.2 – 24
VT Front / Rear
27X8.50-15 / 43X16.00-20
IND Front / Rear
27X8.50-15 / 43X16.00-20
Turf Front / Rear
25X8.50-14 / 41X14.00-20
options

Standard

Loader valve 2pair
Lower link – General
Stabilizer – Check Link
Head Lamp (LED)
Stabilizer – Check Link
Head Lamp (LED)
TF LCD Instrument Panel
12V Outlet
Rubber Mat
LH Side Step
Tool Box

Options

Remote valve 1st / 2nd
Cruise Control
E/G RPM Interlocking Switch(Joystick)
Lowerlink – Telescopic
Mid PTO
External Lift Control Lever
Clevis Drawbar
Rear Work Lamp
7-pole
Horn
Engine Kill Switch(Rear Fender)
Fuel Cap(Locking Type)
RH Side Step
Seat with Suspension & Armrest
Block Heater
literature
Name Link
LS Model Comparison Download
