ID # 38213635

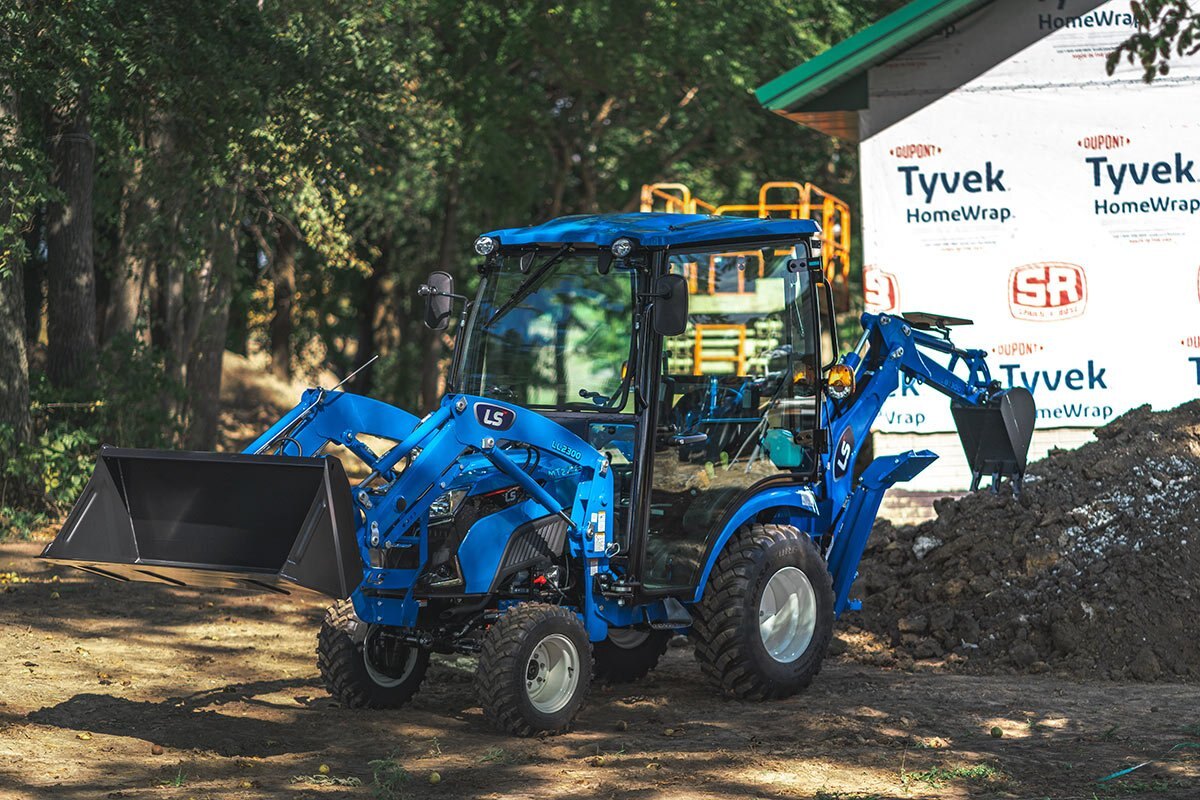

LS Tractor MT235EC Compact Tractors

  • LS Tractor MT235EC Compact Tractors
  • LS Tractor MT235EC Compact Tractors
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  • Left And Right Cab Doors – Premium Seat Providing Access To Either Side Of The Cab
  • 3 Range Hydrostatic Transmission – Provides Comfort And Excellent Controllability Of Tractor Movement
  • 3 Standard Dual Mirrors – Provide Added Visibility
  • 3 Standard Drawbar – Provides Value And Enables Trailering etc.
  • 3 Ground Level Fueling – Provides Easy Access.
  • Standard Grille Guard With Loader – Provides Added Protection
  • High-Capacity Loader – With High Lift Height And Standard Skid Steer Coupler
  • Standard Integrated Joystick – Mid Mount Valve, Providing Deluxe Fit And Finish
  • Electronic PTO – For Ease Of Use
Specifications
Model
MT235EC Compact Tractors
Category Name
Tractors
Year
2025
Sale Type
New
Manufacturer
LS Tractor
Total Weight Without Ballast (lbs.)
3,589
engine
Type
Vertical Water-Cooled 4Cycle Diesel Engine
PTO HP
29.7
Model (Tier 4 )
L3C19-T
Alternator (V-A)
12V – 70 Amps
Engine HP (Gross)
35
Rated Speed (RPM)
2,600
Displacement (cu In.)
114.7
Fuel Tank Capacity (gal)
12.4
drive train
Brakes
Wet, Multi-disc
Steering
Hydrostatic Power Steering
No. Of Speeds
F12 X R12
Transmission Type
Synchro Shuttle
pto
Type
Independent
Rear, Rpm
540 (Standard)
Mid PTO, Rpm
2000 (Field Option)
hydraulic system
Remote Valves
Option
Control System
Position/Draft
Total Flow (gpm)
12.3
Steering Pump (gpm)
4.1
Category, 3 Pt Hitch
CAT I
Implement Pump (gpm)
8.2
dimension
Wheelbase (in.)
62
Height To Top (in.)
86.6
Overall Width With Tires (in.)
69
Overall Length (Frame To Link, In.)
128.3
tire size
Ag Front / Rear
7 – 14 / 11.2 – 24
IND Front / Rear
27X8.50-14 / 43X16.00-20
Turf Front / Rear
25X8.50-14 / 41X14.00-20
options
Telescopic Link Arms
Side Step – RH
7 Pole Connector
Horn
Sun Screen
Interior Rear View Mirror
External Position Lever
Beacon Lamp
Work Light
Audio Assy – without Bluetooth
Audio Assy – Bluetooth
Rear Wiper
Mid PTO
Remote Valve – 2 Pair (1 STD. 1 Detent)
literature
Name Link
LS Model Comparison Download
