ID # 38213613

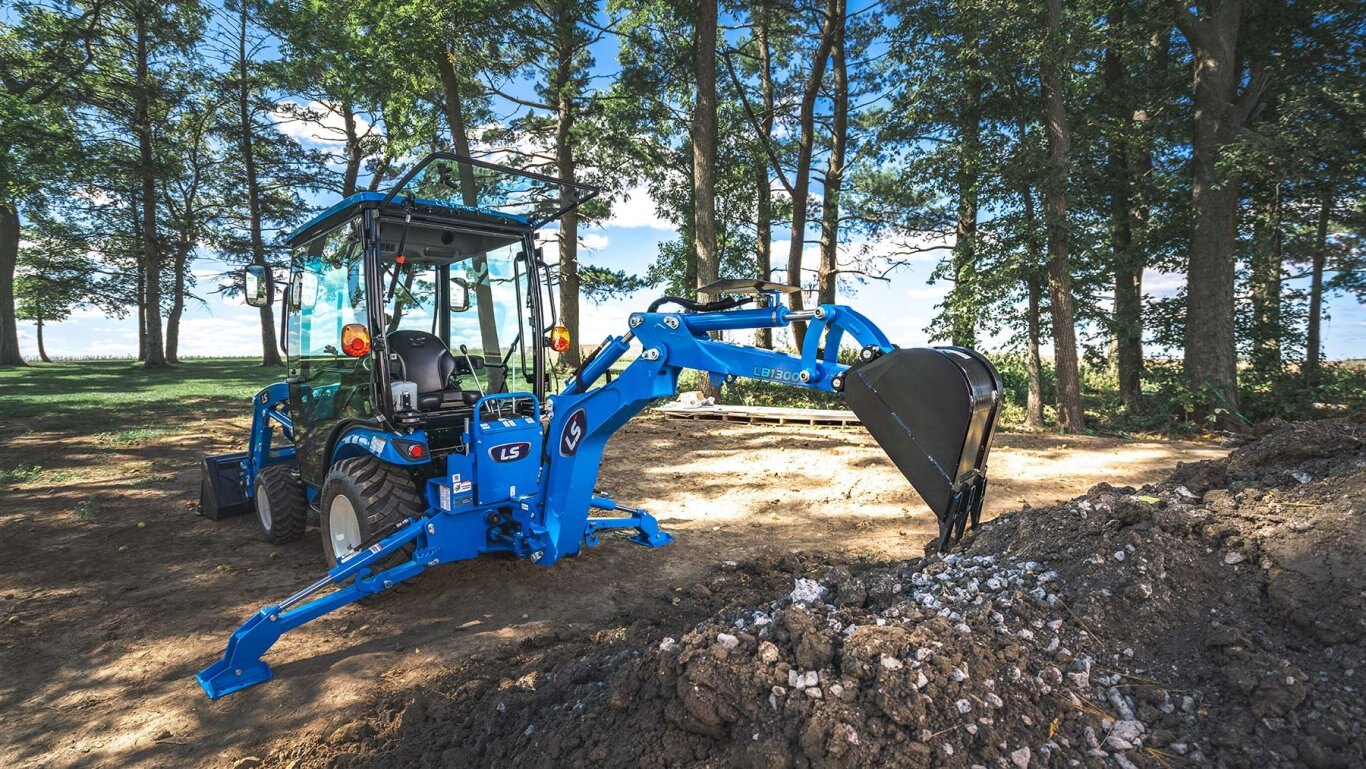

LS Tractor MT235HEC Compact Tractors

  • LS Tractor MT235HEC Compact Tractors
  • LS Tractor MT235HEC Compact Tractors
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  • Left And Right Cab Doors – Premium Seat Providing Access To Either Side Of The Cab
  • 3 Range Hydrostatic Transmission – Provides Comfort And Excellent Controllability Of Tractor Movement
  • 3 Standard Dual Mirrors – Provide Added Visibility
  • 3 Standard Drawbar – Provides Value And Enables Trailering etc.
  • 3 Ground Level Fueling – Provides Easy Access.
  • Standard Grille Guard With Loader – Provides Added Protection
  • High-Capacity Loader – With High Lift Height And Standard Skid Steer Coupler
  • Standard Integrated Joystick – Mid Mount Valve, Providing Deluxe Fit And Finish
  • Electronic PTO – For Ease Of Use
Specifications
Model
MT235HEC Compact Tractors
Category Name
Tractors
Year
2025
Sale Type
New
Manufacturer
LS Tractor
Total Weight Without Ballast (lbs.)
3,655
engine
Type
3-cylinder, CRDI, liquid-cooled, Diesel, NA
PTO HP
28
Model (Tier 4 )
L3C19-D2
Alternator (V-A)
12V – 70 Amps
Engine HP (Gross)
35
Rated Speed (RPM)
2,600
Displacement (cu In.)
114.7
Fuel Tank Capacity (gal)
7.4
drive train
Brakes
Wet, Multi-disc
Steering
Hydrostatic Power Steering
No. Of Speeds
3 Ranges
Transmission Type
HST
pto
Type
Independent
Rear, Rpm
540 (Standard)
Mid PTO, Rpm
2000 (Field Option)
hydraulic system
Remote Valves
Option
Control System
Position
Total Flow (gpm)
13.7
Steering Pump (gpm)
5.5
Category, 3 Pt Hitch
CAT I
Implement Pump (gpm)
8.2
dimension
Wheelbase (in.)
54
Height To Top (in.)
88
Overall Width With Tires (in.)
69
Overall Length (Frame To Link, In.)
121
tire size
Ag Front / Rear
7 – 14 / 11.2 – 24
IND Front / Rear
27X8.50-14 / 43X16.00-20
Turf Front / Rear
25X8.50-14 / 41X14.00-20
options
Telescopic Link Arms
Side Step – RH
7 Pole Connector
Horn
Sun Screen
Interior Rear View Mirror
External Position Lever
Beacon Lamp
Work Light
Audio Assy – without Bluetooth
Audio Assy – Bluetooth
Rear Wiper
Mid PTO
Remote Valve – 2 Pair (1 STD. 1 Detent)
literature
Name Link
LS Model Comparison Download
