ID # 38212048

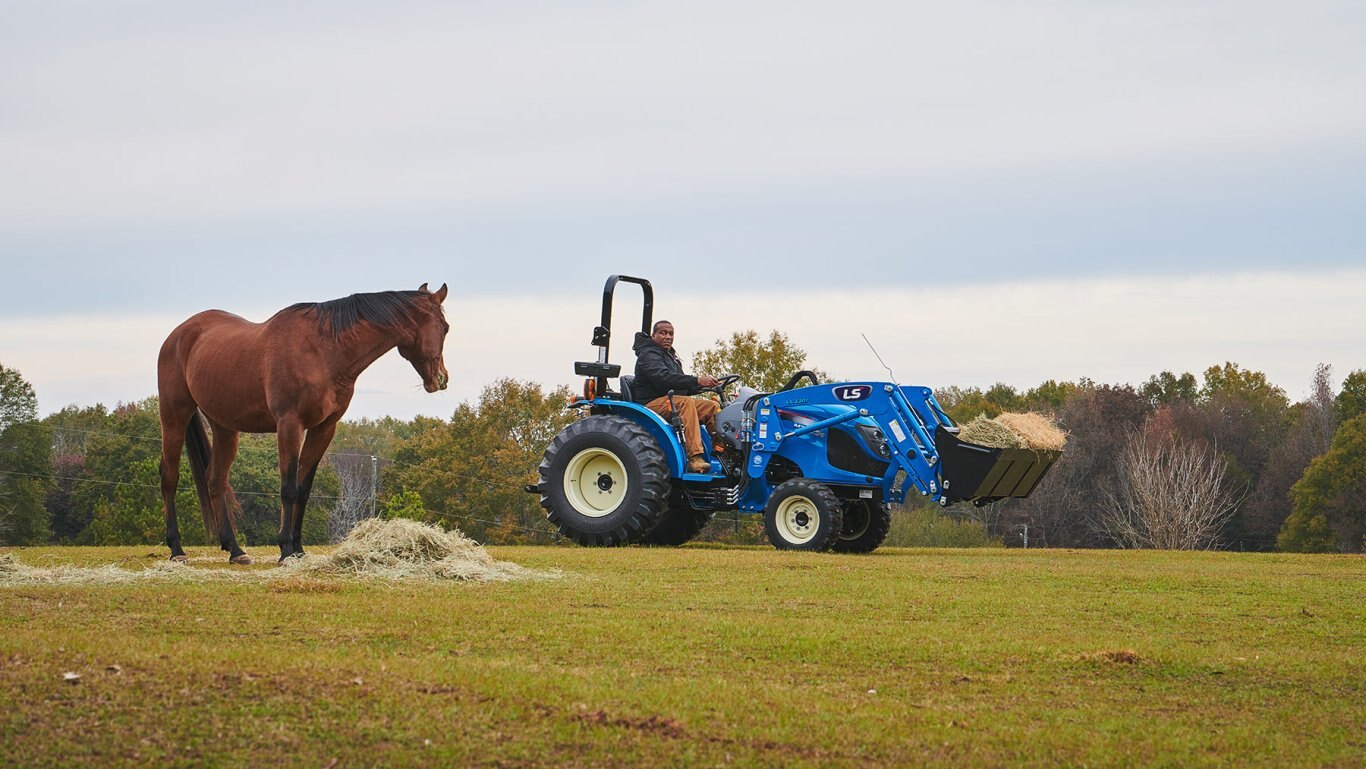

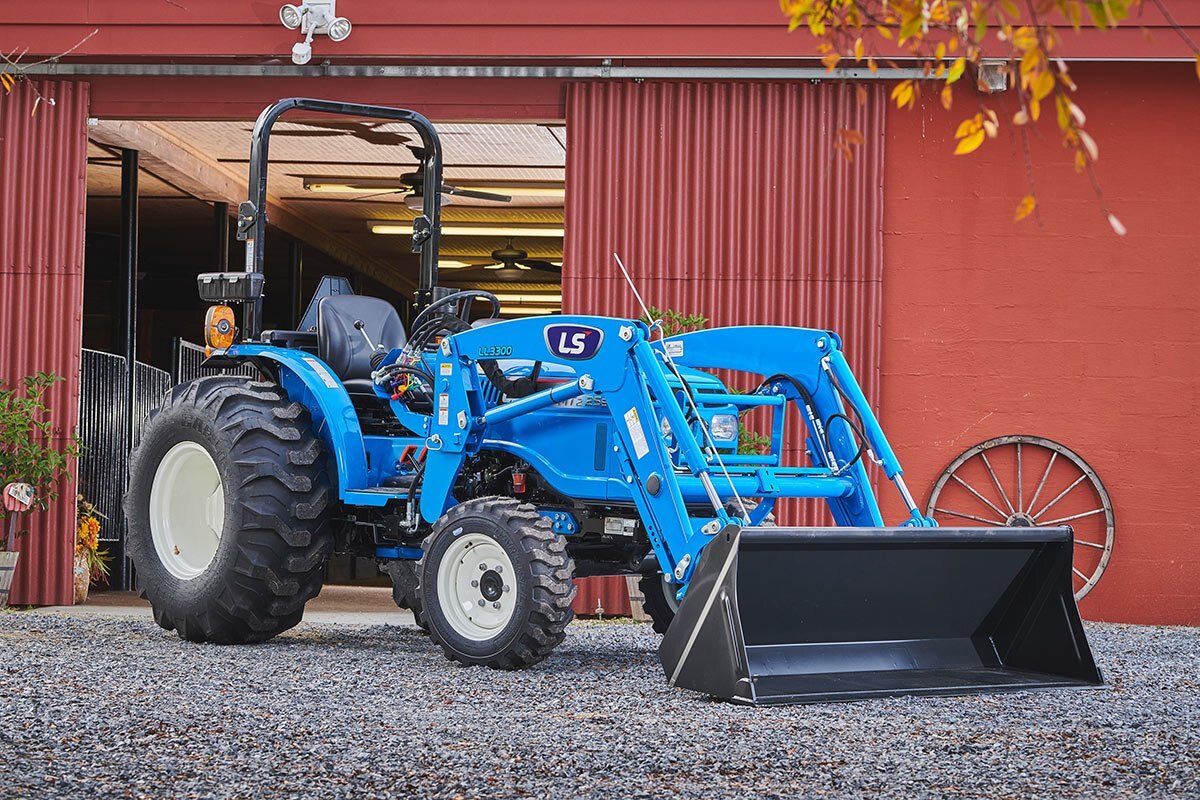

LS Tractor MT235HE Compact Tractors

  • LS Tractor MT235HE Compact Tractors
  • LS Tractor MT235HE Compact Tractors
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  • 4WD (Front Wheel Mechanical Assist) – Go from 2WD to a 4WD with a simple move of a lever.
  • Independent PTO – Easiest PTO to operate that can be turned on or off with a switch.
  • Dual Pedal, 3 Range HST – Easier and more comfortable than rocker pedals. Includes cruise control.
  • Standard Tilt & Power Steering – Makes turning easier, improves control and reduces fatigue.
  • Fender Mounted Joystick For Front End Loader – Easily accessible for maximum comfort and convenience.
  • Standard Foldable ROPS – Allows Storage in low clearance buildings or sheds.
  • Your Choice Of Tires At No Additional Cost – Choose Ag, Industrial or Turf tires at no additional cost. *Subject to dealer inventory.
  • 3-Point Hitch – Category 1 with a hitch lift capacity of 1,808 lbs. allows usage of a wide variety of implements.
  • Ergonomically Designed 3-Point Hitch Controls – Easily accessible for maximum comfort and convenience with hydraulic position control.
  • Standard Draw Bar – Increases the usefulness of the tractor without the additional optional cost.
  • Large Fuel Tank – 7.4 gallon capacity provides long operation times between fill ups.
  • Standard Rubber Mat – Reduces noise, vibration and prevents slipping.
  • LS CRDI Tier 4 Engine – Generates more power with less noise, fuel consumption, vibration and emissions. Standard preheat starting aid helps starting in cold weather.
  • Easy Open One-Piece Hood – Easy access for maintenance of this low emissions, fuel efficient engine. Standard pre-heat starting aid improves starting in cold weather.
  • Modern Ergonomic Design – This compact is ergonomically designed.
  • Adjustable Seat With Seat Belt – Keeps you in a comfortable and safe position for maximum control.
Specifications
Model
MT235HE Compact Tractors
Category Name
Tractors
Year
2025
Sale Type
New
Manufacturer
LS Tractor
Total Weight Without Ballast (lbs.)
2,870
engine
Type
3-cylinder, CRDI, liquid-cooled, Diesel, NA
PTO HP
28
Model (Tier 4 )
L3C19-D2
Alternator (V-A)
12V – 70 Amps
Engine HP (Gross)
35
Rated Speed (RPM)
2,600
Displacement (cu In.)
114.7
Fuel Tank Capacity (gal)
7.4
drive train
Brakes
Wet, Multi-disc
Steering
Hydrostatic Power Steering
No. Of Speeds
3 Ranges
Transmission Type
HST
pto
Type
Independent
Rear, Rpm
540 (Standard)
Mid PTO, Rpm
2000 (Field Option)
hydraulic system
Remote Valves
Option
Control System
Position
Total Flow (gpm)
13.7
Steering Pump (gpm)
5.5
Category, 3 Pt Hitch
CAT I
Implement Pump (gpm)
8.2
dimension
Wheelbase (in.)
54
Height To Top (in.)
88
Overall Width With Tires (in.)
69
Overall Length (Frame To Link, In.)
121
tire size
Ag Front / Rear
7 – 14 / 11.2 – 24
IND Front / Rear
27X8.50-14 / 43X16.00-20
Turf Front / Rear
25X8.50-14 / 41X14.00-20
options
Telescopic Link Arms
Side Step – RH
7 Pole Connector
Horn
Sun Screen
Interior Rear View Mirror
External Position Lever
Beacon Lamp
Work Light
Audio Assy – without Bluetooth
Audio Assy – Bluetooth
Rear Wiper
Mid PTO
Remote Valve – 2 Pair (1 STD. 1 Detent)
literature
Name Link
LS Model Comparison Download
