ID # 38128581

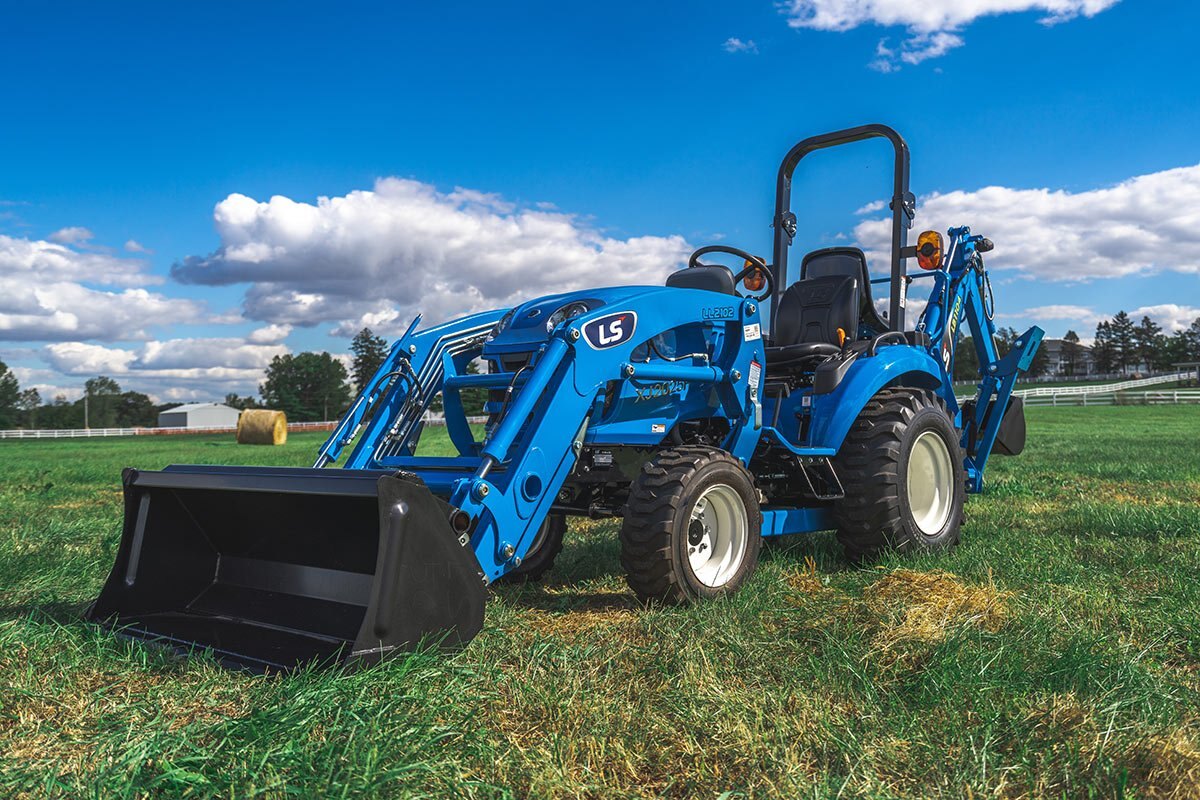

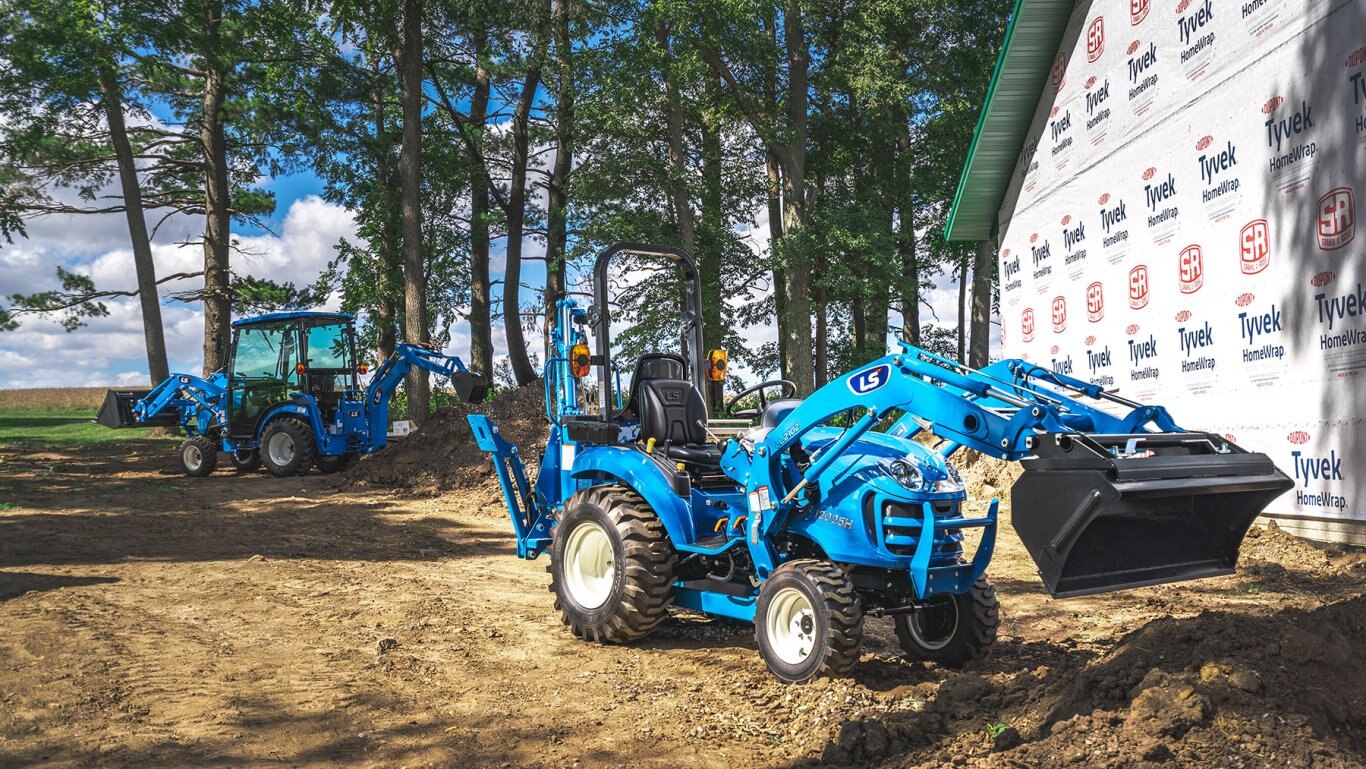

LS Tractor XJ2025H Small Compact Tractors

  • LS Tractor XJ2025H Small Compact Tractors
  • LS Tractor XJ2025H Small Compact Tractors
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  • 4WD (Front Wheel Mechanical Assist) – Go from 2WD to a 4WD with a simple move of a lever.
  • Electro Hydraulic Clutch PTO – Turn the PTO on or off with the turn of a switch.
  • PTO Selector Switch – Allows you to select the rear-PTO, mid-PTO or both.
  • Standard Mid PTO – 2000 RPM Mid PTO for optional 60” mid-mount mower or 50” front mount snow blower
  • Standard Hydrostatic Power Steering – Ditch the mechanical link—introducing hydrostatic power steering for ultimate flexibility, parts costs, and assemble-ability. This feature makes turning easier, improves control and reduces fatigue.
  • Standard Foldable Props – Introducing foldable ROPS for storage allowance in low clearance buildings or sheds.
  • Your Choice Of Tires At No Additional Cost* – Choose Industrial or Versa Turf tires at no additional cost. * Subject to dealer inventory.
  • 3-Point Hitch – Category 1 with a hitch lift capacity of 1,808 lbs. allows usage of a wide variety of implements.
  • Ergonomically Designed 3-Point Hitch – Category 1 with a hitch lift capacity of 966 lbs. is smooth and responsive.
  • Ergonomically Designed 3-Point Hitch Controls – Easily accessible for maximum comfort and convenience with hydraulic position control.
  • Standard Rear Work Light – Adjustable light to improve visibility where you need it.
  • Standard Draw Bar – Increases the usefulness of the tractor without the additional optional cost.
  • Large Fuel Tank – Provides long operation times between fill-ups.
  • Standard Rubber Mat – Reduces noise, vibration and prevents slipping.
  • Mitsubishi Tier 4 Engine – Fuel efficient engine delivers reliable performance. Rubber engine mounts reduce operator platform vibration. Standard preheat starting aid improves cold weather starting.
  • Easy Open One-Piece Steel Hood – Provides accessibility for easy maintenance.
  • Comfortable High-Back Seat – Supportive and comfortable seat reduces fatigue.
Specifications
Model
XJ2025H Small Compact Tractors
Category Name
Tractors
Year
2025
Sale Type
New
Manufacturer
LS Tractor
Total Weight Without Ballast (lbs.)
1,609
engine
Type
3-cylinder, Indirect-injection, Water-cooled
PTO HP
18.5
Model (Tier 4 )
Mitsubishi S3L2
Alternator (V-A)
12V – 50 Amps
Engine HP (Gross)
24.4
Rated Speed (RPM)
2,500
Displacement (cu In.)
80.4
Fuel Tank Capacity (gal)
6.6
drive train
Brakes
Wet, Multi-disc
Steering
Hydrostatic Power Steering
Transmission
Hydrostatic Drive
No. Of Speeds
2 Ranges
pto
Type
Independent
Mid PTO
Standard (2000 rpm)
Rear PTO
Standard (540 rpm)
hydraulic system
Control System
Manual Position
Total Flow (gpm)
8.5
Steering Pump (gpm)
2.6
Category, 3 Pt Hitch
CAT 1
Implement Pump (gpm)
5.9
Hitch Lift Capacity, Lbs (Hitch End)
1,433
dimension
Wheelbase (in.)
59
Height To Top Of ROPS (in.)
92.3
Overall Width With Tires (in.)
44.9
Tire Size Versa Turf Front/Rear
23x 8.5 – 12 / 33 x 12.5 – 16.5
TIRE SIZE Industrial Front/Rear
23 x 8.5 – 12 / 33 x 12 -16.5
Overall Length (Bumper To Link, In.)
103
options
Remote Valve – 1 pair (2 outlets)
Detent Kit
Backhoe Options: Thumb, big foot options, and rubber pads
Snowblower: Hydraulic Chute Rotation
Cab
