ID # 13222341

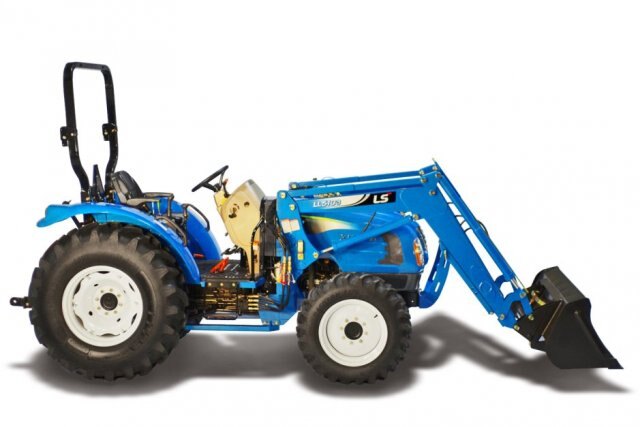

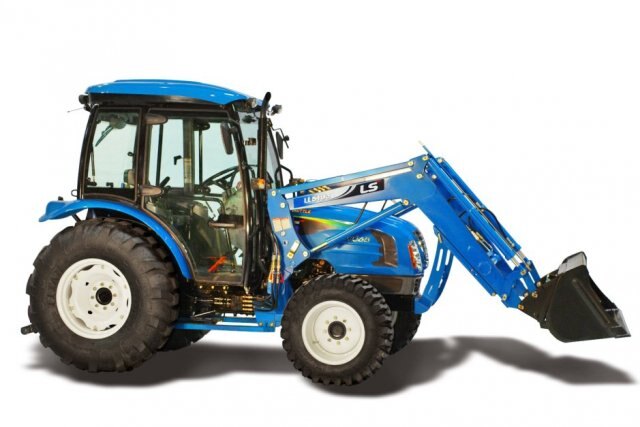

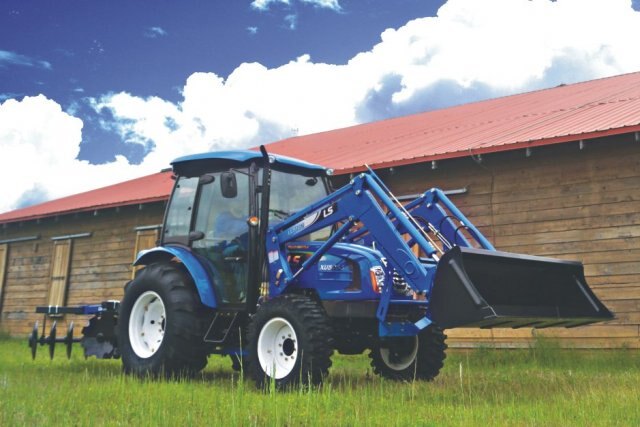

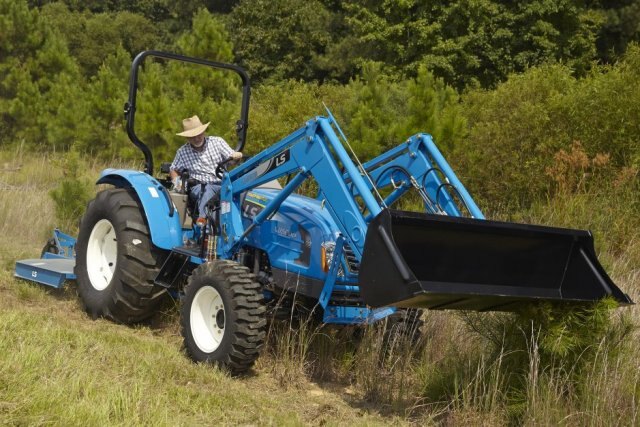

LS TRACTOR XU5055-55HP

  • LS TRACTOR XU5055 55HP
  • LS TRACTOR XU5055 55HP
  • LS TRACTOR XU5055 55HP
  • LS TRACTOR XU5055 55HP
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
With the amount of time you spend working your land with your tractor, it won’t take you long to appreciate the long list of functional features packed into the XU5055 as standard equipment. In addition, you get increased efficiency thanks to the innovative TIER 4 engine. This means you can complete your tasks easier, quicker, more efficiently and comfortably. You get 4WD, more operating speeds, fully synchronized gears and shuttle shift, selectable independent or manual PTO, 2 rear remote valves, and extendable lower links.  The quick attach, self leveling loader not only has more lift capacity than competitive models, it comes standard with grill guard, skid steer coupler and bucket.  The XU5055 is truly a premium 4WD utility tractor without the premium price of competitive models.
  Features
Three Row Spike Drag Harrow Modern Stylish Design - This 4WD utility tractor is ergonomically designed and stylish with its distinctive blue color.
Three Row Spike Drag Harrow Mitsubishi  Tier 4 Engine – 4 cylinder low vibration, fuel efficient yet powerful.
Easy Open One-Piece Hood - provides accessibility for easy maintenance.
Three Row Spike Drag Harrow Large Fuel Tank – 15.6 gallon capacity provides long operation times.
Three Row Spike Drag Harrow Synchro Shuttle Transmission (XU5055 models) - makes changing direction easier than competitive non-shuttle gear models.
Fully synchronized 16 forward /16 reverse gear transmission provides more operating  speeds and easier, smoother shifting than others in its class for superior control, precision and safe operations for virtually any application.
Three Row Spike Drag Harrow

Hydrostatic power steering with tilt - makes turning easier, improves control and reduces fatigue and enhances comfort.
Three Row Spike Drag Harrow Simple Selections - select your gear with simple move of the lever.
Three Row Spike Drag Harrow 3-point Hitch with Extendable Lower Links Standard - Category 2 (U5030 models) with hitch lift capacity of 4,079 lbs. allows easier attachment of a wide variety of implements.
Drawbar Standard – increases the usefulness of the tractor without the additional optional cost.
Three Row Spike Drag Harrow Ergonomically Designed 3-Point Hitch Controls and Fender Mounted Joystick - easily accessible for maximum comfort and convenience.
Position and Draft Control with Automatic Lift - increases ease of use across a wider variety of implements.
Three Row Spike Drag Harrow PTO Switch –Independent PTO turn on and off with simple turn of a switch.

Three Row Spike Drag Harrow Deluxe Adjustable Seat with Retractable Seat Belt - keeps you in a comfortable even during long operations.
Three Row Spike Drag Harrow Standard Foldable ROPS (open station models) - allows storage in low clearance buildings or sheds.

Three Row Spike Drag Harrow Flat Platform – with rubber mat and side mounted gear lever, maximizes space, improves operator comfort, and makes getting on/off tractor easier.
Three Row Spike Drag Harrow Full Function Dash Panel - important functional data is available at glance for optimum performance and control.
Three Row Spike Drag Harrow 2 Sets of Remotes Standard - adds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options.
Three Row Spike Drag Harrow

Rear Work Light - never be in the dark with this hands-free functional feature for these models that allows light to be directed where you need it.
Three Row Spike Drag Harrow

Standard 7 Pin Electrical Socket - provides power for implements when needed.
Three Row Spike Drag Harrow Your Choice of Tires - choose industrial or Ag tires at no additional cost.
Three Row Spike Drag Harrow Optional Quick Attach, Self-Leveling Front End Loader with Skid Steer Compatible Bucket - easy to take off or attach loader and easily change loader attachments.  With 3,065 lbs. of lift capacity it outperforms others in its class.  Grill guard comes standard with loader rather than an option like others in its class.
Three Row Spike Drag Harrow Optional Quick Attach Backhoe - remove or attach in seconds.  With 94” digging depth, 3,748 lbs. of digging force and 180° swing arc, it outperforms other in its class.



Specifications
Model
XU5055-55HP
Category Name
Tractors
Year
2014
Sale Type
New
Manufacturer
LS Tractor
Color
Blue
Fuel Tank (gal)
15.6
Displacement
135.2
Transmission
Synchro Shuttle
Rated Speed (rpm)
2600
Wheel Base
80.6''
Type
Full Independent or Manual
Model (Tier 4 Interim)
N4LDI-TA
Engine HP (Gross)
55
PTO HP
46.5
Alternator
12V - 55 Amps
No Of Speeds
16F / 16R
Brakes
Wet, Multi Disc
Steering
Hydrostatic Power Steering
Rear PTO
Standard (540 rpm)
Implement Pump Gpm
10.5
Steering Pump Gpm
5.3
Total Flow Gpm
15.8
Category 3 Pt Hitch
CAT 2
Hitch Lift Capacity
4,079
Lift Control Type
Position / Draft
Overall Length With 3pt
140''
Min Overall Width With AG Tires
67.5''
Height To Top Of ROPS With Ag Tires In
100.4''
Ag Front Rear
9.5 - 20 , 16.9 - 24
Industrial Front Rear
10.5 / 80 - 18, 19.5 L - 24
Turf Front Rear
36 x 13.5 -15 , 16.9-24
Total Weight Without Ballast Lbs
4,667
