ID # 13107748

LS TRACTOR U5020C -47HP

  • LS TRACTOR U5020C 47HP
  • LS TRACTOR U5020C 47HP
  • LS TRACTOR U5020C 47HP
  • LS TRACTOR U5020C 47HP
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Working in extreme heat or bitter cold conditions sure takes the enjoyment out of working with your tractor.  For maximum comfort in all weather conditions, try the U5020C.  The climate controlled cab is more spacious than competitive models and comes standard with AC and heat, interior lighting, front and rear washer wipers and even a deluxe stereo with CD player.   You’ll also appreciate the long list of functional features packed into the U5020C  as standard equipment. More features included as standard means you can complete your tasks easier, quicker, more efficiently and comfortably. You get 4WD, more operating speeds, fully synchronized gears and shuttle shift, selectable independent or manual PTO, 2 rear remote valves, and extendable lower links.  The U5020C delivers performance, ease of use, value and comfort, regardless of the weather.
  Features
Three Row Spike Drag Harrow Modern Stylish Design - This 4WD utility tractor is ergonomically designed and stylish with its distinctive blue color.
Three Row Spike Drag Harrow Mitsubishi  Tier 4 Interim Engine – 4 cylinder low vibration, fuel efficient yet powerful.
Easy Open One-Piece Hood - provides accessibility for easy maintenance.
Three Row Spike Drag Harrow Large Fuel Tank – 15.9 gallon capacity provides long operation times.
Three Row Spike Drag Harrow Synchro Shuttle Transmission - makes changing direction easier than competitive non-shuttle gear models. Fully synchronized 16 forward /16 reverse gear transmission provides more operating speeds and easier, smoother shifting than others in its class for superior control, precision and safe operations for virtually any application.
Three Row Spike Drag Harrow Simple Selections - select your gear range with simple move of the lever
Three Row Spike Drag Harrow 3-point Hitch with Telescopic Lower Links Standard - Category 1 (U5020 models) and Category 2 (U5030 models) with hitch lift capacity of 4,079 lbs. allows easier attachment of a wide variety of implements.
Position and Draft Control - increases ease of use across a wider variety of implements.
Drawbar Standard – increases the usefulness of the tractor without the additional optional cost.
Three Row Spike Drag Harrow PTO Switch –Independent PTO  turn on and off with simple turn of a switch.
Three Row Spike Drag Harrow Deluxe Adjustable Seat with Retractable Seat Belt - keeps you in a comfortable even during long operations.
Three Row Spike Drag Harrow Flat Platform – with rubber mat and side mounted gear lever, maximizes space, improves operator comfort, and makes getting on/off tractor easier.

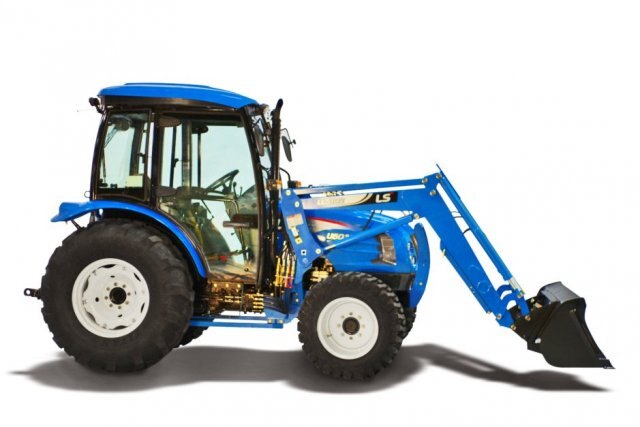

Three Row Spike Drag Harrow Comfortable Cab Models - offers unobstructed view in AC/heated comfort and includes interior lighting, front & rear wiper/washer, side mounted  mirrors deluxe AM/FM/CD Stereo.
Three Row Spike Drag Harrow Full Function Dash Panel - important functional data is available at glance for optimum performance and control.
Three Row Spike Drag Harrow 2 Sets of Remotes Standard - adds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options.
Easy to reach fender mounted front end loader joystick.
Three Row Spike Drag Harrow

Rear Work Light - never be in the dark with this hands-free functional feature that allows light to be directed where you need it.
Three Row Spike Drag Harrow Standard 7 Pin Electrical Socket - provides power for implements when needed.
Three Row Spike Drag Harrow Optional Quick Attach, Self-Leveling Front End Loader with Skid Steer Compatible Bucket - easy to take off or attach loader and easily change loader attachments.  With (2650 for U5020 models, 2900 U5030 models) lbs. of lift capacity it outperforms others in its class.  Grill guard comes standard with loader rather than an option like others in its class.
Three Row Spike Drag Harrow Optional Quick Attach Backhoe - remove or attach in seconds.  With 94” digging depth, 3,748 lbs. of digging force and 180⁰ swing arc, it outperforms other in its class.
Three Row Spike Drag Harrow Your Choice of Tires—Choose industrial, Ag,  or turf tires at no additional cost; subject to dealer inventory.



Specifications
Model
U5020C -47HP
Category Name
Tractors
Year
2014
Sale Type
New
Manufacturer
LS Tractor
Color
Blue
Fuel Tank (gal)
15.9
Displacement
152.9
Transmission
Synchro shuttle
Rated Speed (rpm)
2600
Wheel Base
76''
Type
Fully Independent or Manual
Model (Tier 4 Interim)
LS Mitsubishi S4QL
Engine HP (Gross)
47
PTO HP
42
Alternator
12V - 50 Amps
No Of Speeds
16F / 16R
Brakes
Wet, Multi Disc
Steering
Hydrostatic Power Steering
Rear PTO
Standard (540 rpm)
Implement Pump Gpm
9.6
Steering Pump Gpm
4.9
Total Flow Gpm
14.5
Category 3 Pt Hitch
CAT 1
Hitch Lift Capacity
4079
Lift Control Type
Position / Draft
Overall Length With 3pt
135.2''
Min Overall Width With AG Tires
65.7''
Height To Top Of ROPS With Ag Tires In
94.6''
Ag Front Rear
9.5 - 20, 16.9 - 24
Industrial Front Rear
10.5 / 80 - 18, 19.5L - 24
Turf Front Rear
36 x 13.5 -15 , 16.9-24
Total Weight Without Ballast Lbs
4700
