LS TRACTOR XR3037HC-36.5HP

  • LS TRACTOR XR3037HC 36.5HP
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

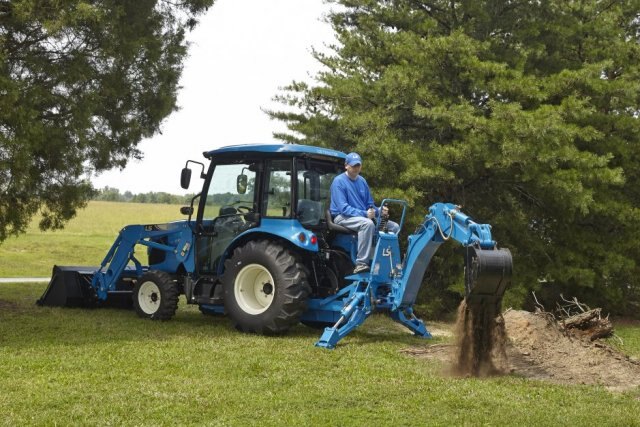

The XR3037HC is a great choice when comfort and ease of use are your key drivers when selecting a medium duty 4WD compact tractor. The climate controlled cab you can get your work done no matter what the weather.  The 3 range hydrostatic drive transmission allows you to more precisely control your operating speed and change directions simply by using the forward or reverse pedals… without clutching or moving a shuttle shifter or gear lever,  enabling you to keep one hand on the steering wheel and the other on your loader joystick or 3-point hitch control levers. Nothing is as easy and comfortable, especially when having to go back and forth a lot during an operation such as front end loader work or using a box blade.
  Features
Three Row Spike Drag Harrow Modern Stylish Design - This compact 4WD is ergonomically designed and stylish with its distinctive blue color.
Three Row Spike Drag Harrow Shibaura ISM Tier 4 Engine - meets EPA’s most stringent emission standards while delivering rated horsepower quietly with low vibration.  Easy Open One-Piece Hood - provides accessibility for easy maintenance.
Three Row Spike Drag Harrow Large Fuel Tank – 12.4 gallon capacity provides long operation times between fill ups.
Three Row Spike Drag Harrow Hydrostatic Transmission - maximizes ease of use with effortless, clutch-less and instant speed and directional changes with a simple push of the pedals.
Three Row Spike Drag Harrow PTO Switch - independent PTO you turn on or off with a simple turn of switch.
Three Row Spike Drag Harrow Simple Selections - select your range with simple move of the lever.
Three Row Spike Drag Harrow 3-point Hitch with Telescopic Lower Links Standard - category 1 with a hitch lift capacity up 1808 for XR3037HC models lbs. allows easier attachment  of a wide variety of implements.
Drawbar Standard – increases the usefulness of the tractor without the additional optional cost.
Extendable lower links-makes connecting implements easier.
Three Row Spike Drag Harrow Ergonomically Designed 3-Point Hitch Controls and Fender Mounted Joystick - easily accessible for maximum comfort and convenience.
Position and Draft Control - increases ease of use across a wider variety of implements.
Easy to reach fender mounted front end loader joystick.
Three Row Spike Drag Harrow Deluxe Adjustable Seat with Seat Belt - keeps you in a comfortable even during long operations.

Three Row Spike Drag Harrow Standard Foldable ROPS (Open Station Models) - allows storage in low clearance buildings or sheds.
Three Row Spike Drag Harrow Flat Platform – with rubber mat, maximizes space, improves operator comfort, and makes getting on/off tractor easier.

Three Row Spike Drag Harrow Comfortable Cab - offers roomy, unobstructed view in AC/heated comfort and includes interior lighting, front wiper/washer and side mounted mirrors.
Three Row Spike Drag Harrow Full Function Dash Panel - important functional data is available at glance for optimum performance and control.
Three Row Spike Drag Harrow Hydrostatic Power Steering with Tilt – makes turning easier, improves control and reduces fatigue and enhances comfort. Greater Steering Angle - improves handling with tighter turning radius.
Three Row Spike Drag Harrow 2 Sets of Remotes  and Detent Function Standard - adds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options.ride.
Three Row Spike Drag Harrow

Your Choice of Tires - choose industrial, Ag, or turf tires at no additional cost; subject to dealer inventory.
Three Row Spike Drag Harrow Optional Quick Attach, Skid Steer Compatible Front End Loader - remove or attach in moments.  With 2,182 lbs. of lift capacity for XR3037HC, it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class.
Three Row Spike Drag Harrow Optional Quick Attach Backhoe - remove or attach in seconds.  With 89” digging depth, 2,679 lbs. of digging force and 180° swing arc, it outperforms other in its class.



Specifications
Model
XR3037HC-36.5HP
Category Name
Tractors
Year
2014
Sale Type
New
Manufacturer
LS Tractor
Color
Blue
Wheel Base In (cm)
66''
Fuel Tank Capacity
12.4
PTO Horsepower(hp)
29.6
Transmission
Hydrostatic Drive
Displacement Cu In (l)
91.3
Alternator
12V - 85 Amps
Type
3-Cylinder, Indirect Injection, Water-cooled
Weight
Total weight without ballast, lbs.: 3,567
Engine Model Tier 4 Interim
N843T-F
Engine HP Gross
36.5
Rated Speed RPM
2600
Speeds
3 Ranges
Brakes
Wet, Multi Disc
Steering
Hydrostatic Power Steering
Mid PTO
Field Option (2000 rpm)
Rear PTO
Standard (540 rpm)
Implement Pump Gpm
8.2
Steering Pump Gpm
5.5
Total Flow Gpm
13.7
Category 3 Pt Hitch
CAT 1
Hitch Lift Capacity Lb
1,808
Lift Control Type
Position / Draft
Overall Length With 3pt
121''
Min Overall Width With IND Tires
60''
Height To Top Of Rops
87''
Industrial Front Rear
25 x 8.5 - 14 / 43 x 16 - 20
Turf Front Rear
25 x 8.5 - 14/ 41 x 14 - 20
Ag Front Rear
7 - 14 / 11.2 - 24
