ID # 13107741

LS TRACTOR XR3037C-36.5P

  • LS TRACTOR XR3037C 36.5P
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The more time you spend working with your tractor, the more you will appreciate the long list of functional features packed into the XR3037C as standard equipment and the efficiency of the innovative TIER 4 engine. This medium duty compact 4WD tractor comes standard with more functional  features so you can complete your medium duty tasks easier, more comfortably and more efficiently.  Work in comfort regardless of the weather in the spacious, climate controlled cab. With more operating speeds, fully synchronized gears and shuttle shift, more front end loader lift capacity, selectable independent or manual PTO, 2 rear remote valves, and extendable lower links, the XR3037C is truly a premium tractor without the premium price of competitive models.
  Features
Three Row Spike Drag Harrow
Modern Stylish Design - This compact 4WD is ergonomically designed and stylish with its distinctive blue color.
Three Row Spike Drag Harrow Shibaura ISM Tier 4 Engine - meets EPA’s most stringent emission standards while delivering rated horsepower quietly with low vibration.  Easy Open One-Piece Hood - provides accessibility for easy maintenance.
Three Row Spike Drag Harrow Large Fuel Tank – 12.4 gallon capacity provides long operation times between fill ups.
Three Row Spike Drag Harrow Synchro Shuttle Transmission – makes changing direction easier than competitive non-shuttle gear models. Fully synchronized 12 forward /12 reverse (XR3000 models) or the 16 forward /16 reverse (XR4000 models) gear transmission provides more operating  speeds and easier, smoother shifting than others in its class for superior control, precision and safe operations for virtually any application.
Three Row Spike Drag Harrow PTO Switches - select manual or independent PTO and turn on or off with a simple turn of switch.
Three Row Spike Drag Harrow Simple Selections - select your range with simple move of the lever.
Three Row Spike Drag Harrow 3-point Hitch with Telescopic Lower Links Standard - category 1 with a hitch lift capacity up 1808 for XR3037 models lbs. allows easier attachment  of a wide variety of implements.
Drawbar Standard – increases the usefulness of the tractor without the additional optional cost.
Extendable lower links-makes connecting implements easier.
Three Row Spike Drag Harrow Ergonomically Designed 3-Point Hitch Controls and Fender Mounted Joystick - easily accessible for maximum comfort and convenience.
Position and Draft Control - increases ease of use across a wider variety of implements.
Easy to reach fender mounted front end loader joystick.
Three Row Spike Drag Harrow Deluxe Adjustable Seat with Seat Belt - keeps you in a comfortable even during long operations.

Three Row Spike Drag Harrow Standard Foldable ROPS (Open Station Models) - allows storage in low clearance buildings or sheds.
Three Row Spike Drag Harrow Flat Platform – with rubber mat, maximizes space, improves operator comfort, and makes getting on/off tractor easier.
Three Row Spike Drag Harrow Comfortable Cab - offers roomy, unobstructed view in AC/heated comfort and includes interior lighting, front wiper/washer and side mounted mirrors.
Three Row Spike Drag Harrow Full Function Dash Panel - important functional data is available at glance for optimum performance and control.
Three Row Spike Drag Harrow Hydrostatic Power Steering with Tilt – makes turning easier, improves control and reduces fatigue and enhances comfort. Greater Steering Angle - improves handling with tighter turning radius.
Three Row Spike Drag Harrow

2 Sets of Remotes  and Detent Function Standard - adds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options.
Three Row Spike Drag Harrow Your Choice of Tires - choose industrial, Ag, or turf tires at no additional cost; subject to dealer inventory.
Three Row Spike Drag Harrow Optional Quick Attach, Skid Steer Compatible Front End Loader - remove or attach in moments.  With 2182 lbs. of lift capacity for XR3037, it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class.

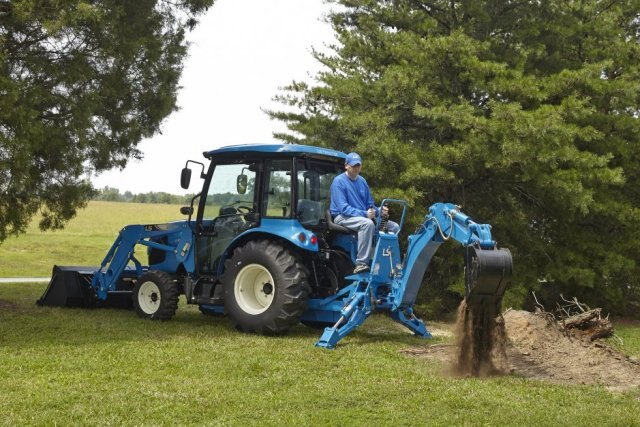

Three Row Spike Drag Harrow Optional Quick Attach Backhoe - remove or attach in seconds.  With 89” digging depth, 2,679 lbs. of digging force and 180° swing arc, it outperforms other in its class.



Specifications
Model
XR3037C-36.5P
Category Name
Tractors
Year
2014
Sale Type
New
Manufacturer
LS Tractor
Color
Blue
Wheel Base In (cm)
66''
Fuel Tank Capacity
12.4
PTO Horsepower(hp)
30.3
Transmission
Synchro Shuttle
Displacement Cu In (l)
91.3
Alternator
12V - 85 Amps
Type
3-Cylinder, Indirect Injection, Water-cooled
Weight
Total weight without ballast, lbs.: 3,590
Engine Model Tier 4 Interim
N843T-F
Engine HP Gross
36.5
Rated Speed RPM
2600
Speeds
12F / 12R
Brakes
Wet, Multi Disc
Steering
Hydrostatic Power Steering
Mid PTO
Field Option (2000 rpm)
Rear PTO
Standard (540 rpm)
Implement Pump Gpm
8.2
Steering Pump Gpm
4.2
Total Flow Gpm
12.4
Category 3 Pt Hitch
CAT 1
Hitch Lift Capacity Lb
1808
Lift Control Type
Position / Draft
Overall Length With 3pt
121''
Min Overall Width With IND Tires
60''
Height To Top Of Rops
87''
Industrial Front Rear
25 x 8.5 - 14 / 43 x 16 - 20
Turf Front Rear
25 x 8.5 - 14/ 41 x 14 - 20
Ag Front Rear
7 - 14 / 11.2 - 24
