ID # 13107738

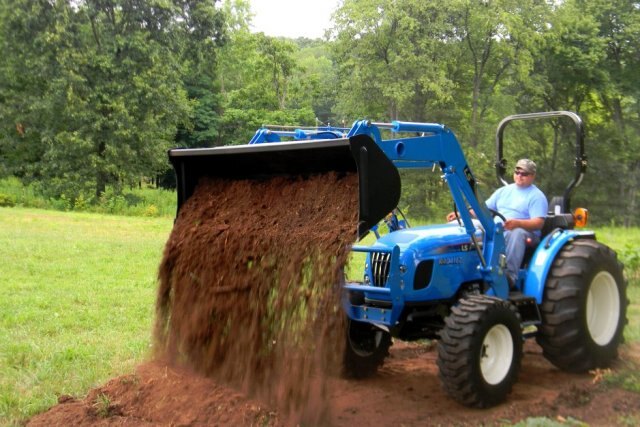

LS TRACTOR R4041H-41HP

  • LS TRACTOR R4041H 41HP
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
For the ultimate, easy to use heavy-duty premium 4WD compact tractor, the R4041H is the way to go. Precisely control your operating speed with the 3 range hydrostatic transmission (HST) and change direction simply by using the forward or reverse pedals without clutching, moving a shuttle shifter or moving a gear lever. This allows you to easily steer with one hand while operating your loader or controlling your 3-point implement with the other hand. Nothing could be easier or more comfortable, especially when having to go back and forth a lot. And when you need a constant operating speed for longer periods of time, like mowing, just set the cruise control and let the R4041H make things easier.
  Features
Three Row Spike Drag Harrow Modern Stylish Design - This compact 4WD is ergonomically designed and stylish with its distinctive blue color.
Three Row Spike Drag Harrow Mitsubishi Tier 4 Interim Engine - fuel efficient engine delivers reliable performance. Rubber engine mounts reduce operator platform vibration.
Easy Open One-Piece Hood-provides accessibility for easy maintenance.
Three Row Spike Drag Harrow Large Fuel Tank – 9.5 gallon capacity provides long operation times.
Three Row Spike Drag Harrow Hydrostatic Transmission Models - maximizes ease of use with effortless, clutch-less and instant speed and directional changes with a simple push of the pedal.
Three Row Spike Drag Harrow PTO On/Off Switch - turn the independent rear or mid PTO on or off with the simple and easy turn of a switch.

Three Row Spike Drag Harrow Simple Selections - select your gear range or 2WD/4WD with simple move of the levers.
Three Row Spike Drag Harrow

3-Point Hitch - category 1 with a hitch lift capacity of 2755 lbs. allows usage of a wide variety of implements.
Drawbar Standard – increases the usefulness of the tractor without the additional optional cost.
Extendable lower links-makes connecting implements easier.
Three Row Spike Drag Harrow Ergonomically Designed 3-Point Hitch Controls - easily accessible for maximum comfort and convenience.
Position and draft control - increases ease of use across a wider variety of implements.
Three Row Spike Drag Harrow Deluxe Adjustable Seat with Seat Belt - keeps you in a comfortable even during long operations.

Three Row Spike Drag Harrow Standard Foldable ROPS - allows storage in low clearance buildings or sheds.
Three Row Spike Drag Harrow Flat Platform – maximizes space and makes getting on and off tractor easier.

Three Row Spike Drag Harrow 2 Sets of Remotes Standard - adds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options.
Three Row Spike Drag Harrow Rear Work Light - never be in the dark with this hands-free functional feature that allows light to be directed where you need it.
Three Row Spike Drag Harrow Greater Steering Angle - improves handling with tighter turning radius.
Hydrostatic Power Steering – makes turning easier, improves control and reduces fatigue.
Comfortable, easy to reach fender mounted front end loader joystick.
Three Row Spike Drag Harrow Your Choice of Tires - choose industrial, ag or turf tires at no additional cost; subject to dealer inventory.
Three Row Spike Drag Harrow Optional Quick Attach, Skid Steer Compatible Front End Loader - remove or attach in seconds.  With 2500 for R4041H models lbs. of lift capacity it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class
Three Row Spike Drag Harrow Optional Quick Attach Backhoe - remove or attach in seconds.  With 89” digging depth, 2,679 lbs. of digging force and 180° swing arc, it outperforms other in its class.
Three Row Spike Drag Harrow Optional 2000 RPM Mid PTO



Specifications
Model
R4041H-41HP
Category Name
Tractors
Year
2014
Sale Type
New
Manufacturer
LS Tractor
Color
Blue
Wheel Base In (cm)
69.2''
Fuel Tank Capacity
9.5
PTO Horsepower(hp)
33
Transmission
Hydrostatic Drive
Displacement Cu In (l)
152.9
Alternator
12V - 50 Amps
Type
4-Cylinder, Indirect Injection, Water-cooled
Weight
Total weight without ballast, lbs.: 3813
Rated Speed RPM
2600
Speeds
3 Ranges
Brakes
Wet, Multi Disc
Steering
Hydrostatic Power Steering
Mid PTO
Optional (2000 rpm)
Rear PTO
Standard (540 rpm)
Implement Pump Gpm
8.2
Steering Pump Gpm
5.5
Total Flow Gpm
13.7
Category 3 Pt Hitch
CAT 1
Hitch Lift Capacity Lb
2755
Lift Control Type
Position / Draft
Overall Length With 3pt
132.2''
Min Overall Width With IND Tires
55.9''
Height To Top Of Rops
95.1''
Industrial Front Rear
12 x 16.5 / 17.5L - 24
Turf Front Rear
28 x 8.5 - 15 / 41 x 14 - 20
Model Tier 4 Interim
LS Mitsubishi S4QL - D
Engine HP (Gross)
41
Ag Front Rear
9.5 - 16 / 13.6 - 24
