ID # 13107735

LS TRACTOR R3039H -38.5HP

  • LS TRACTOR R3039H 38.5HP
  • LS TRACTOR R3039H 38.5HP
  • LS TRACTOR R3039H 38.5HP
  • LS TRACTOR R3039H 38.5HP
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
If you need an easy to use medium duty 4WD compact tractor that delivers superior performance, functionality and comfort, take a look at the R3039H. With its 3 range hydrostatic transmission (HST), you can precisely control your operating speed and change direction simply by using the forward or reverse pedals without clutching or moving a shuttle shifter or gear lever, enabling you to keep one hand on the steering wheel and the other on your loader joystick or 3-point hitch control lever. Nothing is as easy and comfortable, especially when having to go back and forth a lot during an operation such as front end loader work or using a box blade.
  Features
Three Row Spike Drag Harrow Modern Stylish Design - This compact 4WD is ergonomically designed and stylish with its distinctive blue color.
Three Row Spike Drag Harrow Mitsubishi Tier 4 Interim Engine - fuel efficient engine delivers reliable performance. Rubber engine mounts reduce operator platform vibration.
Easy Open One-Piece Hood-provides accessibility for easy maintenance.
Three Row Spike Drag Harrow Large Fuel Tank – 8.4 gallon capacity provides long operation times.
Three Row Spike Drag Harrow Hydrostatic Transmission Models - maximizes ease of use with effortless, clutch-less and instant speed and directional changes with a simple push of the pedal.
Three Row Spike Drag Harrow PTO On/Off Switch - turn the independent rear or mid PTO on or off with the simple and easy turn of a switch.
Three Row Spike Drag Harrow Simple Selections - select your gear range or 2WD/4WD with simple move of the levers.
Three Row Spike Drag Harrow 3-Point Hitch - category 1 with a hitch lift capacity of 1808 lbs. allows usage of a wide variety of implements.
Drawbar Standard – increases the usefulness of the tractor without the additional optional cost.
Extendable lower links-makes connecting implements easier.
Three Row Spike Drag Harrow Ergonomically Designed 3-Point Hitch Controls - easily accessible for maximum comfort and convenience.
Position and draft control - increases ease of use across a wider variety of implements.
Three Row Spike Drag Harrow Deluxe Adjustable Seat with Seat Belt - keeps you in a comfortable even during long operations.
Three Row Spike Drag Harrow Standard Foldable ROPS - allows storage in low clearance buildings or sheds
Three Row Spike Drag Harrow Flat Platform – maximizes space and makes getting on and off tractor easier.
Three Row Spike Drag Harrow 2 Sets of Remotes Standard - adds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options.
Three Row Spike Drag Harrow Rear Work Light - never be in the dark with this hands-free functional feature that allows light to be directed where you need it.
Three Row Spike Drag Harrow Greater Steering Angle - improves handling with tighter turning radius.
Hydrostatic Power Steering – makes turning easier, improves control and reduces fatigue.
Comfortable, easy to reach fender mounted front end loader joystick.
Three Row Spike Drag Harrow Your Choice of Tires - choose industrial, ag or turf tires at no additional cost; subject to dealer inventory.
Three Row Spike Drag Harrow

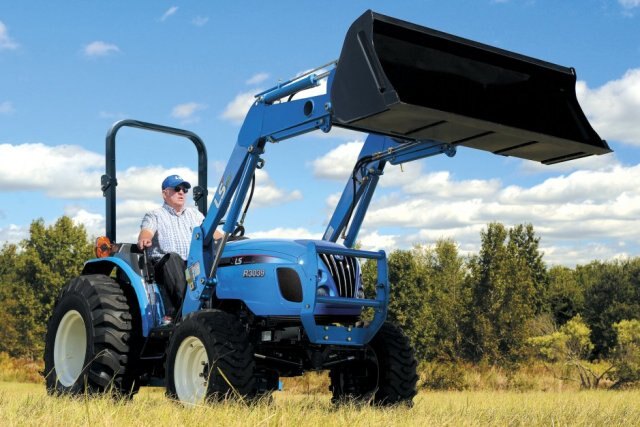

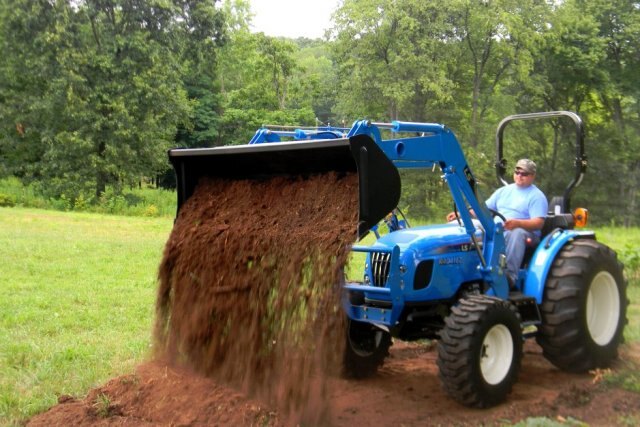

Optional Quick Attach, Skid Steer Compatible Front End Loader - remove or attach in seconds.  With 2,250 lbs. of lift capacity for R3039 models it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class.


Three Row Spike Drag Harrow Optional Quick Attach Backhoe - remove or attach in seconds.  With 89” digging depth, 2,679 lbs. of digging force and 180° swing arc, it outperforms other in its class.

Three Row Spike Drag Harrow Optional 2000 RPM Mid PTO



Specifications
Model
R3039H -38.5HP
Category Name
Tractors
Year
2014
Sale Type
New
Manufacturer
LS Tractor
Color
Blue
Wheel Base In (cm)
65.4''
Fuel Tank Capacity
8.4
PTO Horsepower(hp)
29
Rated Speed(rpm)
2700
Transmission
Hydrostatic Drive
Displacement Cu In (l)
107.3
Rated Speed
2700
Alternator
12V - 50 Amps
Type
4-Cylinder, Indirect Injection, Water-cooled
Weight
Total weight without ballast, lbs.: 2780
Speeds
3 Ranges
Brakes
Wet, Multi Disc
Steering
Hydrostatic Power Steering
Mid PTO
Field Option (2000 rpm)
Rear PTO
Standard (540 rpm)
Implement Pump Gpm
8.6
Steering Pump Gpm
4.3
Total Flow Gpm
12.9
Category 3 Pt Hitch
CAT 1
Hitch Lift Capacity Lb
1808
Lift Control Type
Position / Draft
Overall Length With 3pt
117.6''
Min Overall Width With IND Tires
54.3''
Height To Top Of Rops
92.6''
Industrial Front Rear
25 x 8.5 - 14 / 43 x 16 - 20
Turf Front Rear
25 x 8.5 - 14/ 41 x 14 - 20
Model Tier 4 Interim
Mitsubishi S4L2
Engine HP (Gross)
38.5
Ag Front Rear
7 - 14 / 11.2 - 24
