LS TRACTOR G30382WD-38HP

  • LS TRACTOR G30382WD 38HP
  • LS TRACTOR G30382WD 38HP
  • LS TRACTOR G30382WD 38HP
  • LS TRACTOR G30382WD 38HP
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview


Your soil is reasonably firm, your land is mostly flat, and you need a reliable, high quality compact tractor to mow, shred pastures, garden, spray, and on occasion perform front end loader applications. So why pay more for 4-wheel drive when you don’t need it? This is why we’re proud to present the G3038 2WD, with more operating speeds, flat operator platform, independent PTO and synchro shuttle with a higher lift capacity loader. The G3038 2WD delivers superior performance and greater value than the competition.
  Features
Three Row Spike Drag Harrow Modern Stylish Design - This compact 2WD is ergonomically designed and stylish with its distinctive blue color.
Three Row Spike Drag Harrow Mitsubishi Tier 4 Interim Engine - fuel efficient engine delivers reliable performance.  Rubber engine mounts reduce operator platform vibration.

Easy Open One-Piece Hood - provides accessibility for easy maintenance.
Three Row Spike Drag Harrow Large Fuel Tank – 7.4 gallon capacity provides long operation times.
Three Row Spike Drag Harrow Synchro Shuttle Transmission Models – makes changing direction easier than competitive non-shuttle gear models.  12 forward / 12 reverse gear transmission provides more operating speeds than others in its class for superior control, precision and safe operations for virtually any application.
Three Row Spike Drag Harrow

Hydrostatic Power Steering – makes turning easier, improves control and reduces fatigue.
Three Row Spike Drag Harrow PTO On/Off Switch - turn the independent rear or mid PTO on or off with the simple and easy turn of a switch.
Three Row Spike Drag Harrow Simple Selection - select your gear range with simple move of the lever
Three Row Spike Drag Harrow Ergonomically Designed 3-Point Hitch Controls - easily accessible for maximum comfort and convenience.
Three Row Spike Drag Harrow Adjustable Seat with Seat Belt - keeps you in a comfortable and safe position for maximum control.

Three Row Spike Drag Harrow 3-Point Hitch - category 1 with a hitch lift capacity of 1,808 lbs. allows usage of a wide variety of implements.

Drawbar Standard – increases the usefulness of the tractor without the additional optional cost.
Three Row Spike Drag Harrow More Leg room with Side Mounted Gear Lever – maximizes space and makes getting on and off tractor easier.

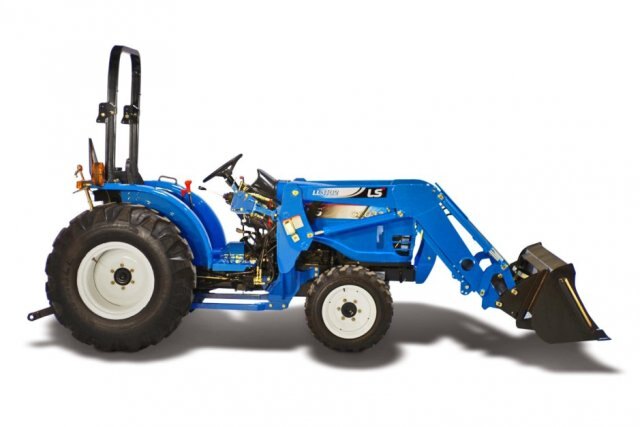

Three Row Spike Drag Harrow Optional Quick Attach, Skid Steer Compatible Front End Loader - Remove or attach in seconds.  With 1900 lbs. of lift capacity it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class

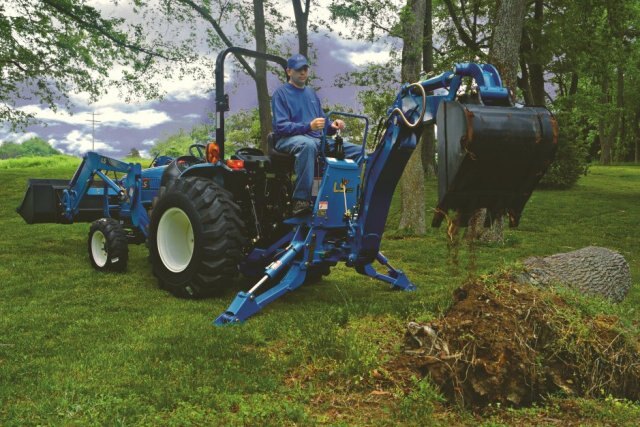

Three Row Spike Drag Harrow Optional Quick Attach Backhoe - remove or attach in seconds.  With 76” digging depth 2,817 lbs. of digging force and 180° swing arc, it outperforms other in its class.



Specifications
Model
G30382WD-38HP
Category Name
Tractors
Year
2014
Sale Type
New
Manufacturer
LS Tractor
Color
Blue
Fuel Tank Capacity Gal (lt)
7.4
Type
3-cylinder, Indirect – injection, Water-cooled
Engine HP (Gross)
38
PTO HP
31
Rated Speed RPM
2600
Displacement
122.2
Alternator
12V - 50 Amps
No Of Speeds
3 Ranges
Brakes
Wet, Multi Disc
Steering
Hydrostatic Power Steering
PTO Type
Independent
Rear PTO
Standard (540 rpm)
Implement Pump Gpm
7.4
Steering Pump Gpm
4.5
Total Flow Gpm
11.9
Category 3 Pt Hitch
CAT 1
Hitch Lift Capacity Lb
1808
Lift Control Type
Manual
Overall Length With 3pt
117.6''
Wheelbase
65.9''
Min Overall Width With AG Tires
41''
Height To Top Of ROPS With Ag Tires In
90.2''
Ag Front Rear
7 - 14 / 11.2 - 24
Industrial Front Rear
25 x 8.5 - 14 / 43 x 16 - 20
Turf Front Rear
25 x 8.5 - 14 / 41 x 14 - 20
Total Weight Without Ballast Lbs
2712
Engine Model
LS L3AL
