LS TRACTOR G3038H-38HP

  • LS TRACTOR G3038H 38HP
  • LS TRACTOR G3038H 38HP
  • LS TRACTOR G3038H 38HP
  • LS TRACTOR G3038H 38HP
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

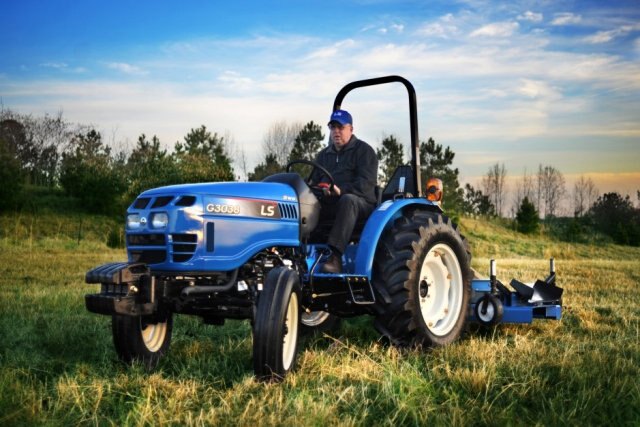

When you need the power to take on more demanding loads, the convenience of a hydrostatic transmission (HST), and the affordability of a basic tractor, the G3038H is your answer. With over 15% more engine horsepower and 19% more PTO horsepower than the G3033H, powers through tough soil conditions, mows down thick brush, pulls heavier loads and can take on steep inclines while reducing the need to operate at slower speeds. When combined with a powerful 1,900 lbs. of loader lift capacity, the G3038H enables you to work faster and more efficiently so you can spend more time enjoying everything you’ve accomplished. When you look at the power, features and value you get with the G3038H, the competition just doesn’t stack up.
  Features
Three Row Spike Drag Harrow
Modern Stylish Design - This compact 4WD is ergonomically designed and stylish with its distinctive blue color.
Three Row Spike Drag Harrow Mitsubishi Tier 4 Interim Engine - fuel efficient engine delivers reliable performance.  Rubber engine mounts reduce operator platform vibration.

Easy Open One-Piece Hood - provides accessibility for easy maintenance.
Three Row Spike Drag Harrow Large Fuel Tank – 7.4 gallon capacity provides long operation times.
Three Row Spike Drag Harrow Hydrostatic Transmission - maximizes ease of use with effortless, clutch-less and instant speed and directional changes with a simple push of the pedals.
Three Row Spike Drag Harrow

Hydrostatic Power Steering – makes turning easier, improves control and reduces fatigue.
Three Row Spike Drag Harrow PTO On/Off Switch - turn the independent rear or mid PTO on or off with the simple and easy turn of a switch.
Three Row Spike Drag Harrow Simple Selections - select your gear range or 2WD/4WD with simple move of the levers.
Three Row Spike Drag Harrow G-3-Point-Hitch-Controls
Three Row Spike Drag Harrow Adjustable Seat with Seat Belt - keeps you in a comfortable and safe position for maximum control.
Three Row Spike Drag Harrow 3-Point Hitch - category 1 with a hitch lift capacity of 1,808 lbs. allows usage of a wide variety of implements.

Drawbar Standard – increases the usefulness of the tractor without the additional optional cost.
Three Row Spike Drag Harrow More Leg room with Side Mounted Gear Lever – maximizes space and makes getting on and off tractor easier.
Three Row Spike Drag Harrow Your Choice of Tires - choose industrial, Ag or turf tires at no additional cost; subject to dealer inventory.
Three Row Spike Drag Harrow

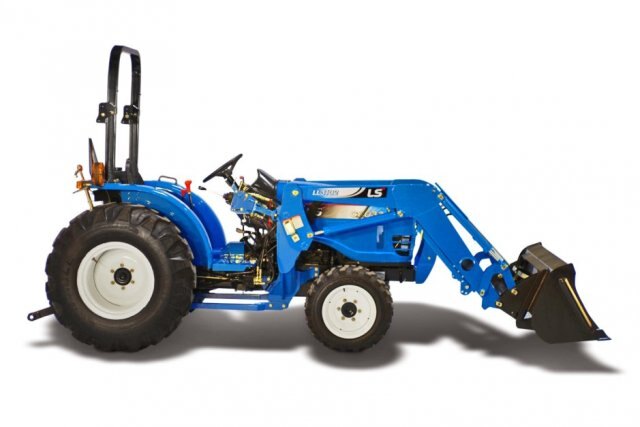

Optional Quick Attach, Skid Steer Compatible Front End Loader - Remove or attach in seconds.  With 1900 lbs. of lift capacity it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class.

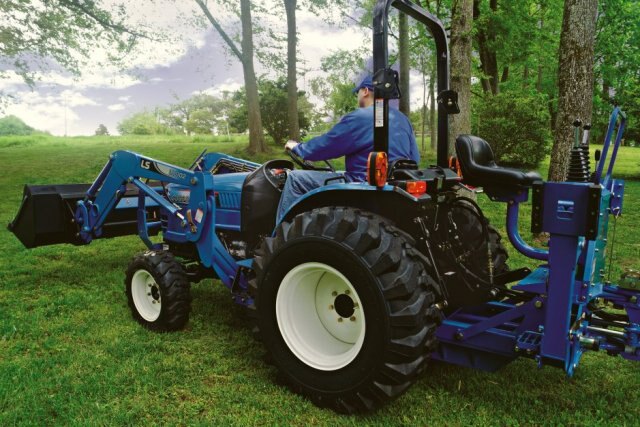

Three Row Spike Drag Harrow Optional Quick Attach Backhoe - remove or attach in seconds.  With 76” digging depth 2,817 lbs. of digging force and 180° swing arc, it outperforms other in its class.



Specifications
Model
G3038H-38HP
Category Name
Tractors
Year
2014
Sale Type
New
Manufacturer
LS Tractor
Color
Blue
Fuel Tank Capacity Gal (lt)
7.4
Type
3-cylinder, Indirect – injection, Water-cooled
Model (Tier 4 Interim)
LS L3AL
Engine HP (Gross)
38
PTO HP
31
Rated Speed RPM
2600
Displacement
122.2
Alternator
12V - 50 Amps
No Of Speeds
3 Ranges
Brakes
Wet, Multi Disc
Steering
Hydrostatic Power Steering
PTO Type
Independent
Rear PTO
Standard (540 rpm)
Implement Pump Gpm
7.4
Steering Pump Gpm
4.5
Total Flow Gpm
11.9
Category 3 Pt Hitch
CAT 1
Hitch Lift Capacity Lb
1808
Lift Control Type
Manual
Overall Length With 3pt
117.6''
Wheelbase
65.9''
Min Overall Width With AG Tires
41''
Height To Top Of ROPS With Ag Tires In
90.2''
Ag Front Rear
7 - 14 / 11.2 - 24
Industrial Front Rear
25 x 8.5 - 14 / 43 x 16 - 20
Turf Front Rear
25 x 8.5 - 14 / 41 x 14 - 20
Total Weight Without Ballast Lbs
2712
