ID # 13107730

LS TRACTOR G3038-38HP

  • LS TRACTOR G3038 38HP
  • LS TRACTOR G3038 38HP
  • LS TRACTOR G3038 38HP
  • LS TRACTOR G3038 38HP
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Never compromise. Your need for a basic compact tractor should never mean that you have to compromise on the power you need to make quick work of tougher soil conditions, steep grades, pulling heavier loads, moving larger loads of dirt or soil, or cutting taller, thicker brush. The G3038 combines power and value. With 15% more engine horsepower and over 18% more PTO horsepower than the G3033, the G3038 helps you take on heavier load applications while reducing the need to operate at slower speeds.

Want more? With more front end loader lift capacity and more operating speeds than competitive models, the G3038 outperforms other tractors in its class. Better yet, it comes with independent PTO rather than transmission or live PTO like many competitors. This makes it easier to engage and disengage by eliminating the need to clutch or come to a complete stop. Get more, do more and save more with the G3038; the ultimate in a value compact tractor.
  Features
Three Row Spike Drag Harrow Modern Stylish Design - This compact 4WD is ergonomically designed and stylish with its distinctive blue color.
Three Row Spike Drag Harrow Mitsubishi Tier 4 Interim Engine - fuel efficient engine delivers reliable performance.  Rubber engine mounts reduce operator platform vibration.

Easy Open One-Piece Hood - provides accessibility for easy maintenance.
Three Row Spike Drag Harrow Large Fuel Tank – 7.4 gallon capacity provides long operation times.
Three Row Spike Drag Harrow Synchro Shuttle Transmission Models – makes changing direction easier than competitive non-shuttle gear models.  12 forward / 12 reverse gear transmission provides more operating speeds than others in its class for superior control, precision and safe operations for virtually any application.
Three Row Spike Drag Harrow

Hydrostatic Power Steering – makes turning easier, improves control and reduces fatigue.
Three Row Spike Drag Harrow PTO On/Off Switch - turn the independent rear or mid PTO on or off with the simple and easy turn of a switch.
Three Row Spike Drag Harrow Simple Selections - select your gear range or 2WD/4WD with simple move of the levers.
Three Row Spike Drag Harrow Ergonomically Designed 3-Point Hitch Controls - easily accessible for maximum comfort and convenience.
Three Row Spike Drag Harrow Adjustable Seat with Seat Belt - keeps you in a comfortable and safe position for maximum control.
Three Row Spike Drag Harrow 3-Point Hitch - category 1 with a hitch lift capacity of 1,808 lbs. allows usage of a wide variety of implements.

Drawbar Standard – increases the usefulness of the tractor without the additional optional cost.
Three Row Spike Drag Harrow More Leg room with Side Mounted Gear Lever – maximizes space and makes getting on and off tractor easier.
Three Row Spike Drag Harrow Your Choice of Tires - choose industrial, Ag or turf tires at no additional cost; subject to dealer inventory.
Three Row Spike Drag Harrow

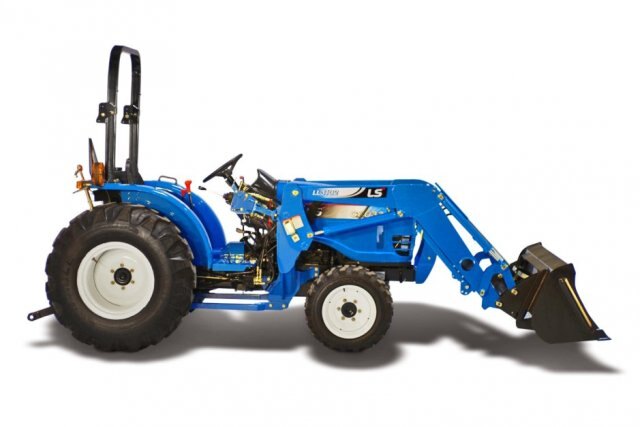

Optional Quick Attach, Skid Steer Compatible Front End Loader - Remove or attach in seconds.  With 1,900 lbs. of lift capacity it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class.

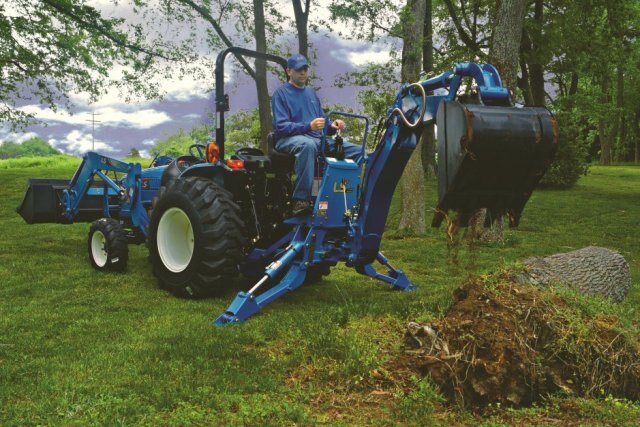

Three Row Spike Drag Harrow Optional Quick Attach Backhoe - remove or attach in seconds.  With 76” digging depth 2,817 lbs. of digging force and 180° swing arc, it outperforms other in its class.



Specifications
Model
G3038-38HP
Category Name
Tractors
Year
2014
Sale Type
New
Manufacturer
LS Tractor
Color
Blue
Fuel Tank Capacity Gal (lt)
7.4
Type
3-cylinder, Indirect – injection, Water-cooled
Engine HP (Gross)
38
PTO HP
32
Rated Speed RPM
2600
Displacement
122.2
Alternator
12V - 50 Amps
No Of Speeds
12 forward / 12 reverse
Brakes
Wet, Multi Disc
Steering
Hydrostatic Power Steering
PTO Type
Independent
Rear PTO
Standard (540 rpm)
Implement Pump Gpm
7.4
Steering Pump Gpm
4.5
Total Flow Gpm
11.9
Category 3 Pt Hitch
CAT 1
Hitch Lift Capacity Lb
1808
Lift Control Type
Manual
Overall Length With 3pt
117.6''
Wheelbase
65.9''
Min Overall Width With AG Tires
41''
Height To Top Of ROPS With Ag Tires In
90.2''
Ag Front Rear
7 - 14 / 11.2 - 24
Industrial Front Rear
25 x 8.5 - 14 / 43 x 16 - 20
Turf Front Rear
25 x 8.5 - 14 / 41 x 14 - 20
Total Weight Without Ballast Lbs
2690
Engine Model
LS L3AL
