ID # 13107729

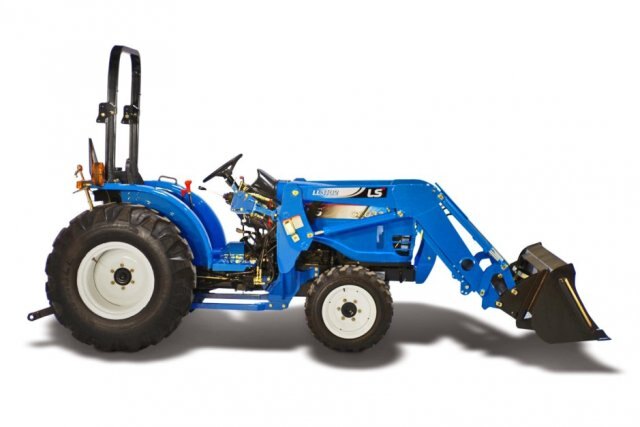

LS TRACTOR G3033H-33HP

  • LS TRACTOR G3033H 33HP
  • LS TRACTOR G3033H 33HP
  • LS TRACTOR G3033H 33HP
  • LS TRACTOR G3033H 33HP
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
If you need a dependable, basic compact tractor that’s truly easy to use, the G3033H is an excellent choice. With 1,600 lbs. of front end loader lift capacity and a 3 range hydrostatic transmission (HST) you can lift heavy loads, precisely control your operating speed, and change direction without having to clutch or use your hand to move a shuttle shifter or gear lever. This combination of power and convenience is especially useful when moving dirt, gravel and other loader applications because it allows you to keep one hand on the steering wheel and the other on the loader joystick or three-point hitch lift position lever for more control and efficiency. With the G3033H you get more features and better performance at a lower price than competitive basic HST models.
  Features
Three Row Spike Drag Harrow
Modern Stylish Design - This compact 4WD is ergonomically designed and stylish with its distinctive blue color.
Three Row Spike Drag Harrow Mitsubishi Tier 4 Interim Engine - fuel efficient engine delivers reliable performance.  Rubber engine mounts reduce operator platform vibration.
Easy Open One-Piece Hood - provides accessibility for easy maintenance.
Three Row Spike Drag Harrow Large Fuel Tank – 7.4 gallon capacity provides long operation times.
Three Row Spike Drag Harrow Hydrostatic Transmission - maximizes ease of use with effortless, clutch-less and instant speed and directional changes with a simple push of the pedals.
Three Row Spike Drag Harrow Hydrostatic Power Steering – makes turning easier, improves control and reduces fatigue.
Three Row Spike Drag Harrow PTO On/Off Switch - turn the independent rear or mid PTO on or off with the simple and easy turn of a switch.
Three Row Spike Drag Harrow

Simple Selections - select your gear range or 2WD/4WD with simple move of the levers.
Three Row Spike Drag Harrow Ergonomically Designed 3-Point Hitch Controls - easily accessible for maximum comfort and convenience.
Three Row Spike Drag Harrow Adjustable Seat with Seat Belt - keeps you in a comfortable and safe position for maximum control.

Three Row Spike Drag Harrow 3-Point Hitch - category 1 with a hitch lift capacity of 1,808 lbs. allows usage of a wide variety of implements.
Drawbar Standard – increases the usefulness of the tractor without the additional optional cost.
Three Row Spike Drag Harrow More Leg room with Side Mounted Gear Lever – maximizes space and makes getting on and off tractor easier.
Three Row Spike Drag Harrow Your Choice of Tires - choose industrial, Ag or turf tires at no additional cost; subject to dealer inventory.
Three Row Spike Drag Harrow Optional Quick Attach, Skid Steer Compatible Front End Loader - Remove or attach in moments.  With 1,600 lbs of lift capacity it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class.
Three Row Spike Drag Harrow Optional Quick Attach Backhoe - remove or attach in seconds.  With 76” digging depth 2,817 lbs. of digging force and 180° swing arc, it outperforms other in its class.



Specifications
Model
G3033H-33HP
Category Name
Tractors
Year
2014
Sale Type
New
Manufacturer
LS Tractor
Color
Blue
Fuel Tank Capacity Gal (lt)
7.4
Type
3-cylinder, Indirect – injection, Water-cooled
Model (Tier 4 Interim)
LS L3BL
Engine HP (Gross)
33
PTO HP
26
Rated Speed RPM
2600
Displacement
116.9
Alternator
12V - 50 Amps
No Of Speeds
3 Ranges
Brakes
Wet, Multi Disc
Steering
Hydrostatic Power Steering
PTO Type
Independent
Rear PTO
Standard (540 rpm)
Implement Pump Gpm
7.4
Steering Pump Gpm
4.5
Total Flow Gpm
11.9
Category 3 Pt Hitch
CAT 1
Hitch Lift Capacity Lb
1808
Lift Control Type
Manual
Overall Length With 3pt
117.6''
Wheelbase
65.9''
Min Overall Width With AG Tires
41''
Height To Top Of ROPS With Ag Tires In
90.2''
Ag Front Rear
7 - 14 / 11.2 - 24
Industrial Front Rear
25 x 8.5 - 14 / 43 x 16 - 20
Turf Front Rear
25 x 8.5 - 14 / 41 x 14 - 20
Total Weight Without Ballast Lbs
2612
