LS Tractor

ID # 13107728

LS TRACTOR G3033-33HP

Call for Price
Overview

When you’re looking for a dependable compact tractor at a great value you don’t need to give up the functional features that make your job easier. With more operating speeds, a shuttle shift, more front end loader lift capacity, and independent  PTO, the G3033 gives you a lot more than a basic tractor, but at a basic tractor price.

The 12 forward x 12 reverse synchro shuttle transmission not only makes changing direction easier than non-shuttle competitors, but the additional operating speeds allow you to more precisely select the speed you need for all of your various applications. And with more front end loader lift capacity than the competition, you can carry heavier loads and get your work done more efficiently. The G3033’s independent  PTO allows you to engage and disengage the PTO without having to use the foot clutch or coming to a stop like with a live or transmission PTO. All this is why the G3033 enables you to work faster, more efficiently and with less operator fatigue.

  Features
Three Row  Spike Drag Harrow
Modern Stylish Design - This compact 4WD is ergonomically designed and stylish with its distinctive blue color.
Three Row  Spike Drag Harrow   Mitsubishi Tier 4 Interim Engine - fuel efficient engine delivers reliable performance.  Rubber engine mounts reduce operator platform vibration.

Easy Open One-Piece Hood - provides accessibility for easy maintenance.
Three Row  Spike Drag Harrow   Large Fuel Tank – 7.4 gallon capacity provides long operation times.
Three Row  Spike Drag Harrow   Synchro Shuttle Transmission Models – makes changing direction easier than competitive non-shuttle gear models.  12 forward / 12 reverse gear transmission provides more operating speeds than others in its class for superior control, precision and safe operations for virtually any application.
Three Row  Spike Drag Harrow   Hydrostatic Power Steering – makes turning easier, improves control and reduces fatigue.
Three Row  Spike Drag Harrow   Simple Selections - select your gear range or 2WD/4WD with simple move of the levers.
Three Row  Spike Drag Harrow

Ergonomically Designed 3-Point Hitch Controls - easily accessible for maximum comfort and convenience.
Three Row  Spike Drag Harrow   Adjustable Seat with Seat Belt - keeps you in a comfortable and safe position for maximum control.
Three Row  Spike Drag Harrow   3-Point Hitch - category 1 with a hitch lift capacity of 1,808 lbs. allows usage of a wide variety of implements.

Drawbar Standard – increases the usefulness of the tractor without the additional optional cost.



Three Row  Spike Drag Harrow   More Leg room with Side Mounted Gear Lever – maximizes space and makes getting on and off tractor easier.
Three Row  Spike Drag Harrow   Your Choice of Tires - choose industrial, Ag or turf tires at no additional cost; subject to dealer inventory.

Three Row  Spike Drag Harrow   Optional Quick Attach, Skid Steer Compatible Front End Loader - Remove or attach in moments.  With 1,600 lbs of lift capacity it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class.
Three Row  Spike Drag Harrow

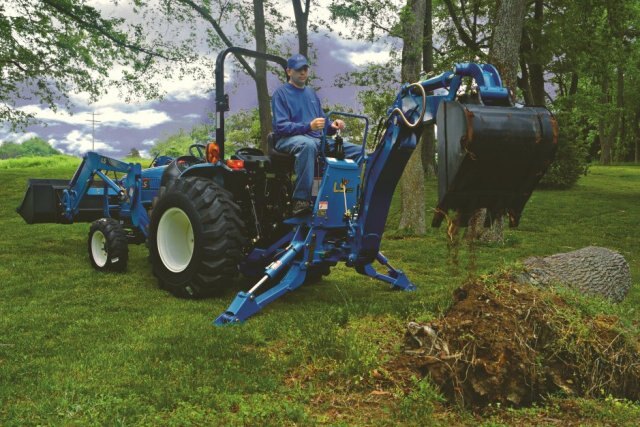

Optional Quick Attach Backhoe - remove or attach in seconds.  With 76” digging depth 2,817 lbs. of digging force and 180° swing arc, it outperforms other in its class.



Specifications
Model
G3033-33HP
Category Name
Tractors
Year
2014
Sale Type
New
Manufacturer
LS Tractor
Color
Blue
Fuel Tank Capacity Gal (lt)
7.4
Type
3-cylinder, Indirect – injection, Water-cooled
Model (Tier 4 Interim)
LS L3BL
Engine HP (Gross)
33
PTO HP
27
Rated Speed RPM
2600
Displacement
116.9
Alternator
12V - 50 Amps
No Of Speeds
12 forward / 12 reverse
Brakes
Wet, Multi Disc
Steering
Hydrostatic Power Steering
PTO Type
Independent
Rear PTO
Standard (540 rpm)
Implement Pump Gpm
7.4
Steering Pump Gpm
4.5
Total Flow Gpm
11.9
Category 3 Pt Hitch
CAT 1
Hitch Lift Capacity Lb
1808
Lift Control Type
Manual
Overall Length With 3pt
117.6''
Wheelbase
65.9''
Min Overall Width With AG Tires
41
Height To Top Of ROPS With Ag Tires In
90.2''
Ag Front Rear
7 - 14 / 11.2 - 24
Industrial Front Rear
25 x 8.5 - 14 / 43 x 16 - 20
Turf Front Rear
25 x 8.5 - 14 / 41 x 14 - 20
Total Weight Without Ballast Lbs
2590
