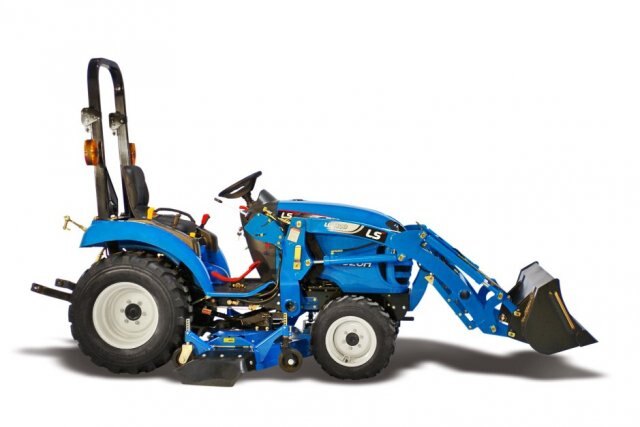

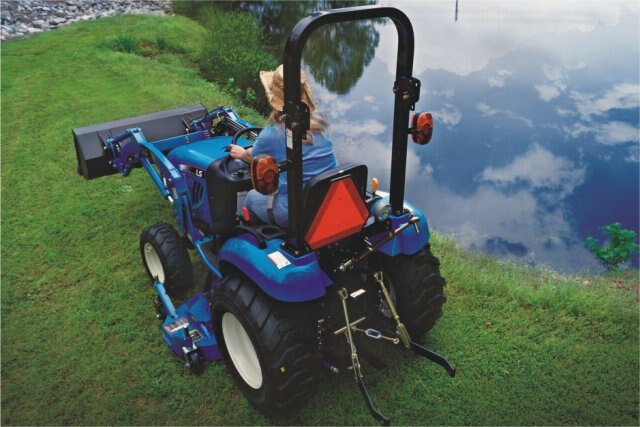

LS TRACTOR J2023H -23HP

  • LS TRACTOR J2023H 23HP
  • LS TRACTOR J2023H 23HP
  • LS TRACTOR J2023H 23HP
  • LS TRACTOR J2023H 23HP
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
When you’ve got real work to do but little space in which to do it, you need a tractor that’s big on performance yet small in size. The J2023H delivers what you need with superior performance and superb agility in a powerful, small chassis 4WD compact tractor.  The hydrostatic transmission allows you to control your speed and direction of travel with the easy to use dual forward and reverse pedals.  So you can keep your hands on the steering wheel, loader joystick or 3-point control levers while maneuvering in tight spaces. With more 3-point hitch lift capacity and loader lift capacity than similar sized competitive models, the J2023H allows you to carry heavier loads and get your work done faster and more efficiently.
  Features
Three Row Spike Drag Harrow
Modern Stylish Design – This small chassis compact 4WD is ergonomically designed and stylish with its distinctive blue color.
Three Row Spike Drag Harrow Mitsubishi Tier 4 Interim Engine - fuel efficient engine delivers reliable performance.  Rubber engine mounts reduce operator platform vibration.

Easy Open One-Piece Hood - provides accessibility for easy maintenance.
Three Row Spike Drag Harrow Large Fuel Tank - 6.6 gallon capacity provides long operation times.
Three Row Spike Drag Harrow Standard 2000 RPM Mid PTO
Three Row Spike Drag Harrow Hydrostatic Transmission - maximizes ease of use with effortless, clutch-less and instant speed and directional changes with a simple push of the pedal.
Three Row Spike Drag Harrow Simple Selections - select your gear range or 2WD/4WD with simple move of the levers.
Three Row Spike Drag Harrow Hydrostatic Power Steering - makes turning easier, improves control and reduces fatigue.
Three Row Spike Drag Harrow 3-Point Hitch - category 1 with a hitch lift capacity of 1,433 lbs. allows usage of a wide variety of implements.
Three Row Spike Drag Harrow

PTO On/Off Switch - turn the independent rear or mid PTO on or off with the simple and easy turn of a switch.

Ergonomically Designed 3-Point Hitch Controls - easily accessible for maximum comfort and convenience.
Three Row Spike Drag Harrow Adjustable Seat with Seat Belt - keeps you in a comfortable and safe position for maximum control.
Three Row Spike Drag Harrow Standard Foldable ROPS - allows storage in low clearance buildings or sheds.
Three Row Spike Drag Harrow Your Choice of Tires—choose industrial or turf tires at no additional cost; subject to dealer inventory.

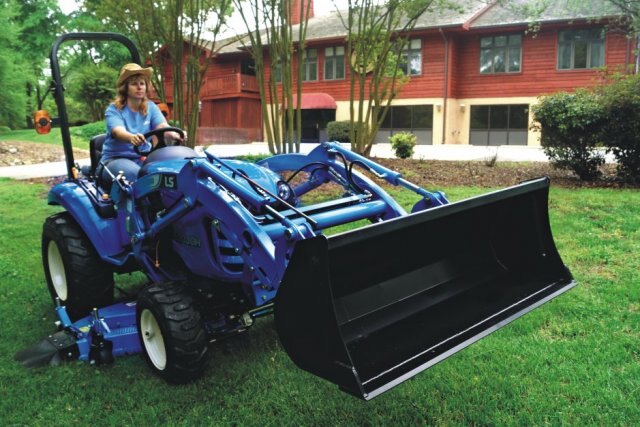

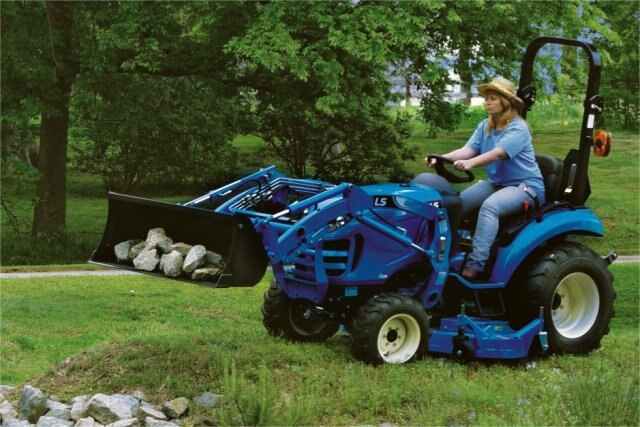

Three Row Spike Drag Harrow Optional Quick Attach Front End Loader - remove or attach in seconds.  With 1,270 lbs. of lift capacity it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class.
Three Row Spike Drag Harrow Optional Quick Attach Backhoe - remove or attach in seconds.  With 79.3” digging depth, 2,096 lbs. of digging force and 150⁰ swing arc,  it outperforms other in its class.



Specifications
Model
J2023H -23HP
Category Name
Tractors
Year
2014
Sale Type
New
Manufacturer
LS Tractor
Color
Blue
Wheel Base In (cm)
59''
Fuel Tank Capacity
6.6
PTO Horsepower(hp)
17.5
Engine Horsepower
23
Rated Speed(rpm)
2700
Transmission
Synchro shuttle
Displacement Cu In (l)
68.7
Alternator
12V - 50 Amps
Type
3-cylinder, Indirect-injection, Water-cooled
Weight
Total weight without ballast, lbs.: 1565
Engine Model (Tier 4 Interim)
Mitsubishi S3L, 3 cyl.
Engine HP (Gross)
23
Rated Speed RPM
2700
Brakes
Wet, Multi Disc
Steering
Hydrostatic Power Steering
Mid PTO
Standard (2000 rpm)
Rear PTO
Standard (540 rpm)
Implement Pump Gpm
6.4
Steering Pump Gpm
2.8
Total Flow Gpm
9.2
Lift Control Type
Manual Position
Overall Length With 3pt
103''
Min Overall Width With IND Tires
44.9''
Height To Top Of Rops
85''
Industrial Front Rear
23 x 8.5 - 12 / 33 x 12 – 16.5
Turf Front Rear
25 x 8.5 - 12 / 33 x 12 – 16.5
Engine Model Tier 4 Interim
Mitsubishi S3L, 3 cyl.
Engine HP Gross
23
Category 3 Pt Hitch
CAT 1
Hitch Lift Capacity Lb
1433
No Of Speeds
12 forward / 12 reverse
