Overview
Drill with Confidence

KUHN Krause 5200 PRO Series grain drills offer a range of sizes in both mounted, and trailed configurations, as well as models for no-till, conventional or minimum-till applications.
KUHN Krause 5200 grain drills deliver excellent seed placement for conventional or minimum-till conditions. Folding capabilities offer excellent transport dimensions, and the large capacities for seed and fertilizer provide efficient operation. The PRO Openers deliver seed and fertilizer at precise depth to ensure uniformity in seed-to-soil contact and proper emergence.

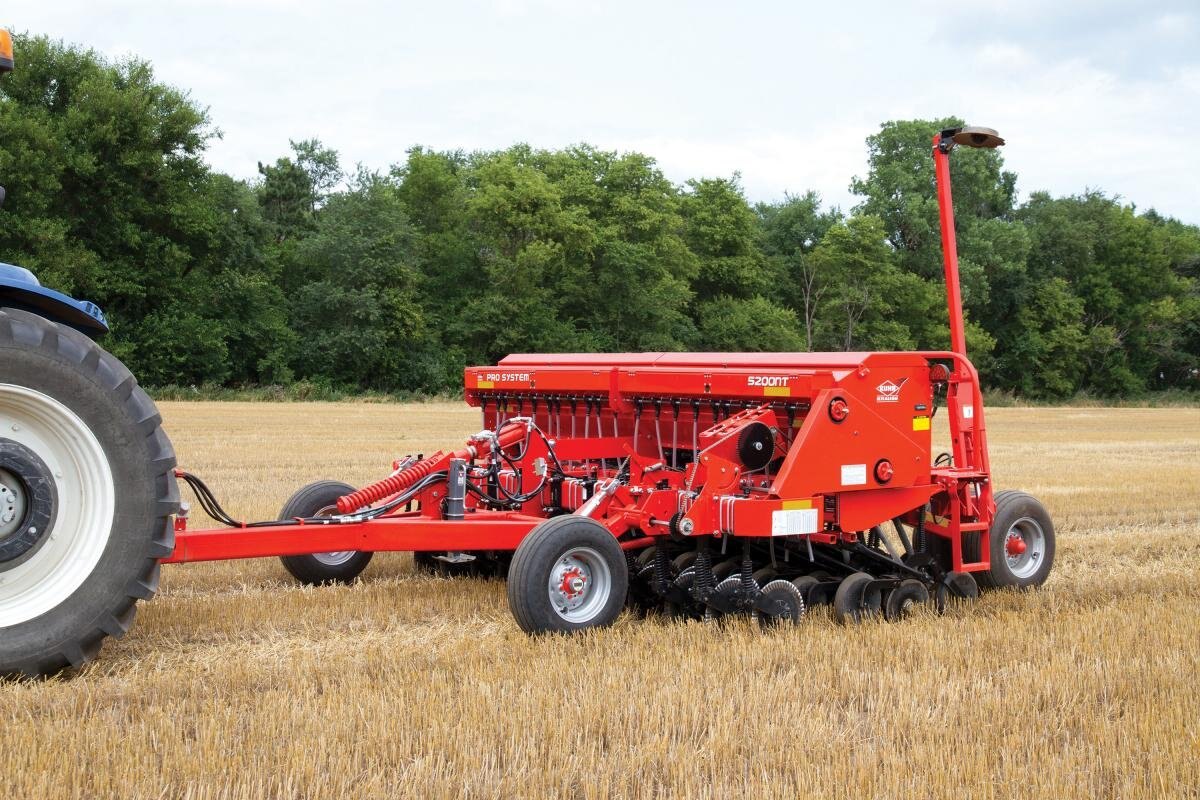

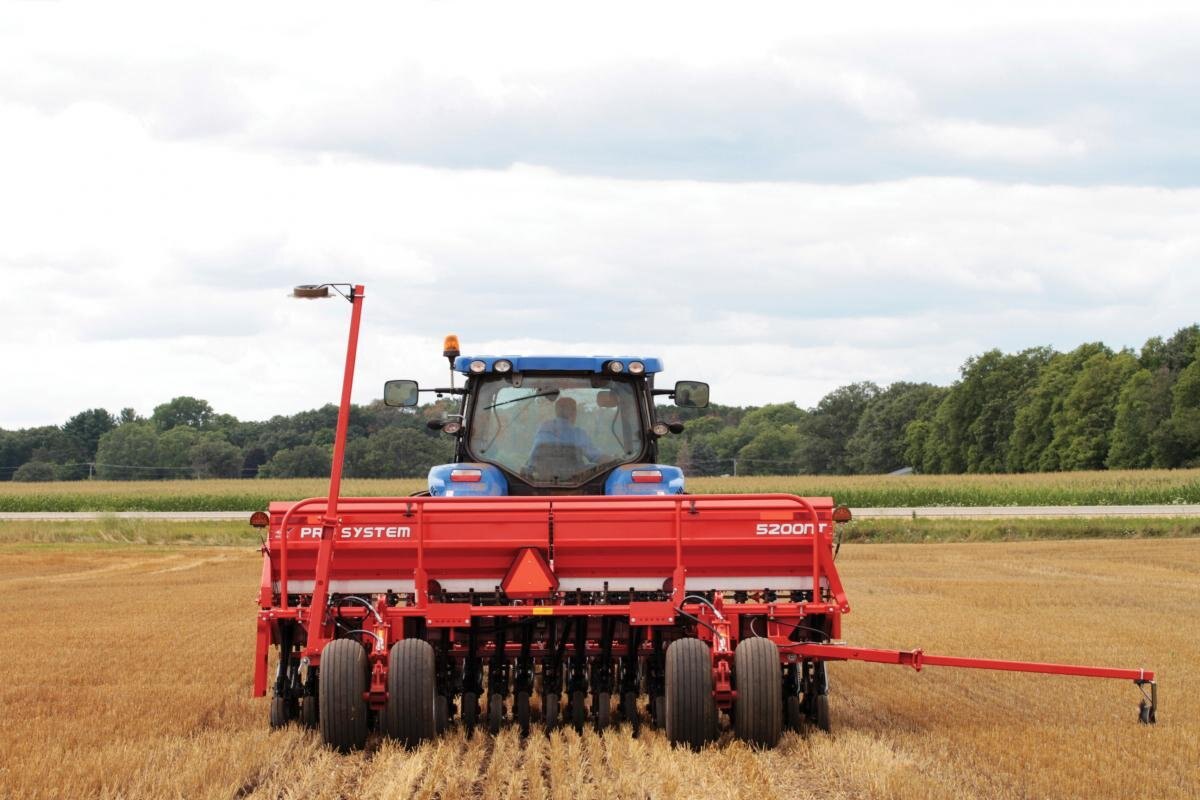

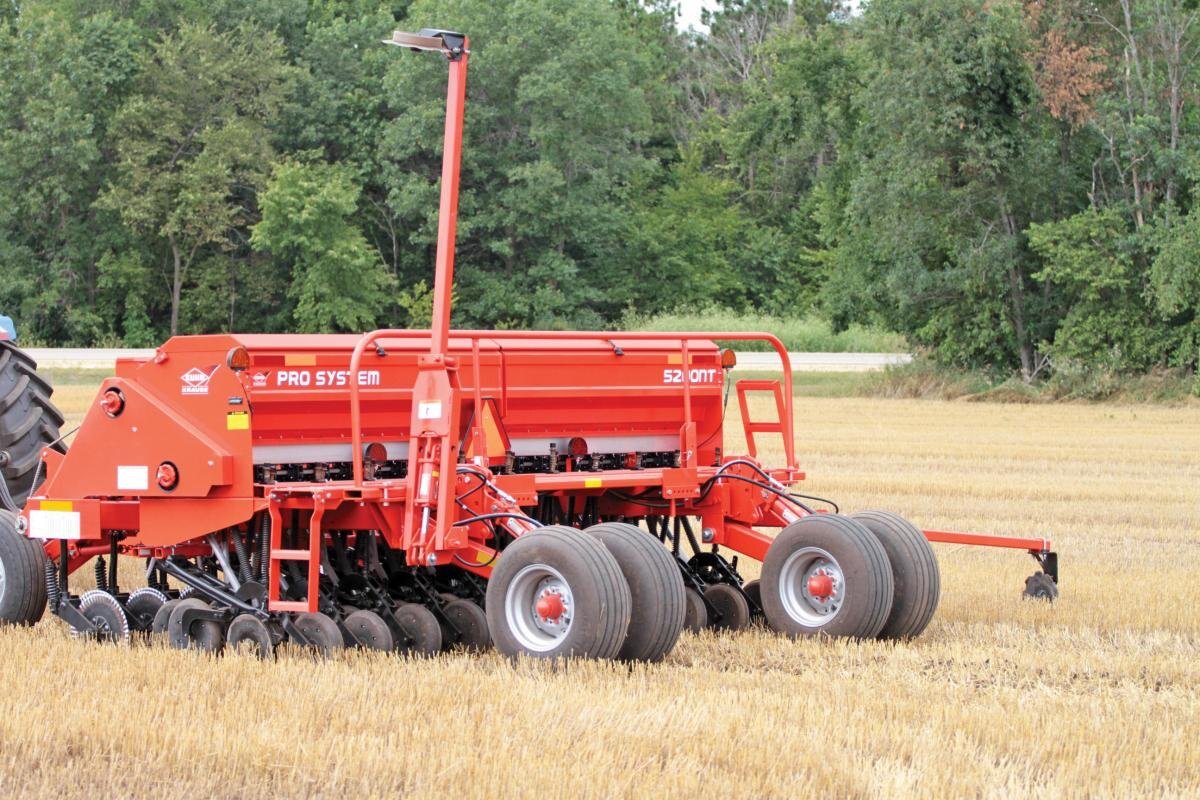

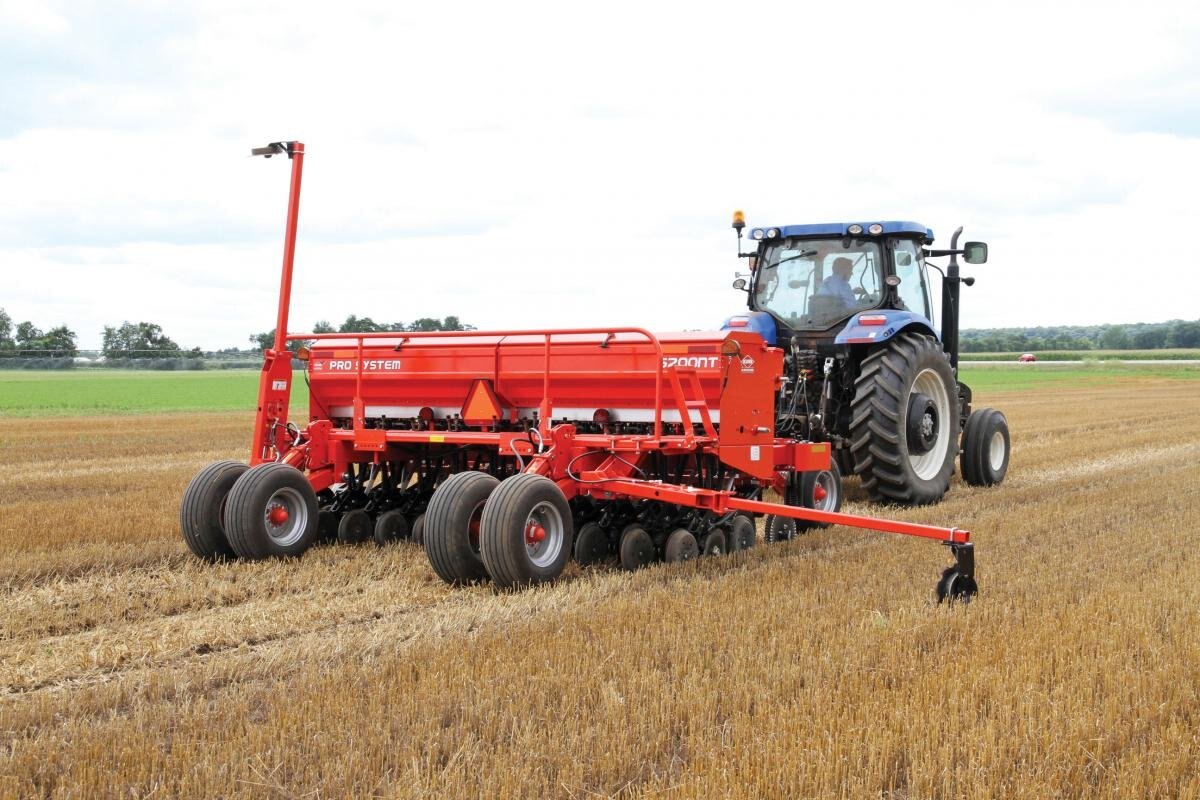

5200NT no-till grain drills deliver excellent seed placement for heavy residue conditions. The front coulters, through the use of hydraulic leverage from the tractor, provide indexed residue cutting for the PRO Openers. The PRO openers deliver seed and fertilizer at precise depth to ensure uniformity in seed-to-soil contact and proper emergence.
  benefits

Triplex logo Consistent Seed Depth


The integral leading gauge wheel simulates a walking tandem. It follows uneven terrain while placing seeds at a consistent depth, which is especially important for small seeded crops, like alfalfa.

Triplex logo

Fluted-Feed Seed Cups

5200 seed cups feature a fluted feed design. Large flutes allow slower shaft speeds resulting in greater seeding accuracy and gentle seed handling. An adjustable seed gate assures smooth seed flow with large or small seeds controlled by a seed rate adjustment knob on the end of the drill. Smooth plastic seed tubes prevent seed from bunching compared to corrugated rubber seed tubes.

Triplex logo

PRO – Precision Residue opener

PRO openers feature a 4” x 12” chevron tread depth gauge wheel or a 3” x 14” crowned depth gauge wheel on no-till drills. The PRO opener design accurately controls seeding depth while resisting plugging. The 13 ½“double disc openers with a 5/8” staggered leading edge cut through residue with ease, ensuring a consistent seed trench.

Triplex logo

HR PRO – High-Residue Precision Opener

HD PRO openers utilize a 3” x 14” crowned depth gauge wheel and one 16” notched and one 13 ½” disc for the opener with a 2 ½” staggered leading edge to enable excellent penetration in heavy residue conditions. The HR PRO system has 50% fewer pivot points compared to parallel link style openers while maintaining more accurate depth control.
 Equipment

Triplex logo Press Wheel Options


Four press wheel options are available: 2" x 13" smooth, 2" x 13" single ribbed, 3" x 13" single ribbed and 3" x 13" doubled ribbed. The 3" x 13" single-ribbed design is our most popular option and works well in a variety of soil conditions.

Triplex logoMarkers


All 5200 and 5200NT drills are available with an optional a marker arm with shear bolt protection. 3-point mounted drills utilize a 12” smooth marker disc while pull-type models have a 14” notched marker disc.



Specifications
Model
5200 Series
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
Kuhn
