ID # 13247404

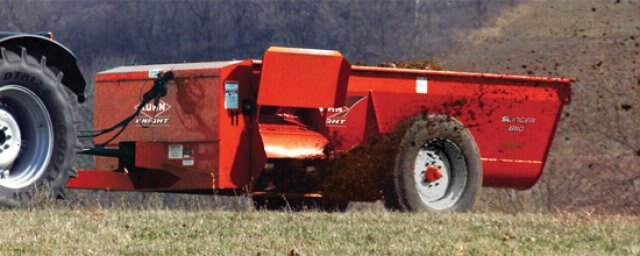

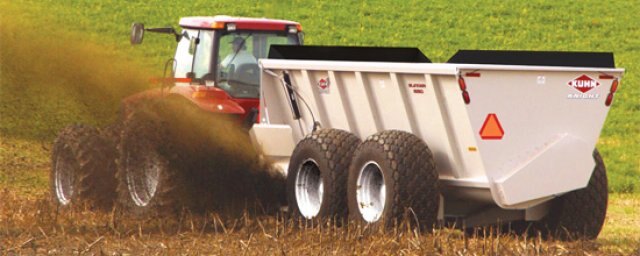

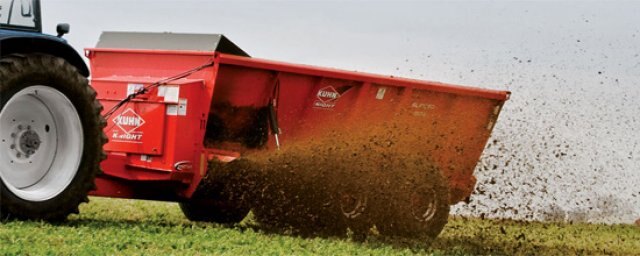

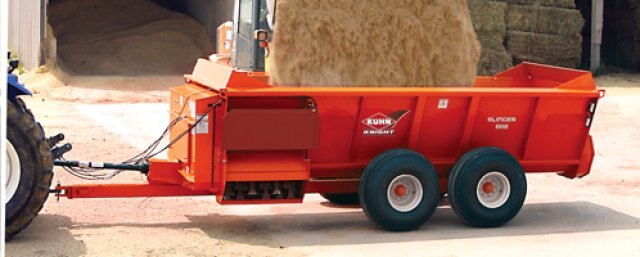

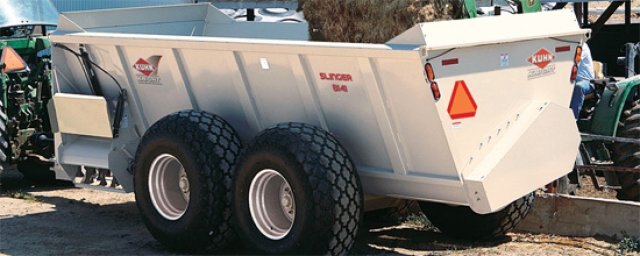

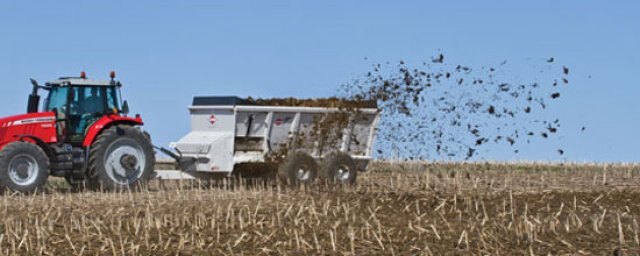

Kuhn Knight ProTwin Slinger Side-Discharge Spreaders

  • Kuhn Knight ProTwin Slinger Side Discharge Spreaders
  • Kuhn Knight ProTwin Slinger Side Discharge Spreaders
  • Kuhn Knight ProTwin Slinger Side Discharge Spreaders
  • Kuhn Knight ProTwin Slinger Side Discharge Spreaders
  • Kuhn Knight ProTwin Slinger Side Discharge Spreaders
  • Kuhn Knight ProTwin Slinger Side Discharge Spreaders
  • Kuhn Knight ProTwin Slinger Side Discharge Spreaders
  • Kuhn Knight ProTwin Slinger Side Discharge Spreaders
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Kuhn Knight is the leader in side-discharge spreaders, with over 30 years of experience. The ProTwin Slinger can spread the widest variety of materials, from solids to slurry, while providing an even and controlled spread pattern. This accurate application will continue to help you use the nutrient value of manure and help reduce purchased fertilizer costs.
  Features


  Specifications 8110 8114 8118 8124 8132 8141 8150 SLC 132 SLC 141 SLC 150
  Capacity (gallons) 871 1241 1818 2417 3251 4060 5000 5000 5000 5000
  Capacity - no extensions (m3) 3.3 5.4 6.9 9.15 12.3 15.4 18.9 18.9 18.9 18.9
  Capacity - no extensions (cu.ft) 116 165 242 323 435 543 668 668 668 668
  Auger diameter (left/right cm) 50 / 35 50 / 46 51 51 61 61 61 61 61 61
  Auger diameter (left/right inch) 20 / 14 20 / 18 20 20 24 24 24 24 24 24
  PTO speed (rpm) 540 540 540 / 1000 540 / 1000 CV-1000 CV-1000 CV-1000 CV-1000 CV-1000 CV-1000
  PTO protection Friction Clutch Friction Clutch Torque disconnect Torque disconnect Torque disconnect Torque disconnect Torque disconnect Torque disconnect Torque disconnect Torque disconnect
  Overall height (cm) 135 155 178 203 234 236 262 262 262 262
  Overall height (in) 53 61 69 79 92 93 103 103 103 103
  Overall width - without options (cm) 251 279 290 290 310 345 353 353 353 353
  Overall width - without options (in) 99 110 114 114 122 136 139 139 139 139
  Tread width (cm) 206 241 251.5 254 292 345 353 353 353 353
  Weight (kg) 1696 2087 3243 3538 4744.6 6957 8908.6 8908.6 8908.6 8908.6
  Weight (lb) 3740 4600 7150 7800 10460 15340 19640 19640 19640 19640
  Maximum load (kg) 4535 3810 8165 10886 14515 18143 22679.6 22679.6 22679.6 22679.6
  Maximum load (lb) 10000 15000 18000 24000 32000 40000 50000 50000 50000 50000
  Minimum power requirement for PTO (kW) 45 60 75 90 104 134 168 168 168 168
  Minimum power requirement for PTO (hp) 60 80 100 120 140 180 225 225 225 225
  Box type V-Type V-Type V-Type V-Type V-Type V-Type V-Type V-Type V-Type V-Type
  Overall length (cm) 541 622 696 696 696 818 823 823 823 823
  Overall length (in) 213 245 274 274 274 322 324 324 324 324
  Number of hammers 12 12 15 15 15 18 18 18 18 18



Specifications
Model
ProTwin Slinger
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Kuhn Knight
